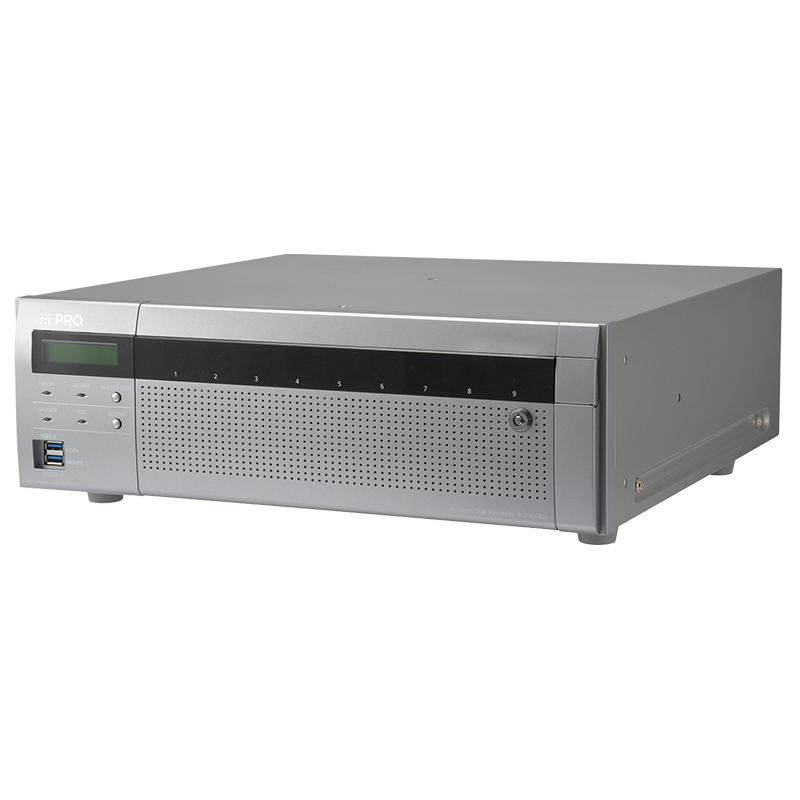

i-PRO WJ-NX400 Network Video Recorder

SKU: WJ-NX400K/G

View More Items from
i-PRO WJ-NX400 Network Video Recorder
i-PRO WJ-NX400 Network Video Recorder

Key Features

  • Supports H.265, H.264, and JPEG multi-format video compression
  • Robust embedded IP security for a secure end-to-end PC-less surveillance solution
  • Supports full data encryption for streaming and recording with all i-PRO Extreme cameras compliant with FIPS 140-2 Level 1 standards
SKU: WJ-NX400K/G
Availability: Available on backorder
10,000.00 AED
19,500.00 AED
10,000.00 AED
Tax excluded.
Subtotal: 10,000.00
10 customers are viewing this product
i-PRO WJ-NX400 Network Video Recorder

i-PRO WJ-NX400 Network Video Recorder

19,500.00 10,000.00
i-PRO WJ-NX400 Network Video Recorder

i-PRO WJ-NX400 Network Video Recorder

19,500.00 10,000.00
Description
Description
x

The i-PRO WJ-NX400 Network Video Recorder (NVR) is a powerful enterprise-grade surveillance solution designed for businesses that require secure, high-capacity video recording. Supporting 64 IP cameras with expansion up to 128 channels, it is ideal for commercial buildings, healthcare facilities, educational institutions, retail stores, warehouses, and large security installations.

Featuring support for H.265, H.264, and JPEG compression, the WJ-NX400 delivers efficient storage without compromising video quality. Its 640 Mbps throughput, 4K HDMI output, and built-in user interface provide smooth live monitoring and playback, while advanced cybersecurity features protect your surveillance system with encrypted data transmission and embedded IP security.

With nine internal drive bays, RAID 5/6 support, and storage expansion up to 324TB, this professional NVR is built for continuous recording and long-term reliability. Automatic camera configuration, redundant failover recording, and NAS backup compatibility make it an excellent choice for mission-critical surveillance environments.

Complete your security system by exploring our i-PRO Cameras, i-PRO Network Video Recorders (NVRs) and Video Surveillance Accessories.

Frequently Asked Questions

How many cameras can the i-PRO WJ-NX400 support?

The WJ-NX400 supports 64 IP cameras and can be expanded to 128 channels for larger surveillance systems.

Does this NVR support H.265 video recording?

Yes. It supports H.265, H.264, and JPEG formats for efficient storage and high-quality video recording.

Is the WJ-NX400 suitable for enterprise surveillance?

Yes. It is designed for enterprise, commercial, retail, healthcare, education, and government security applications.

What storage options are available?

The recorder features nine internal drive bays, supports RAID 5/6, and can be expanded to 324TB of storage capacity.

Does the WJ-NX400 provide secure video recording?

Yes. It includes embedded IP security, encrypted data transmission, DigiCert device certificates, and redundant recording features to help protect surveillance data.

Read more
Specs
Specs
x
Compatible Vendor i-PRO series Network cameras, ONVIF NVT conformant camera and encoder
Supported Image Format H.265(HEVC), H.264, JPEG
Supported Image Resolution ?Aspect ratio [4 : 3] 4,000x3,000, 2,560x1,920, 2,048x1,536, 1,280x960, 800x600, 640x480 ?Aspect ratio [16 : 9] 3,840x2,160, 2,560x1,440, 1,920x1,080, 1,280x720, 640x360 ?Aspect ratio [1 : 1] 2,992x2,992, 2,816x2,816, 2,048x2,048, 1,280x1,280 ?Aspect ratio [9 : 16] 1080x1920, 720x1280, 360x640
Supported Audio Format G.711 for Onvif, G.726 (ADPCM) 32 kbps
Maximum Number of Cameras MAX. 128 (Default number of cameras : 64)
Recording Mode Event, Schedule, Emergency
Pre-Alarm Recording Up to 15 seconds *When the delivery speed from the network camera is less than 3 Mbps.
Sub-Stream Recording 768 kbps (fixed data size)
Scheduled Recording Mode 16 programs, 3 time zones/day, Independent setup for each day of the week
Frame Rate/Camera Up to 60 ips (Depending on the camera)
Camera Control Pan/Tilt, Zoom, Focus, Brightness, Preset position call and program (up to 256), Auto mode, Click centering, Wheel zoom, Zoom reset, Auto Back Focus, Aux, Wiper (for WV-SUD638)
Multiscreen Mode [Main monitor] ?Control screen 4 / 9 / 16 split screen display ?Wide view screen 3 / 4 / 6 / 9 / 12 / 16 / 24 / 32 / 64 split screen display, 1 screen sequence, 4 / 9 / 16 split screen sequence [Sub monitor] 9 / 16 / 32 split screen display, 1 screen sequence, 4 / 9 / 16 split screen sequence
Playback Control Play, Rev Play, Pause, FF, FR, Prev Record, Next Record, Prev Image, Next Image
Search Mode Search criteria : Time date, Playback by designating a timeline, VMD, Thumbnail
Copy Recorded data of selected cameras and time date range can be copied to the USB storage.
Camera Title Up to 16 Characters
Clock Display Time : 12H/24H, Date : 5 formats
Digital Zoom Live/Play : 2x, 4x (only for 1-screen)
System Log Operator access (500), Network error (100), Error (1,000), Event (1000), Operation (500)
System Setup Setup page in English, French, Italian, Spanish, German, Russian, Portuguese, Thai, Simplified Chinese, Japanese
360 Camera Dewarp Only 1ch display mode
Re-Encoding 2Client *Only when 64 ch mode
Image Download Recorded data of selected camera and time range can be downloaded to a PC. Viewer software can be downloaded separately.
SD Memory Data Download Images recorded in the SD card in the i-PRO series cameras can be transferred to the recorder automatically. (H.265/H.264)
GUI Language Setup page in English, French, Italian, Spanish, German, Russian,Portuguese, Thai, Simplified Chinese, Japanese
Required PC CPU : IntelR Core. i7-860 or faster , RAM : 4 GB or more, VRAM : 128 MB or more (Min. 64 MB), MicrosoftR DirectXR 9.0c or later
Alarm Source 32x Terminal inputs, 128x Camera alarms (i-PRO Alarm Protocol), 128x Command alarms
Event Mode Off / On
Alarm Action Alarm recording, e-mail notification, Alarm message, Camera positioning, Terminal output, i-PRO alarm protocol output, Buzzer, Indicator
Event Log 1000
Spot Output Connector 1x 1 V [p-p] / 75 ? (BNC) NTSC /PAL (selectable in setup menu)
Monitor (HDMI) Connector [Main monitor] HDMI 4K UHD(3840x2160p)/30Hz, 4K UHD(3840x2160p)/25Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1920x1080i /60Hz, 1920x1080i /50Hz, 720x576p /50Hz, 720x480p /60Hz [Sub monitor] HDMI 1920x1080p /60Hz, 1920x1080p /50Hz, 1920x1080i /60Hz, 1920x1080i /50Hz, 720x576p /50Hz, 720x480p /60Hz
Audio Output Connector -10 dBv, 600 ?, unbalanced x1 (RCA pin jack)
Alarm IO Alarm input 1 - 32, Alarm output, Alarm reset input 1 – 4
Control IO Time adjustment input, 2x +5 V output
Error/Warning IO Network error output, HDD error output, Camera error output, Recorder error output, Recording error output, Emergency recording input, Outage detection input, External recording mode switching input, Outage processing end output
Mouse Connection Port 2 (Front 1, Rear 1)
Network Port 2x 10BASE-T / 100BASE-TX / 1000BASE-T (RJ45)
USB Storage USB 3.0 / USB 2.0 memory, USB 3.0 / USB 2.0 connected HDD (except bus powered device)
External Storage 5x WJ-HXE400
Network Interface 2x 10BASE-T / 100BASE-TX / 1000BASE-T (RJ45)
Maintenance Network Port 1x 10BASE-T / 100BASE-TX (RJ45)
Maximum Recording Rate 384 Mbps or less
Maximum Band Width Total 640 Mbps or less
Supported Protocol IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, FTP, SMTP, DNS, NTP, SNMP, RTP, RTSP, ICMP, ARP IPv6 : ICMPv6
E-mail Upon Alarm or Warning
No. of Simultaneous Users 16 or less
User Registration Up to 32 users
User Level 3 Levels (Programmable)
Partitioning User level - Camera (View & Control, No Access)
Security Method User authentication (ID and Password), Host authentication, Alteration detection, SSL/TLS
Time Synchronization Terminal (Slave), NTP (Server/Client)
Summer Time User definable (using menu setup)
Remote Monitoring on Smartphone/Tablet 2Client
HDD Type WJ-NX400 : 8.89 cm (3.5 inch) Serial ATA HDD, Up to 9x HDDs can be installed.
Maximum Capacity 54 HDD slots (with 5x WJ-HXE400 Extension Units, 9x HDDs installed in each unit) Up to 6 TB will be supported.
RAID (Hardware RAID) Single, RAID1, 5, 6
Additional Functions Alteration detection, Save as JPEG, Two times zoom, Print, Copy
Supported OS, Language Language of the software will be English or Japanese
Safety/EMC Standard WJ-NX400K : UL (UL60065), FCC (Part15 ClassA), C-UL (CAN/CSA C22.2 No.60065),DOC (ICES003 ClassA) WJ-NX400K/G : CE (EN60065, EN55032 ClassB, EN55024), EAC
Power Source WJ-NX400K : 120 V AC 60 Hz / WJ-NX400K/G : 220 V - 240 V AC 50 Hz/60 Hz
Power Consumption approx. 125 W (with 6 TB HDD x9)
Ambient Operating Temperature Main body : +5 °C to +45 °C (41 °F to 113 °F) Mouse (provided) : +5 °C to +40 °C (41 °F to 104 °F)
Ambient Operating Humidity 5 % to 90 % (without condensation)
Maximum Operating Altitude 2,000 m (6,562 feet) above sea level
Dimensions 430 mm (W) x 132 mm (H) x 400 mm (D) {16-15/16 inches (W) x 5-3/16 inches (H) x 5-12/16 inches (D)}
Mass (Approx.) When no HDD is installed : 11.5 kg {25.4 lbs} / When 9 HDDs aer installed : 20 kg {44.1 lbs}
