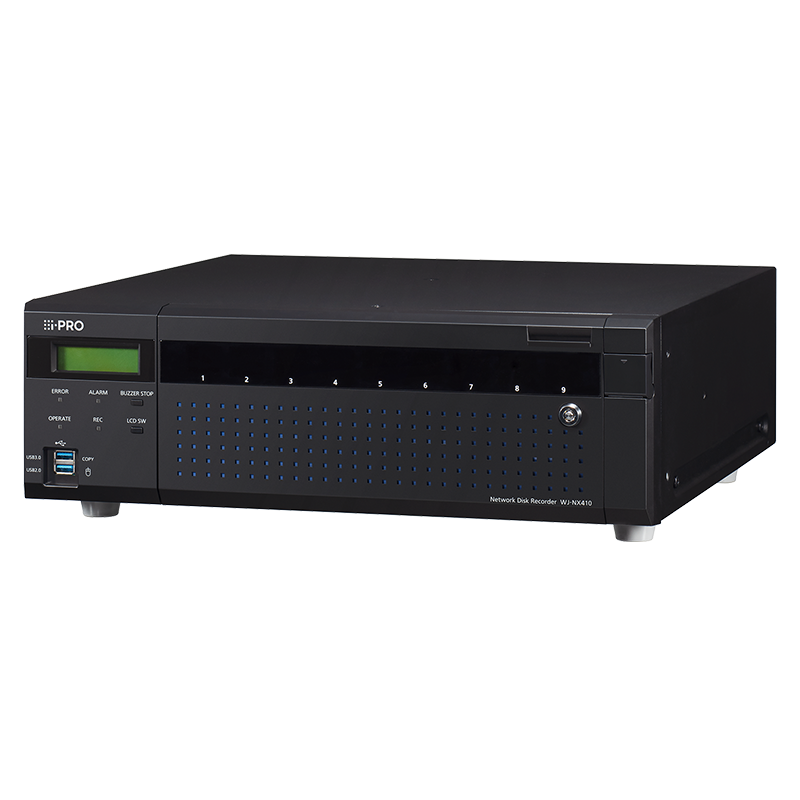

i-PRO WJ-NX410KG 32-Channel NVR
SKU: WJ-NX410KG
Key Features
- 32/64-Channel H.265 Network Video Recorder
- Supports up to 1,296 TB HDD Storage
- High-Security and High-Connectivity Design
- NDAA Compliant with Intel® CPU
- FIPS 140-2 Level 3 Certified Secure Element
- Remote Monitoring Support
- 22,695.00 AED
- 22,695.00 AED
- Unit price
- per
Description
xThe i-PRO WJ-NX410KG 32-Channel NVR is a high-security network video recorder designed for professional surveillance environments. It supports up to 64 network cameras, with 32 channels enabled by default, and is compatible with i-PRO network cameras as well as ONVIF-compliant cameras and encoders.
The recorder supports H.265, H.264 and JPEG video formats and recording rates of up to 384 Mbps. It provides flexible recording options including scheduled, event, emergency and pre-event recording, with support for frame rates up to 60 fps depending on the connected camera.
For storage, the WJ-NX410KG features nine 3.5-inch HDD slots and supports hardware RAID 1, RAID 5 and RAID 6. Additional storage can be expanded using compatible i-PRO HDD extension units. The recorder is supplied without HDDs, allowing storage to be configured according to the requirements of the surveillance system.
Security is a major focus, with NDAA compliance, an Intel® CPU and a FIPS 140-2 Level 3 certified secure element. It also supports user authentication, host authentication, SSL/TLS and data encryption when used with the compatible Secure Communication Kit.
The WJ-NX410KG provides 4K UHD HDMI output, multiple Gigabit Ethernet ports, USB connectivity and remote monitoring through PC and mobile applications. It can support remote access to multiple i-PRO NX and NU series NVRs, making it suitable for larger surveillance installations.
For more professional surveillance solutions, explore Systec's i-PRO security products, NVRs, and network surveillance equipment.
Frequently Asked Questions
How many cameras can the i-PRO WJ-NX410KG support?
The WJ-NX410KG supports up to 64 network cameras, with 32 channels enabled by default. A compatible camera extension kit can expand the system from 32 to 64 channels.
Does the WJ-NX410KG include hard drives?
No. The NVR is supplied without HDDs. It supports up to nine 3.5-inch HDDs, allowing storage capacity to be configured according to your surveillance requirements.
Does the WJ-NX410KG support 4K cameras?
Yes. The NVR supports 4K UHD camera resolutions and provides HDMI output for 4K UHD monitoring at supported refresh rates.
What RAID configurations does the WJ-NX410KG support?
The WJ-NX410KG supports hardware RAID 1, RAID 5 and RAID 6 for improved data protection and storage reliability.
Can the WJ-NX410KG be monitored remotely?
Yes. The NVR supports remote monitoring through compatible PC and mobile applications, allowing users to access and manage supported i-PRO surveillance systems remotely.
In the Box
x- i-PRO WJ-NX410KG 32-Channel NVR
- Mouse
- Power Cord
- Installation Guide
Specs
xSupported Camera
| Compatible Vendor | i-PRO series network cameras, ONVIF NVT conformant cameras and encoders |
|---|---|
| Supported Image Format | H.265 (HEVC), H.264, JPEG |
| Supported Image Resolution |
4:3: 3072x2304, 2560x1920, 2048x1536, 1600x1200, 1280x960, 800x600, 640x480 16:9: 3840x2160, 3328x1872, 3072x1728, 2688x1520, 2560x1440, 1920x1080, 1280x720, 640x360 1:1: 2992x2992, 2816x2816, 2192x2192, 2048x2048, 1440x1440, 1280x1280, 1200x1200 9:16: 2160x3840, 1872x3328, 1728x3072, 1520x2688, 1440x2560, 1080x1920, 720x1280, 360x640 |
| Supported Audio Format | AAC-LC, G.711 for ONVIF |
| Maximum Number of Cameras | 64 cameras maximum; 32 cameras by default |
Recording
| Recording Mode | Event, Schedule, Emergency, Pre-event recording |
|---|---|
| Pre-Alarm Recording | Up to 15 seconds when the delivery speed from the network camera is less than 4 Mbps |
| Scheduled Recording Mode | 16 programs, 6 time zones per day, independent setup for each day of the week |
| Frame Rate | Up to 60 fps, depending on the camera |
Main Unit Functions
| Camera Control | Pan/Tilt, Zoom, Focus, Brightness, Preset position call and programming up to 256, Auto mode, Click centering, Wheel zoom, Zoom reset, Auto Back Focus, Aux, Wiper for WV-SUD638, Active ClearSight |
|---|---|
| Multiscreen Mode |
Main monitor: 4/9/16 split control screen; 2/3/4/5/6/7/9/12/16/24/32/64 split wide view screen; 1-screen sequence; 4/9/16 split screen sequence Sub monitor: 1/4/9/16/32 split screen display; 1-screen sequence; 4/9/16 split screen sequence |
| Playback Control | PLAY, Rev PLAY, Pause, Stop, FF, FR, Previous Record, Next Record, Previous Image, Next Image, Go to Date, Go to Last, Time-saving playback |
| Search Mode | Time/date, playback by timeline, thumbnail |
| Copy | Original Format or MP4; recorded data from selected cameras and date/time ranges can be copied to USB storage |
| Camera Title | Up to 16 characters |
| Clock Display | 12H/24H time; 5 date formats |
| Digital Zoom | 1.25x, 1.5x, 1.75x, 2x, 2.5x, 3x, 3.5x, 4x, 5x, 6x, 7x and 8x in live/playback mode; available in 1-screen or 4-screen mode |
| System Log | Operator access: 500; Network error: 100; Error: 1,000; Event: 1,000; Operation: 500 |
| System Setup Language | English, French, Italian, Spanish, German, Portuguese, Thai, Vietnamese, Simplified Chinese, Traditional Chinese and Japanese |
| 360 Camera Dewarp | 1-channel display mode only; 1-Screen PTZ and 4-Screen PTZ |
| Re-Encoding | 2 clients |
| SD Memory Data Download | Images recorded on SD cards in i-PRO series cameras can be transferred automatically to the recorder; H.265/H.264 |
| User Registration | Up to 32 users |
| User Level | 3 programmable levels |
| Partitioning | User level and camera access: View & Control, View Only, No Access |
| Security Method | User authentication with ID and password, host authentication, SSL/TLS, data encryption when using the Secure Communication Kit |
Web Browser
| Camera Control | Pan/Tilt, Zoom, Focus, Brightness, Preset position call and programming up to 256, Auto mode, Click centering, Wheel zoom, Zoom reset, Aux, Wiper for WV-SUD638, Active ClearSight |
|---|---|
| Playback Control | PLAY, Rev PLAY, Pause, Stop, FF, FR, Previous Record, Next Record, Previous Image, Next Image, Go to Date, Go to Last |
| Search Mode | Time/date, event type, VMD and camera number |
| Display Mode | 1 screen |
| Image Download | Original Format or MP4; selected camera recordings and time ranges can be downloaded to a PC; viewer software available separately |
| Camera Title | Up to 16 characters |
| Clock Display | 12H/24H time; 5 date formats |
| Alarm Control | Reset |
| GUI Language | English, French, German, Italian, Spanish, Portuguese, Thai, Vietnamese, Simplified Chinese, Traditional Chinese and Japanese |
| Required PC | Intel Core i7-860 or faster, 4 GB RAM or more, VRAM 128 MB or more with 64 MB minimum, Microsoft DirectX 9.0c or later |
Alarm/Event
| Alarm Source | 32 terminal inputs, 64 camera alarms via TCP alarm notification, 128 command alarms |
|---|---|
| Event Mode | Off or On with Recording & Alarm Action or Recording Only |
| Alarm Action | Alarm recording, email notification, alarm message, camera positioning, terminal output, TCP alarm notification, HTTP alarm notification, buzzer and indicator |
| Alarm Control | Reset |
| Event Log | Up to 1,000 |
Input/Output
| Monitor HDMI Connector |
Main monitor: HDMI 4K UHD 3840x2160p/30Hz, 3840x2160p/25Hz, 1920x1080p/60Hz, 1920x1080p/50Hz Sub monitor: HDMI 4K UHD 3840x2160p/30Hz, 3840x2160p/25Hz, 1920x1080p/60Hz, 1920x1080p/50Hz |
|---|---|
| Audio Output Connector | None |
| Alarm I/O | 32 alarm inputs, 4 alarm outputs |
| Control I/O | Network error output, alarm reset input, emergency recording input, power failure detection input, external recording mode switching input, HDD error/recording error output, camera error output, device error output, recorder error output, power failure processing completion output, +5V output at 200mA, spare input/output x5 |
| Mouse Connection Port | 1 x USB 2.0 compliant port on front; DC 5V/500mA with over-current limitation |
| Camera/PC Network Port | 2 x 10BASE-T/100BASE-TX/1000BASE-T RJ45 |
| Maintenance Network Port | 1 x 10BASE-T/100BASE-TX |
| USB Storage | Front: USB 3.0/2.0 stick or self-powered HDD; Rear: USB 3.0/2.0 stick or self-powered HDD, and USB 3.0/2.0 SSD including self-powered and bus-powered devices |
Network
| Maximum Recording Rate | 384 Mbps |
|---|---|
| Maximum Bandwidth | 640 Mbps or less total |
| Supported Protocol |
IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, SMTP, DNS, NTP, SNMP, RTP, RTSP, ICMP, ARP IPv6: ICMPv6 |
| Upon alarm or warning | |
| Number of Simultaneous Users | 16 or fewer |
Other Functions
| Time Synchronization | NTP server/client |
|---|---|
| Summer Time | User definable through menu setup |
| Remote Monitoring on Smartphone/Tablet | Supports up to 1,000 cameras; PC and mobile app provide access to multiple NU series and NX series NVRs |
HDD
| HDD | Not installed; HDD canister supports up to 9 x 3.5" drives |
|---|---|
| HDD Extension Unit | Up to 5 x WJ-HXE410 or WJ-HXE400 can be attached; contact dealer when using WJ-HXE400 |
| Maximum Capacity | Up to 24 TB, subject to the HDD compatibility chart |
| RAID | Hardware RAID: RAID 1, RAID 5 and RAID 6 |
Viewer Software
| Playback Control | Play, Rev Play, Pause, FF, FR, Previous Record, Next Record, Previous Image, Next Image |
|---|---|
| Additional Functions | Alteration detection, Save as JPEG, 2x zoom, Print, Copy, aspect ratio switching, fisheye correction and corridor display |
| Supported Language | English, Japanese |
Extension Software
| Camera Extension Kit | WJ-NXE42W, 32-channel to 64-channel expansion |
|---|---|
| Business Intelligence Kit | Not available |
| Secure Communication Kit | WJ-NXS01W, WJ-NXS04W, WJ-NXS16W, WJ-NXS32W |
General
| Safety/EMC Standard | DEMKO IEC62368-1, CE/UKCA EN55032/EN55035 |
|---|---|
| Power Source | AC 100-240V ±10%, 50Hz/60Hz |
| Power Consumption | 145W, 150VA |
| Ambient Operating Temperature | 0°C to 45°C / 32°F to 113°F for NVR; 5°C to 40°C / 41°F to 104°F for mouse |
| Ambient Operating Humidity | 5% to 90%, non-condensing |
| Maximum Operating Altitude | 2,000 m / 6,562 ft above sea level |
| Finish | Front Panel: Plastic, Powder Coating; Top Cover: SECC, Powder Coating; Rear Panel: SECC |
