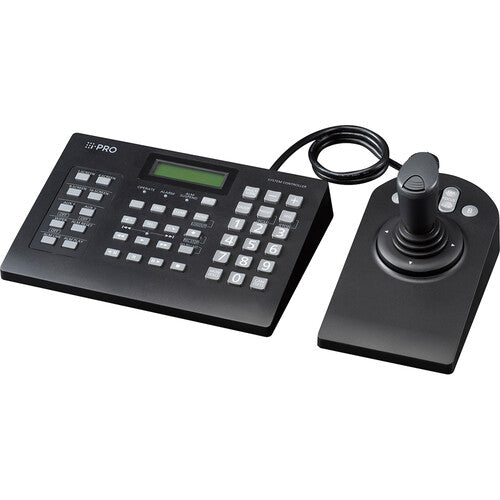

i-PRO WV-CU980 Ethernet 3D Joystick System Controller
SKU: WV-CU980/G
Key Features
- Compact design and flexible installation in the desired location
- Separable main unit and joystick for flexible control table placement
- Ethernet connectivity for installation away from a PC
- Intuitive joystick control for smooth Pan/Tilt and Zoom operation
- Ergonomic key layout and angle for easy blind touch operation
- Separable joystick design supports both left- and right-handed operation
- Dedicated Record and Play buttons for smooth recorder control
- Integrated system control for efficient PTZ camera operation
- 6,675.00 AED
- 6,675.00 AED
- Unit price
- per
Description
xThe i-PRO WV-CU980 Ethernet 3D Joystick System Controller is a professional control solution designed for intuitive operation of PTZ cameras, monitoring systems, and compatible recorders. Its ergonomic design and dedicated controls provide efficient management for surveillance and video production environments.
The detachable 3D joystick provides precise Pan, Tilt and Zoom control, making it easy to track subjects and operate PTZ cameras smoothly. Focus, iris, presets, auxiliary functions and wiper controls can also be accessed directly from the controller.
The main unit and joystick can be separated, allowing flexible placement on a control desk and comfortable operation for both left- and right-handed users. The controller also features Ethernet connectivity, allowing it to be installed away from a PC while supporting network-based system control.
Dedicated recorder controls provide quick access to Record, Play, Pause, Stop, Fast Forward, Rewind, Previous/Next Record and Previous/Next Image functions. The WV-CU980 supports up to 16 users and is compatible with management software including WV-ASM300 and Video Insight VMS Software.
For more professional surveillance and camera control equipment, explore Systec's PTZ Cameras, Camera Controllers, and Video Surveillance collections.
Frequently Asked Questions
What is the i-PRO WV-CU980 used for?
The WV-CU980 is an Ethernet-based system controller designed for operating PTZ cameras, monitoring functions, and compatible recorders.
Does the WV-CU980 have a 3D joystick?
Yes. It features a detachable joystick for intuitive Pan, Tilt and Zoom control, allowing operators to smoothly track subjects.
Can the joystick and main unit be separated?
Yes. The main unit and joystick can be separated, allowing them to be positioned independently on a control table.
Does the WV-CU980 support Ethernet connectivity?
Yes. It features a 10Base-T/100Base-TX Ethernet port with an RJ45 connector and supports IPv4 TCP/IP connectivity.
Which software is compatible with the WV-CU980?
The controller supports WV-ASM300 and Video Insight VMS Software for compatible management and surveillance systems.
In the Box
x- i-PRO WV-CU980 Ethernet 3D Joystick System Controller
- Joystick Unit
- AC Adapter
Specs
x| Monitoring Control | Screen Patterns: Sequence, Group, 1 Screen, 4 Screens, 9 Screens, 16 Screens |
|---|---|
| Camera Control | Focus, Iris, Zoom, Pan, Tilt, Preset, Aux (x2), Wiper |
| Recorder Control | REC, PLAY, Pause, Stop, FF, FR, Previous Record, Next Record, Previous Image, Next Image, Go to Last |
| Supported Management Software | WV-ASM300, Video Insight VMS Software |
| Maximum Number of Users | 16 |
| Safety / EMC Standard | WV-CU980: UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), FCC (Part 15 Class A), ICES003 Class A WV-CU980/G: CE, IEC60950-1, EN55032 Class B, EN55024 |
| Power Source and Power Consumption | DC 12 V, 250 mA, Approx. 3 W |
| Ethernet Port | 10Base-T / 100Base-TX, RJ45 Connector |
| Supported Protocol | IPv4: TCP/IP |
| Ambient Operating Temperature | 0°C to +50°C / 32°F to +122°F |
| Dimensions | Main Unit: 237 (W) x 45 (H) x 173 (D) mm / 9-11/32 (W) x 1-25/32 (H) x 6-13/16 (D) inches Joystick Unit: 113 (W) x 121 (H) x 206 (D) mm / 4-7/16 (W) x 4-25/32 (H) x 8-1/8 (D) inches |
| Weight (Without AC Adapter) | Main Unit: 0.84 kg / 1.85 lbs Joystick Unit: 0.64 kg / 1.41 lbs |
