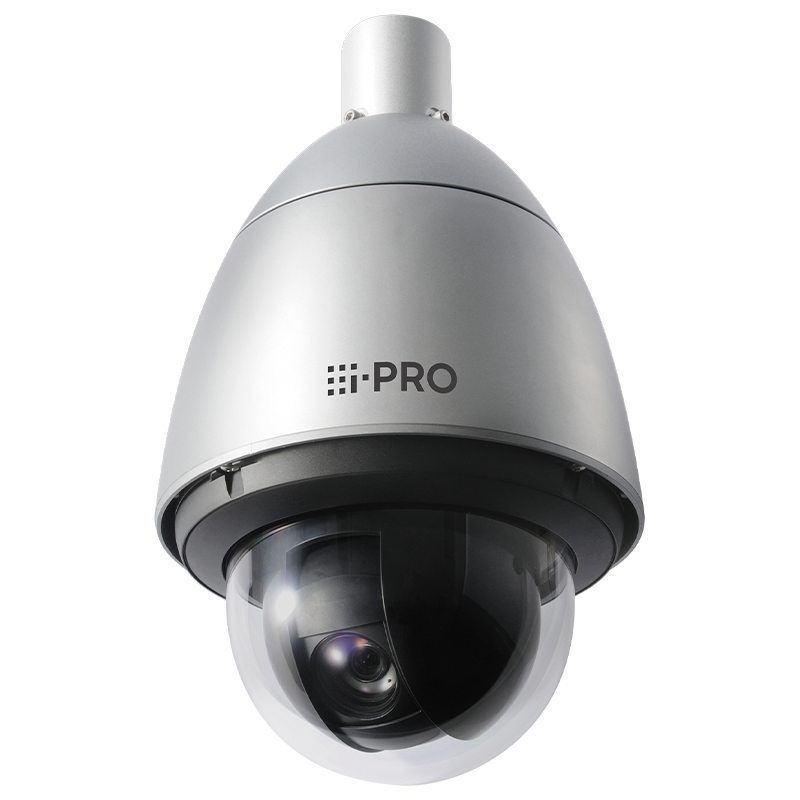

i-PRO WV-S6530N 2MP H.265 Outdoor PTZ dome network camera with iA
SKU: WV-S6530N
Key Features
- Full-HD 1920x1080 up to 60fps
- ClearSight Coating
- Durable Pan/Tilt gear mechanism
- iA (intelligent Auto)
- Extreme Super Dynamic 144dB
- Color night vision (0.001 to 0.015 lx)
- IP66, IK10 certified
- Wider operating temperature range
- i-VMD License Bundled
- Fiber Optic Media Converter Unit (Optional WV-X65F1)
Description
x
Extreme image quality for evidence capturing under challenging conditions
- Sharp and clear image of fast moving vehicles with Intelligent Auto and ClearSight Coating
- Outstanding low light performance in true color with low noise for night time applications
- Super Dynamic 144dB for backlit situation by headlights and shadows on the streets at night
- Environmental durability: IP66, IK10, Long life Pan/Tilt gear mechanism, Wide operating temperature up to 60 °C (140 °F) and electric dehumidifier
Extreme H.265 compression with new Smart Coding
- Longer recording, less storage compared to H.264 based compression techniques
- New self-learning ROI* encoding (Auto VIQS) dynamically detect motion areas to keep vehicles and human in good picture quality while lowering your bandwidth
* Region of Interest
Extreme Data Security
- Full encryption SD card edge recording to keep your data safe
- FIPS 140-2 Level 1 compliant
- Full end-to-end system encryption with supported VMS and devices to protect from IP snooping/spoofing and detect data alteration
This 2MP (1080p) (1,920 x 1,080) / 60 fps PTZ Network Camera is based on the concept of "i-PRO EXTREME".
Specs
x| COMPONENT | SPECIFICATION |
|---|---|
| Image Sensor | Approx. 1/2.9 Type MOS image sensor |
| Minimum Illumination | Color : 0.015 lx, BW : 0.006 lx (F1.6, Maximum shutter : Off (1/30s), AGC : 11) Color : 0.001 lx, BW : 0.0004 lx (F1.6, Maximum shutter : Max. 16/30s, AGC : 11) *Converted value |
| Intelligent Auto | On / Off |
| Shutter Speed | 1/30 Fix to 1/10000 Fix *1/30 Fix to 2/120 Fix is available during 30 fps mode only. *1/60 Fix is available during 60 fps mode only. |
| Super Dynamic | On / Off, the level can be set in the range of 0 to 31. |
| Dynamic Range | 144 dB (Super Dynamic : On) |
| Image Settings | Gain (AGC), White balance |
| Image Compensation | Adaptive black stretch, Back light compensation (BLC), Fog compensation, High light compensation (HLC), Digital noise reduction |
| Color/BW (ICR) | Off / On / Auto1 (Normal) / Auto2 (IR Light) / Auto3 (SCC) |
| Video Motion Detection (VMD) | On / Off, 4 areas available |
| Intelligent VMD (i-VMD) | Type4 *optional plug-in software WV-SAE200 |
| Stabilizer | On / Off (available only in the 30 fps mode) |
| Privacy Zone | Filling/ Pixelate/ Off (up to 32 zones available) |
| Camera Title (OSD) | On / Off Up to 20 characters (alphanumeric characters, marks) |
| Zoom Ratio | 21x Optical, 31x with HD Extra Optical Zoom(Resolution 1280×720) |
| Digital (Electronic) Zoom | 16x |
| Focal Length | 4.0 mm . 84.6 mm {5/32 inches . 3-11/32 inches} |
| Maximum Aperture Ratio | 1 : 1.6 (WIDE) – 1 : 4.5 (TELE) |
| Focus Range | 1.5 m {4ft 11-1/16 inches} - ? |
| Angular Field of View | [16 : 9 mode] Horizontal : 3.4° (TELE) to 73° (WIDE) Vertical : 2.0° (TELE) to 42° (WIDE) [4 : 3 mode] Horizontal : 2.9° (TELE) to 61° (WIDE) Vertical : 2.2° (TELE) to 46° (WIDE) |
| Panning Range | 0° to 350° |
| Panning Speed | Manual : Approx. 0.5°/s to 100°/s Preset : Up to approx. 300°/s |
| Tilting Range | Operational range : –30° to 90° (level – downward) Recommended range : 0° to 90° Selectable tilting angle : 10 °/ 5 °/ 3 °/ 0 °/ –3 °/ –5 °/ –10 °/ –15 °/ –20 °/ –25 °/ –30 ° |
| Tilting Speed | Manual: Approx. 0.5°/s to 100°/s Preset: Up to approx. 100°/s |
| Preset Positions | 256 positions |
| Auto Mode | Auto track/ Auto pan/ Preset sequence/ Patrol |
| Self Return | 10 s/ 20 s/ 30 s/ 1 min/ 2 min/ 3 min/ 5 min/ 10 min/ 20 min/ 30 min/ 60 min |
| Camera Control | Pan/Tilt, Zoom, Focus, Auto mode, Brightness, Preset, AUX, Rec. on SD, Log, Viewer software |
| Audio | Mic (Line) Input : On / Off Volume adjustment : Low / Middle / High Audio Output : On / Off Volume adjustment : Low / Middle / High |
| GUI / Setup Menu Language | English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese |
| Network IF | 10Base-T / 100Base-TX, RJ45 connector |
| Image Resolution | •2 mega pixel [16 : 9] (30/60 fps) 1920×1080, 1280×720, 640×360, 320×180 •3 mega pixel [4 : 3] (30 fps) 2048×1536*, 1280×960, 800×600, VGA, 400×300, QVGA *Used by super resolution techniques |
| H.265 / H.264 | [Transmission Mode] Constant bit rate / Variable bit rate / Frame rate / Best effort [Transmission Type] Unicast / Multicast |
| JPEG | [Image Quality] 10 steps |
| Smart Coding | Smart Facial Coding : On (Smart Facial Coding*) / On (Auto VIQS) / Off *Smart Facial Coding is only available with Stream(1). GOP (Group of pictures) : On (Advanced)* / On (Low) / On (Mid) / Off *On(Advanced) is only available with H.265. |
| Audio Compression | G.726 (ADPCM) : 16 kbps / 32 kbps, G.711 : 64 kbps, AAC-LC : 64 kbps / 96 kbps / 128 kbps |
| Audio Transmission Mode | Off / Mic (Line) input / Audio output / Interactive (Half duplex) / Interactive (Full duplex) |
| Supported Protocol | IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, MLD, ICMP, ARP, DiffServ, IEEE802.1X IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, DiffServ, IEEE802.1X |
| No. of Simultaneous Users | Up to 14 users (Depends on network conditions) |
| SDXC/SDHC/SD Memory Card (Option) | H.265 / H.264 recording : Manual REC / Alarm REC (Pre/Post) / Schedule REC / Backup upon network failure JPEG recording : Manual REC / Alarm REC (Pre/Post) / Backup upon network failure Compatible SD (SDHC/SDXC) card : Panasonic 2 GB, 4 GB*, 8 GB*, 16 GB*, 32 GB*, 64 GB**, 128 GB**, 256 GB** model *SDHC card, ** SDXC card (except miniSD card and microSD card) |
| Mobile Terminal Compatibility | iPad, iPhone, Android TM mobile terminals |
| Alarm Source | 3 terminals input, VMD alarm, Command alarm, Audio detection alarm, Auto track alarm |
| Alarm Actions | SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification, Indication on browser, FTP image transfer, Panasonic alarm protocol output |
| Audio Input | ø3.5 mm stereo mini jack (monaural input) Input impedance: Approx. 2 k ? (unbalanced) (Applicable microphone : Plug-in power type) Supply voltage : 4.0 V ±0.5 V |
| Audio Output | ø3.5 mm stereo mini jack (monaural output) Output impedance : Approx. 600 ? (unbalanced) |
| External I/O Terminals | ALARM IN 1 (Black & white input, Auto time adjustment input) (x1), ALARM IN 2 (ALARM OUT) (x1), ALARM IN 3 (AUX OUT) (x1) |
| Safety | UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1 |
| EMC | FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024 |
| Power Source and Power Consumption | AC24 V 2.7 A, Approx. 43 W PoE+ (IEEE802.3at compliant): DC 54V 430 mA, Approx. 22 W |
| Ambient Operating Temperature | –40 °C to +60 °C {–40 °F to +140 °F} (AC 24 V/ Tested PoE injector (60 W)) –30 °C to +60 °C {–22 °F to +140 °F} (PoE+ device) {Power On range: –30 °C to +60 °C (–22 °F to +140 °F)} |
| Ambient Operating Humidity | 10 to 100 % (no condensation) |
| Water and Dust Resistance | IP66 (IEC60529), Type 4 (UL50), NEMA 4X compliant |
| Shock Resistance | IK10 (IEC 62262) |
| Dimensions | Maximum ø229 mm × 393 (H) mm {ø9-1/32 inches × 15-15/32 inches (H)} |
| Mass (Approx.) | Approx. 4.8 kg {10.58 lbs} |
| Finish | Main body :Aluminum die cast, Natural silver Sunshields :ABS+PC resin coating, Natural silver Outer fixing screws :Stainless steel (Corrosion-resistant treatment) Dome cover :Polycarbonate resin (with ClearSight coating (rain wash coating)), Clear |
