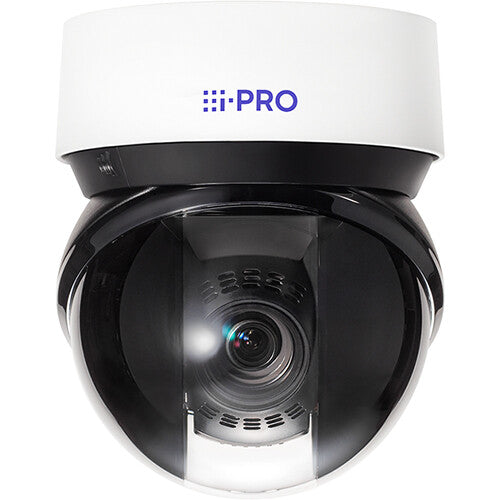

i-PRO WV-S66300-Z3LN 2MP Outdoor PTZ Network Dome Camera with 4.25-136mm 32x Lens and IR LED
SKU: WV-S66300-Z3LN
Key Features
- 2MP outdoor PTZ network camera
- 32x motorized optical zoom
- 4.25–136mm focal length
- AI auto tracking and Edge AI analytics
- Built-in IR LED with up to 250m irradiation distance
- 360° endless panning
- Pan speed up to 700°/s and tilt speed up to 500°/s
- IP66 and IK10 protection
- H.265, H.264 and JPEG video support
- ONVIF Profiles G, M, S and T
- PoE+ and PoE++ support
- FIPS 140-2 Level 3 SecureElement
- 15,865.00 AED
- 15,865.00 AED
- Unit price
- per
i-PRO WV-S66300-Z3LN 2MP Outdoor PTZ Network Dome Camera with 4.25-136mm 32x Lens and IR LED
Description
xThe i-PRO WV-S66300-Z3LN is a 2MP outdoor PTZ network camera designed for advanced surveillance in demanding environments. It combines a 32x motorized optical zoom lens with a 4.25–136mm focal range, high-speed pan and tilt, and built-in IR illumination for long-distance monitoring.
The camera features AI-powered analytics with support for up to two Edge AI applications, including people and vehicle detection, face detection, and AI auto tracking. Its 360° endless pan, -20° to +90° tilt range, and fast preset movement help operators quickly follow activity across wide surveillance areas.
Built for outdoor security, the WV-S66300-Z3LN supports IP66 and IK10 protection and includes a built-in SecureElement with FIPS 140-2 Level 3 certification. It also supports PoE+ and PoE++, H.265/H.264 video, ONVIF Profiles G/M/S/T, and multiple security protocols. For more professional surveillance solutions, explore the Systec i-PRO PTZ Cameras collection.
FAQs
What resolution does the i-PRO WV-S66300-Z3LN support?
It uses a 2MP CMOS image sensor and supports Full HD 1920 × 1080 video.
What is the optical zoom range?
The camera provides 32x motorized optical zoom with a 4.25–136mm focal length.
Does the camera support AI tracking?
Yes. It supports AI auto tracking and can run up to two Edge AI analytics applications.
How far can the built-in IR illumination reach?
The built-in IR LED has a maximum irradiation distance of up to 250m at 50IRE, with up to 350m at 30IRE under specified conditions.
Is the camera suitable for outdoor installation?
Yes. It is rated IP66 for water and dust resistance and IK10 for shock resistance, making it suitable for demanding outdoor surveillance environments.
Specs
xSpecifications
| Product Type | 2MP outdoor PTZ network camera with AI engine |
|---|---|
| Image Sensor | Approx. 1/2.8-type CMOS |
| Maximum Resolution | 1920 × 1080 |
| Optical Zoom | 32x motorized zoom and motorized focus |
| Focal Length | 4.25–136mm |
| Digital Zoom | 48x–512x |
| IR Illumination | Up to 250m at 50IRE; up to 350m at 30IRE |
| Pan Range | 360° endless |
| Tilt Range | -20° to +90° |
| Preset Positions | 256 |
| Pan Speed | Up to 700°/s preset speed with PoE++ |
| Tilt Speed | Up to 500°/s preset speed with PoE++ |
| AI Analytics | AI video motion, face, people, vehicle, occupancy and scene change detection |
| AI Applications | Up to 2 Edge AI analytic applications |
| Video Compression | H.265, H.264, JPEG |
| Network Interface | 10Base-T / 100Base-TX, RJ45 |
| Network Protocols | TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, SMTP, DHCP, DNS, SNMP, ONVIF and others |
| ONVIF | Profiles G, M, S and T |
| Audio | 3.5mm audio input and output |
| Memory Card | Optional microSD, microSDHC and microSDXC support up to 512GB |
| Power | PoE++ IEEE 802.3bt or PoE+ IEEE 802.3at |
| Power Consumption | Approx. 45.9W with PoE++; approx. 25.4W with PoE+ |
| Operating Temperature | -50°C to +60°C with PoE++; -20°C to +60°C with PoE+ |
| Operating Humidity | 10% to 100%, non-condensing |
| Weather Protection | IP66, Type 4X and NEMA 4X |
| Impact Protection | IK10 |
| Wind Resistance | Up to 40m/s |
| Security | FIPS 140-2 Level 3 SecureElement, HTTPS, IEEE 802.1X, signed firmware and device certificate |
