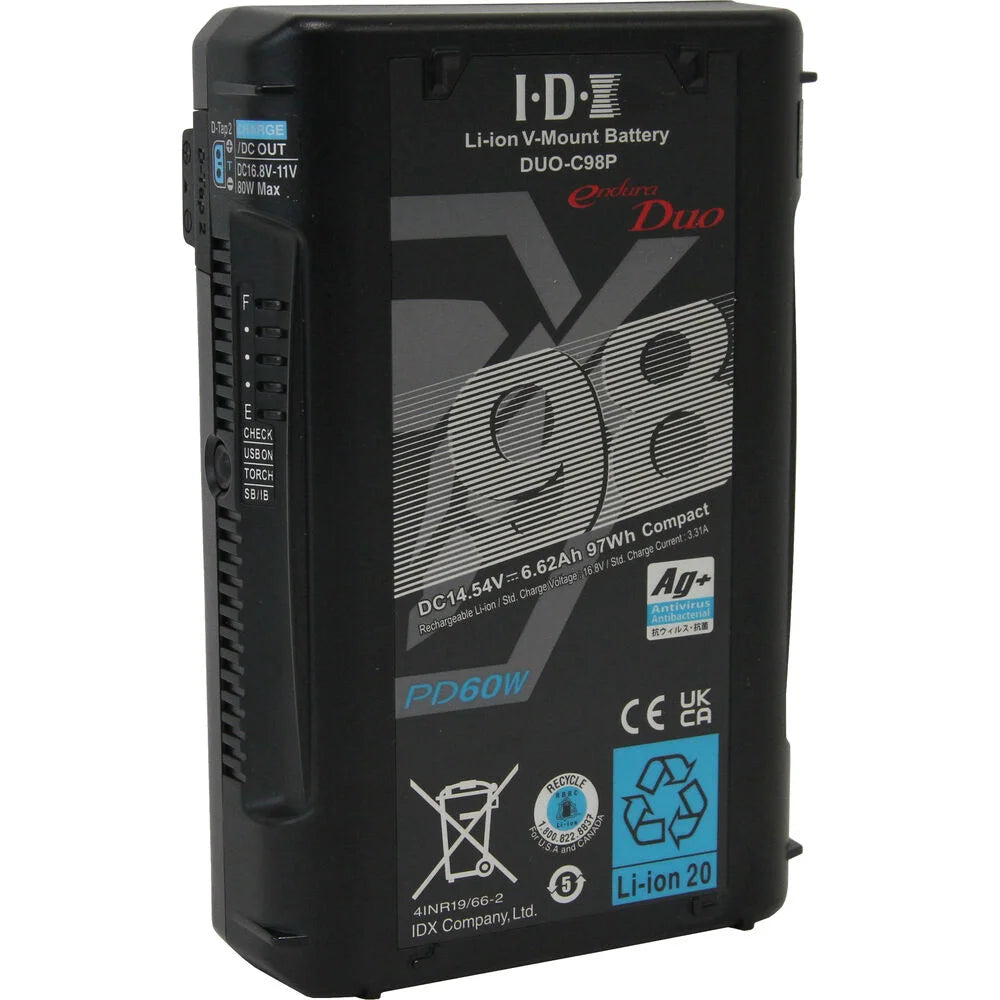

IDX DUO-C98P 97Wh High-Load Li-Ion V-Mount Battery
SKU: DUO-C98P
Key Features
- 14.5V 97Wh V-Mount Battery
- SMBus Data Info Displays in Viewfinder
- Handles up to 10.5A Loads
- Two 80W D-Tap Accessory Outputs
- D-Tap & USB PD Fast Charging Port
- Battery Circuit Protection
- V-Torch, 5-LED Battery Life Indicator
- Compatible with UC-PD1 & VL-DT1 Chargers
SKU:
DUO-C98P
Availability:
Out Of Stock
- 916.00 AED
- 916.00 AED
- Unit price
- per
10 customers are viewing this product
Dimensions: 18 x 12 x 5 cm
Weight: 0.8 kg
Description
xThe DUO-C98P is the successor of the popular DUO-C98 battery. At 97Wh, it is IATA friendly(<100Wh) and perfect for handheld gimbal and aerial setups. The DUO-C98P comes equipped with two built-in D-Taps and now features a built-in USB-C port to power accessories as well as charge the battery. Also, V-Torch LED for use in dark environments and SMBus to display battery info via viewfinder on cameras such as ARRI and RED.
buy IDX batteries today from Systec international
DUO-C98P Key Features
- Suitable for cinema camera productions that need a high-capacity battery in a small package
- The battery data displays in the viewfinder system of most cameras, and the addition of an SMBus enables RED cameras to display this information as well
- V-Torch light for easy attachment to the plate
- Handles up to 10.5A loads
- Two unregulated D-Tap accessory outputs at 80W each, one is a D-Tap Advanced input to also charge the battery
- USB Type-C output port with 60W PD fast charging input
- Battery circuit protection including over-charge, over-discharge, over-current, and over-temperature
- 5-LED battery life indicator
- Fully compatible with all IDX Endura V-mount chargers, as well as the UC-PD1 USB Type-C charger and the VL-DT1 D-Tap charger
- Antiviral and antimicrobial body for hygienic peace of mind
Specs
xIDX System Technology Endura DUO-C98P Specs
| Mount / Series Type | V-Mount |
| Chemistry | Lithium-Ion |
| Battery Capacity | 6600 mAh / 97 Wh |
| Output Voltage | 14.5 VDC |
| Maximum Load | 115 W, 10 A (Peak) |
| Accessory Port | 1 x D-Tap Input/Output 80 W Regulated 1 x D-Tap Output 80 W Regulated 1 x USB Type-C Input/Output 60 W Regulated |
| Maximum Load (Accessory Port) | 80 W (D-Tap) 60 W (USB Type-C) |
| USB Output | 5 V, 3 A |
| Storage Temperature | -4 to 122°F / -20 to 50°C |
| Charging Temperature | 32 to 104°F / 0 to 40°C |
| Discharging Temperature | -4 to 113°F / -20 to 45°C |
| Dimensions (W x H x D) | 3.74 x 5.75 x 1.54" / 9.5 x 14.61 x 3.91 cm |
| Weight | 1.41 lb / 0.64 kg |
