IDX P-Vmicro V-Mount Plate for Imicro Batteries
SKU: P-VMICRO
Key Features
- Works with Imicro-98 and 150 Batteries
- V-Mount Plate
- 1 x USB Type-C and 2 x D-Tap Outputs
- Up to 80W D-Tap and 5V USB Output
- Moutnts on A-CPmicro Cheese Plate
SKU:
P-VMICRO
Availability:
In stock
- 538.00 AED
- 538.00 AED
- Unit price
- per
10 customers are viewing this product
Dimensions: 14 x 8 x 4 cm
Weight: 0.15 kg
Description
x

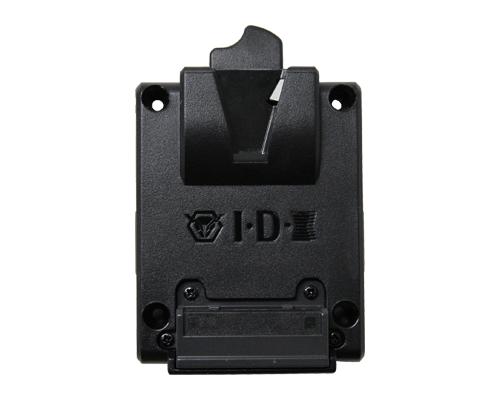

The P-Vmicro is a V-Mount adapter plate sized to fit Imicro batteries. Equipped with 2x D-Taps and USB-C output.

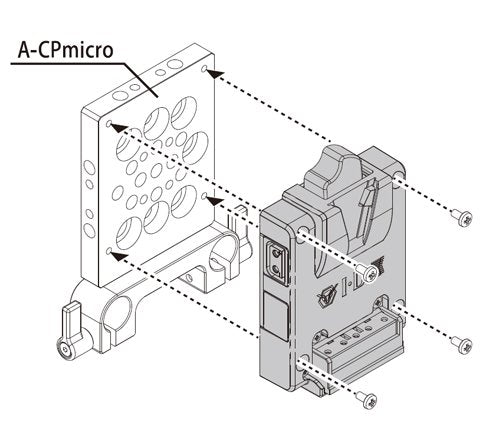

*Screw hole pattern is not standard (see image)*
Power your camera and accessories using an Imicro-98 or Imicro-150 battery with the P-Vmicro V-Mount Plate for Imicro Batteries from IDX. The P-Vmicro is designed for IDX Imicro V-mount batteries and it mounts using the separately available IDX A-CPmicro cheese plate.

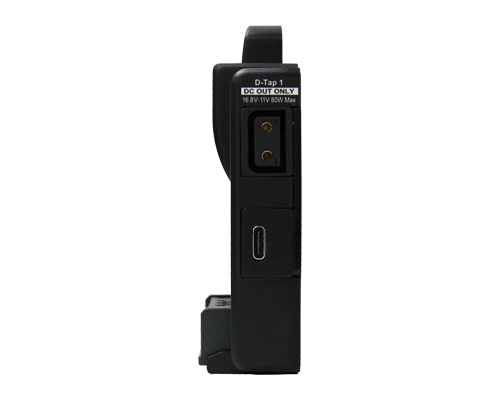

The plate features two D-Tap outputs with a maximum output of 80W to power your camera, lights, or accessories. It also features one 5V, 2.3A USB Type-C output to power smaller accessories such as a smartphone or tablet.
buy IDX products today from Systec international
P-Vmicro Compatibility
IDX Imicro-98 and Imicro-150 V-mount batteries
A-CPmicro cheese plate
find out more about IDX P-Vmicro
Specs
xIDX System Technology P-VMICRO Specs
Power
| Maximum Load | 80 W, 14 A |
| Power Output | D-Tap: VDC D-Tap: VDC USB Type-C: 5 VDC at 2.3 A |
General
| Camera Power Method | Battery Plate Mount Type, Connector |
| Plate Front / Battery Mount | V-Mount |
| Plate Rear Mount | 1/4"-20 Female, 3/8”-16 Female |
| Number of Battery Bays | 1 |
| Hot-Swap Support | No |
| Dimensions | 2.6 x 3.78 x 1.1" / 6.6 x 9.6 x 2.79 cm |
| Weight | 3.88 oz / 110 g |
Environmental
| Operating Temperature | -4 to 113°F / -20 to 45°C |
