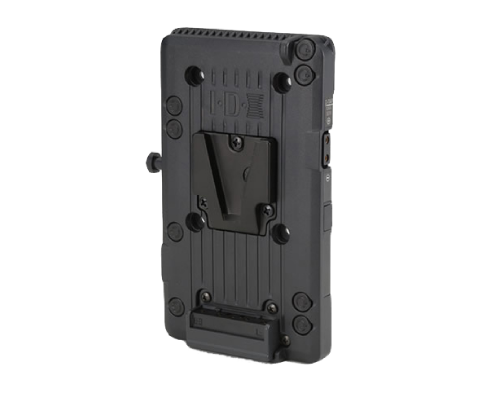

IDX System Technology P-V212 Endura V-Mount Plate

The IDX P-V212 Endura V-Mount Plate is a 2-pin D-Tap DC out and DigiView plate. An enhanced variation of the P-V2 plate series, it provides an ideal solution for combining Endura V-mount batteries to handheld cameras without the standard V-mount style battery lock. The plate offers precise DC power connectivity. For camera systems compliant with DigiView, the remaining battery power can be displayed in the viewfinder. Providing 12 VDC output, the plate uses one D-Tap to convert voltage from the 12V IDX source to a regulated output of 5.3V, 7.3V, 8.4V, or 12V depending on the V-plate selected. The second D-Tap offers unregulated battery throughput for equipment such as lights and HDD recorders. You can use the Endura V-mount plate for a variety of cameras using the optional IDX cables specific to the camera models. The maximum power output available from the plate is 50W.
