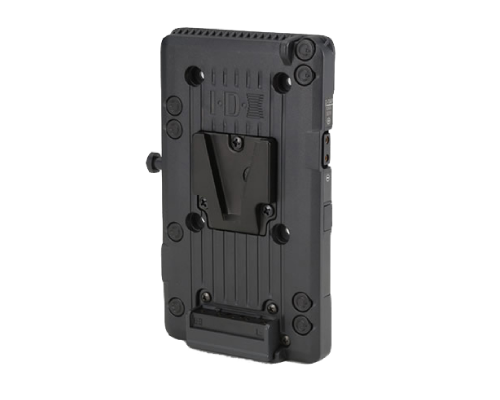

IDX System Technology P-V284 Endura V-Mount Plate

The IDX P-V284 Endura V-Mount Plate is a 2-pin D-tap DC Out and DigiView plate that is an enhanced variation of the P-V2 Plate series. Providing an ideal solution for combining Endura V-Mount batteries to handheld cameras without the standard V-Mount style battery lock, the plate offers precise DC power connectivity. For camera systems compliant with DigiView, the remaining battery power can be displayed in the viewfinder. Featuring dual 2-pin D-taps, the plate uses 1 tap for regulated 8.4V. The second D-tap offers up to 16.8V (for IDX Lithium ion batteries) unregulated battery throughput for equipment such as lights and HDD recorders. You can use the Endura V-Mount Plate for a variety of cameras using the optional IDX cables specific to the camera models. The maximum power output available from the plate is 50W, and it measures 3.25 x 5.59 x .47" and weighs 0.40 lb.
