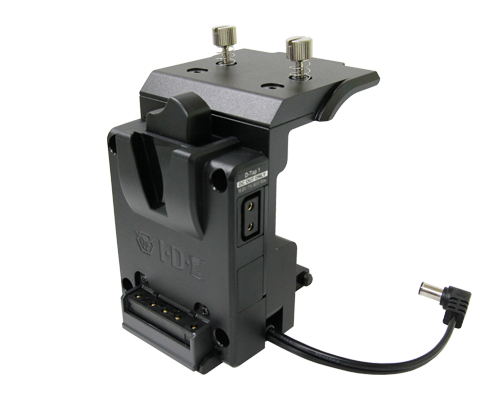

IDX System Technology V-Mount Battery Adapter for Sony PXW-FX9
SKU: A-DCFX9
Key Features
- Mounts onto Back of Sony FX9 Camera
- Two Unregulated D-Tap Outputs
- Converts Battery Output to 19.5 VDC
- Capable of Hot-Swap with BP-U Battery
- Low-Voltage Alarm LED
- For V-Mount Batteries like Imicro Series
Power your Sony FX9 camera with a high-capacity battery while also powering accessories with this V-Mount Battery Adapter from IDX Systems Technology. The plate enables you to power your Sony FX9 rig using any V-mount battery, such as the Imicro series 98 or 150Wh batteries. The plate can be used to hot-swap batteries with the camera's onboard BP-U slot.
An integrated DC cable plugs into the camera's DC power port, and the adapter converts the battery output to 19.5 VDC for the appropriate camera-input voltage. The adapter also features two unregulated D-Tap outputs, each capable of taking a maximum 80W load. There is a low-voltage alarm LED to indicate when the battery output is too low to power the camera.
Compatibilty
Sony PXW-FX9 cinema camera
V-mount battery such as the IDX Imicro series 98 or 150Wh batteries
SKU:
A-DCFX9
Availability:
In stock
- 1,160.00 AED
- 1,160.00 AED
- Unit price
- per
10 customers are viewing this product
Dimensions: 15 x 11 x 9 cm
Weight: 0.5 kg
Description
xIDX V Mount Battery Adapter Power your Sony FX9 camera with a high-capacity battery while also powering accessories with this IDX V Mount Battery Adapter from IDX Systems Technology.
The plate enables you to power your Sony FX9 rig using any V-mount battery, such as the Imicro series 98 or 150Wh batteries.
The plate can be used to hot-swap batteries with the camera's onboard BP-U slot. An integrated DC cable plugs into the camera's DC power port, and the adapter converts the battery output to 19.5 VDC for the appropriate camera-input voltage.
buy IDX batteries today from Systec international
The adapter also features two unregulated D-Tap outputs, each capable of taking a maximum 80W load.
There is a low-voltage alarm LED to indicate when the battery output is too low to power the camera.
find out more about IDX Imicro 98 V-Mount Battery
The plate enables you to power your Sony FX9 rig using any V-mount battery, such as the Imicro series 98 or 150Wh batteries.
The plate can be used to hot-swap batteries with the camera's onboard BP-U slot. An integrated DC cable plugs into the camera's DC power port, and the adapter converts the battery output to 19.5 VDC for the appropriate camera-input voltage.
buy IDX batteries today from Systec international
The adapter also features two unregulated D-Tap outputs, each capable of taking a maximum 80W load.
There is a low-voltage alarm LED to indicate when the battery output is too low to power the camera.
find out more about IDX Imicro 98 V-Mount Battery
Additional Information
x| Weight | 0.5 kg |
|---|---|
| Dimensions | 15 × 11 × 9 cm |
| Output Connectors | 2 x D-Tap 80W max 1 x DC Jack 19.5V (40W max) |
| Plate Front / Battery Mount | V-Mount |
