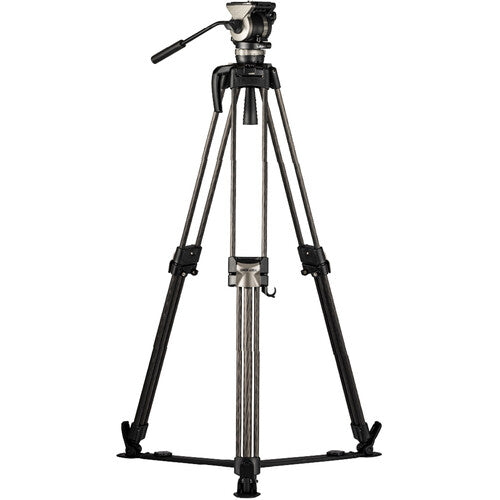

Libec NX-400QC Quick-Lock Video Tripod System (Ground Spreader)
SKU: NX-400QC
Key Features
- Professional video tripod system with a maximum payload of 10kg (22lb)

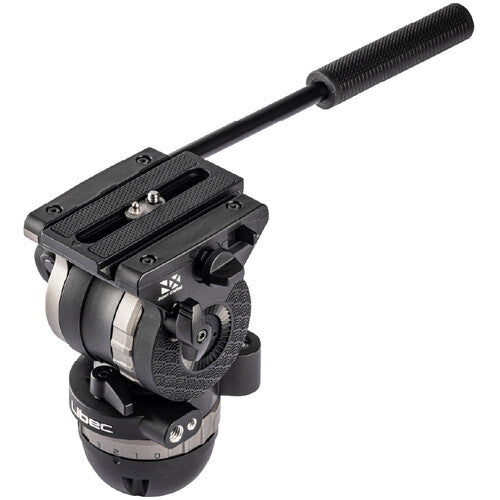

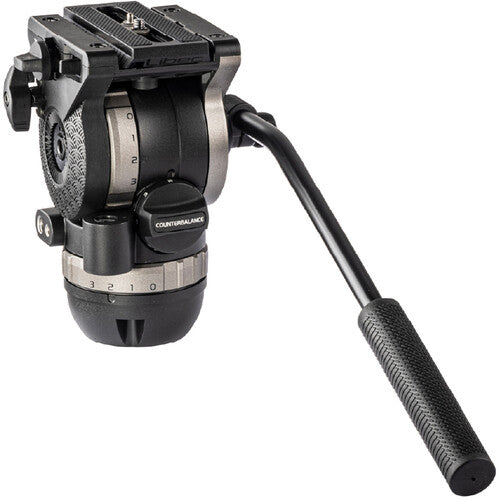

- NH40 fluid head with five selectable counterbalance steps
- Three drag settings plus free movement
- Tilt range from +90° to -70°

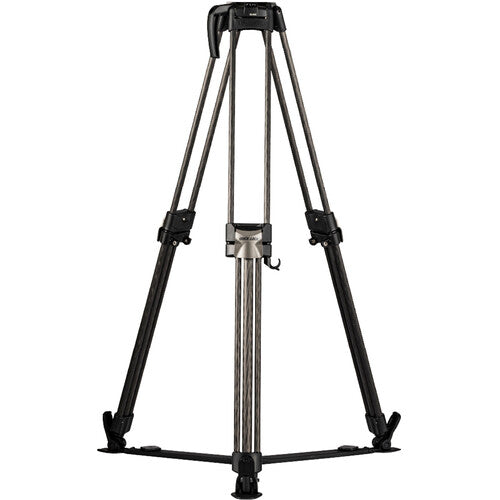

- QL40C two-stage carbon-fibre tripod legs
- Quick-lock flip mechanism for convenient leg adjustments
- SP-1B ground spreader for additional stability

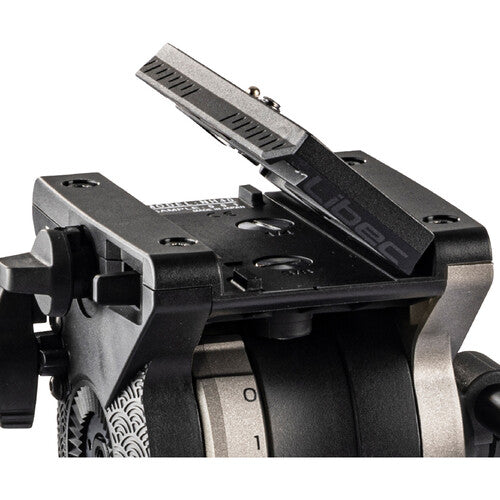

- Sliding camera plate with a travel range of ±30mm
- Long Plate S included for camera mounting and balancing
- Dual-base head design for compatible 75mm bowl and flat-base setups
- Compatible with selected Manfrotto and Sachtler camera head systems
- Illuminated bubble level for easier levelling

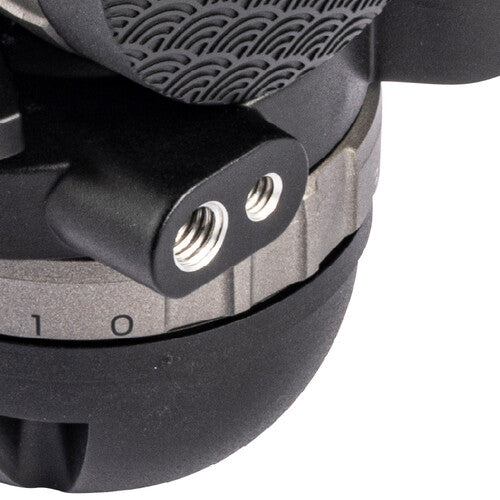

- 1/4-inch and 3/8-inch accessory mounting points
- RC-30 carrying case included
- 5,885.00 AED
- 5,885.00 AED
- Unit price
- per
Description
xThe Libec NX-400QC Quick Lock Video Tripod System with Ground Spreader is a professional camera support system designed for video production, studio recording and on-location filming. It combines the NH40 fluid head, QL40C two-stage carbon-fibre tripod legs, SP-1B ground spreader and RC-30 carrying case to provide a stable and portable setup for compatible cameras.
The system supports a maximum payload of 10kg (22lb) and features five selectable counterbalance steps, three drag settings and a tilt range of +90° to -70°. Its quick-lock leg mechanism enables fast height adjustments, while the sliding camera plate helps balance the camera accurately. The head also supports compatible 75mm bowl and flat-base mounting configurations.
The NX-400QC includes an illuminated bubble level, accessory mounting points and a ground spreader for added stability. Its versatile mounting options make it suitable for professional filming setups using compatible cameras and accessories. Explore more professional camera support equipment through Systec's website.
FAQs
What is the maximum payload of the Libec NX-400QC?
The tripod system supports a maximum payload of 10kg (22lb), making it suitable for compatible professional video camera setups.
What is included in the Libec NX-400QC system?
The system includes the NH40 fluid head, QL40C carbon-fibre tripod legs, SP-1B ground spreader, RC-30 carrying case and Long Plate S.
Does the Libec NX-400QC have quick-lock legs?
Yes. The QL40C tripod legs use a quick-lock flip mechanism that allows convenient height adjustments.
What is the tilt range of the NH40 fluid head?
The NH40 fluid head provides a tilt range of +90° to -70°, with five selectable counterbalance steps and three drag settings.
Is the Libec NX-400QC compatible with other camera support equipment?
Yes. The NH40 head supports compatible 75mm bowl and flat-base mounting configurations and can be used with suitable camera support equipment. Its sliding camera plate is compatible with selected Manfrotto and Sachtler systems.
Specs
xSpecifications
| Brand | Libec |
|---|---|
| Model | NX-400QC |
| Product Type | Professional Video Tripod System |
| Fluid Head | NH40 |
| Tripod Legs | QL40C |
| Spreader | SP-1B Ground Spreader |
| Carrying Case | RC-30 |
| Included Camera Plate | Long Plate S |
| Maximum Payload | 10kg / 22lb |
| Counterbalance Range | 0–10kg at a 55mm centre of gravity |
| Counterbalance Settings | Free plus 5 steps |
| Drag Settings | Free plus 3 steps |
| Drag System | Multilayered metal structure |
| Tilt Range | +90° to -70° |
| Tripod Material | Carbon fibre |
| Tripod Stages | 2-stage |
| Leg Lock Type | Quick-lock flip mechanism |
| Head Mounting | 75mm bowl / flat base |
| Camera Plate Type | Sliding camera plate |
| Camera Plate Travel | ±30mm |
| Camera Screw | 1/4-inch screw with video pin |
| Accessory Mounting | 1/4-inch and 3/8-inch threaded holes |
| Spare Screws | 1/4-inch and 3/8-inch |
| Bubble Level | Illuminated |
| Operating Temperature | -40°C to +60°C |
