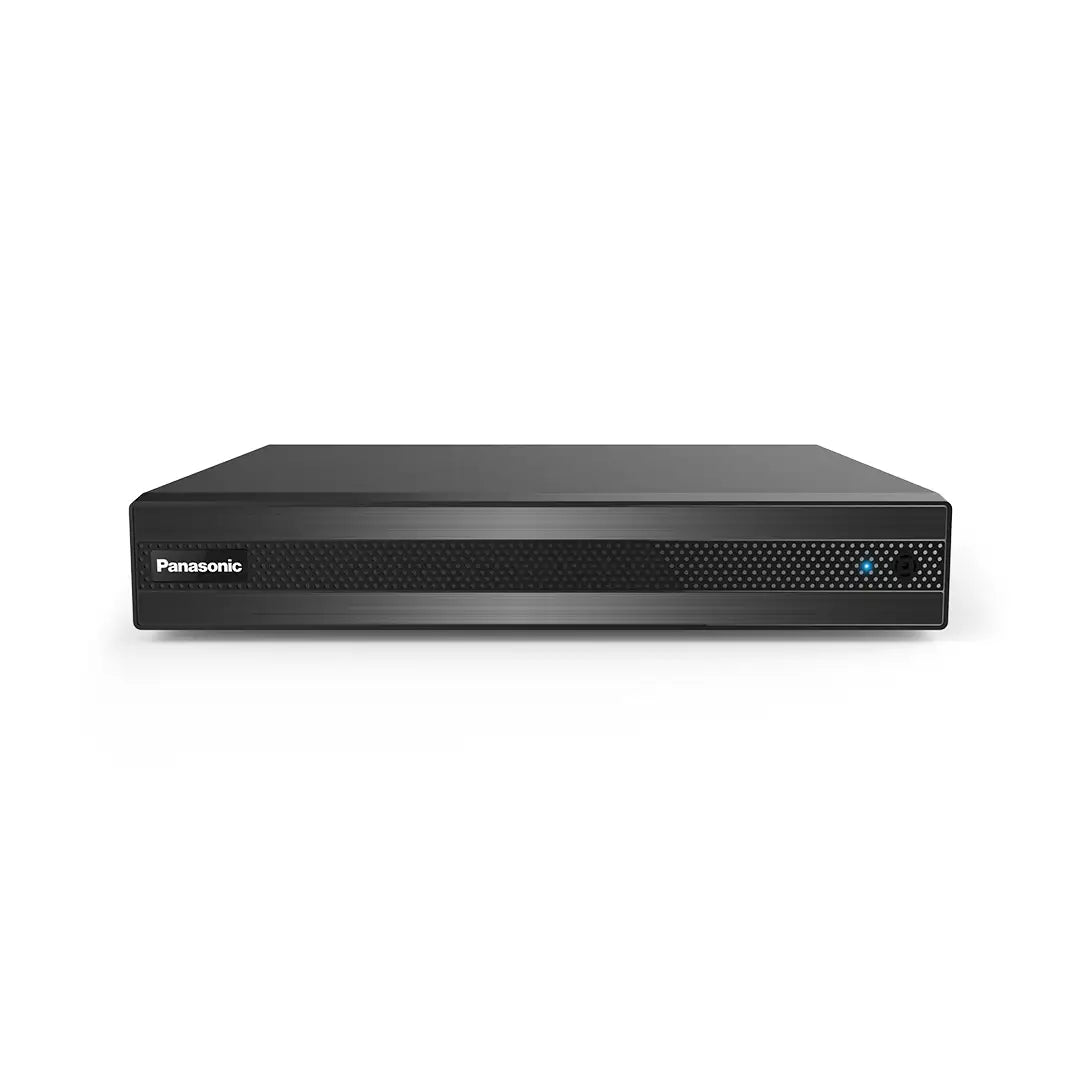

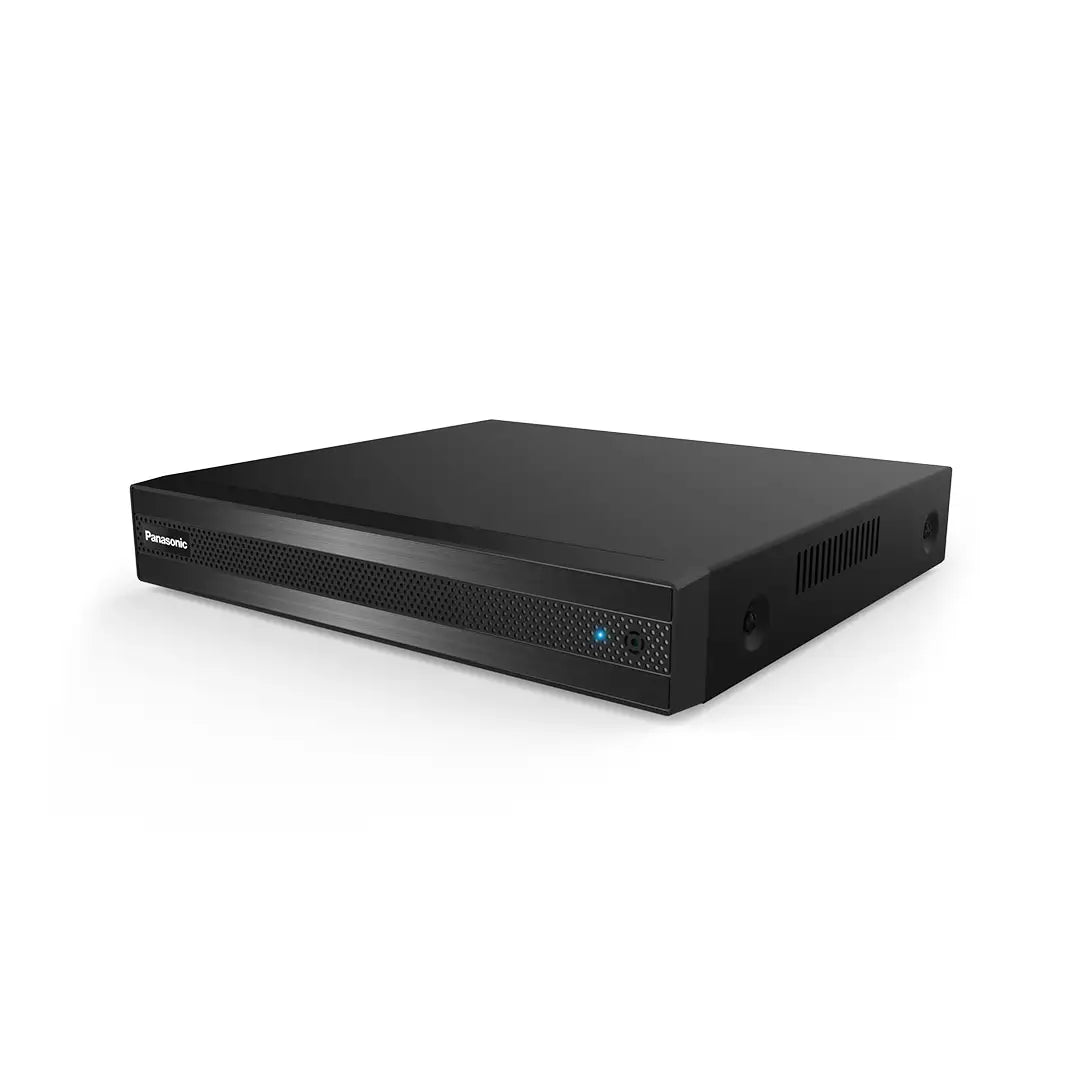

Panansonic PM-EN8CH 8 Channels Network Video Recorder
SKU: PM-EN8CH
Key Features
- Supports 8-Channel IP Camera Input (Up to 6MP Resolution)
- Compatible with H.265S, H.265+, H.265, and H.264 Video Compression
- Simultaneous Playback on Up to 8 Channels
- Supports One SATA Hard Drive up to 10TB
- 1080p HDMI Output for High-Resolution Display
- Remote Access via Web Client or CMS for Live View, Playback, Backup, PTZ, and Configuration
- Supports DHCP, DDNS, PPPoE, and Other Network Protocols
- 467.00 AED
- 467.00 AED
- Unit price
- per
Dimensions: 37 x 30 x 10 cm
Weight: 2 kg
Description
xThe Panasonic PM-EN8CH 8-Channel Network Video Recorder (NVR) is a reliable surveillance solution designed for homes, offices, retail stores, and commercial properties. Supporting up to 8 IP cameras with resolutions up to 6MP, this NVR delivers smooth video recording, playback, and remote monitoring while simplifying installation with 8 built-in PoE ports.
Powered by an embedded Linux operating system, the PM-EN8CH supports H.265+, H.265, H.265S, and H.264 video compression, helping reduce storage requirements without compromising image quality. With support for up to 10TB of storage, simultaneous 8-channel playback, and Full HD HDMI output, it provides dependable performance for everyday surveillance applications.
The recorder also supports intelligent AI functions, including human and vehicle classification, face detection, and license plate recognition when paired with compatible cameras. Remote access through web browsers, CMS software, and mobile devices allows you to monitor live video, review recordings, and manage your surveillance system from virtually anywhere.
Whether you're upgrading an existing CCTV system or building a new security network, the Panasonic PM-EN8CH offers a reliable and scalable solution for professional surveillance. It works seamlessly with Panasonic IP Cameras, Surveillance Hard Drives, CCTV Accessories, and other Network Video Recorders available from Systec International, making it easy to build a complete security solution tailored to your needs.
FAQs
How many cameras does the Panasonic PM-EN8CH support?
The Panasonic PM-EN8CH supports up to 8 IP cameras with resolutions up to 6MP.
Does this NVR have built-in PoE ports?
Yes. It includes 8 built-in PoE ports, allowing compatible IP cameras to receive both power and data through a single Ethernet cable.
What is the maximum storage capacity?
The recorder supports one SATA hard drive with a maximum capacity of 10TB. The hard drive is sold separately.
Can I access the recorder remotely?
Yes. You can monitor live video, play back recordings, and manage settings remotely using a web browser, CMS software, or the mobile app for Android and iOS.
Does the Panasonic PM-EN8CH support AI features?
Yes. When connected to compatible AI cameras, it supports intelligent features such as face detection, human and vehicle classification, and license plate recognition.
Specs
x| Brand | Panansonic |
|---|---|
| Product Type | 8-Channel Network Video Recorder (NVR) with 8 PoE Ports |
| Operating System | Embedded Linux |
| IP Camera Input | 8 Channels |
| Network Bandwidth | 64 Mbps Incoming / 64 Mbps Outgoing |
| Supported Camera Resolution | 6MP, 5MP, 4MP, 3MP, 1080P, 960P, 720P, D1, CIF |
| Video Compression | H.265S, H.265+, H.265, H.264 |
| Video Output | 1 × HDMI, 1 × VGA |
| HDMI Resolution | 3840 × 2160 @30fps, 1920 × 1080, 1280 × 1024, 1024 × 768 |
| Display Layout | 1 / 4 / 6 / 8 / 9 Screen View |
| Audio Input | 8-Channel IP Camera Audio |
| Audio Compression | G.711 (U/A) |
| Recording Resolution | Up to 6MP |
| Frame Rate | 30fps (NTSC), 25fps (PAL) |
| Playback | Up to 8-Channel Simultaneous Playback |
| Playback Search | Time, Event, Tag, Smart Search |
| Live Decoding | 1 × 6MP or 4 × 1080P |
| Playback Decoding | 1 × 6MP or 4 × 1080P |
| AI Features | Face Detection, Human & Vehicle Classification, Human/Vehicle Attribute Analysis, License Plate Recognition (AI by Camera) |
| Alarm Modes | Manual, Motion Detection, Sensor, Exception, Smart Events |
| Fisheye Support | Yes |
| Network Interface | 1 × RJ45 100Mbps |
| PoE Ports | 8 × RJ45 100Mbps PoE Ports |
| Supported Protocols | TCP/IP, HTTP, HTTPS, DHCP, DDNS, RTSP, RTCP, NTP, ONVIF, IPv4, IPv6, PPPoE, SMTP, SNMP, UPnP, IGMP |
| Maximum Users | 64 Simultaneous Users |
| Mobile Support | Android & iOS |
| Storage | 1 × SATA HDD (Up to 10TB, HDD Not Included) |
| USB Ports | 2 × USB 2.0 |
| Power Supply | DC 48V / 1.8A |
| Power Consumption | ≤50W (Without HDD & PoE Load) |
| Dimensions | 255 × 222 × 42 mm |
| Weight | 1.2 kg |
| Operating Temperature | -10°C to 50°C |
| Operating Humidity | 10% – 90% |
| Certifications | CE, EMC, EN 62368-1, RoHS |
