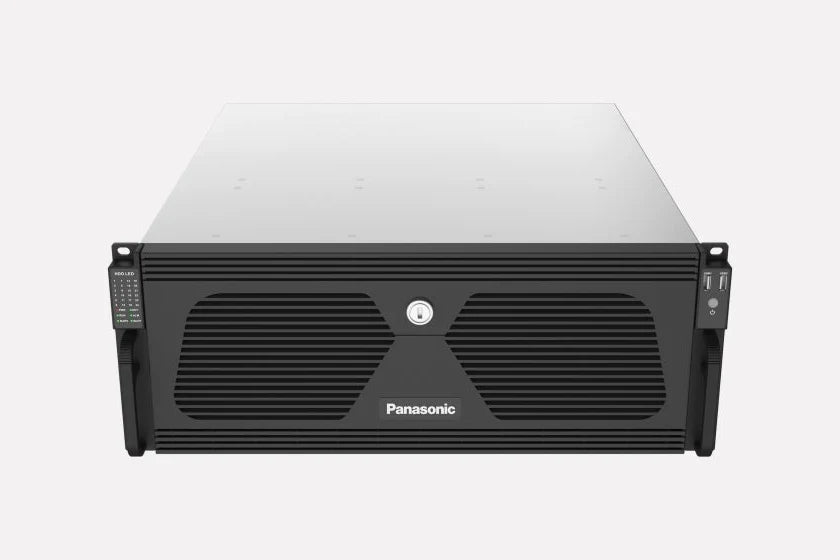

Panasonic 128CH NVR Redundant PS
SKU: PM-PN128CH
Key Features
- 128 channel network video recorder with redundant power supply
- Supports up to 128 IP cameras
- Incoming and outgoing bandwidth of up to 768Mbps
- Supports camera resolutions up to 16MP
- 8K Ultra HD output through HDMI 1
- Simultaneous playback of up to 16 channels
- H.265S, H.265+, H.265 and H.264 video compression
- Intelligent analytics for face detection, face matching, and human and vehicle classification
- License plate recognition support through compatible cameras
- 24 SATA hard drive interfaces, supporting up to 18TB per drive
- RAID 0, 1, 5, 6 and 10 support
- Four Gigabit Ethernet network interfaces
- Two SFP interfaces
- Four HDMI outputs and one VGA output for monitoring
- Two eSATA interfaces for external storage
- USB 3.0 and USB 2.0 ports
- Supports up to 128 client connections
- Suitable for enterprise and large scale surveillance installations
- 15,000.00 AED
- 15,000.00 AED
- Unit price
- per
Description
xThe Panasonic PM PN128CH 128 Channel Network Video Recorder with Redundant Power Supply is designed for enterprise surveillance systems in industrial facilities, commercial buildings, campuses, and large security installations. It supports up to 128 IP cameras, providing centralized video recording and monitoring for sites that require extensive camera coverage.
With incoming and outgoing bandwidth of up to 768Mbps, the recorder can handle high volumes of network video data. It supports camera resolutions up to 16MP and offers 8K HDMI output for high resolution monitoring, helping security teams view detailed footage across large installations.
The NVR supports simultaneous playback of up to 16 channels, making it easier to review multiple recordings during investigations. Intelligent analytics include face detection, face matching, human and vehicle classification, perimeter protection, and license plate recognition when supported by compatible cameras.
Designed for demanding surveillance environments, the recorder supports up to 24 SATA hard drives, multiple RAID configurations, and a single or redundant power supply. Explore the Panasonic Network Video Recorder collection at Systec International for more recording solutions.
FAQs
How many cameras can the Panasonic PM PN128CH support?
It supports up to 128 IP camera channels.
What is the maximum network bandwidth?
It supports incoming and outgoing bandwidth of up to 768Mbps.
Does this NVR support 8K output?
Yes, its primary HDMI output supports resolutions up to 8K, subject to output configuration.
Does it support redundant power?
Yes, it supports a single or redundant AC power supply configuration.
How many hard drives can it support?
It supports up to 24 SATA hard drives, with capacities up to 18TB per drive according to the datasheet.
Specs
xSpecifications
| Brand | Panasonic |
|---|---|
| Model | PM-PN128CH |
| Device Type | 128 Channel Network Video Recorder with Redundant Power Supply |
| Operating System | Embedded Linux |
| IP Video Inputs | 128 channels |
| Maximum Supported Resolution | Up to 16MP |
| Incoming Bandwidth | 768Mbps |
| Outgoing Bandwidth | 768Mbps |
| Video Compression | H.265S, H.265+, H.265, H.264 |
| Simultaneous Playback | 16 channels |
| Live View Decoding | 1 channel at 16MP and 30fps, or 4 channels at 12MP on the main output |
| Playback Decoding | 1 channel at 16MP and 30fps, or 4 channels at 8MP on the main output |
| HDMI Outputs | 4 |
| Maximum HDMI 1 Output | 7680 × 4320 at 60Hz or 30Hz |
| Other HDMI Outputs | HDMI 2 supports up to 4K; HDMI 3 and HDMI 4 support up to 1920 × 1080 |
| VGA Output | 1 |
| Network Interfaces | 4 × RJ45 10/100/1000Mbps Ethernet |
| SFP Interfaces | 2 |
| PoE Ports | Not available |
| Audio Inputs | 128 network audio channels and 1 local RCA input |
| Audio Outputs | 1 local RCA output and HDMI audio output |
| Alarm Inputs | 24 channels |
| Alarm Outputs | 8 channels |
| Storage Interfaces | 24 × SATA |
| Maximum Capacity per Hard Drive | 18TB |
| RAID Support | RAID 0, 1, 5, 6 and 10 |
| External Storage | 2 × eSATA |
| USB Interfaces | 1 × USB 3.0 and 3 × USB 2.0 |
| Serial Interfaces | RS485 and RS232 |
| Intelligent Analytics | Face detection, face matching, human and vehicle classification, perimeter protection and license plate recognition through compatible cameras |
| Maximum Client Connections | 128 users |
| Power Supply | AC 100V to 240V, single or redundant power configuration |
| Power Consumption | 50W or less, excluding hard drives |
| Certifications | EMC, electrical safety and RoHS compliance as specified in the datasheet |
