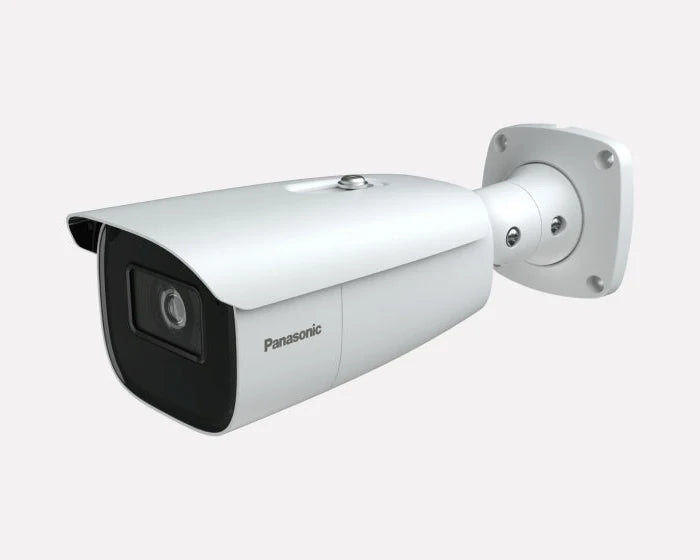

Panasonic 4MP Varifocal ANPR Bullet IP Camera 4.3x Motorized zoom
SKU: PM-PA4ULVR-W
Key Features
- 4MP Varifocal ANPR Bullet Network Camera
- 2688 × 1520 maximum resolution
- 2.8–12mm motorized varifocal lens
- 4.3x motorized optical zoom
- License plate detection and recognition
- Recommended ANPR distance of 3–8 metres
- 120dB Wide Dynamic Range (WDR)
- Colour night vision at 0.001 lux, F1.6, AGC ON
- Infrared illumination range of 50–70 metres
- Travel direction recognition and plate comparison
- Vehicle feature extraction, including colour, type, and brand/model
- H.265+, H.265, H.264+ and H.264 video compression
- Three video streams
- MicroSD card support up to 256GB
- IP67 dust and water protection
- Designed for parking management and vehicle access control
- 1,975.00 AED
- 1,975.00 AED
- Unit price
- per
Panasonic 4MP Varifocal ANPR Bullet IP Camera 4.3x Motorized zoom
Description
xThe Panasonic 4MP Varifocal ANPR Bullet IP Camera with 4.3x Motorized Zoom (PM-PA4ULVR-W) is designed for vehicle monitoring, parking facilities, gated entrances, and access control points. Its 4MP sensor captures images at 2688 × 1520 resolution, supporting detailed surveillance and license plate recognition.
The camera features a 2.8–12mm motorized varifocal lens with 4.3x optical zoom, allowing installers to adjust the viewing angle and focus remotely. Its recommended ANPR detection distance is 3–8 metres, making it suitable for monitoring vehicles passing through controlled entry and exit points.
With 120dB Wide Dynamic Range (WDR) and colour imaging down to 0.001 lux at F1.6, the camera supports monitoring in challenging lighting conditions. Infrared illumination provides a range of 50–70 metres for nighttime surveillance, while H.265+ compression helps manage bandwidth and storage.
The camera supports license plate detection and recognition, travel direction recognition, plate comparison, and vehicle feature extraction. Its IP67-rated housing supports outdoor installations, making it a practical option for vehicle access management. Explore the Panasonic camera collection at Systec International for additional surveillance equipment.
FAQs
What is this Panasonic ANPR camera used for?
It is designed for automatic number plate recognition at parking entrances, gated communities, vehicle access points, and similar locations.
What is the camera's resolution?
It supports 4MP resolution at 2688 × 1520 pixels.
What is the recommended ANPR detection distance?
The recommended distance for ANPR applications is approximately 3–8 metres.
Does the camera support nighttime surveillance?
Yes. It offers colour imaging in very low light and infrared illumination with a specified range of 50–70 metres.
Can the camera identify vehicle details besides the license plate?
Yes. Its vehicle feature extraction can support information such as vehicle colour, type, brand/model, and plate colour, depending on configuration.
Specs
xSpecifications
| Brand | Panasonic |
|---|---|
| Model | PM-PA4ULVR-W |
| Camera Type | 4MP Varifocal ANPR Bullet Network Camera |
| Image Sensor | 1/1.8-inch CMOS |
| Maximum Resolution | 4MP (2688 × 1520) |
| Electronic Shutter | 1/1s–1/100000s |
| Minimum Illumination | Colour: 0.001 lux at F1.6, AGC ON |
| Lens Type | Motorized varifocal |
| Focal Length | 2.8–12mm at F1.6 |
| Focus | Motorized |
| Iris Type | DC Auto |
| Optical Zoom | 4.3x motorized zoom |
| Horizontal Field of View | 100°–48.5° |
| Vertical Field of View | 54°–26.5° |
| Diagonal Field of View | 119°–55.8° |
| Day/Night Mode | ICR |
| Infrared Range | 50–70m |
| Wide Dynamic Range | 120dB WDR |
| Backlight Compensation | Yes |
| Highlight Compensation | Yes |
| Digital Noise Reduction | Yes |
| Video Compression | H.265+, H.265, H.264+, H.264; MJPEG for sub/third stream |
| Supported Video Streams | 3 |
| Recommended ANPR Distance | 3–8m |
| ANPR Functions | License plate detection and recognition, travel direction recognition, plate comparison, plate exposure, snapshot and vehicle feature extraction |
| Vehicle Plate Database | Up to 10,000 entries when used with a compatible NVR |
| Network Interface | RJ45 10/100Mbps Ethernet |
| Storage | MicroSD card support up to 256GB |
| Power Supply | 12V DC, 24V AC or PoE, depending on supported configuration |
| Weather Protection | IP67 |
| Operating Temperature | -30°C to 60°C |
