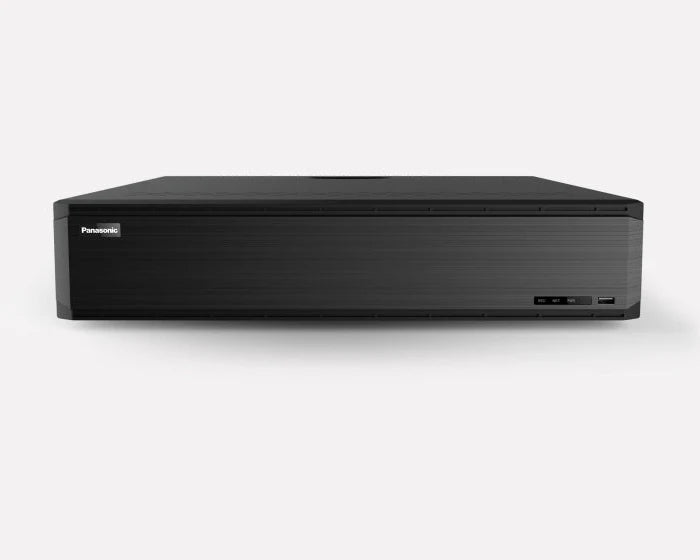

Panasonic 64CH Network Video Recorder
SKU: PM-VN64CH
Key Features
- 64-channel network video recorder for large surveillance systems
- Supports IP cameras with resolutions up to 16MP
- 640Mbps incoming and outgoing network bandwidth
- Simultaneous playback of up to 16 channels
- H.265S, H.265+, H.265 and H.264 video compression
- Four HDMI outputs with support for high-resolution displays, including 8K output on HDMI 1
- Supports up to 8 SATA hard drives, with up to 16TB per drive
- RAID 0, 1, 5, 6 and 10 support
- Intelligent video analytics
- Dual Gigabit Ethernet network interfaces
- Supports remote monitoring and network-based video management
- Two eSATA interfaces for external storage
- USB 3.0 and USB 2.0 ports for peripherals and backups
- Designed for large commercial and enterprise surveillance installations
- 3,090.00 AED
- 3,090.00 AED
- Unit price
- per
Description
xThe Panasonic PM-VN64CH 64-Channel Network Video Recorder is designed for large-scale security systems in commercial buildings, offices, warehouses, retail facilities, and industrial sites. It supports up to 64 IP camera channels, providing centralized recording and monitoring for installations that require extensive surveillance coverage.
With incoming and outgoing bandwidth of up to 640Mbps, the recorder is built to handle high volumes of network video data. It supports high-resolution camera feeds, including resolutions up to 16MP, helping security teams capture and review detailed footage across multiple locations.
The NVR supports simultaneous playback of up to 16 channels, making it easier to review several camera feeds during incident investigations. Intelligent analytics also help users monitor events and improve surveillance management. Actual performance depends on camera settings, recording resolution, and network conditions.
For larger surveillance deployments, the PM-VN64CH provides a centralized recording solution with broad camera coverage and advanced monitoring capabilities. Explore the Panasonic Network Video Recorder collection at Systec International to find other recording options for different system sizes.
FAQs
How many IP cameras does the Panasonic PM-VN64CH support?
It supports up to 64 IP camera channels.
What is the recorder's network bandwidth?
The specified incoming and outgoing bandwidth is up to 640Mbps.
Can the NVR play back multiple camera recordings at once?
Yes, it supports simultaneous playback of up to 16 channels.
What video resolutions does it support?
It supports high-resolution IP camera feeds, including resolutions up to 16MP. Recording and playback capability may vary by configuration.
Is this NVR suitable for large surveillance installations?
Yes, its 64-channel capacity makes it suitable for larger commercial and industrial surveillance systems.
Specs
xSpecifications
| Brand | Panasonic |
|---|---|
| Model | PM-VN64CH |
| Device Type | 64-Channel Network Video Recorder |
| IP Video Inputs | 64 channels |
| PoE Ports | None |
| Maximum Supported Camera Resolution | Up to 16MP |
| Incoming Bandwidth | 640Mbps |
| Outgoing Bandwidth | 640Mbps |
| Video Compression | H.265S, H.265+, H.265, H.264 |
| Simultaneous Playback | Up to 16 channels |
| Live View Decoding | 1 channel at 16MP or 4 channels at 12MP on the main output |
| Playback Decoding | 1 channel at 16MP or 4 channels at 8MP on the main output |
| HDMI Outputs | 4 |
| Maximum HDMI 1 Output | 7680 × 4320 at 60Hz or 30Hz, subject to output configuration |
| Other HDMI Outputs | Up to 4K resolution, depending on output |
| VGA Output | 1 |
| Multi-Screen Display | Multiple layouts across main and auxiliary displays |
| Hard Drive Interfaces | 8 × SATA |
| Maximum Storage per HDD | Up to 16TB per drive |
| RAID Support | RAID 0, 1, 5, 6, 10 |
| Network Interfaces | 2 × Gigabit Ethernet |
| External Storage Interfaces | 2 × eSATA |
| USB Interfaces | 1 × USB 3.0, 2 × USB 2.0 |
| Serial Interface | RS485 |
| Power Supply | ATX 200W |
| Power Consumption | Up to 50W, excluding hard drives |
| Operating Temperature | -10°C to +50°C |
| Operating Humidity | 10%–90%, non-condensing |
| Compliance | Check the regional datasheet for applicable certifications |
