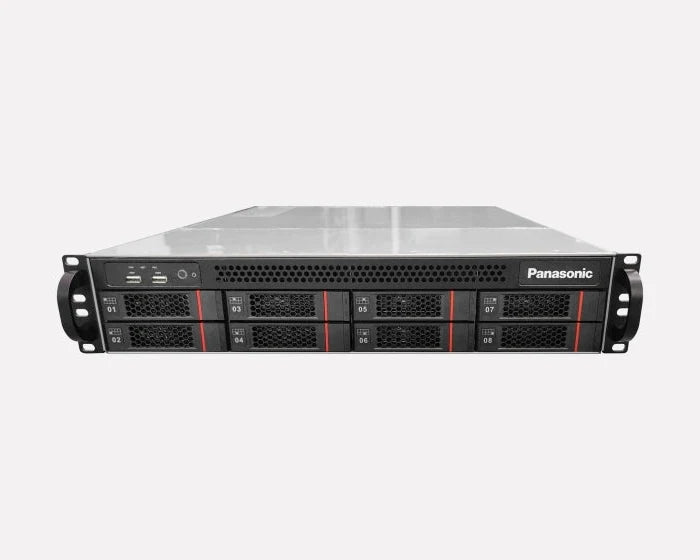

Panasonic 64CH NVR Redundant PS
SKU: PM-PN64CH
Key Features
- 64-channel network video recorder for large surveillance systems
- Supports IP cameras with resolutions up to 16MP
- Incoming and outgoing bandwidth of up to 640Mbps
- Simultaneous playback of up to 16 channels
- High-resolution HDMI output supporting 8K display output
- Intelligent video analytics
- Redundant power supply support for improved system availability
- Supports up to 8 SATA hard drives
- Supports multiple RAID configurations for storage management
- Dual Gigabit Ethernet network interfaces
- Multiple HDMI outputs and a VGA output
- USB interfaces for backup and peripheral connections
- Designed for enterprise and large commercial surveillance installations
- 6,625.00 AED
- 6,625.00 AED
- Unit price
- per
Description
xThe Panasonic PM PN64CH 64CH Network Video Recorder with Redundant Power Supply is designed for large scale surveillance systems in commercial buildings, warehouses, industrial facilities, and multi site environments. It supports up to 64 IP camera channels, providing centralized recording and monitoring for installations that require extensive security coverage.
With incoming and outgoing bandwidth of up to 640Mbps, the recorder is designed to handle high volumes of network video data. It supports camera resolutions up to 16MP and provides high resolution HDMI output for clear live monitoring and video review.
The NVR supports simultaneous playback of up to 16 channels, helping security teams review multiple recordings during incident investigations. Intelligent analytics provide additional monitoring capabilities, while the redundant power supply helps improve system availability where reliable recording is important.
Designed for professional surveillance installations, this recorder combines high channel capacity, flexible storage options, and redundant power support. Explore the Panasonic Network Video Recorder collection at Systec International for more recording solutions.
FAQs
How many cameras can the Panasonic PM-PN64CH support?
It supports up to 64 IP camera channels.
What is the maximum network bandwidth?
The specified incoming and outgoing bandwidth is up to 640Mbps.
Does this NVR support redundant power?
Yes, it supports a redundant power supply to help improve system reliability.
How many channels can be played back simultaneously?
The recorder supports simultaneous playback of up to 16 channels.
Is this recorder suitable for large security systems?
Yes, its 64-channel capacity and high bandwidth make it suitable for large commercial and enterprise surveillance installations.
Specs
xSpecifications
| Brand | Panasonic |
|---|---|
| Model | PM-PN64CH |
| Device Type | 64-Channel Network Video Recorder with Redundant Power Supply Support |
| IP Video Inputs | 64 channels |
| Maximum Recording Resolution | Up to 16MP |
| Incoming Bandwidth | 640Mbps |
| Outgoing Bandwidth | 640Mbps |
| Simultaneous Playback | Up to 16 channels |
| Video Outputs | 4 × HDMI, 1 × VGA |
| HDMI Output | Supports 8K output; refer to the official manual for resolution and refresh-rate combinations |
| Network Interfaces | 2 × RJ45 10/100/1000Mbps Ethernet |
| Hard Drive Interfaces | 8 × SATA |
| Maximum Storage Capacity | Up to 16TB per hard drive, subject to compatibility |
| RAID Support | RAID 0, 1, 5, 6 and 10 |
| USB Interfaces | 1 × USB 3.0, 3 × USB 2.0 |
| Power Supply | AC 100–240V; single or redundant power configuration |
| Power Consumption | Up to 50W, excluding hard drives |
| Operating Temperature | -10°C to +50°C |
| Operating Humidity | 10%–90%, non-condensing |
