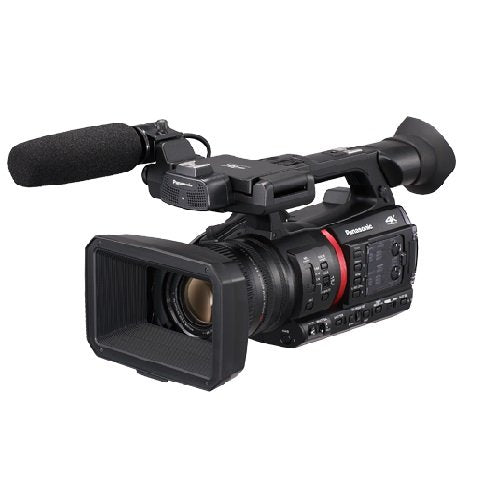

Panasonic AG-CX350 4K Camcorder Memory Card Recorder
SKU: AG-CX350EJ
Key Features
- 1" MOS Sensor
- 20x Optical, 32x Intelligent Zoom
- UHD 4K, 1080p, Variable Frame Rate
- Supports LANC Control
- 2 x Media Card Slot, HLG Recording
- 2" LCD Screen, OLED Viewfinder
- Individual Zoom, Focus, Iris Rings
- Front-Mounted Mic with Front Audio Level
- TC In/Out, 3G-SDI, HDMI Out
- USB 3.0, USB 2.0 Host, LAN Port
SKU:
AG-CX350EJ
Availability:
Out Of Stock
- 12,936.00 AED
13,616.00 AED- 12,936.00 AED
- Unit price
- per
10 customers are viewing this product
Dimensions: 36 x 33 x 27 cm
Weight: 3 kg
Description
xPanasonic AG-CX350 4k camcorder is the best video camera and the best low light camcorder in UAE
is designed for what Panasonic is calling the fusion of communication and broadcasting. A compact professional UHD 4K camcorder.
apart from that it is packed with features that you would expect to find in a full-sized camcorder. The AG-CX350 features a 1" MOS sensor recording in UHD resolution (3840 x 2160), in the MOV format using a variety of data rates including 400 Mb/s, as well as in HEVC at up to 200 Mb/s.
unlike other camcorders AG-CX350 features good quality at low light conditions.
The camcorder can also record HD in MOV, in P2 codecs such as AVC LongG and AVC Intra for ENG production, and HD/SD in AVCHD format for legacy productions.
additionally You can choose from eight different gamma settings including HLG, which is clearly provides an HDR output in the camera.
It also features variable frame rate capability from 1 to 60 fps in UHD and 1 to 120 fps in HD.
Two SD card slots allow for simultaneous, relay, and background recording which without a doubt a good feature in the 4k Camcorder.
call SYSTEC INTERNATIONAL today for price of video camera from Panasonic today.
Integrated into the camera is a 20x optical zoom lens with 32x intelligent zoom.
The lens features 5-axis image stabilization and three discrete lens control rings, one each for focus, iris, and zoom. The camcorder supports LANC control via a 2.5mm input port.
It features an OLED EVF and a 3.2" LCD touchscreen monitor, and it has a built-in stereo microphone and two XLR audio connectors.
Other connectors include both 3G-SDI and HDMI out (HDMI supports UHD), timecode in/out as well as USB 3.0, USB 2.0, and an Ethernet port for connecting to a network or wired streaming. An optional USB wireless adapter allows you to stream wirelessly.Dual-System CameraYou can select from 59.94 or 50 Hz as the signal system for the camera. This is useful as it allows you to shoot in different countries with minimal concerns over flickering lights.Signal Processing
for more about the specification , Please visit the following link:Panasonic AG-CX350 specification
The 1" MOS sensor features 15MP resolution, easily supporting UHD with its native resolution of 5170 x 2908.
The CX-350 has a 2.5mm port that supports LANC control. This has been tested to work with a variety of LANC controllers.Lensin addition The 20x optical zoom lens has a 35mm focal length equivalent to 24.5 to 490mm. and 24.5 is an extremely wide angle for a UHD camcorder.
then It features 5-Axis Hybrid Image Stabilization in both 4K and HD, which can be useful when hand-holding the camcorder.
Furthermore lens also features individual lens control rings for zoom, focus, and iris. This enables manual control of your lens (in addition to servo), similar to the control you get on full-sized shoulder-mounted cameras.
Additional features of the lens include the following:
The video camera records at standard speeds—23.98, 25, 29.97, 50, 59.94. It also records at variable frame rates in both UHD and HD; from 1 to 60 fps in UHD and 1 to 120 fps in HD.
The AG-CX350 features SD card slots, providing you with a wide choice of media to choose from, all sold separately.even so If you already have P2 cards, the Video Camera is compatible with them with a caveat. The CX350 can record onto a microP2 card as an SD card
The dual SD media slots permit you to choose from the following recording schemes:
The camera features an Ethernet port that allows you to connect it directly to a LAN (bypassing the need for a computer) and transfer your files to an FTP server with a global IP address. You can also use this port for wired streaming.
The camera uses standard streaming protocols. Using an available AJ-WM30 USB dongle, you can connect the camera to a Wi-Fi network and transfer files to an FTP server. Available third-party dongles will allow 4G/LTE connectivity.
The CX350 has preinstalled support of NDI, which provides:
High-image quality FHD streaming without a PC or an encoder unit. During streaming, UHD/FHD video can be recorded to SD cards in the camera body.Wireless Control from Smartphone/Tablet
for more about the specification , Please visit the following link:Panasonic AG-CX350 specification
The Panasonic 4K camcorder AG-CX350
is designed for what Panasonic is calling the fusion of communication and broadcasting. A compact professional UHD 4K camcorder.
apart from that it is packed with features that you would expect to find in a full-sized camcorder. The AG-CX350 features a 1" MOS sensor recording in UHD resolution (3840 x 2160), in the MOV format using a variety of data rates including 400 Mb/s, as well as in HEVC at up to 200 Mb/s.
unlike other camcorders AG-CX350 features good quality at low light conditions.
The camcorder can also record HD in MOV, in P2 codecs such as AVC LongG and AVC Intra for ENG production, and HD/SD in AVCHD format for legacy productions.
additionally You can choose from eight different gamma settings including HLG, which is clearly provides an HDR output in the camera.
It also features variable frame rate capability from 1 to 60 fps in UHD and 1 to 120 fps in HD.
Two SD card slots allow for simultaneous, relay, and background recording which without a doubt a good feature in the 4k Camcorder.
call SYSTEC INTERNATIONAL today for price of video camera from Panasonic today.
AG-CX350 Lens and LCD EVF
Integrated into the camera is a 20x optical zoom lens with 32x intelligent zoom.
The lens features 5-axis image stabilization and three discrete lens control rings, one each for focus, iris, and zoom. The camcorder supports LANC control via a 2.5mm input port.
It features an OLED EVF and a 3.2" LCD touchscreen monitor, and it has a built-in stereo microphone and two XLR audio connectors.
Other connectors include both 3G-SDI and HDMI out (HDMI supports UHD), timecode in/out as well as USB 3.0, USB 2.0, and an Ethernet port for connecting to a network or wired streaming. An optional USB wireless adapter allows you to stream wirelessly.Dual-System CameraYou can select from 59.94 or 50 Hz as the signal system for the camera. This is useful as it allows you to shoot in different countries with minimal concerns over flickering lights.Signal Processing
Video Camera features:
- New VLog recording function (V3 upgrade) provides the ability to capture the CX350s 13 stops of dynamic range, as well as more easily color grade content, especially for shared projects with the Panasonic EVA1 and/or S1H cinema cameras.
- Eight user-selectable gamma modes—HD, SD, Filmlike 1, Filmlike 2, Filmlike 3, Film-Rec, Video-Rec, and HLG for HDR recording.
- You can choose to output HDR over the 3G-SDI or HDMI output either individually or simultaneously.
- Provides a 16-axis color control of your image with three skin-tone control so you can isolate and adjust your colors precisely and protect your skin tones.
for more about the specification , Please visit the following link:Panasonic AG-CX350 specification
Sensor
The 1" MOS sensor features 15MP resolution, easily supporting UHD with its native resolution of 5170 x 2908.
AG-CX350 LANC Support
The CX-350 has a 2.5mm port that supports LANC control. This has been tested to work with a variety of LANC controllers.Lensin addition The 20x optical zoom lens has a 35mm focal length equivalent to 24.5 to 490mm. and 24.5 is an extremely wide angle for a UHD camcorder.
then It features 5-Axis Hybrid Image Stabilization in both 4K and HD, which can be useful when hand-holding the camcorder.
Furthermore lens also features individual lens control rings for zoom, focus, and iris. This enables manual control of your lens (in addition to servo), similar to the control you get on full-sized shoulder-mounted cameras.
Additional features of the lens include the following:
- Intelligent autofocus with subject tracking.
- Custom AF function: The autofocus speed can be set in 7 steps, the sensitivity can be set in 10 steps, and the AF selection area can be adjusted.
- The lens is controllable from third-party wired devices and also from iOS and Android tablets.
AG-CX350 Frame Rate
The video camera records at standard speeds—23.98, 25, 29.97, 50, 59.94. It also records at variable frame rates in both UHD and HD; from 1 to 60 fps in UHD and 1 to 120 fps in HD.
AG-CX350 Recording Media
The AG-CX350 features SD card slots, providing you with a wide choice of media to choose from, all sold separately.even so If you already have P2 cards, the Video Camera is compatible with them with a caveat. The CX350 can record onto a microP2 card as an SD card
Dual Slots
The dual SD media slots permit you to choose from the following recording schemes:
Networking
The camera features an Ethernet port that allows you to connect it directly to a LAN (bypassing the need for a computer) and transfer your files to an FTP server with a global IP address. You can also use this port for wired streaming.
Wireless Networking
The camera uses standard streaming protocols. Using an available AJ-WM30 USB dongle, you can connect the camera to a Wi-Fi network and transfer files to an FTP server. Available third-party dongles will allow 4G/LTE connectivity.
Enhanced Network Connectivity:
The CX350 has preinstalled support of NDI, which provides:
- Automatic discovery and ease of use
- Built-in support for NDI via NDI|HX (requires NewTek NDI|HX firmware upgrade)
- Ultra-low latency
- Camera control and tally
Live Streaming
High-image quality FHD streaming without a PC or an encoder unit. During streaming, UHD/FHD video can be recorded to SD cards in the camera body.Wireless Control from Smartphone/Tablet
for more about the specification , Please visit the following link:Panasonic AG-CX350 specification
Specs
x| General | ||
|---|---|---|
| Power | DC 7.28 V (when the battery is used) DC 12 V (when the AC adaptor is used) | |
| Power Consumption | 17 W (when the LCD monitor is used) 11.5 W (1080i / 422ALL-I 100M recording, when the LCD monitor is used, no external device connection) | |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) | |
| Operating Humidity | 10 % to 80 % (no condensation) | |
| Weight*1 | Body: approx. 1.9 kg (4.19 lb) (body only, excluding lens hood, battery, and accessories) Shooting: approx. 2.3 kg (5.07 lb) (including lens hood, battery, and microphone holder) | |
| Dimensions*1 | 180 mm (W) x 173 mm (H) x 311 mm (D) (7-1/8 inches x 6-13/16 inches x 12-1/4 inches) (excluding protrusion and eye cup) | |
| video Camera Unit | ||
| Pickup Device | 1.0-type (effective size) MOS solid state image sensor | |
| Effective Pixels | 15,030,000 pixel | |
| Lens | Optical image stabilizer lens, optical 20x motorized zoom F value: F2.8 to F4.5 Focal length: f=8.8 mm to 176 mmm, 35 mm equivalent: 24.5 mm to 490 mm | |
| Filter Diameter | 67 mm | |
| Optical Filter | ND Filter: Clear, 1/4, 1/16, 1/64 IR Filter: Incorporates the ON/OFF control function | |
| Shortest Shooting Distance (M.O.D.) | Approx. 10 cm (W), 1.0 m (T) from the front lens | |
| Gain Setting | L/M/H selector switch GAIN/ISO mode = dB –3 dB to 18 dB (adjustable in 1 dB steps) 24 dB, 30 dB, 36 dB switched (when assigning [S. GAIN] to the USER button) GAIN/ISO mode = ISO ISO 400, ISO 500, ISO 640, ISO 800, ISO 1000, ISO 1250, ISO 1600, ISO 2000, ISO 2500, ISO 3200, ISO 4000, ISO 5000, ISO 6400, ISO 8000, ISO 10000, ISO 12800 | |
| Color Temperature Setting | ATW, ATW LOCK, A ch, B ch, preset 3200 K/preset 5600 K/VAR (2000 K to 15000 K) | |
| Shutter Speed | When [SYSTEM MODE] = 59.94 Hz | |
| 59.94i/59.94p mode | 1/60 sec. (shutter off), 1/100 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec., 1/4000 sec., 1/8000 sec., 1/10000 sec. | |
| 29.97p mode | 1/30 sec., 1/50 sec. (shutter off), 1/60 sec., 1/100 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec., 1/4000 sec., 1/8000 sec., 1/10000 sec. | |
| 23.98p mode | 1/24 sec., 1/48 sec., 1/50 sec. (shutter off), 1/60 sec., 1/100 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec., 1/4000 sec., 1/8000 sec., 1/10000 sec. | |
| When [SYSTEM MODE] = 50.00 Hz | ||
| 50i/50p mode | 1/50 sec. (shutter off), 1/60 sec., 1/100 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec., 1/4000 sec., 1/8000 sec., 1/10000 sec. | |
| 25p mode | 1/25 sec., 1/50 sec. (shutter off), 1/60 sec., 1/100 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec., 1/4000 sec., 1/8000 sec., 1/10000 sec. | |
| Shutter Speed (Slow Shutter) | When [SYSTEM MODE] = 59.94 Hz | |
| 59.94i/59.94p mode | 1/1 sec., 1/2 sec., 1/4 sec., 1/6 sec., 1/15 sec., 1/30 sec. | |
| 29.97p mode | 1/1 sec., 1/2 sec., 1/4 sec., 1/6 sec., 1/15 sec. | |
| 23.98p mode | 1/1 sec., 1/2 sec., 1/4 sec., 1/6 sec., 1/12 sec. | |
| When [SYSTEM MODE] = 50.00 Hz | ||
| 50i/50p mode | 1/1 sec., 1/2 sec., 1/4 sec., 1/6 sec., 1/12 sec., 1/25 sec. | |
| 25p mode | 1/1 sec., 1/2 sec., 1/4 sec., 1/6 sec., 1/12 sec. | |
| Shutter Speed (Synchro Scan) | When [SYSTEM MODE] = 59.94 Hz | |
| 59.94i/59.94p mode | 1/60.0 sec. to 1/7200 sec. | |
| 29.97p mode | 1/30.0 sec. to 1/7200 sec. | |
| 23.98p mode | 1/24.0 sec. to 1/7200 sec. | |
| When [SYSTEM MODE] = 50.00 Hz | ||
| 50i/50p mode | 1/50.0 sec. to 1/7200 sec. | |
| 25p mode | 1/25.0 sec. to 1/7200 sec. | |
| Shutter Open Angle | 3.0 deg to 180.0 deg to 360.0 deg (in 0.5 deg steps) | |
| VFR Recording Frame Rate | When [SYSTEM MODE] = 59.94 Hz 1, 2, 4, 6, 9, 12, 15, 18, 20, 21, 22, 24, 25, 26, 27, 28, 30, 32, 34, 36, 40, 44, 48, 54, 60 (fps) | |
| When [SYSTEM MODE] = 50.00 Hz 1, 2, 4, 6, 9, 12, 15, 18, 20, 21, 22, 23, 24, 25, 26, 27, 28, 30, 32, 34, 37, 42, 45, 48, 50 (fps) | ||
| Super Slow Recording | When [SYSTEM MODE] = 59.94 Hz 1920 x 1080 (FHD): shooting frame rate 120 fps | |
| When [SYSTEM MODE] = 50.00 Hz 1920 x 1080 (FHD): shooting frame rate 100 fps | ||
| Sensitivity | When [HIGH SENS.] mode F12 (2000 lx, 3200 K, 89.9 % reflect, 2160/59.94p, 1080/59.94i) F13 (2000 lx, 3200 K, 89.9 % reflect, 2160/50p, 1080/50i) | |
| Horizontal Resolution | 2000 TV or higher (UHD: center) 1000 TV or higher (FHD: center) | |
| i.Zoom | x32 (FHD), x24 (UHD) | |
| Digital Zoom | x2/ x5/ x10 | |
| Lens Hood | Hood with lens cover | |
| Memory Card Recorder | ||
| Recording Media | SDHC memory card, SDXC memory card UHS-I/UHS-II UHS Speed Class 3 supported, Video Speed Class V90 supported microP2 card (A series, B series)*2 Please see the "Available Memory Card" table. | |
| Recording Slot | microP2/SDXC UHS-II card slot x 2 | |
| Recording Pixels | 3840 × 2160 (UHD), 1920 × 1080 (FHD), 1280 × 720 (HD) (AVC-Intra50: 1440 × 1080, 960 × 720) 720 × 480 (SD), 720 × 576 (SD) | |
| System Frequency | 59.94 Hz/50.00 Hz | |
| Recording File Format | MOV (AVC), MOV (HEVC), AVCHD, P2 MXF | |
| Recording Format | Please see the "Recording Format" table. | |
| Recording Time | Please see the "Recording Time" table. | |
| 2 Slot Functions | Relay Rec, Simultaneous Rec, Background Rec | |
| Special Recording Functions | Pre Rec, Interval Rec, Time Stamp | |
| Digital Video | ||
| Quantization | MOV | 4:2:2 10 bit/4:2:0 8 bit/4:2:0 10 bit (HEVC) |
| AVCHD | 4:2:0 8 bit | |
| P2 | 4:2:2 10 bit/4:2:0 10 bit (AVC-intra50)/4:2:0 8 bit (AVC-LongG12) | |
| Video Compression Format | MOV: H.264/MPEG-4 AVC High Profile, H.265/MPEG-H HEVC Main10 Profile P2: AVC-Intra422/AVC-LongG50/AVC-LongG25/AVC-LongG12: MPEG-4 AVC/H.264 High Profile P2: AVC-Intra200/AVC-Intra100/AVC-Intra50: MPEG-4 AVC/H.264 Intra Profile | |
| Digital Audio | ||
| Recording Audio Signal | MOV | 48 kHz/24 bit, 4 ch, Linear PCM |
| AVCHD | 48 kHz/16 bit, 2 ch, Dolby Audio™ | |
| P2 | 48 kHz/24 bit, 4 ch (excluding AVC?LongG12)
48 kHz/16 bit, 4 CH (AVC-Intra100/AVC-Intra50*/AVC?LongG12)
|
|
| Headroom | 12 dB/18 dB/20 dB switchable (menu) | |
| AVC Proxy | ||
| File Format | MOV | |
| Video Compression Format | H264/AVC High Profile | |
| Audio Compression Format | AAC-LC | |
| Recording Time | Approx. 13 min. per 1 GB of AVC-G6 2CH MOV
|
|
| Live Streaming | ||
| Video Compression Format | H.264/MPEG-4 AVC Main Profile, H.264/MPEG-4 AVC High Profile | |
| Video Resolution | 3640 x 2160 (UHD), 1920 x 1080 (FHD), 1280 x 720 (HD), 640 x 360, 360 x 180 | |
| Streaming Method | Unicast, Multicast | |
| Frame Rate | System frequency = 59.94 Hz: 24 fps, 30 fps, 60 fps System frequency = 50.00 Hz: 25 fps, 50 fps | |
| Bit Rate | 3640 x 2160 (UHD): 75 Mbps, 50 Mbps, 25 Mbps, 12 Mbps, 8 Mbps Other than those above: 24 Mbps, 20 Mbps, 16 Mbps, 14 Mbps, 8 Mbps, 6 Mbps, 4 Mbps, 3 Mbps, 2 Mbps, 1.5 Mbps, 1 Mbps, 0.7 Mbps, 0.5 Mbps | |
| Audio Compression Format | AAC-LC, 48 kHz/16 bit, 2 ch | |
| Network Protocol | RTSP/RTP/RTMP/RTMPS/SRT | |
| Video Output | ||
| SDI OUT | BNC x 1, SDI REC REMOTE supported HD: 0.8 V [p-p], 75 ? SD: 0.8 V [p-p], 75 ?, Output format (4:2:2 10 bit): • 1920 x 1080: 59.94p, 50p, 59.94i, 50i, 29.97Psf, 25Psf, 23.98PsF • 1280 x 720: 59.94p, 50p • 720 x 480: 59.94i • 720 x 576: 50i | |
| HDMI OUT | HDMI x 1, Type A, HDMI REC REMOTE supported, VIERA Link not supported Output format (4:2:2 10 bit): • 3840 x 2160: 59.94p, 50p, 29.97p, 25p, 23.98p • 1920 x 1080: 59.94p, 50p, 59.94i, 50i, 29.97p, 25p, 23.98p • 1280 x 720: 59.94p, 50p • 720 x 480: 59.94p • 720 x 576: 50p | |
| VIDEO OUT | 3.5 mm diameter mini jack, composite 1.0 V [p-p], 75 O | |
| Audio Input/Output | ||
| Built-inMicrophone | Stereo microphone | |
| Input 1/2 | XLR (3-pin) x 2 (INPUT1, INPUT2) Input high impedance, LINE/MIC/MIC+48V (switchable SW) MIC: -40 dBu/-50 dBu/-60 dBu (switchable menu) LINE: +4 dBu/0 dBu (switchable menu) | |
| SDI OUT | Linear PCM 4 ch | |
| HDMI OUT | Linear PCM 2 ch/4 ch (switchable menu) | |
| Headphone | 3.5 mm diameter stereo mini jack x 1 | |
| AV OUT | 3.5 mm diameter stereo mini jack x 1, Output level: 600?, 316 mV | |
| Speaker | 20 mm diameter, round x 1 | |
| Other Input/Output | ||
| TC IN/OUT | BNC x 1, Used as the input and output terminals (switchable menu) Input: 1.0 V to 4.0 V [p-p] 10 k? Output: 2.0 V ± 0.5 V [p-p] low impedance | |
| Remote | 2.5 mm diameter super mini jack
|
|
| LAN | RJ-45: 1000BASE-T/100BASE-TX/10BASE-T NDI | HX supported*3 | |
| USB 2.0 HOST | Type-A, 4-pin (5 V, 0.5 A) for Wireless Module (option) | |
| USB 3.0 DEVICE | USB 3.1 GEN1 Type-C, USB Mass storage function No USB bus power function | |
| DC IN 12V | DC 12 V EIAJ Type 4 | |
| Monitor/Viewfinder | ||
| LCD Montor | 3.5 type TFT LCD color monitor (3:2), approx. 1,620,000 dots, Touch panel video display (16: 9) area: Approx. 1,370,000 dots | |
| Viewfinder | 0.39 type OLED (organic EL display), approx. 2,360,000 dots, video display (16: 9) area: approx. 1,770,000 dots | |
| Included Accessories | ||
Battery (AG-VBR59), Battery charger (AG-BRD50), AC adaptor, AC cable, Microphone holder kit, Shoulder strap, Eye cup, Lens hood*, Grip belt* and Operating instructions
|
||
