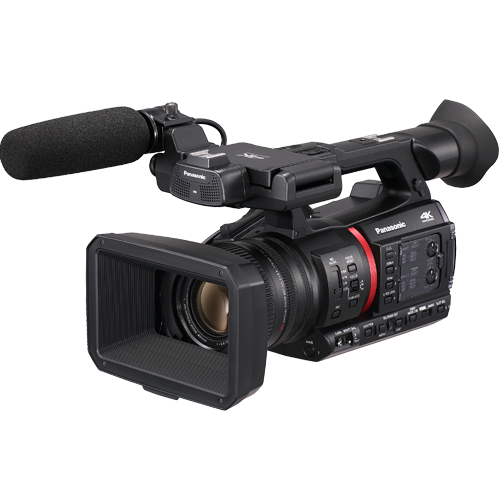

Panasonic AG-UX90 UHD 4K Professional Camcorder
SKU: AG-UX90
Key Features
- UHD 4K Resolution, 1.0-Type MOS Sensor
- 8-Mode Gamma, MOV/MP4/AVCHD Formats
- Composite, 8-Bit 4:2:0 HDMI Video Output
- Variable Rate Recording up to 60 fps
- 25.4 to 367.5mm Lens, 15x Optical Zoom
- 5-Axis Hybrid Image Stabilizer
- 2 x SDHC/SDXC Card Slots, UHS-I Support
- Variable Gain Selector Switch
SKU:
AG-UX90
Availability:
In stock
- 0.00 AED
- 0.00 AED
- Unit price
- per
10 customers are viewing this product
Dimensions: 54 x 39 x 33 cm
Weight: 5 kg
Description
xFor a wide range of high-resolution and professional options when mobile or in the studio, use the Panasonic AG-UX90 UHD 4K Camcorder for recording up to UHD 3840 x 2160 video and 8-mode gamma.
The AG-UX90 features a large, 1.0-type MOS sensor that creates a dramatic bokeh with its wide-angle lens, and its focal length with 15x optical zoom ranges from 25.4 to 367.5mm.
The camera's 5-axis Hybrid Image Stabilizer provides anti-shake correction for smooth movement, and the 3-ring lens design allows for precision iris/focus/zoom manual control.
The shutter system functions in three modes—System, Slow, and Syncro Scan—which allow for shutter speeds from 1/60 to 1/8000 per second. The three-step variable gain switch allows for greater control over brightness and shutter.
Recording functions include UHD 4K/FHD/HD/SD resolutions, MOV, MP4, and AVCHD formats with MPEG-4 and H.264 compression, frame rates up to 60 fps, Pre Rec pre-recording function, interval recording for time-lapse, freeze frame, timestamp and timecode, JPEG still recording up to 8.3MP 3840 x 2160 resolution, and 16-bit/48 kHz LPCM or Dolby stereo audio.
Two SD slots record onto SDHC/SDXC media, and UHS-I format is supported. Rollover recording is also supported, which allows recording to continue by automatically switching to the second slot when the first card is full. Recording to external media is also supported via a USB 3.0 output.
The camera supports dual-XLR input, HDMI/composite video/audio output, and 3.5mm stereo headphone output.
contact us
Visit us
Specs
x| General | ||
|---|---|---|
| Power | DC 7.28 V (when the battery is used) DC 12 V (when the AC adaptor is used) | |
| Power Consumption | 12.2 W (when the LCD monitor is used) | |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) | |
| Operating Humidity | 10 % to 80 % (no condensation) | |
| Weight*1 | Body: Approx. 1.9 kg (4.19 lb) (body only, excluding lens hood, battery, and accessories) Shooting: Approx. 2.3 kg (5.07 lb) (including lens hood, battery, and eye cup) | |
| Dimensions*1 | 169 mm (W) x 195 mm (H) x 340 mm (D) (6-21/32 inches x 7-11/16 inches x 13-3/8 inches) (excluding protrusion and eye cup) 169 mm (W) x 195 mm (H) x 382 mm(D) (6-21/32 inches x 7-11/16 inches x 15-1/32 inches) (including eye cup, excluding protrusion) | |
| Camera Unit | ||
| Pickup Device | 1.0-type MOS solid state image sensor | |
| Effective Pixels | 17.78 megapixel | FHD 59.94p/29.97p/23.98p |
| 8.59 megapixel | UHD 29.97p/23.98p | |
| Lens | Optical image stabilizer lens, optical 15x motorized zoom F2.8 to F4.5 (f=8.8 mm to 132 mm) 35 mm equivalent: f=24.5 mm to 367.5 mm: FHD 59.94p/29.97p/23.98p f=35.4 mm to 531.0 mm: UHD 29.97p/23.98p | |
| Filter Diameter | 67 mm | |
| ND Filter | 4 Positions (OFF, 1/4, 1/16, 1/64) | |
| Shortest Shooting Distance (M.O.D.) | Approx. 1.0 m from the front lens | |
| Gain Setting | L/M/H selector switch Standard mode: 0 dB to 30 dB (Adjustable in 1 dB steps) (Automatic setting can be assigned to L/M/H) Extended ON: -3 dB to 30 dB (Adjustable in 1 dB steps) (Automatic setting can be assigned to L/M/H) 33 dB and 36 dB switched (when assigning [S.GAIN] to the USER button) | |
| Color Temperature Setting | ATW, ATW LOCK, Ach, Bch, preset 3200 K/preset 5600 K/VAR (2000 K to 15000 K) | |
| Shutter Speed | 60i/60p mode | 1/60 sec., 1/100 sec., 1/120 sec., 1/180 sec., 1/250 sec., 1/350 sec., 1/500 sec., 1/750 sec., 1/1000 sec., 1/1500 sec., 1/2000 sec., 1/3000 sec., 1/4000 sec., 1/8000 sec. |
| 30p mode | 1/30 sec., 1/50 sec., 1/60 sec., 1/100 sec., 1/120 sec., 1/180 sec., 1/250 sec., 1/350 sec.,1/500 sec., 1/750 sec., 1/1000 sec., 1/1500 sec., 1/2000 sec., 1/3000 sec., 1/4000 sec., 1/8000 sec. | |
| 24p mode | 1/24 sec., 1/48 sec., 1/50 sec., 1/60 sec., 1/100 sec., 1/120 sec., 1/180 sec., 1/250 sec.,1/350 sec., 1/500 sec., 1/750 sec., 1/1000 sec., 1/1500 sec., 1/2000 sec., 1/3000 sec.,1/4000 sec., 1/8000 sec. | |
| Shutter Speed (Slow Shutter) | 60i/60p mode | 1/2 sec., 1/4 sec., 1/8 sec., 1/15 sec., 1/30 sec., |
| 30p mode | 1/2 sec., 1/4 sec., 1/8 sec., 1/15 sec. | |
| 24p mode | 1/2 sec., 1/3 sec., 1/6 sec., 1/12 sec. | |
| VFR Recording Frame Rate | 30p mode | 2, 15, 26, 28, 30, 32, 34, 45, 60 (fps) |
| 24p mode | 2, 12, 20, 22, 24, 26, 28, 36, 48, 60 (fps) | |
| Minimum Subject Illumination | 1.3 lx (F2.8, Super Gain 36 dB, Manual slow shutter 1/30s) | |
| Digital Zoom | 2x/5x/10x, i.Zoom: max. 25x (optical zoom + digital zoom) | |
| Lens Hood | Hood with lens cover | |
| Memory Card Recorder | ||
| Recording Media*2 | SDHC memory card (4 GB to 32 GB), SDXC memory card (48 GB to 128 GB), UHS-I supported | |
| Recording Slot | Slot x 2 | |
| System Format | 59.94 Hz | |
| Recording Format | MOV, MP4, AVCHD | |
| Recording Mode | Please see the "Recording Format" table. | |
| Recording Time | Please see the "Recording Time" table. | |
| 2 Slot Functions | Relay, Simultaneous | |
| Still Picture Recording Mode | JPEG (DCF/Exif2.2) | |
| Still Picture Recording | Motion Picture Playback: 8.3 M: 3840 x 2160 (16:9), 2.1 M: 1920 x 1080 (16:9), 0.9 M: 1280 x 720 (16:9) | |
| Digital Video | ||
| Video Signal for External Output | 8bit 4:2:2 | |
| Recording Video Signal | 8bit 4:2:0 | |
| Video Compression Format | MPEG-4 AVC/H.264 High Profile (MOV/MP4/AVCHD) | |
| Digital Audio | ||
| Sampling Frequency | 48 kHz/16 bit 2 ch | |
| Audio Signal Format | LPCM (MOV/MP4), Dolby Audio (AVCHD) | |
| Headroom | 12 dB | |
| Video Input/Output | ||
| VIDEO OUT | VIDEO OUT connector x 1 | |
| HDMI | Type A connector x 1, VIERA Link not supported Output format: 2160/29.97p/23.98p, 1080/59.94p/29.97p/23.98p/59.94i, 720/59.94p, 480/59.94p | |
| Audio Input | ||
| Built-in Microphone | Stereo microphone | |
| XLR Input | XLR (3-pin) x 2 (INPUT1, INPUT2) high impedance, LINE/MIC/MIC+48V (switchable SW) LINE: +4 dBu/0 dBu (switchable menu) MIC: -40 dBu/-50 dBu/-60 dBu (switchable menu) | |
| Audio Output | ||
| HDMI | 2 ch (LPCM) | |
| AUDIO OUT | AUDIO OUT x 2 | |
| Headphones | 3.5 mm diameter stereo mini jack x 1 | |
| Speaker | 20 mm diameter, round x 1 | |
| Other Input/Output | ||
| CAM REMOTE | 2.5 mm diameter super mini jack x1 (ZOOM S/S) 3.5 mm diameter mini jack x1 (FOCUS IRIS) | |
| USB3.0 HOST | Standard-A connector, 9-pin, external media device connection*3,bus power supported | |
| USB 3.0 DEVICE | Micro-B connector, 10-pin, Mass storage function (read only) | |
| DC IN 12V | DC 12 V (DC 11.4 V to 12.6 V), EIAJ type 4 | |
| Monitor/Viewfinder | ||
| LCD Monitor | 3.5-type LCD monitor, Approx. 1,150,000 dots | |
| Viewfinder | 0.24-type EVF, Approx. 1,560,000 dots equivalent | |
