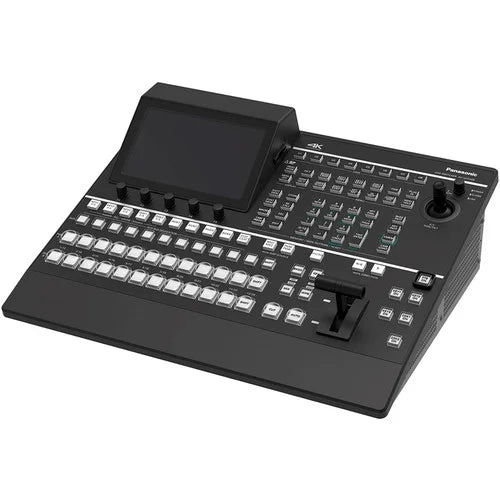

Panasonic AV-UHS500 12G-SDI/HDMI UHD 4K Compact Live Switcher
SKU: AV-UHS500P
Key Features
- 8-Channel 12G-SDI/HDMI Switcher
- Up to UHD 4K60 Input & Output
- 8 x SDI Inputs, 5 x SDI Outputs
- 2 x HDMI Inputs, 2 x HDMI Outputs
- Up, Down & Cross Conversion
- Frame Synchronizer on All Inputs
- Up to 32-Window Multiview Output
- 5 x Keyers, 4 x AUX Buses, Video Memory
- PTZ Camera Control Functions
- Audio Source Selection Function
SKU:
AV-UHS500P
Availability:
Out Of Stock
- 73,029.00 AED
- 73,029.00 AED
- Unit price
- per
Tax excluded.
10 customers are viewing this product
Dimensions: 50 x 48 x 30 cm
Weight: 13 kg
Description
xThe Panasonic AV-UHS500 12G-SDI/HDMI UHD 4K Compact Live Switcher with HDMI inputs and 12G-SDI input from Panasonic provides reliable, feature-heavy video switching in a compact, portable form. Ideal for both field and studio use, this Panasonic SDI/HDMI switcher supports up to 12G-SDI input and output at rates up to UHD 4K60. the Compact Live Switcher features a 7" integrated monitor, up to 32-window multiviewing, SDR and HDR bidrectional conversion, PTZ camera control, and up, down, and cross conversion. Designed for educational, corporate, sports, and event production, this live switcher enables you to integrate multiple types of cameras and other video feeds into your production.
4K Multi-Format Production Switcher (Compact Live Switcher)Compact size is ideal for both studio and remote productionEducational, corporate, sports, and event useFormat IndependentThe AV-UHS500 Compact Live Switcher enables you to mix sources ranging from HD to UHD 4KSDI and HDMI Input/Outputthe Panasonic AV-UHS500 Compact Live Switcher Supports up to 12G-SDI input and outputBase model includes:the AV-UHS500 Compact Live Switcher Eight SDI inputs and five SDI outputsTwo HDMI inputs and two HDMI outputsExpandable design supports up to 16 inputs and 15 outputs via five optional modulesScalabilityBuilt-in scaling features included up, down, and cross conversionSupports up to UHD 4K60 video with HDMI inputs and 12G-SDI inputAll outputs have frame synchronizers and frame convertersMultiviewerthe Panasonic AV-UHS500 Compact Live Switcher Two configurable multiviewers with up to 32 windows lets your operators see as much or as little of the action as they wantBuilt-In MonitorLarge, integrated 7" monitor can be used for menu navigation, as a multiviewer, for source checking, and to access the embedded waveform and vectorscope functionsCreative EffectsFive keyers, animation wipes, multiple transitions and effects, and video memory enable you to apply a host of creative effectsHDR CompatiblePanasonic AV-UHS500 has Bidirectional SDR to HDR conversion with the HDMI inputsPTZ ControlAssignable buttons can trigger macros that include PTZ presets
