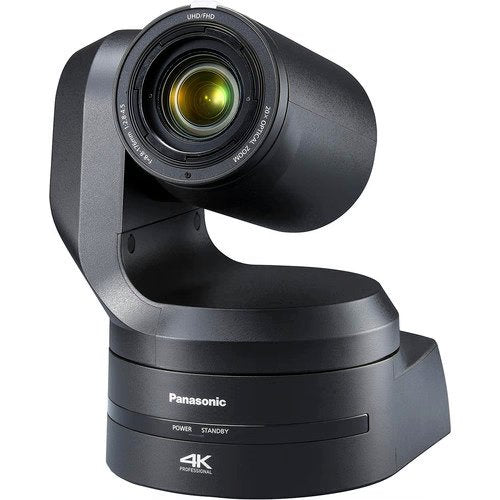

Panasonic AW-UE150K UHD 4K 20x PTZ Camera (Black)
SKU: AW-UE150KEJ
Key Features
- 1"-Type MOS Sensor
- Up to UHD 4K 60p & HD Simultaneous Out
- 12G-SDI, HDMI, Fiber & IP Transmission
- V-Log Out & UHD Crop with v2.28 Update
- 20x Optical, 24x UHD & 32x HD iZoom
- HDR Mode with BT.2020 Support
- Wide 75.1° Horizontal Viewing Angle
- Up to 180°/Sec Pan/Tilt Speed
- Live Stream to Platforms via RTMP
- Stereo Mini-Jack Audio Mic/Line Input
- 37,000.00 AED
- 37,000.00 AED
- Unit price
- per
Dimensions: 49 x 39 x 37 cm
Weight: 7 kg
Description
xThis pro PTZ camera outputs up to UHD 4K 60p over a variety of 4K connections including 12G-SDI, HDMI, optical fiber, and IP streaming. It features a large 1" type MOS sensor, a 20x optical zoom with a wide 75.1° angle-of-view, and PoE++ compatibility.
With the v2.28 firmware upgrade, the AW-UE150W offers V-Log output, a UHD crop function in 720p, a preset on/off iris function, and more.
Camera features include an HDR mode with BT.2020 color gamut support, optical image stabilization (OIS), a fast 180° pan/tilt speed in high-speed mode, and an infrared Night Mode to capture wildlife or other low-light situations in monochrome HD video.
A cropping function enables you to create a multicamera look by selecting up to three angles from a single 4K image.
The AW-UE150W camera supports embedded audio and audio input via a stereo mini-jack. Its redesigned web interface is compatible with PCs, Macs, tablets, and both Android and iOS smartphones.
Additional features include an adjustable tally light, 1/4, 1/16, and 1/64 ND filters, and live streaming via RTMP. The AW-UE150W is upgradable to NDI/HX compatibility with a separately available license.
PoE++ CompatiblePower the camera using a separately available PoE++ (IEEE802.3bt) hub to minimize installation costsFirmware Upgrade v2.28Add V-Log output, a UHD crop function for 720/59.94p and 720/50p, a preset iris on/off function, and more by upgrading to firmware version 2.28
Panasonic AW-UE150 Black
Panasonic AW-UE150 Black Resolution
This pro PTZ camera outputs up to UHD 4K 60p over a variety of 4K connections including 12G-SDI, HDMI, optical fiber, and IP streaming.
It features a large 1" type MOS sensor, a 20x optical zoom with a wide 75.1° angle-of-view, and PoE++ compatibility.With the v2.28 firmware upgrade, the AW-UE150W offers V-Log output, a UHD crop function in 720p, a preset on/off iris function, and more.
get it today from Systec international
see the full specs of AW-UE150
Additional Information
x| Weight | 7 kg |
|---|---|
| Dimensions | 49 × 39 × 37 cm |
| Signal to Noise Ratio | 60 db |
| Sensitivity | f/9 at 2000 lux |
| White Balance | 2000 to 15,000K |
| Shutter Speed | 1/24 to 1/10,000 sec |
| Digital Zoom | Max 32x (in 1080p) |
| IR Cut Filter | Yes (Night Mode) |
| Optical Zoom Ratio | 20x |
| Focal Length | 8.8 to 176mm(35mm Equivalent Focal Length: 24.5 to 490mm) |
| Field of View | Horizontal: 75.1 to 4° Vertical: 46.7 to 2.3° Diagonal Angle of view: 82.8 to 4.6° |
| Aperture | f/2.8 to 4.5 |
| Minimum Focus Distance | Wide: 9.9 cm Telephoto: 100.6 cm |
| Image Stabilization | Optical |
| Output Formats | SDI, HDMI, RJ45, Optical Fiber: 3840 x 2160p at 24, 25, 29.97, 50, 59.94 fps 1920 x 1080p at 25, 29.97, 50, 59.94 fps 1920 x 1080PsF at 23.98, 25, 29.97 fps 1920 x 1080i at 50, 59.94 fps 1280 x 720p at 50, 59.94 fps |
| Embedded Adio | HDMI SDI |
| IP Streaming | H.264, H.265, MJPEG: 1080p, 720p at 25p, 30p, 50p, 60p (0.51 to 76.8 Mb/s) |
| Move Speed | Pan: 0.08 to 180°/sec Tilt: 0.08 to 180°/sec |
| Movement Range | Pan: 350° (-175 to 175°) Tilt: 120° (-30 to 210°) |
| Tally Light | Yes |
| Supported Control Protocols | RS-232 RS-422 |
| Video Output Connectors | 1 x HDMI Type A (HDMI 2.0) Male 1 x BNC Male (Loop Output) 1 x BNC (3G-SDI) Male |
| Audio Interface | 1 x RJ45 (IP Control, RS-422) |
| Other I/O | 1 x BNC (Genlock) Input |
| Expansion Slots | 1 x SFP+ Slot |
| POE Support | PoE++ 802.3bt |
| Power Connectors | 1 x Proprietary (10.8 to 13.2 V DC) |
| Power Consumption | Power Supply: 10.8 to 13.2 V DC at 4 A PoE: 42 to 57 V DC at 1.2 A |
| Operating Temperature | 0 to 40°C |
| Storage Temperature | -20 to 50°C |
| Operating Humidity | 20 to 90% |
