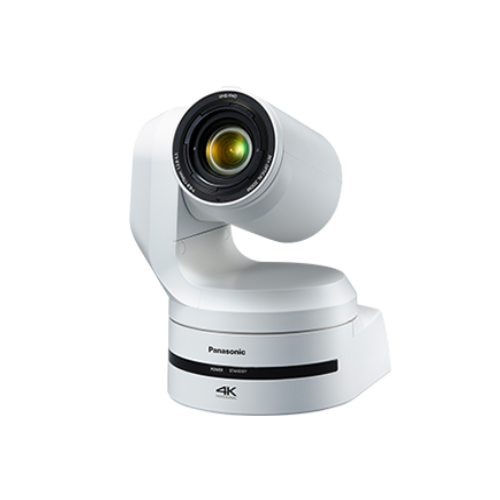

Panasonic AW-UE150W UHD 4K 20x PTZ Camera (White)
SKU: AW-UE150W
Key Features
- 1"-Type MOS Sensor
- Up to UHD 4K 60p & HD Simultaneous Out
- 12G-SDI, HDMI, Fiber & IP Transmission
- V-Log Out & UHD Crop with v2.28 Update
- 20x Optical, 24x UHD & 32x HD iZoom
- HDR Mode with BT.2020 Support
- Wide 75.1° Horizontal Viewing Angle
- Up to 180°/Sec Pan/Tilt Speed
- Live Stream to Platforms via RTMP
- Stereo Mini-Jack Audio Mic/Line Input
SKU:
AW-UE150W
Availability:
In stock
- 38,000.00 AED
40,000.00 AED- 38,000.00 AED
- Unit price
- per
10 customers are viewing this product
Dimensions: 54 x 45 x 37 cm
Weight: 6.5 kg
Description
xPanasonic PTZ AW-UE150 Resolution
This pro PTZ camera outputs up to UHD 4K 60p over a variety of 4K connections including 12G-SDI, HDMI, optical fiber, and IP streaming.
It features a large 1" type MOS sensor, a 20x optical zoom with a wide 75.1° angle-of-view, and PoE++ compatibility.With the v2.28 firmware upgrade, the AW-UE150W offers V-Log output, a UHD crop function in 720p, a preset on/off iris function, and more.
Where to Buy Panasonic AW-UE150 White
get it today from Systec international
HDR (HLG) Support
Camera features include an HDR mode with BT.2020 color gamut support, optical image stabilization (OIS), a fast 180° pan/tilt speed in high-speed mode, and an infrared Night Mode to capture wildlife or other low-light situations in monochrome HD video. A cropping function enables you to create a multi camera look by selecting up to three angles from a single 4K image.
Panasonic AW-UE150 White 1.0-type MOS Sensor Mounted
The large 1.0-type MOS sensor enables high sensitivity shooting with low noise. The sensor boasts a light-capturing area that is approximately four times larger than that of the 1/2.3-type sensor to guarantee a wide dynamic range.
Optical Image Stabilizer (OIS)
Vibrations of the mounted surface caused by doors opening and closing, audio systems and other installed equipment are automatically corrected to ensure stable shooting.
Night Mode Support
Equipped with Night Mode for infrared shooting. The use of IR rays in low-light situations enables shooting in situations that would normally be difficult, such as when capturing wildlife (image output is black and white).
Panasonic AW-UE150 White Audio Support
The AW-UE150W camera supports embedded audio and audio input via a stereo mini-jack. Its redesigned web interface is compatible with PCs, Macs, tablets, and both Android and iOS smartphones. Additional features include an adjustable tally light, 1/4, 1/16, and 1/64 ND filters, and live streaming via RTMP. The AW-UE150 is upgradable to NDI/HX compatibility with a separately available license.
see the full specs of AW-UE150
Specs
x| General | ||
|---|---|---|
| Power Requirements | 12 V DC (10.8 V to 13.2 V), DC 42 V to 57 V (Camera Input, PoE++ power supply) | |
| Current Consumption | 4.0 A (XLR IN connector), 1.2 A (PoE++ power supply) | |
| Ambient Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) | |
| Ambient Operating Humidity | 20 % to 90 % (no condensation) | |
| Storage Temperature | –20 °C to 50 °C (–4 °F to 122 °F) | |
| Mass | Approx. 4.2 kg (9.24 lb) (excluding mount bracket) | |
| Dimensions (W x H x D) | 213 mm x 267 mm x 219 mm (8-3/8 inches x 10-1/2 inches x 8-5/8 inches) (excluding protrusions, direct ceiling mount bracket) | |
| Finish | AW?UE150WP/AW?UE150WE: Pearl white AW?UE150KP/AW?UE150KE: Black | |
| Controller Supported | AW-RP150GJ, AW-RP50*1, AK-HRP1000GJ*1 | |
| Camera Unit | ||
| Imaging Sensors | 1-type 4K MOSx1 | |
| Effective Pixels | 20,180,000 pixel | |
| Lens | Motorized Optical 20x zoom, F2.8 to F4.5 [f=8.8 mm (11/32 inches) to 176.0 mm (6?15/16 inches); 35 mm (1?3/8 inches) equivalent: 24.5 mm (31/32 inches) to 490.0 mm (19?9/32 inches)] | |
| Zoom | • Optical zoom: 20x • i.Zoom: UHD 24x, FHD 32x • Digital zoom: 10x | |
| Conversion Lens | Not supported | |
| Angle of View Range | Horizontal angle of view: 75.1° (wide) to 4.0° (tele) Vertical angle of view: 46.7° (wide) to 2.3° (tele) Diagonal angle of view: 82.8° (wide) to 4.6° (tele) | |
| Optical Filter | Through, 1/4, 1/16, 1/64, IR through (IR through is used as “Night mode”) | |
| Focus | Switching between auto and manual | |
| Focus Distance | Entire zooming range: 1000 mm (3.3 ft) Wide end: 100 mm (0.33 ft) | |
| Color Separation Optical System | 1MOS | |
| Standard Sensitivity | F9, 2000 lx (When normal mode is selected) | |
| Minimum Illumination | 2 lx (F2.8, 59.94p, 50IRE, 42 dB, without accumulation) | |
| S/N | 60 dB or more | |
| Horizontal Resolution | 2,000 TV lines Typ (Center area) | |
| Gain Selection | Auto, -3 dB to 36 dB*2 Super Gain function equipped : +37 dB to 42 dB | |
| Frame Mix*3 | 0 dB, 6 dB, 12 dB, 18 dB, 24 dB | |
| Electronic Shutter Speed | 59.94p/59.94i | 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
| 29.97p | 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 | |
| 23.98p/24p | 1/24, 1/48, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 | |
| 50p/50i | 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 | |
| 25p | 1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 | |
| Synchro Scan | 59.94p/59.94i | 60.00 Hz to 7200 Hz |
| 29.97p | 30.00 Hz to 7200 Hz | |
| 23.98p/24p | 24.00 Hz to 7200 Hz | |
| 50p/50i | 50.00 Hz to 7200 Hz | |
| 25p | 25.00 Hz to 7200 Hz | |
| Gamma | HD / FILMLIKE1 / FILMLIKE2 / FILMLIKE3/ FILM REC / VIDEO REC / HLG | |
| White Balance | ATW : 3200K, 5600K ATW Speed : Normal / Slow / Fast AWB : AWB-A / AWB-B VAR (selectable between 2000K and 15000K by designating a value) | |
| Chroma Amount Variability | OFF, –99 % to 99 % | |
| Scene File | Scene1, Scene2, Scene3, Scene4 | |
| Output Format | 4K | 2160/59.94p, 2160/50p, 2160/29.97p*4, 2160/25p*4, 2160/24p*4, 2160/23.98p*4 |
| HD | 1080/59.94p, 1080/50p, 1080/29.97p*4, 1080/29.97PsF, 1080/25p*4, 1080/25PsF, 1080/23.98p*5, 1080/24p*4, 1080/23.98p*4, 1080/23.98PsF, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p | |
| Synchronization System | ||
| Internal/External synchronization (BBS/Tri-level sync) | ||
| Input | ||
| Input Connector | DC 12 V IN, G/L IN (BNC) • BBS (Black Burst Sync), tri-level sync supported | |
| Output | ||
| Video Output | HDMI | HDMI 2.0 standard 4:2:2/10bit • HDCP is not supported. • Viera Link is not supported. |
| 12G-SDI OUT | SMPTE 2082?1 standard / 75 ? (BNC x 1) | |
| 3G-SDI OUT | SMPTE424M/SMPTE292 / 75 ? (BNC x 1) • Level-A/Level-B supported | |
| MONI OUT | SMPTE292 / 75 ? (BNC x 1) | |
| Optical Fiber | SFP+ standard • This unit does not support input by optical signals | |
| Input/Output | ||
| Input/Output Connector | LAN | LAN connector for IP control (RJ?45) |
| RS-422 | CONTROL IN RS-422A (RJ?45) | |
| MIC/LINE input | AAC compatible (compatible with IP only) ø 3.5 mm stereo mini jack Input impedance: High impedance • During MIC input Supported mic: Stereo mic (plug-in power, on/off switching via menu) Supply voltage: 2.5 V ± 0.5 V Mic input sensitivity: Approx. –40 dBV ± 3 dBV (0 dB=1 V/Pa, 1 kHz) • During LINE input Input level: Approx. –10 dBV ±3 dBV | |
| Pan-tilt Head Unit | ||
| Camera/Pan-tilt Head Control | IP connecting cable | LAN cable*6*7: (category 5e or above, straight cable / crossover cable), max. 100 m (328 ft) |
| AW protocol connecting cable | LAN cable*6: (category 5e or above, straight cable), max. 1000 m (3280 ft) | |
| Installation Method | Stand-alone (Desktop) or suspended (Hanging)*8 | |
| Pan/tilt Operation Speed | Minimum speed 0.08°/s Maximum speed 60°/s or higher*9 • Maximum speed is 180°/s in high-speed mode | |
| Panning Range | ±175° | |
| Tilting range | –30° to 210°*10 | |
| Quietness | NC35 or less | |
| Supported Operating Systems and Web Browsers*11 | ||
| Supported Operating Systems and Web Browsers | Windows | Microsoft® Windows® 7, 10 Windows® Internet Explorer® 11 (64?bit/32?bit) Microsoft Edge Google Chrome |
| Mac | Mac OS 10.13, Mac OS 10.12, Mac OS 10.11 Safari 11, Google Chrome | |
| iPhone / iPad | iOS 11.4.1 Google Chrome | |
| IP Streaming | ||
| Image Streaming Mode | JPEG (MJPEG), H.264, H.265 | |
| Image Resolution | 3840x2160, 1920x1080, 1280x720, 640x360, 320x180 | |
| Image Transmission Setting (JPEG) | Frame Rate: Maximum 30 fps Image quality (Fine / Normal) | |
| Image Transmission Setting (H.264) | Transmission Type | Unicast port (AUTO) Unicast port (MANUAL) Multicast port |
| Transmission Priority | Constant bit rate Frame rate Best effort | |
| Frame Rate | [60Hz] 5fps / 15fps / 30fps / 60fps (UHD: 30fps, 60fps) [50Hz] 5fps / 12.5fps / 25fps / 50fps (UHD: 25fps, 50fps) | |
| Max Bit Rate | HD: 512kbps / 768kbps / 1024kbps / 1536kbps / 2048kbps / 3072kbps / 4096kbps / 6144kbps / 8192kbps / 10240kbps / 12288kbps / 14336kbps / 16384kbps / 20480kbps / 24576kbps / 32768kbps / 40960kbps / 51200kbps / 76800kbpsUHD: 12800kbps / 25600kbps / 51700kbps / 76800kbps | |
| Image Transmission Setting (H.265) | Transmission Type | Unicast port (AUTO) Unicast port (MANUAL) Multicast port |
| Frame Rate | [60Hz] 30fps [50Hz] 25fps | |
| Max Bit Rate | 8192kbps / 12800kbps / 25600kbps / 51200kbps / 76800kbps | |
| Audio Compression Type | AAC-LC, 48 kHz / 16 bit / 2ch | |
| Supported Protocol | IPv6 | TCP / IP, UDP / IP, HTTP, HTTPS, DNS, NTP, DHCPv6, RTP, MLD, ICMP, ARP, RTMP, SRT |
| IPv4 | TCP / IP, UDP / IP, HTTP, HTTPS, RTSP, RTP / RTCP, DHCP, DNS, DDNS, NTP, UPnP, IGMP, ICMP, ARP, RTMP, RTMPS, SRT | |
| Other Function | ||
| NDI support*12 | NDI®|HX version 2 | |
| Tally LED Display Color | red / green | |
