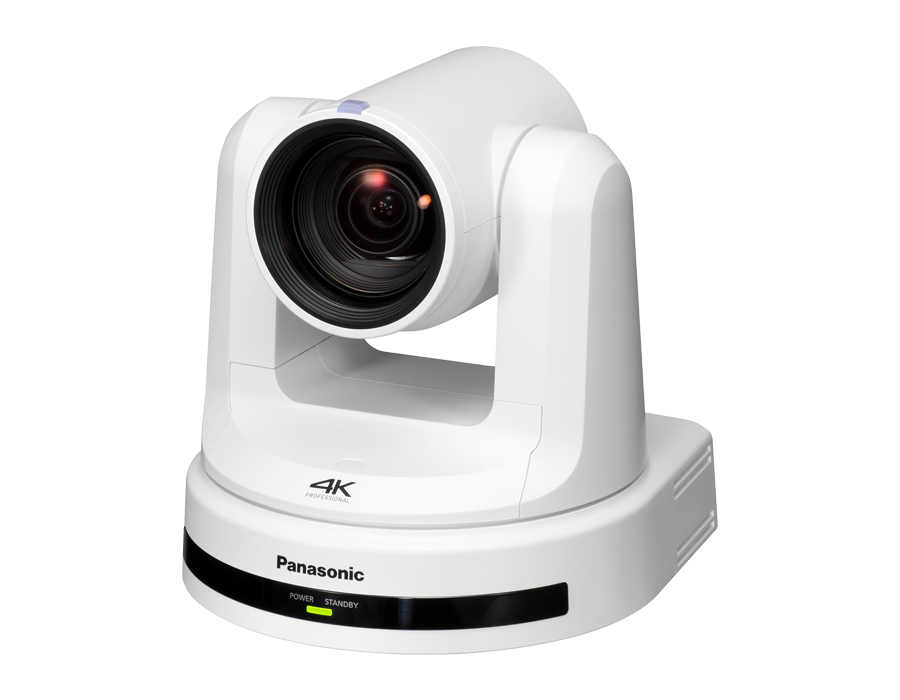

Panasonic AW-UE20W (White)
SKU: AW-UE20WEJ
Key Features
- 1/2.8" HD MOS Sensor, 12x Optical Zoom
- Up to 4K30 HDMI/IP Streaming Output
- Up to 1080p 3G-SDI/USB Output
- ±170° Pan, -30 to 90° Tilt
- LAN, UVC, and Serial Control
- Mic/Line Stereo Audio Input
- PoE+ Compatible
SKU:
AW-UE20WEJ
Availability:
In stock
- 0.00 AED
- 0.00 AED
- Unit price
- per
10 customers are viewing this product
Dimensions: 39 x 34 x 30 cm
Weight: 4 kg
Description
xThe white AW-UE20 3G-SDI/HDMI/IP/USB PTZ Camera with 12x Optical Zoom from Panasonic provides a variety of options for your conference room, house of worship, or education locations that require high-quality 4K30 video output and recording. The camera features a 1/2.8" MOS sensor, 4K30 HDMI and IP streaming output, 1080p 3G-SDI output, USB webcam output, mic/line audio input, and serial control. When connected to the Internet, this IP camera allows you to control PTZ actions and monitor the surveillance area from a remote location via a Web browser.
Equipped with a 3.9 to 46.8mm zoom lens and 12x optical zoom, this PTZ camera enables you to zoom in on activity in the monitoring area for a closer look. Other features include auto white balance, RS-232/RS-422 serial control, LAN control, UVC communication via USB, 170° panning range, -30 to 90° tilt range, H.265/H.264/MJPEG video compression, and RTSP/RTMP streaming. The camera also supports mic and line audio input, allowing you to capture and embed audio within the video signal. It is also PoE+ compatible, allowing you to power the unit using only the single LAN cable rather than adding additional power adapter cables.
Key Features
1/2.8" MOS sensor with 12x optical zoom
Video output up to 4K30 via HDMI and IP and up to 1080p60 via 3G-SDI and USB for a reliable live video production workflow
Supports PoE+ (Power-over-Ethernet+) for lower installation costs
The camera can be used as a webcam on a computer using USB and UVC communication
Using an IP browser, the camera can be controlled from a remote location and IP video monitoring, and remote camera control can be performed from a computer or mobile terminal such as a smartphone or tablet, enabling easy operations
The camera also supports audio input, embedding and encoding, and audio output to IP is also supported via H.264/H.265/MJPEG
Compatible with existing FEC-40 wall mounts
Specs
x| Image Sensor | 1-Chip 1/2.8" MOS Sensor |
| Built-In ND Filter | None |
| Flip / Mirror Support | Image Flip |
| Optical Zoom Ratio | 12x |
| Focal Length | 3.9 to 46.8mm |
| Field of View | Horizontal: 6 to 71° Vertical: 3 to 43° Diagonal: 7 to 79° |
| Maximum Aperture | f/1.6 to 2.8 |
| Focus Control | Autofocus Manual Focus |
| Broadcast System Compatibility | NTSC, PAL |
| Output Formats | HDMI, RJ45: 3840 x 2160p at 25, 29.97, 30 fps 1920 x 1080p at 25, 29.97, 50, 59.94, 60 fps 1920 x 1080i at 50, 59.94, 60 fps 1280 x 720p at 50, 59.94, 60 fps SDI, USB: 1920 x 1080p at 25, 29.97, 50, 59.94, 60 fps 1920 x 1080i at 50, 59.94, 60 fps 1280 x 720p at 50, 59.94, 60 fps |
| Embedded Audio | HDMI/SDI: 2-Channel |
| IP Streaming | H.264, H.265, MJPEG, RTP, RTSP, TCP, UDP: 1080p, 720p, 360p |
| Movement Range | Pan: 340° (-170 to 170°) Tilt: 120° (-30 to 90°) |
| Supported Control Protocols | IP RS-232 RS-422 |
| Video Output Connectors | 1 x BNC (3G-SDI) Female 1 x HDMI Type A Female 1 x USB 2.0 Type-B (USB Video) Female 1 x RJ45 (HX / NDI) Female |
| Audio I/O | 1 x 1/8" / 3.5 mm Stereo Mic/Line Level Input |
| Control Interface | 1 x RJ45 (LAN) Input 1 x 8-Pin Mini-DIN (RS-232) Input 1 x 8-Pin Mini-DIN (RS-232) Output 1 x RJ45 (RS-422) Output |
| PoE Support | PoE+ 802.3at |
| Power Connectors | 1 x Barrel / Coaxial (10.8 to 13.2 VDC) |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 122°F / -20 to 50°C |
| Operating Humidity | 20 to 90% |
