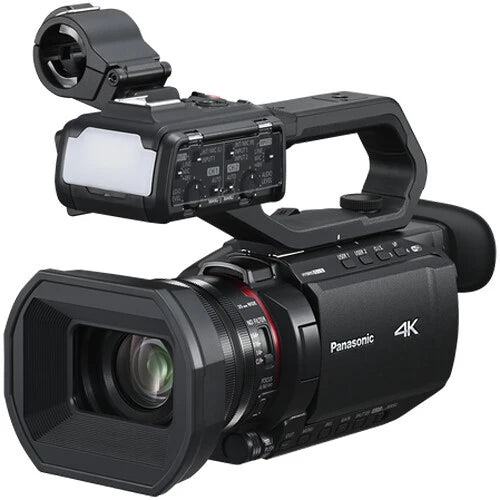

Panasonic AG-CX20 Professional Compact 4K Camcorder with XLR Inputs & IP Connectivity (AG-CX20)
SKU: AG-CX20
Key Features
- 1/2.5" MOS Sensor, 4K Capture
- Wide 25mm Lens with 24x Optical Zoom
- 5-Axis Hybrid Stabilization, O.I.S
- IP Streaming/Recording & NDI|HX Support
- Dual SD Card Slots, Built-In ND Filter
- Face Detection & Tracking AE/AF
- Slow-Mo, Infrared, Selfie Modes
- Built-In LED Light, LCD & OLED EVF
- 3G-SDI & HDMI Out, HDMI Record Output
- Wireless & Wired Control, Dual XLR Input
- 12,999.00 AED
- 12,999.00 AED
- Unit price
- per
Dimensions: 60 x 40 x 40 cm
Weight: 8 kg
Panasonic AG-CX20 Professional Compact 4K Camcorder with XLR Inputs & IP Connectivity (AG-CX20)
Description
xThe Panasonic AG-CX20 Professional Compact 4K Camcorder is designed for professional video production, live events, news coverage and streaming. It features a 1/2.5-type MOS sensor and supports 4K recording at up to 60p, delivering detailed footage with flexible recording options.
Its 25mm wide-angle lens offers 24x optical zoom, allowing you to capture both wide scenes and distant subjects. The camcorder also features 4K high-precision autofocus, face detection and tracking, along with 5-axis Hybrid Optical Image Stabilization to help produce clear and stable footage.
For professional audio recording, the detachable handle unit provides two XLR inputs with LINE, MIC and +48V phantom power support. The camera also includes dual SD card slots, a built-in LED light, a 3.5-inch touchscreen LCD and an OLED viewfinder.
The AG-CX20 supports NDI HX2 for IP-based video transmission and camera control, alongside Wi-Fi connectivity, HDMI output and 3G-SDI connectivity. These features make it suitable for production studios, broadcasters and live streaming setups. Explore the Panasonic collection at Systec International for more professional video equipment.
FAQs
Does the Panasonic AG-CX20 support 4K recording?
Yes, it supports 4K UHD recording at up to 60p and 50p.
What is the optical zoom range?
It features a 24x optical zoom lens with a 25mm to 600mm equivalent focal length.
Does the AG-CX20 have XLR audio inputs?
Yes, it has two XLR inputs on the detachable handle unit, with LINE, MIC and +48V phantom power support.
Does this camcorder support NDI HX2?
Yes, it supports NDI HX2 for IP-based video transmission and camera control.
Can the AG-CX20 record to two memory cards?
Yes, it has two card slots and supports relay, simultaneous and background recording modes.
Specs
xSpecifications
| Model | AG-CX20 |
|---|---|
| Camera Sensor | 1/2.5-type MOS solid-state image sensor |
| Effective Pixels | Approximately 8.29 megapixels |
| Lens | Integrated optical image stabilization lens |
| Optical Zoom | 24x |
| Focal Length | 4.12mm to 98.9mm |
| 35mm Equivalent | 25mm to 600mm |
| Aperture | F1.8 to F4.0 |
| Image Stabilization | 5-axis Hybrid Optical Image Stabilization |
| ND Filter | Clear, 1/4, 1/16 and 1/64 |
| Recording Resolution | 4K UHD (3840 x 2160), Full HD (1920 x 1080), HD (1280 x 720) |
| Maximum Recording Frame Rate | 4K UHD 59.94p / 50p |
| Recording Formats | P2, MOV, MP4 and AVCHD |
| Video Compression | H.264 / AVC and H.265 / HEVC |
| Color Sampling and Bit Depth | Supports 10-bit recording, including 4:2:2 in supported formats |
| Recording Media | SDHC, SDXC and compatible microP2 cards |
| Memory Card Slots | 2 |
| Audio Inputs | 2 x XLR inputs, 1 x 3.5mm microphone input |
| XLR Audio Support | LINE, MIC and +48V phantom power |
| Audio Recording | Up to 48kHz / 24-bit Linear PCM in supported formats |
| Video Outputs | 3G-SDI (BNC), HDMI Type A |
| IP Connectivity | NDI HX2, Wi-Fi and supported network streaming protocols |
| USB | USB Type-C, USB 2.0 |
| LCD Monitor | 3.5-inch touchscreen LCD, approximately 2.76 million dots |
| Viewfinder | 0.39-inch OLED, approximately 2.36 million dots |
| Built-in Microphone | Stereo microphone |
