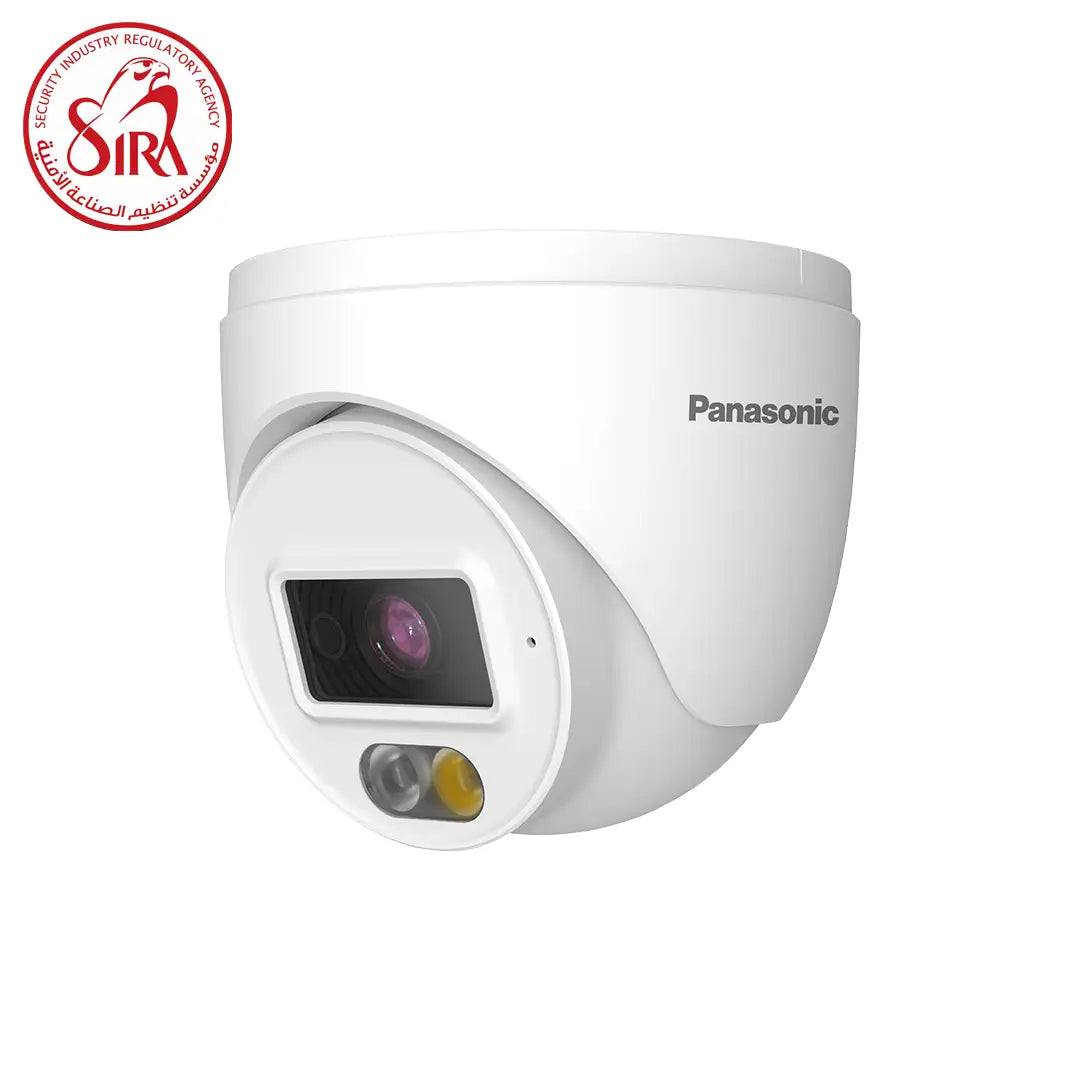

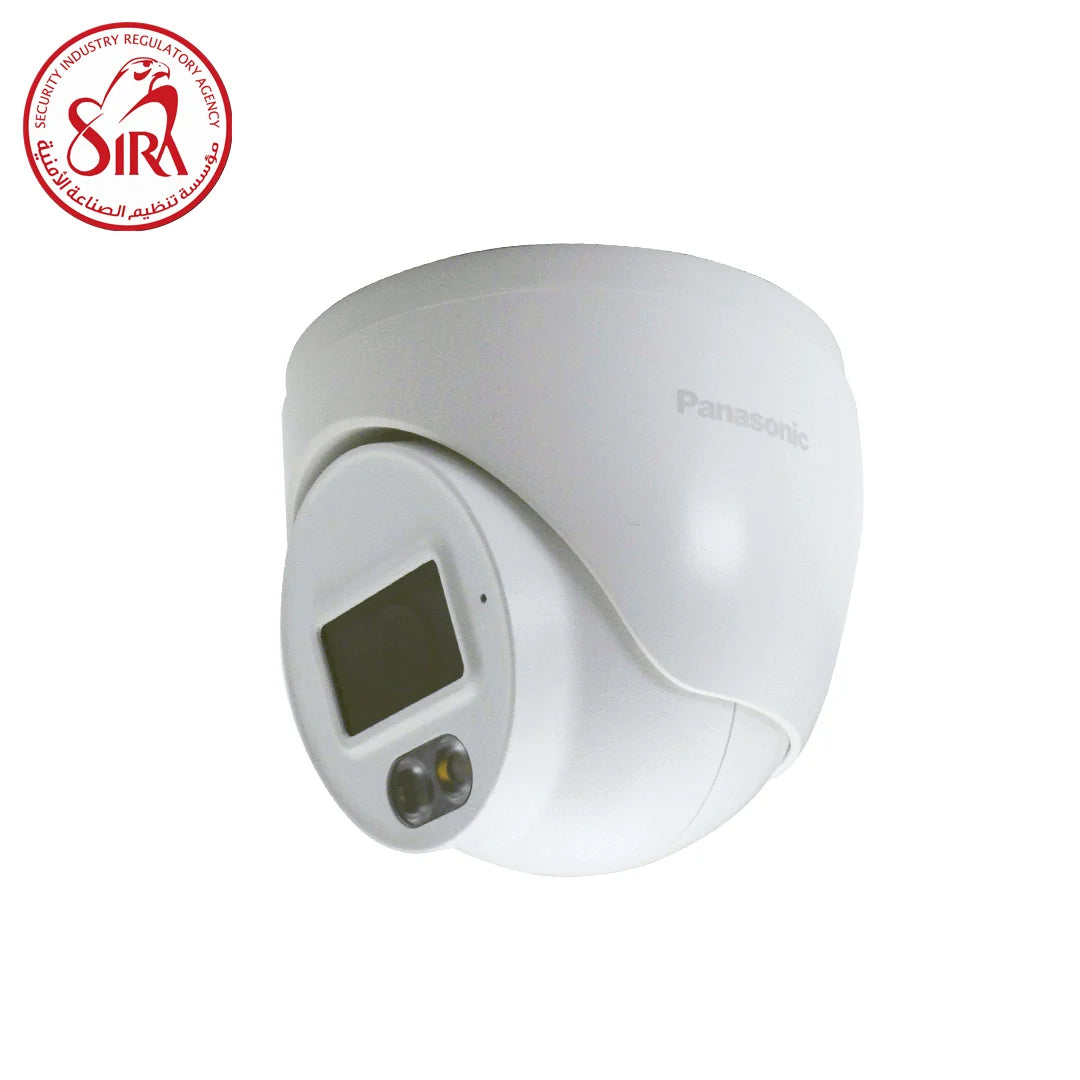

Panasonic PM-ED2NLFR-W 2MP Dome CCTV Camera
SKU: PM-ED2NLFR-W
Key Features:
- H.265+/H.265/H.264+/H.264 coding
- Max.resolution:2MP(1920×1080)
- Auto day/night switch
- 3D DNR, WDR, HLC, BLC, etc.
- ROI coding
- 10~20m IR night view distance; 10~20m white light view distance
- PoE power supply
- Weather protection up to IP67
- Support dual streams
- This camera is SIRA approved
- 110.00 AED
130.00 AED- 110.00 AED
- Unit price
- per
Dimensions: Ø94.8 × 82.8 mm
Weight: 0.27 kg
Description
xThe Panasonic PM-ED2NLFR-W 2MP Dome CCTV Camera is a compact IP surveillance camera designed to deliver reliable Full HD monitoring for homes, offices, retail stores, schools, and commercial buildings. Equipped with a 2MP CMOS sensor and a fixed 2.8mm lens, it captures clear video while offering a wide viewing angle for everyday security applications.
The camera supports H.265/H.264 video compression, Digital WDR, digital noise reduction, and both infrared and white light illumination with a viewing distance of up to 20 meters. Built-in intelligent features such as motion detection, line crossing detection, region intrusion detection, and video exception alerts help improve monitoring accuracy and respond to important security events.
For simple deployment, the PM-ED2NLFR-W supports PoE, includes a built-in microphone for audio recording, and is compatible with ONVIF-supported NVRs and Panasonic VMS for seamless integration into existing surveillance systems. Its IP67-rated weatherproof housing provides dependable operation in indoor and outdoor environments throughout the year.
Systec International supplies genuine Panasonic surveillance solutions across the UAE. Browse our Dome CCTV Cameras, Network IP Cameras, Network Video Recorders (NVRs), and Video Management Solutions to build a complete security system.
Frequently Asked Questions
Is the Panasonic PM-ED2NLFR-W suitable for outdoor installation?
Yes. The camera features an IP67-rated weatherproof enclosure for reliable outdoor performance.
Does the camera support night vision?
Yes. It offers both infrared and white light illumination with a viewing range of up to 20 meters.
Does the camera record audio?
Yes. The PM-ED2NLFR-W includes a built-in microphone for audio recording.
What smart detection features are available?
The camera supports motion detection, line crossing detection, region intrusion detection, and video exception detection.
Does the Panasonic PM-ED2NLFR-W support PoE?
Yes. It supports IEEE 802.3af Power over Ethernet (PoE) as well as 12V DC power.
Is the camera compatible with third-party NVRs?
Yes. It supports ONVIF Profile S, allowing integration with compatible NVRs and video management systems.
Specs
x| Brand | Panasonic |
|---|---|
| Camera Type | 2MP Fixed Turret Network Camera |
| Image Sensor | 1/3" CMOS |
| Maximum Resolution | 2MP (1920 × 1080) |
| Electronic Shutter | 1/3 sec to 1/100000 sec |
| Minimum Illumination | 0.0462 Lux @ F2.2 (AGC ON) |
| IR Distance | 10–20 m |
| White Light Range | 10–20 m |
| Lens Type | Fixed Lens |
| Focal Length | 2.8 mm (F2.2) |
| Focus | Fixed |
| Iris Type | Fixed Iris |
| Field of View | Horizontal: 93°, Vertical: 52°, Diagonal: 106° |
| Day/Night Mode | ICR |
| Video Compression | H.265+, H.265, H.264+, H.264 |
| Supported Resolutions | 1080P, 720P, D1, VGA, 480×240, CIF |
| Video Streams | Dual Stream |
| Frame Rate | Up to 30fps (60Hz) / 25fps (50Hz) |
| Bit Rate | 64 Kbps – 3 Mbps (VBR/CBR) |
| Audio Compression | G.711A / G.711U |
| Wide Dynamic Range | Digital WDR |
| Image Enhancement | Digital WDR, BLC, HLC, Defog, DNR, ROI, Image Flip, Mirror, Brightness, Contrast, Hue, Saturation |
| S/N Ratio | ≥50 dB |
| Angle Adjustment | Pan: 0°–360°, Tilt: 0°–75°, Rotation: 0°–360° |
| Network Interface | RJ45 10/100 Mbps Ethernet |
| Audio | Built-in Microphone |
| DORI Distance | Detection: 44 m, Observation: 18 m, Recognition: 9 m, Identification: 4 m |
| Smart Events | Motion Detection, Region Intrusion Detection, Line Crossing Detection, Video Exception Detection |
| Remote Monitoring | Web Browser, Panasonic VMS 2.X, NVR, Mobile App |
| Supported Browsers | Chrome, Edge, Firefox, Safari |
| Network Protocols | UDP, IPv4, IPv6, DHCP, DDNS, NTP, SNMP, RTSP, HTTP, HTTPS, SMTP, FTP, QoS, ONVIF Profile S |
| Security | Video, Firmware & HTTPS Encryption, Configuration Encryption, IP Filtering, 802.1X Authentication, NDAA Compliant |
| Power Supply | DC 12V / PoE (IEEE 802.3af) |
| Power Consumption | <5W |
| Weather Protection | IP67 Rated |
| Operating Temperature | -20°C to 55°C (-4°F to 131°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | Less than 95% (Non-Condensing) |
| Dimensions | Ø94.8 × 82.8 mm |
| Weight | Approx. 0.27 kg |
| Installation | Ceiling Mount, Wall Mount |
