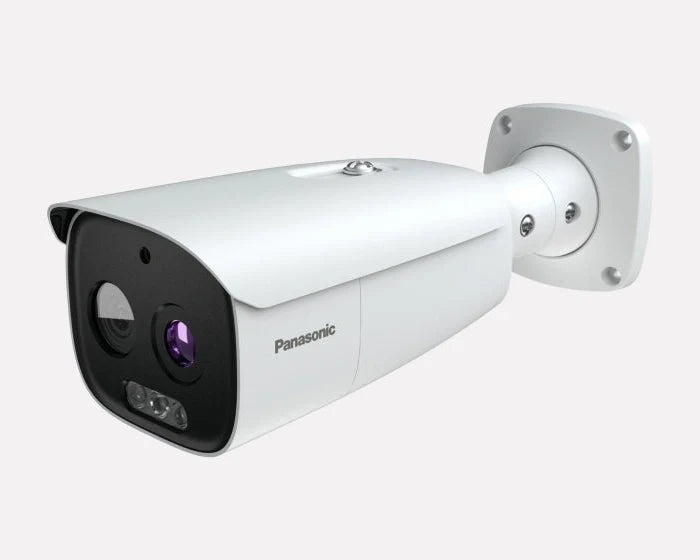

Panasonic PM-PHVULFR-W Thermal Bullet IP Camera
SKU: PM-PHVULFR-W
Key Features
- Thermal bullet network camera with visible light imaging
- 640 × 512 thermal detector resolution
- Up to 5MP visible camera resolution
- 25mm thermal lens with F1.0 aperture
- 12mm visible light lens with F2.0 aperture
- Temperature measurement range from -20°C to 150°C
- Temperature measurement accuracy of ±8°C or ±8%, whichever is greater
- Temperature readings can be overlaid on the video stream
- 120dB Wide Dynamic Range (WDR)
- Infrared illumination range of 50 to 70 metres
- H.265, H.264 and MJPEG video compression
- Visible light imaging in low light down to 0.03 lux at F2.0 with AGC enabled
- RJ45 10/100Mbps Ethernet connection
- ONVIF compatibility
- IEEE 802.3af Power over Ethernet support
- IP66 dust and water protection
- Suitable for industrial monitoring and perimeter security
- 8,265.00 AED
- 8,265.00 AED
- Unit price
- per
Description
xThe Panasonic PM-PHVULFR-W Thermal Bullet IP Camera is designed for perimeter security, industrial monitoring, and applications that require both thermal imaging and visible video. It combines a thermal module with a visible light camera to help security teams detect heat patterns and view visual details in one network camera.
The thermal module uses a 640 × 512 detector with a 25mm lens, while the visible camera captures images at up to 5MP resolution with a 12mm lens. This combination supports monitoring in low visibility conditions and helps operators investigate activity across industrial sites, facilities, and outdoor areas.
The camera supports temperature measurement from −20°C to 150°C, with a specified accuracy of ±8°C or ±8%, whichever is greater. Temperature readings can be overlaid on the video stream, helping operators identify areas of unusual heat for further inspection.
For challenging lighting conditions, the camera includes 120dB Wide Dynamic Range and infrared illumination with a range of 50 to 70 metres. Its IP66 rated housing supports outdoor installation, while PoE and network connectivity simplify integration into compatible surveillance systems. Explore the Panasonic camera collection at Systec International for more professional surveillance equipment.
FAQs
What is the Panasonic PM-PHVULFR-W used for?
It is designed for thermal surveillance, perimeter security, industrial monitoring, and applications where heat detection and visible video are useful.
What is the thermal image resolution?
The thermal module uses a 640 × 512 detector.
Can the camera measure temperature?
Yes. It supports a temperature measurement range of −20°C to 150°C, with a specified accuracy of ±8°C or ±8%, whichever is greater.
Does the camera provide regular video as well as thermal imaging?
Yes. It combines thermal imaging with a visible light camera that supports up to 5MP resolution.
Is the camera suitable for outdoor use?
Yes. Its IP66 protection rating helps protect against dust and water exposure in suitable outdoor installations.
Specs
xSpecifications
| Brand | Panasonic |
|---|---|
| Model | PM-PHVULFR-W |
| Camera Type | Thermal Bullet Network Camera |
| Thermal Detector Type | Uncooled thermal detector, 12μm pixel pitch |
| Thermal Resolution | 640 × 512 |
| Thermal Lens | 25mm, F1.0 |
| Thermal Field of View | 17.5° × 14° |
| Visible Image Sensor | 1/2.7 inch CMOS |
| Visible Maximum Resolution | 5MP (2592 × 1944) |
| Visible Lens | 12mm, F2.0 |
| Visible Field of View | 26.6° × 19.3° |
| Minimum Visible Illumination | 0.03 lux at F2.0, AGC enabled |
| Electronic Shutter | 1/3s to 1/100000s |
| Temperature Measurement Range | -20°C to 150°C |
| Temperature Measurement Accuracy | ±8°C or ±8%, whichever is greater |
| Temperature Overlay | Supported on the video stream |
| Wide Dynamic Range | 120dB WDR |
| Infrared Range | 50 to 70 metres |
| Video Compression | H.265, H.264 and MJPEG |
| Thermal Output Resolutions | 720P, D1, 640 × 512, CIF and 480 × 240 |
| Visible Stream Frame Rate | Up to 30fps at 60Hz or 25fps at 50Hz, depending on resolution |
| Bit Rate | 128Kbps to 8Mbps |
| Audio | 1 channel audio input and built in microphone |
| Network Interface | RJ45 10/100Mbps Ethernet |
| Network Protocol | ONVIF |
| Power Supply | 12V DC or PoE |
| PoE Standard | IEEE 802.3af |
| Power Consumption | Less than 9W |
| Ingress Protection | IP66 |
| Operating Temperature | -30°C to 60°C |
| Operating Humidity | Less than 95%, non condensing |
