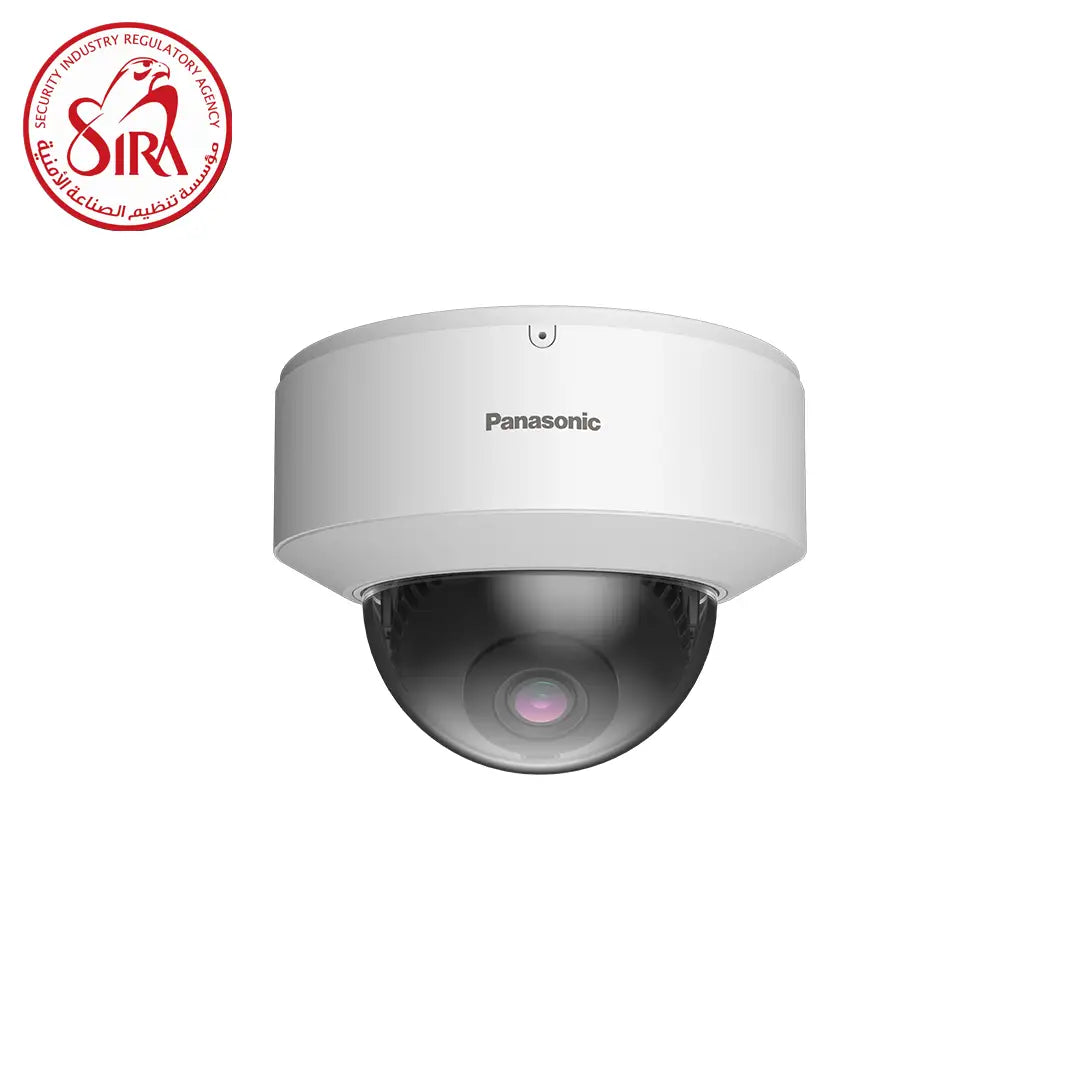

Panasonic PM-VD2ULFR-W 2MP Dome CCTV Camera
SKU: PM-VD2ULFR-W
Key Features
- H.265+/H.265/H.264+/H.264/MJPEG Video Compression
- Maximum Resolution: 2MP (1920 × 1080)
- ICR Auto Switch for True Day & Night Vision
- Starlight Low-Light Technology
- 3D DNR, WDR, HLC, BLC, Smart IR & ROI Coding
- 20–30m Infrared Night Vision Range
- Built-in MicroSD Card Slot (Up to 256GB)
- DC 12V & PoE Power Supply
- IP67 Weatherproof Protection
- Triple Video Stream Support
- P2P Remote Access Support
- Smart Motion Detection
- Advanced AI Analytics
- Redundant System Backup
- SIRA Approved
- 310.00 AED
365.00 AED- 310.00 AED
- Unit price
- per
Dimensions: Ø119 × 87.8 mm
Weight: 0.64 kg
Description
xThe Panasonic PM-VD2ULFR-W 2MP Dome CCTV Camera is a professional Full HD network camera designed for reliable indoor and outdoor surveillance. Equipped with a 2MP CMOS sensor and a fixed 2.8mm lens, it delivers clear video for offices, retail stores, schools, residential buildings, entrances, and commercial facilities.
The camera supports H.265/H.264 video compression, 120dB Wide Dynamic Range (WDR), Smart IR, digital noise reduction, and infrared night vision up to 30 meters, providing consistent image quality in both daytime and low-light conditions. Intelligent security features, including Smart Motion Detection, line crossing, region intrusion, and abandoned object detection, help improve monitoring accuracy while reducing false alarms.
Designed for dependable operation, the PM-VD2ULFR-W features PoE support, a built-in microphone, a microSD card slot supporting up to 256GB, ONVIF compatibility, and remote access through web browsers, Panasonic VMS, NVRs, and mobile devices. Its IP67 weatherproof and IK10 vandal-resistant housing makes it suitable for demanding environments where durability and continuous performance are essential.
Systec International supplies genuine Panasonic surveillance products across the UAE. Browse our Dome CCTV Cameras, Network IP Cameras, Network Video Recorders (NVRs), and Video Management Solutions to build a complete security system.
Frequently Asked Questions
Is the Panasonic PM-VD2ULFR-W suitable for outdoor use?
Yes. The camera features an IP67-rated weatherproof housing and IK10 vandal-resistant protection for outdoor installations.
Does the camera support night vision?
Yes. It offers infrared night vision with a range of up to 30 meters.
Can footage be stored on the camera?
Yes. The built-in microSD card slot supports memory cards up to 256GB for local recording.
What smart security features are available?
The camera supports Smart Motion Detection, line crossing detection, region intrusion detection, and abandoned or missing object detection.
Does the Panasonic PM-VD2ULFR-W support PoE?
Yes. It supports IEEE 802.3af Power over Ethernet (PoE) as well as 12V DC power.
Is the camera compatible with third-party NVRs?
Yes. It supports ONVIF Profile S/G/M/T, allowing integration with compatible NVRs and video management systems.
Specs
x| Brand | Panasonic |
|---|---|
| Camera Type | 2MP Fixed Dome Network Camera |
| Image Sensor | 1/2.8" CMOS |
| Maximum Resolution | 2MP (1920 × 1080) |
| Electronic Shutter | 1/1 sec to 1/100000 sec |
| Minimum Illumination | 0.005 Lux @ F1.6 (AGC ON) |
| IR Distance | 20–30 m |
| Lens Type | Fixed Lens |
| Focal Length | 2.8 mm (F1.6) |
| Focus | Fixed |
| Iris Type | Fixed Iris |
| Field of View | Horizontal: 106°, Vertical: 55°, Diagonal: 128.2° |
| Day/Night Mode | ICR |
| Video Compression | H.265+, H.265, H.264+, H.264, MJPEG |
| Supported Resolutions | 1080P, 720P, D1, VGA, 480×240, CIF |
| Video Streams | Triple Stream |
| Frame Rate | Up to 30fps (60Hz) / 25fps (50Hz) |
| Bit Rate | 128 Kbps – 6 Mbps (VBR/CBR) |
| Audio Compression | G.711A / G.711U |
| Wide Dynamic Range | 120 dB WDR |
| Image Enhancement | WDR, BLC, HLC, DNR, Smart IR, ROI, Image Flip, Mirror, Brightness, Contrast, Hue, Saturation |
| S/N Ratio | ≥50 dB |
| Angle Adjustment | Pan: 0°–355°, Tilt: 0°–70°, Rotation: 0°–180° |
| Network Interface | RJ45 10/100 Mbps Ethernet |
| Audio Interface | 1 Audio Input, Built-in Microphone |
| Storage | MicroSD Card Slot (Up to 256GB) |
| DORI Distance | Detection: 41 m, Observation: 16 m, Recognition: 8 m, Identification: 4 m |
| Smart Events | Line Crossing, Region Intrusion Detection, Abandoned/Missing Object Detection, Smart Motion Detection (SMD) |
| Remote Monitoring | Web Browser, Panasonic VMS 2.X, NVR, Mobile App |
| Supported Browsers | Chrome, Edge, Firefox, Safari |
| Network Protocols | IPv4/IPv6, DHCP, RTSP, RTP, RTMP, HTTPS, FTP, SMTP, SNMP, QoS, ONVIF Profile S/G/M/T |
| Security | Video, Firmware, HTTPS & Configuration Encryption, IP Filtering, 802.1X Authentication, NDAA Compliant |
| Power Supply | DC 12V / PoE (IEEE 802.3af) |
| Power Consumption | <5W |
| Weather Protection | IP67 Weatherproof, IK10 Vandal Resistant |
| Operating Temperature | -30°C to 60°C (-22°F to 140°F) |
| Storage Temperature | -30°C to 65°C (-22°F to 149°F) |
| Humidity | Less than 95% (Non-Condensing) |
| Dimensions | Ø119 × 87.8 mm |
| Weight | Approx. 0.64 kg |
| Installation | Ceiling Mount, Wall Mount |
