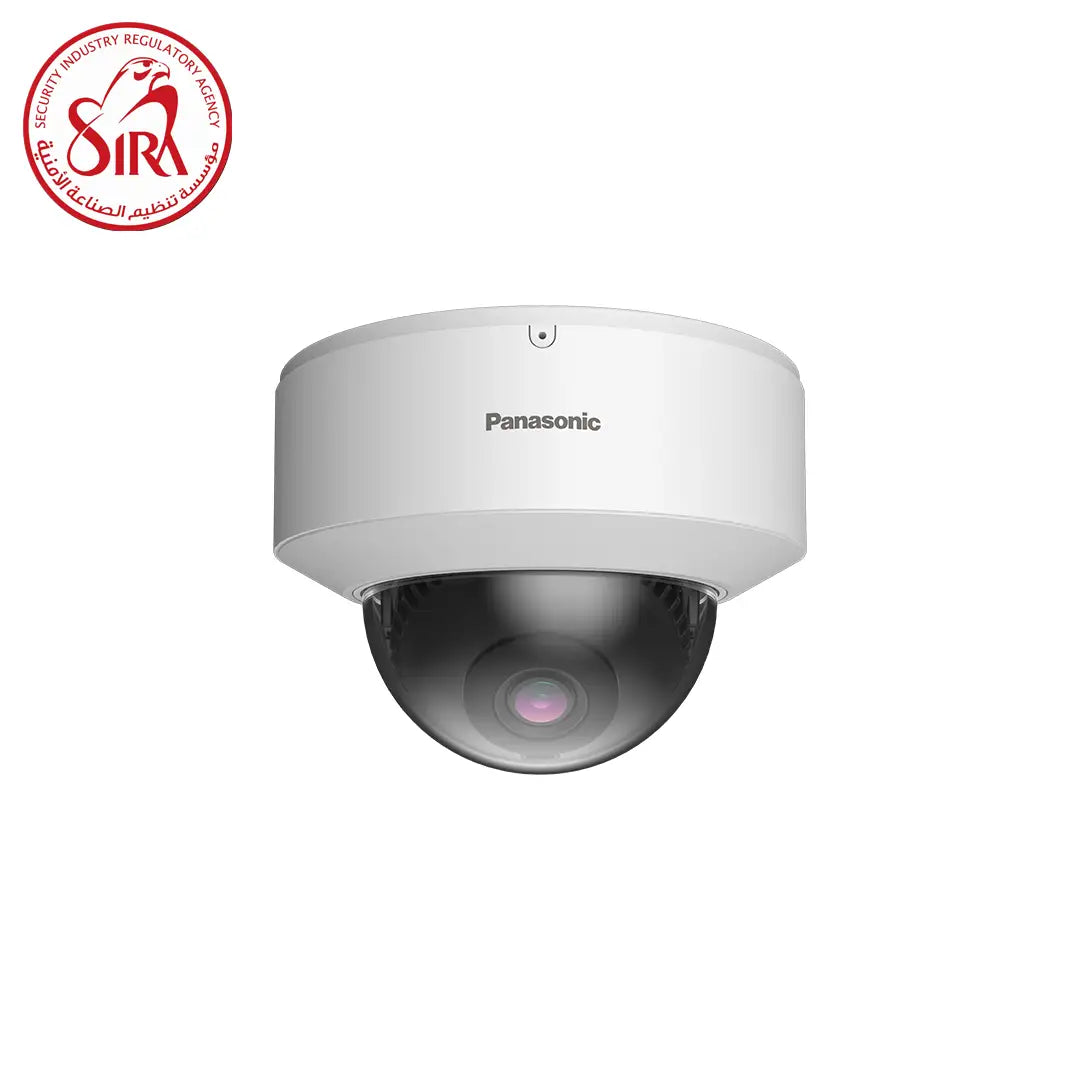

Panasonic PM-VD5ULFR-W 5MP Dome CCTV Camera

5MP Fixed Dome Network Camera - Model PM-VD5ULFR-W

Overview:

The PM-VD5ULFR-W is a high-performance 5MP fixed dome network camera, designed for professional security and surveillance purposes. Equipped with advanced image processing technologies and intelligent detection features, this camera ensures reliable performance in various environments. Its robust build, vandal resistance, and weatherproofing make it ideal for both indoor and outdoor use.

Key Features:

• Image & Video Quality:
  • 5 Megapixels (2880×1856) resolution
  • 1/2.5" CMOS image sensor
  • Fixed 2.8mm lens, F1.6
  • True Day/Night with ICR (Infrared Cut Filter Removal)
  • Wide Dynamic Range (WDR) of 120dB
  • Minimum illumination: 0.005 lux @ F1.6 (color), 0 lux with IR
  • 3D Digital Noise Reduction (DNR), Back Light Compensation (BLC), High Light Compensation (HLC), Defog, Smart IR
  • Field of View: Horizontal - 104°, Vertical - 54.5°, Diagonal - 130°
• Infrared Night Vision:
  • 20 to 30 meters of IR distance for clear night vision
  • Smart IR ensures optimal infrared performance to avoid overexposure in dark areas
• Video Compression:
  • Supports H.265+/H.265/H.264+/H.264/MJPEG
  • Triple stream support
  • Variable Bit Rate (VBR) and Constant Bit Rate (CBR)
  • Video resolution options: 5MP, 4MP, 1080P, 720P, D1, VGA, CIF
• Smart Features:
  • Intelligent analytics: Line crossing detection, region intrusion/entrance/exit detection, loitering detection, abandoned/missing object detection, illegal parking detection
  • Human and vehicle classification for smart event recognition
  • Target counting and heat map for statistical analysis
  • Face detection and capture
  • Scene change, video blur, and abnormal color detection
  • Smart alarms for motion detection, scene anomalies, and more
• Audio & Network:
  • Built-in microphone, with 1 audio input and 1 audio output
  • RJ45 10M/100M Ethernet port
  • MicroSD card slot supports up to 256GB for local storage
  • ONVIF compliant for integration with multiple systems
• DORI Distance (2.8mm lens):
  • Detect: 71m (232ft)
  • Observe: 28m (93ft)
  • Recognize: 14m (46ft)
  • Identify: 7m (23ft)
• Power & Environment:
  • Power supply: DC12V/PoE (IEEE802.3af)
  • Power consumption: Less than 7.5W
  • IP67-rated weatherproof and IK10 vandal-resistant protection
  • Operating temperature: -30°C to 60°C (-22°F to 140°F)
• Security:
  • Multi-layer encryption including video encryption, firmware encryption, and HTTPS encryption
  • IP address filtering, illegal login lock, 802.1x authentication

Physical & Installation Details:

• Dimensions: Ø119 × 87.8 mm
• Weight: Approx. 0.65 kg
• Mounting Options:
  • Supports ceiling, wall, pole, and corner mount installation
  • Optional junction boxes and brackets available

Certifications:

• Environmental Protection: Complies with EU RoHS, WEEE, REACH directives
• EMC: CE/EN 55032:2015+A11:2020, EN 55035:2017+A11:2020
• Safety: IEC 62368-1:2020+A11:2020
• Sira: This Camera is Sira approved

---

The PM-VD5ULFR-W offers an efficient and secure surveillance solution with its advanced video analytics, versatile installation options, and weather-resistant design?.
