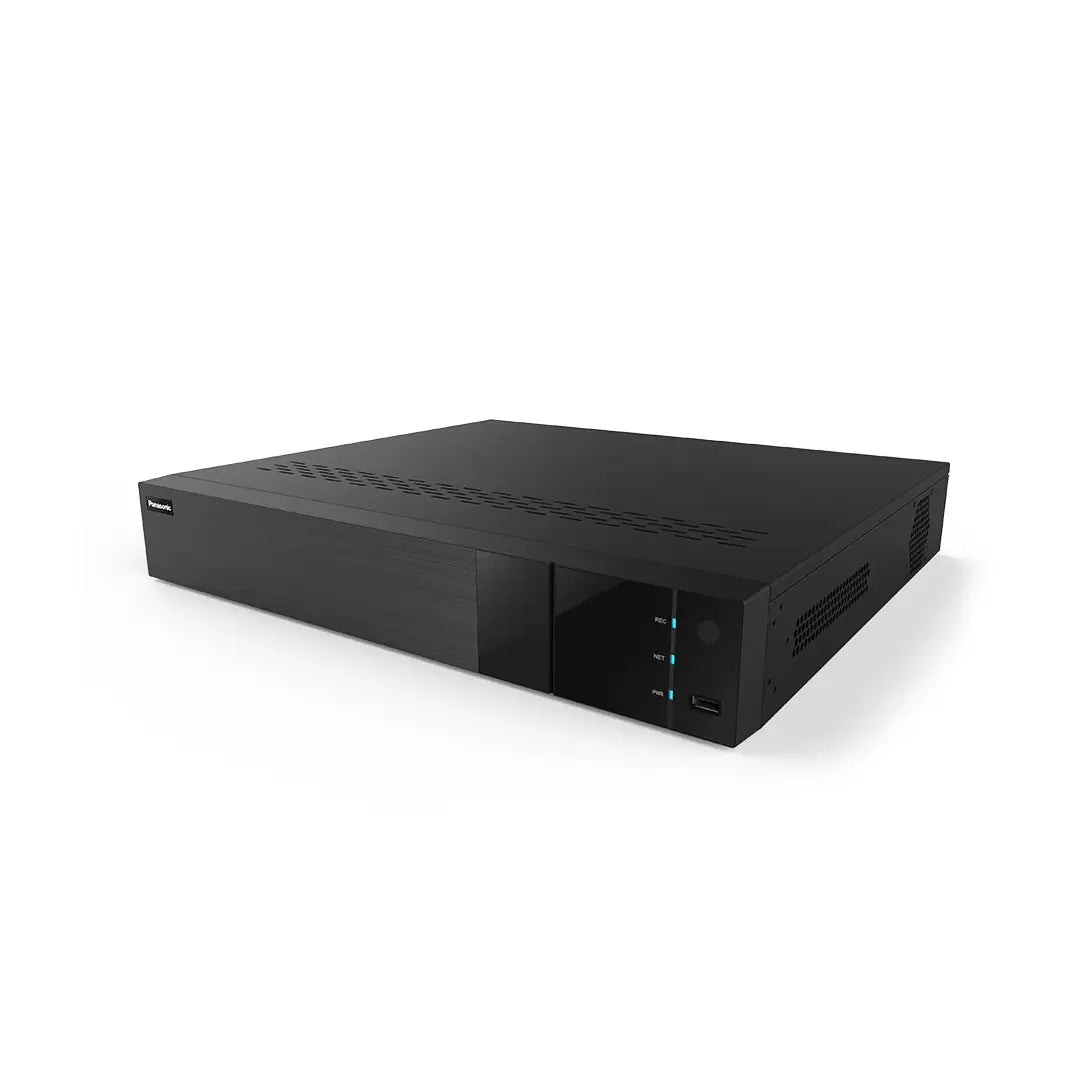

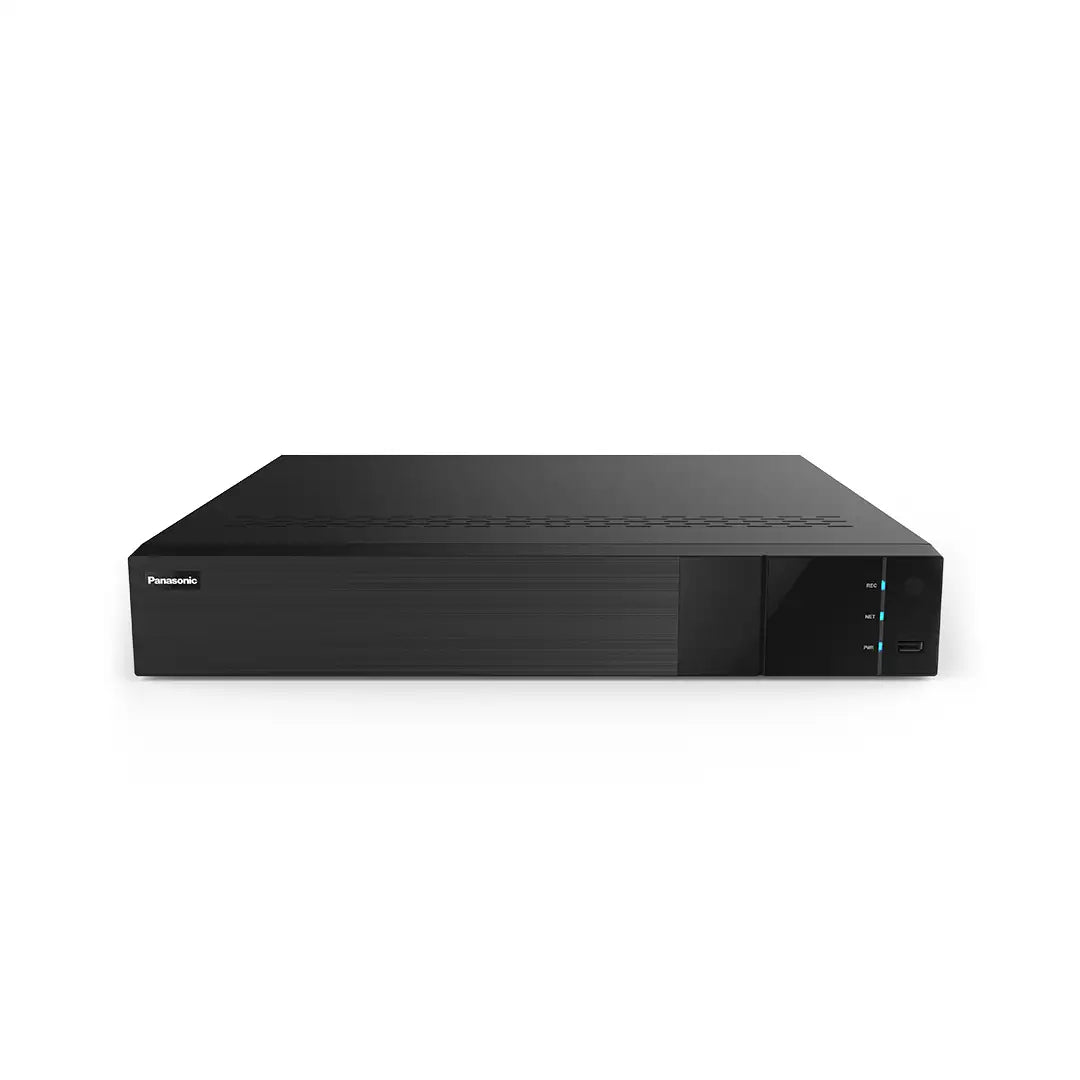

Panasonic PM-VN32CH 32 Channels Network Video Recorder

Panasonic PM-VN32CH 32-Channel Network Video Recorder

The Panasonic PM-VN32CH is a powerful and efficient 32-Channel Network Video Recorder (NVR) designed for high-performance security surveillance applications. With support for up to 32 IP camera inputs and 16 PoE ports, this NVR is ideal for both small and large-scale security installations in offices, homes, and businesses. The PM-VN32CH ensures high-definition recording, seamless playback, and advanced network management features, making it a versatile solution for security needs.

Key Features:

• 32 Channels of IP Input: The recorder supports up to 32 IP cameras, offering a wide range of video resolutions, including 12MP, 9MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 960P, 720P, and CIF.
• H.265+/H.265/H.264+ Compression: These advanced video compression technologies minimize bandwidth usage and storage requirements while maintaining high video quality.
• 16 PoE Ports: Allows for direct connection and power supply to IP cameras via 16 PoE ports, simplifying the setup and reducing the need for additional wiring.
• Simultaneous Playback: Supports 16-channel simultaneous playback in high resolution, providing comprehensive review capabilities for recorded footage.
• 4K High-Definition Output: The recorder is capable of outputting video at 4K resolution (3840x2160), ensuring a true high-definition display.
• Multi-user Access: Supports multiple users accessing the system simultaneously, with robust authorization management, device status view, and log functionality.
• Smart Features: Equipped with face detection, VCA (Video Content Analytics) events such as region intrusion, tripwire detection, and more.
• Mobile Remote Monitoring: Remote access via mobile applications (iOS and Android) allows for monitoring and control from anywhere.
• PTZ Control: Supports PTZ (Pan-Tilt-Zoom) control with presets (up to 255 presets) and automatic cruise functions (up to 8 cruises).

Specifications:

• Operating System: Embedded Linux
• IP Video Input: 32 channels
• Network Bandwidth: Up to 320Mbps incoming and 256Mbps outgoing
• Video Compression: H.265S/H.265+/H.265/H.264
• Display Options: Main output supports 1/4/6/8/9/13/16/25/32/36 live views; auxiliary output supports 1/4/6/8/9 live views
• Playback: Supports 16 channels simultaneous playback with intelligent search features (time slice, event, tag, etc.)
• Audio Input/Output: 32-channel IPC audio input, 1 RCA input for two-way talk, 1 RCA output
• Recording Resolution: Supports resolutions from 12MP down to CIF
• Alarm Input/Output: 16 alarm inputs, 4 alarm outputs
• Decoding Capability: Supports 1-channel 12MP live view or 4-channel 1080P live view and playback
• PoE Power Supply: 16 PoE ports (100Mbps), with total PoE power output of ?150W
• Storage: Supports up to 4 HDDs (SATA), with each HDD supporting up to 10TB of storage. Also supports e-SATA for additional storage.
• USB Ports: 1 USB 3.0 port and 2 USB 2.0 ports
• Power Supply: 100-240V AC, 300W with a power consumption of ?20W (excluding HDD and PoE power)
• Operating Temperature: -10°C to 50°C (14°F to 122°F), humidity 10%-90%
• Dimensions: 440mm x 390mm x 70mm (W x D x H)

Certifications:

• EMC: CE, EN55032:2015+A11:2020, EN61000-3-2:2019+A1:2021
• Safety: IEC62368-1:2020+A11:2020
• RoHS Compliance: 2011/65/EU

Applications of PM-VN32CH:

The PM-VN32CH is ideal for use in homes, retail shops, office spaces, and large commercial properties that require a reliable, scalable, and intelligent surveillance system. Its advanced features ensure optimal performance in demanding security environments.
