Key Features
- 4MP PTZ network camera with up to 2560 × 1440 resolution
- 1/2.7-inch progressive scan CMOS sensor with BSI and NIR+ technology
- 25x optical zoom with 4.8–120mm focal length
- 120dB Wide Dynamic Range (WDR)
- Infrared night vision up to 160 metres
- Minimum illumination of 0.01 lux in colour mode
- 360° endless pan rotation
- -10° to 90° tilt range with auto flip
- Configurable pan and tilt speeds up to 200°/s
- Supports up to 360 preset positions
- Smart tracking for human and vehicle detection
- Intelligent perimeter protection and event detection
- H.265+, H.265, H.264+, H.264 and MJPEG compression
- Three supported video streams
- IP67 weather protection and IK10 vandal resistance
- PoE+ and 12V DC power options
- Operating temperature from -40°C to 60°C
- 1,375.00 AED
0.00 AED- 1,375.00 AED
- Unit price
- per
Dimensions: 34 x 33 x 22 cm
Weight: 4 kg
Description

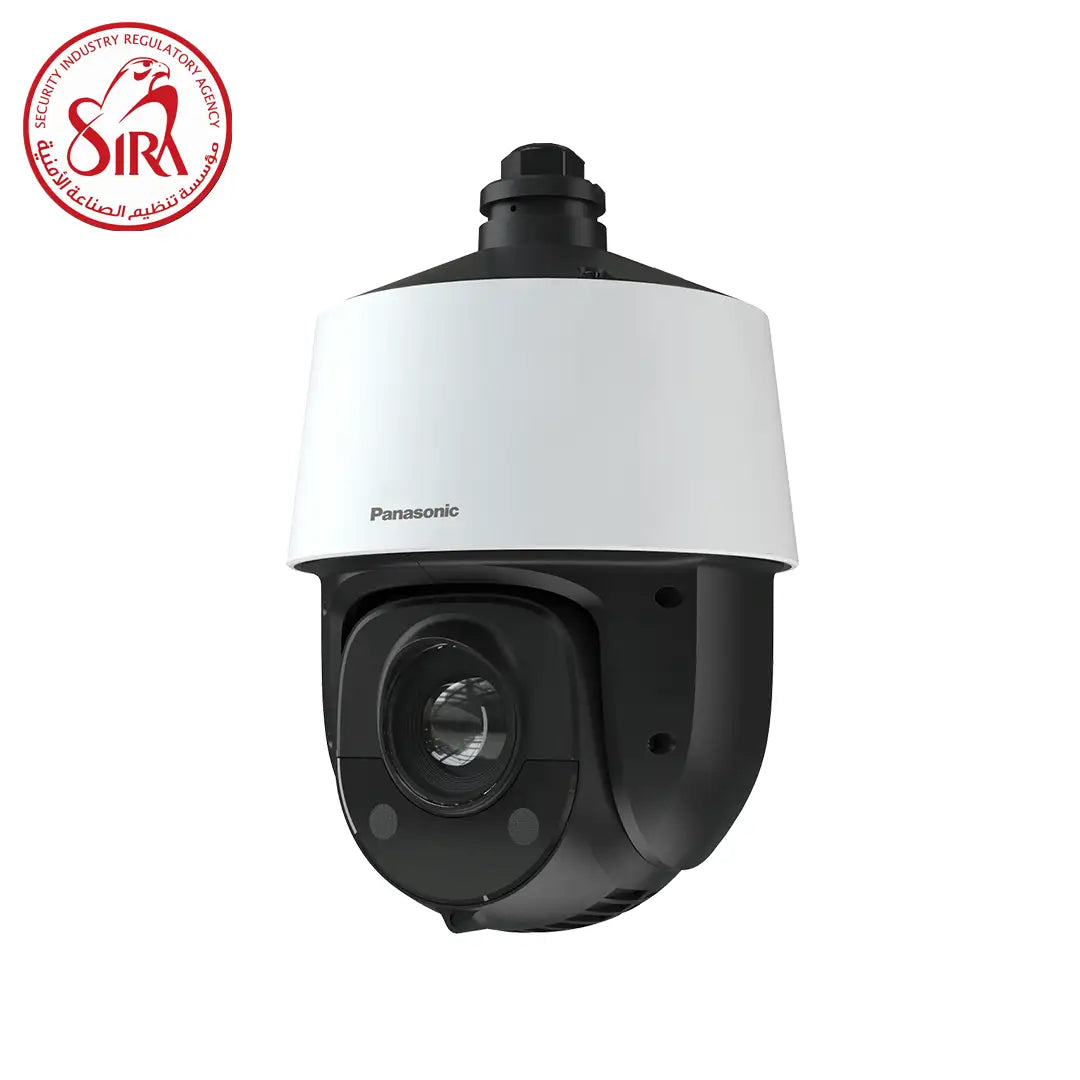

xThe Panasonic PM-VP4ULVR-W 4MP PTZ CCTV Camera is an advanced network surveillance camera designed for monitoring large outdoor areas, commercial properties, parking facilities, and industrial sites. It features a 4MP progressive scan CMOS sensor with BSI and NIR technology, delivering detailed images at resolutions up to 2560 × 1440.
With a powerful 25x optical zoom lens, the camera allows users to monitor distant objects while maintaining image clarity. Its 360° endless pan rotation and flexible tilt movement provide wide-area coverage, reducing blind spots and allowing operators to monitor different locations remotely. The built-in infrared system offers night vision up to 160 metres, while 120dB Wide Dynamic Range and 3D Digital Noise Reduction help maintain clear images in challenging lighting conditions.
The PM-VP4ULVR-W also includes intelligent surveillance features such as human and vehicle detection, smart tracking, and perimeter protection. It supports H.265+, H.265, H.264+, H.264, and MJPEG video compression to help manage network bandwidth and storage requirements. Multiple video streams and ONVIF compatibility support integration with compatible network video recorders and security systems.
Designed for demanding outdoor environments, this camera features IP67 weather protection, IK10 vandal resistance, and operation in temperatures from -40°C to 60°C. PoE+ and 12V DC power options provide installation flexibility for different surveillance projects. Explore the Panasonic PTZ camera collection at Systec International for more professional surveillance solutions.
FAQs
What is the Panasonic PM-VP4ULVR-W used for?
It is designed for outdoor surveillance in large areas such as parking lots, industrial facilities, commercial properties, and building perimeters.
What is the camera's resolution?
It supports up to 4MP resolution, providing images up to 2560 × 1440 pixels.
How much optical zoom does it offer?
It features a 25x optical zoom lens with a focal length of 4.8–120mm.
Does this camera support night vision?
Yes, its infrared system provides night vision coverage up to 160 metres.
Does the PM-VP4ULVR-W support intelligent tracking?
Yes, it supports smart tracking and intelligent detection features for monitoring people, vehicles, and restricted areas.
Specs
xSpecifications
| Brand | Panasonic |
|---|---|
| Model | PM-VP4ULVR-W |
| Camera Type | 4MP PTZ Network Camera |
| Image Sensor | 1/2.7-inch Progressive Scan CMOS, BSI, NIR+ |
| Maximum Resolution | 2560 × 1440 |
| Image Sensor Technology | Back-Side Illumination (BSI) and Near-Infrared (NIR+) |
| Lens Type | Motorized Optical Zoom |
| Focal Length | 4.8–120mm |
| Aperture | F1.65–F3.8 |
| Optical Zoom | 25x |
| Horizontal Field of View | 55°–2.4° |
| Vertical Field of View | 33°–1.4° |
| Diagonal Field of View | 61.5°–2.8° |
| Minimum Illumination (Colour) | 0.01 Lux at F1.65, AGC On |
| Minimum Illumination (B/W) | 0.002 Lux at F1.65, AGC On |
| Minimum Illumination (IR On) | 0 Lux |
| Shutter Speed | 60Hz: 1/30s–1/30,000s; 50Hz: 1/25s–1/25,000s |
| Day/Night Mode | Auto, Manual and Scheduled |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | 3D DNR |
| Infrared Range | Up to 160m |
| IR Technology | Dual-Stack IR LED Array with Smart IR |
| Pan Range | 360° Endless |
| Tilt Range | -10° to 90° with Auto Flip |
| Pan Speed | 0.1°–200°/s Configurable; 240°/s Preset Speed |
| Tilt Speed | 0.1°–200°/s Configurable; 240°/s Preset Speed |
| Optical Zoom Speed | Approximately 3.6 Seconds (Wide to Tele) |
| Preset Positions | 360 |
| Patrol / Trace | 4 Traces, Each Supporting More Than 3 Minutes of Recording |
| Proportional Zoom | Supported |
| 3D Positioning | Supported |
| Video Compression | H.265+, H.265, H.264+, H.264 and MJPEG |
| Supported Video Streams | 3 |
| Maximum Main Stream Frame Rate | 30fps at 60Hz; 25fps at 50Hz |
| Smart Features | Human and Vehicle Detection, Smart Tracking and Perimeter Protection |
| Network Compatibility | ONVIF, API and SDK Support |
| Network Interface | RJ45 Ethernet, 10/100Mbps |
| Storage | MicroSD Card Support, Up to 256GB |
| Audio Interface | 1 Audio Input and 1 Audio Output |
| Alarm Interface | 1 Alarm Input and 1 Alarm Output |
| Power Supply | 12V DC or PoE+ (IEEE 802.3at) |
| Maximum Power Consumption | Up to 23W |
| Weather Protection | IP67 |
| Vandal Resistance | IK10 |
| Lightning Protection | 6000V |
| Operating Temperature | -40°C to 60°C |
| Operating Humidity | Up to 90% RH |
| Certifications | CE, IEC 62368-1, RoHS |
