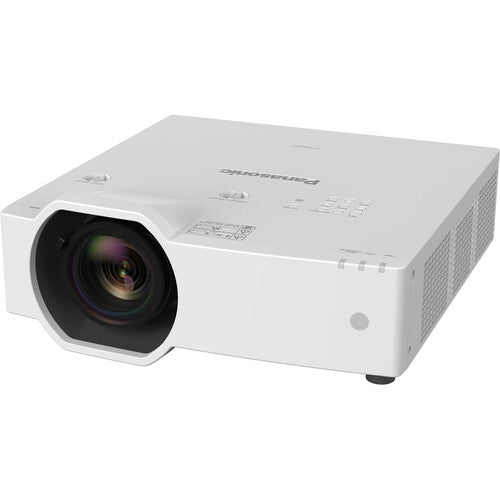

Panasonic PT-VMZ6ST 6200-Lumen WUXGA Short-Throw Laser 3LCD Projector (White)
SKU: PT-VMZ6ST
Key Features
- 6200 ANSI Lumens Brightness for clear and vibrant projection in well-lit environments
- WUXGA Native Resolution (1920 x 1200) delivers sharp, detailed Full HD-quality images
- 0.797 to 1.01:1 Short-Throw Ratio enables large-screen projection from a shorter distance
- 3LCD Technology with high dynamic contrast for accurate color reproduction and enhanced image depth
- Multiple Connectivity Options including HDMI, VGA, and RJ45 DIGITAL LINK (HDBaseT)
- USB Media Playback for convenient content display without additional devices
- Vertical & Horizontal Lens Shift with 6-Point Screen Correction for flexible installation
- LAN Network Control with support for professional AV management and monitoring systems
- 19,680.00 AED
- 19,680.00 AED
- Unit price
- per
Dimensions: Dimensions (W x H x D) 16.3 x 6.6 x 16.7" / 414.0 x 167.0 x 424.0 mm
Weight: Weight 18.3 lb / 8.3 kg
Description
xPanasonic PT-VMZ6STU 6200-Lumen WUXGA Short-Throw Laser Projector
The Panasonic PT-VMZ6STU is a professional-grade WUXGA short-throw laser projector engineered for environments where space is limited but image quality is essential. With 6,200 lumens of brightness, advanced 3LCD technology, and a long-lasting laser light source, it delivers sharp, vibrant visuals for classrooms, corporate meeting rooms, museums, galleries, golf simulators, digital signage, and simulation environments.
The short-throw design enables large-screen projection from a close distance, minimizing shadows and maximizing installation flexibility. Combined with powered focus, lens shift, and advanced image correction tools, the PT-VMZ6STU offers a seamless installation experience for professional AV projects.
Key Features
- 6200 ANSI Lumens high-brightness projection
- WUXGA (1920 × 1200) resolution for sharp, detailed images
- Short-throw lens ideal for compact installation spaces
- Laser light source with up to 20,000 hours of maintenance-free operation
- 3LCD technology for vivid and accurate color reproduction
- 3,000,000:1 Dynamic Contrast Ratio
- Powered focus and 1.2x optical zoom
- Vertical and horizontal lens shift
- 4K signal input support via DIGITAL LINK
- HDBaseT connectivity for long-distance signal transmission
- Compatible with Crestron, Extron, PJLink, Art-Net DMX, and IPv6 protocols
- Eco-friendly design with recycled materials and energy-efficient operation
Flexible Installation for Professional Environments
Designed for modern AV installations, the Panasonic PT-VMZ6STU includes advanced setup features such as powered focus, digital zoom, image shift, 6-point screen correction, and curved screen correction. These tools help installers achieve precise image alignment in classrooms, exhibition spaces, museums, and simulator environments.
The built-in Angle Monitor uses an integrated gyro sensor to display projector pitch and roll information directly on-screen, making installation faster and more accurate.
Bright and Clear Projection in Any Lighting Condition
Featuring Panasonic’s Daylight View Basic technology, the PT-VMZ6STU optimizes image quality according to ambient lighting conditions. Its 6,200-lumen brightness and 3,000,000:1 dynamic contrast ratio ensure excellent visibility, enhanced detail, and vibrant color performance even in brightly lit spaces.
Advanced Connectivity and Control
The projector supports a wide range of professional AV systems and network management platforms through versatile connectivity options.
- HDMI Input
- VGA Input
- LAN Connectivity
- DIGITAL LINK with HDBaseT Support
- Crestron Connected V2
- Crestron XiO Cloud
- Extron XTP
- PJLink Class 2
- Art-Net DMX
- IPv6 Network Support
Environmentally Friendly Design
Built with sustainability in mind, the PT-VMZ6STU incorporates approximately 56% recycled resin materials and features a long-life ECO filter and laser light source. This reduces maintenance requirements, minimizes downtime, and lowers the overall environmental impact.
Technical Specifications
| Specification | Details |
|---|---|
| Model | PT-VMZ6STU |
| Brightness | 6,200 Lumens |
| Resolution | WUXGA (1920 × 1200) |
| Display Technology | 3LCD |
| Light Source | Laser |
| Contrast Ratio | 3,000,000:1 Dynamic Contrast |
| Throw Type | Short Throw |
| Optical Zoom | 1.2x |
| Lens Shift | Vertical & Horizontal |
| Inputs | HDMI, VGA, LAN, DIGITAL LINK (HDBaseT) |
| Operating Life | Up to 20,000 Hours |
Ideal Applications
- Corporate Meeting Rooms
- Educational Institutions
- Museums and Galleries
- Golf Simulator Installations
- Simulation Environments
- Control Rooms
- Exhibition Spaces
- Digital Signage Applications
- Professional AV Integrations
- Houses of Worship
Additional Information
xKey Features
- 6200 ANSI Lumens Brightness for clear and vibrant projection in well-lit environments
- WUXGA Native Resolution (1920 x 1200) delivers sharp, detailed Full HD-quality images
- 0.797 to 1.01:1 Short-Throw Ratio enables large-screen projection from a shorter distance
- 3LCD Technology with high dynamic contrast for accurate color reproduction and enhanced image depth
- Multiple Connectivity Options including HDMI, VGA, and RJ45 DIGITAL LINK (HDBaseT)
- USB Media Playback for convenient content display without additional devices
- Vertical & Horizontal Lens Shift with 6-Point Screen Correction for flexible installation
- LAN Network Control with support for professional AV management and monitoring systems
In the Box
xWhat's Included
- Panasonic PT-VMZ6STU 6200-Lumen WUXGA Short-Throw Laser 3LCD Projector (White)
- Power Cord
- Wireless Remote Control with Batteries
Package Contents
Your Panasonic PT-VMZ6STU projector package includes everything needed for quick installation and operation. The box contains the projector unit, power cable, and a remote control with batteries for convenient setup and control.
Specs
xTechnical Specifications
| Display & Image | |
|---|---|
| Display System | 3-Chip 0.64" LCD |
| Native Resolution | 1920 x 1200 (WUXGA) |
| Brightness | 6200 ANSI Lumens |
| Aspect Ratio | Native 16:10, Supports 16:9 / 4:3 / 21:9 |
| Color Depth | 10-Bit (1.07 Billion Colors) |
| HDR Support | No |
| 3D Support | No |
| Lens & Projection | |
| Lens Included | Yes |
| Focus | Powered Manual Focus |
| Aperture | f/1.53 to 1.66 |
| Focal Length | 11.3 to 14.2 mm |
| Lens Shift | Horizontal ±20%, Vertical +50% |
| Throw Ratio | 0.797 to 1.01:1 |
| Throw Distance | 3.87 to 21.85 ft (1.18 to 6.66 m) |
| Projection Size | 70" to 300" (1.8 to 7.6 m) |
| Optical Zoom | 1.2x Manual Optical Zoom |
| Image Adjustment | |
| Keystone Correction | Vertical ±25°, Horizontal ±35° |
| Ceiling Mountable | Yes |
| Projection Modes | Front & Rear Projection |
| Audio & Connectivity | |
| Built-In Speaker | 1 x 10W |
| HDMI Inputs | 2 x HDMI |
| VGA Input | 1 x VGA |
| HDBaseT Input | 1 x RJ45 HDBaseT |
| Audio Input | 1 x 3.5mm Mini Jack |
| Audio Output | 1 x 3.5mm Mini Jack |
| Ethernet | 1 x RJ45 LAN Port |
| USB | 1 x USB-A |
| RS-232 | 1 x DB-9 |
| HDCP Support | Yes |
| Wireless & Control | |
| Mobile App Support | Panasonic Wireless Projector App (Android & iOS) |
| Wireless Connectivity | Optional Wi-Fi Adapter Required |
| Laser Light Source | |
| Light Source Type | Laser Phosphor |
| Expected Life (Normal) | 20,000 Hours |
| Expected Life (Eco Mode) | 24,000 Hours |
| Power & Environmental | |
| Power Supply | 100 to 240 VAC, 50/60 Hz |
| Power Consumption | 345 W |
| Fan Noise | 37 dB (Normal), 27 dB (Eco) |
| Operating Temperature | 32°F to 113°F (0°C to 45°C) |
| Humidity | 20% to 80% |
| Security | Cable Lock Slot |
| Certification | CE |
| Physical Specifications | |
| Dimensions (W x H x D) | 16.3 x 6.6 x 16.7" (414 x 167 x 424 mm) |
| Weight | 18.3 lb (8.3 kg) |
| Packaging Information | |
| Package Weight | 28.5 lb |
| Box Dimensions | 21.5 x 21.4 x 11" |
