Key Features:
- Full access to camera, lens and all internal connections
- Version with a very efficient cooling system for installation with IP cameras and for high environmental temperature
- IP66/IP67 (with cable glands or optional sealing rings)
- Version with integrated wiper
- Pre-arranged to supply a GEKO IRH illuminator
- 685.00 AED
- 685.00 AED
- Unit price
- per
Dimensions: 20 x 15 x 14 cm
Weight: 0.8 kg

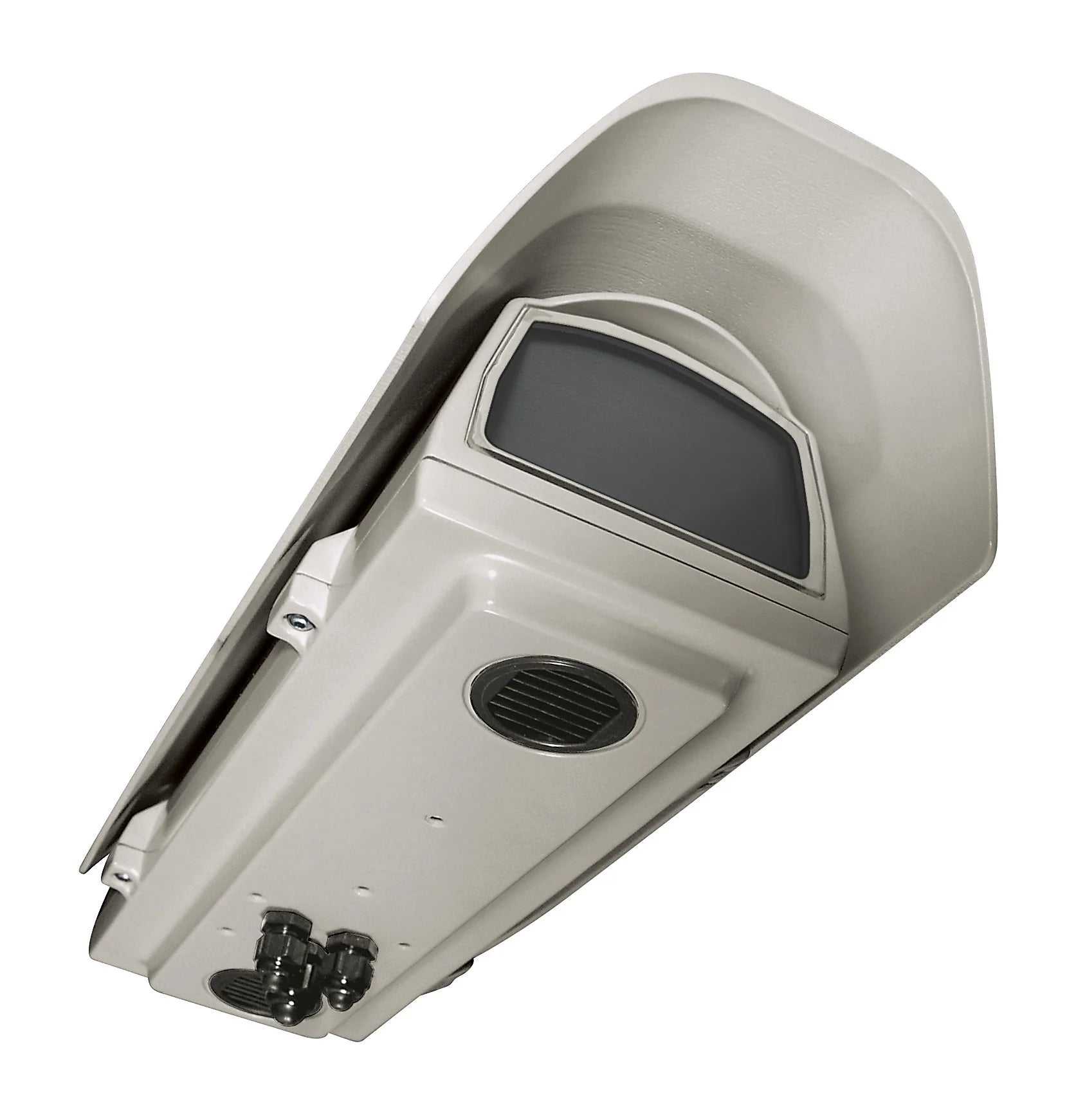

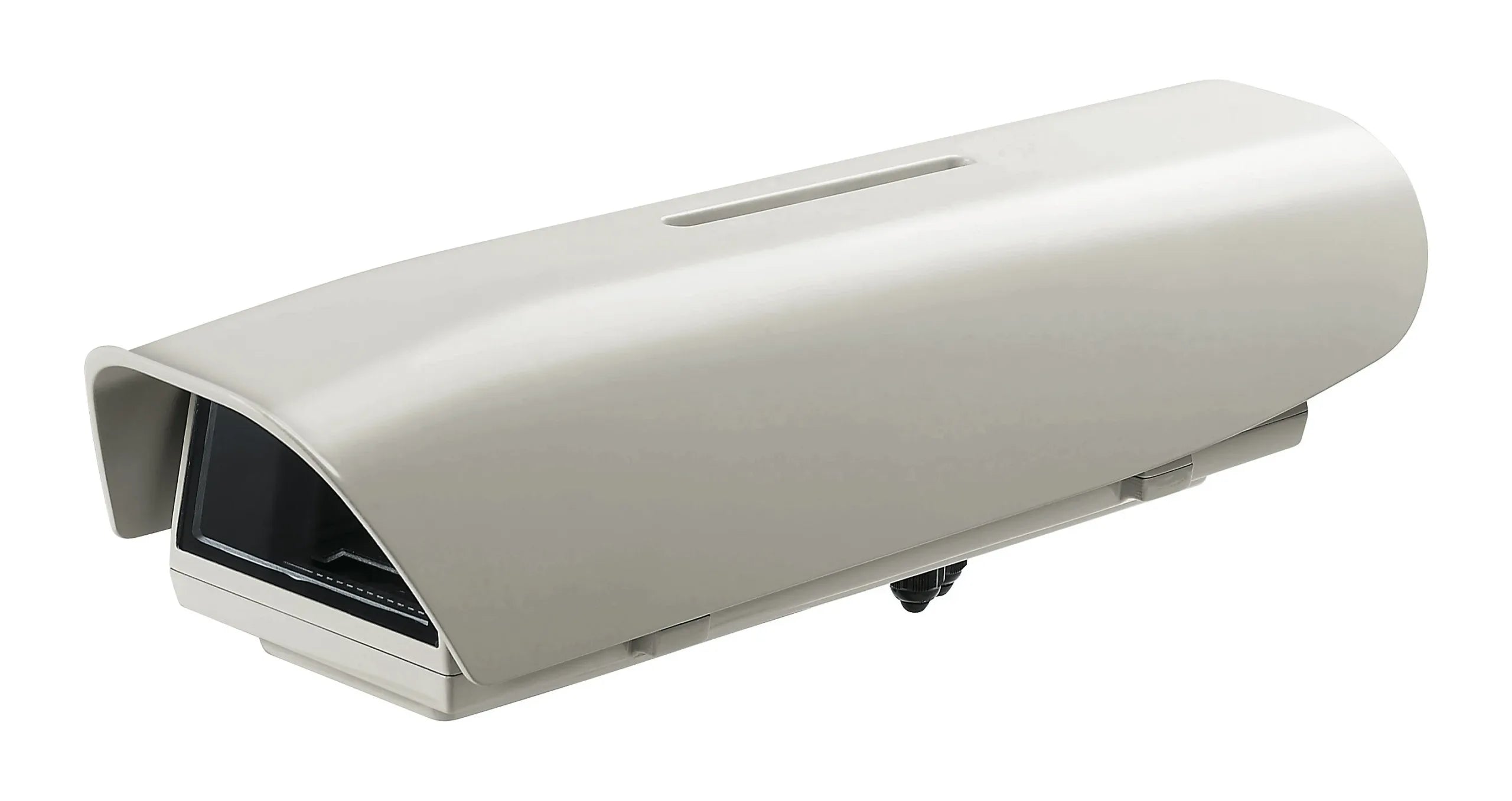

Pelco HOV32K2A000 HOV Side Opening Aluminum Camera Housing 300mm SunShield and Heater IN 12/24 Vac/dc
Description
xThe Pelco HOV32K2A000 HOV Side Opening Aluminum Camera Housing is designed to protect professional cameras and compact zoom lenses in indoor and outdoor surveillance installations. Its durable aluminum construction and ABS sunshield help protect camera equipment from harsh environmental conditions.
The side-opening design provides easy access to the camera, lens and internal connections, making installation, maintenance and adjustments more convenient. Its internal space accommodates compatible standard cameras with fixed or compact zoom lenses.
This model includes a 12VDC/24VAC heater to support reliable operation in cold environments. It also features IP66/IP67 protection when installed with the specified cable glands or optional sealing rings, helping protect the camera from dust and water.
With its weather-resistant construction, integrated sunshield and flexible power options, the Pelco HOV32K2A000 is suitable for outdoor CCTV and professional security installations. Explore the camera accessories at Systec International for more equipment and installation accessories.
FAQs
What is the Pelco HOV32K2A000 used for?
It is designed to house and protect compatible surveillance cameras and compact zoom lenses in indoor and outdoor installations.
What material is the camera housing made from?
The housing is constructed from aluminum and includes an ABS sunshield.
Does this model include a heater?
Yes, it includes a heater that operates with 12VDC or 24VAC power.
What is the weather protection rating?
It supports IP66/IP67 protection when installed with the specified cable glands or optional sealing rings.
Does the housing allow easy camera installation?
Yes, its side-opening design provides access to the camera, lens and internal connections for easier installation and maintenance.
Specs
xSpecifications
| Model | HOV32K2A000 |
|---|---|
| Product Type | Side-opening aluminum camera housing |
| Housing Material | Aluminum |
| Sunshield Material | ABS |
| Housing Length Class | 300mm |
| Internal Usable Dimensions | 100 x 70mm (W x H) |
| Internal Usable Length | 250mm |
| Front Window | Extra-clear glass |
| Cable Glands | 3 x M16 |
| Heater | Integrated heater |
| Heater Power Supply | 12VDC / 24VAC |
| Maximum Power Consumption | 20W |
| Ingress Protection | IP66/IP67 with specified cable glands or optional sealing rings |
| Operating Temperature | -20°C to +65°C with heater |
| Relative Humidity | 5% to 95% |
| Installation | Indoor and outdoor |
| Camera Compatibility | Standard cameras with fixed or compact zoom lenses |
| Certifications | CE and cULus Listed |
