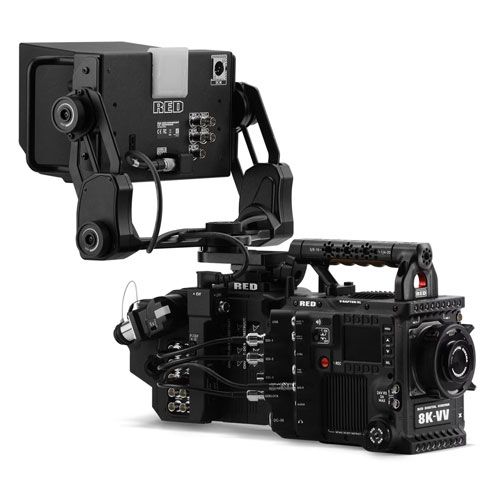

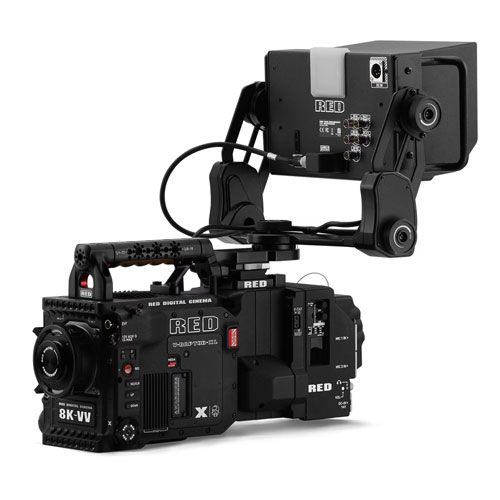

RED Cine-Broadcast - V-RAPTOR Completion Pack (Full Rack)
SKU: 790-0789
Key Features
- Cinematic Live Broadcast: Supports up to 2 channels of 4K 60P (HDR/SDR) over 12G-SDI. IP Broadcast Ready: SMPTE ST 2110 (TR-08) with up to 4K 60P JPEG-XS. Advanced Live Workflows: Features include slow-motion, AI/ML augmentation, and live streaming to headsets using 8K 120FPS R3Ds with RED Connect. Hybrid Fiber Optical Cable: Utilizes SMPTE 311M/304M cables, connecting to a rack-mountable 2U full rack or 4U half rack base station
- 159,699.00 AED
- 159,699.00 AED
- Unit price
- per
Description
xRED Cine-Broadcast - V-RAPTOR Completion Pack (Full Rack)

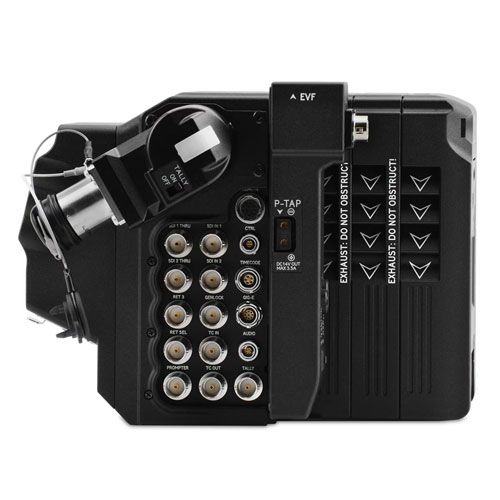

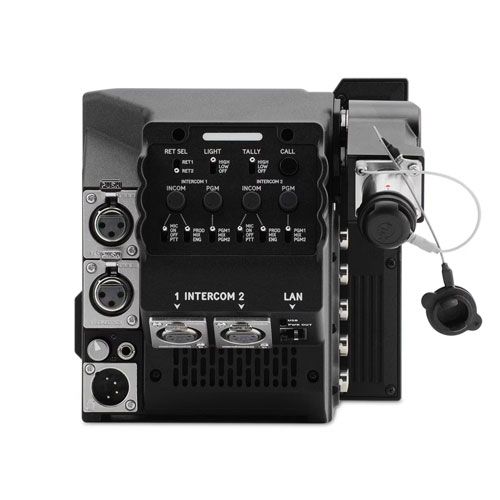

The RED® Cine-Broadcast Pack, compatible with the V-RAPTOR® and V-RAPTOR® XL line of camera systems, brings powerful live broadcast capabilities with RED’s cinematic look. This module enables up to 2 channels of 4K 60P (HDR/SDR) over 12G-SDI and is IP-broadcast ready with SMPTE ST 2110 (TR-08)*. Equipped with a LEMO SMPTE 311M/304M hybrid fiber optical cable receptacle, which connects to a rack mountable 2U full rack or a half rack 4U Base Station.
Additionally, broadcasters gain access to advanced workflows with 3x, 4x super slow-motion, AI/ML augmentation and live to headset using 8K 120FPS R3Ds by using RED’s license-enabled RED Connect feature and an external CCU. The live 8K R3D workflow operates over the same hybrid fiber optical cable, offering simultaneous use with 12G-SDI transmission for maximum versatility and efficiency.
With camera FW version 1.8, RED is introducing a brand-new color pipeline for broadcast use. The Broadcast Color pipeline allows for painting of RED cameras in a live broadcast environment for on-demand adjustments and multi-camera color matching. The color can be adjusted with industry-standard RCPs to control painting parameters in real-time over IP. The painting parameters are saved per frame in the R3D metadata, allowing for a smooth transition into a non-destructive cinema workflow in post-production.
In the Box
x- 1x V-RAPTOR XL Camera
- 1x RED Cine-Broadcast Module
- 1x RED Cine-Broadcast Base Station (Half Rack OR Full Rack)
- 1x RED Cine-Broadcast 7.0" Viewfinder
- 1x RED Cine-Broadcast Viewfinder Pro Bracket
- 1x RED Cine-Broadcast 7.0" Viewfinder Top Handle Mounts for V-RAPTOR XL
- 1x V-RAPTOR XL Top Handle
- 1x RED 4-Pin-to-4-Pin CTRL (9.5")
- 1x RED 9-Pin-to-9-Pin GIG-E (10")
- 1x RED 5-Pin-to-5-Pin Timecode (9.5")
- 1x RED 5-Pin-to-5-Pin Audio (9.5")
