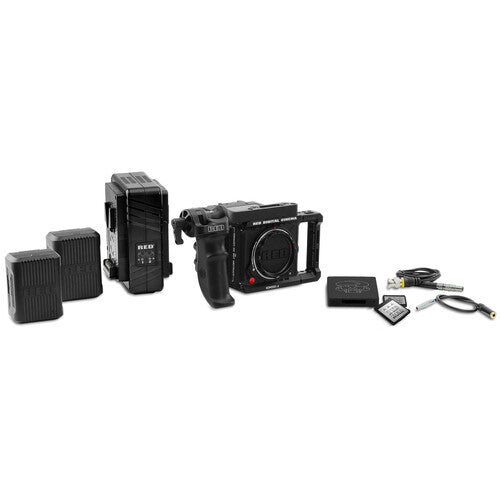

RED DIGITAL CINEMA KOMODO-X 6K Camera Starter Pack (V-Mount)
SKU: 710-0386
Key Features
- Super 35 KOMODO-X 6K Camera
- Supports 6K to 80 fps, 4K to 120 fps
- Reinforced, Locking Canon RF Lens Mount
- 2 x RED PRO CFexpress 1TB Cards
- 2 x REDVOLT NANO-V 49Wh Batteries
- KOMODO Outrigger R/S Top Handle
- 1 x KOMODO Wing Grip
- Compact Dual V-Mount Battery Charger
- CFexpress Card Reader
- Timecode and 5-Pin to 3.5mm Audio Cables
SKU:
710-0386
Availability:
Out Of Stock
- 34,299.00 AED
- 34,299.00 AED
- Unit price
- per
Tax excluded.
10 customers are viewing this product
Dimensions: 33.53 × 24.89 × 15.24 cm
Weight: 3.25 kg
Description
xRED DIGITAL CINEMA KOMODO-X 6K Digital Cinema Camera (Canon RF, Black)
RED further advances its KOMODO line with the release of the black KOMODO-X 6K, a digital cinema camera featuring faster frame rates, a redesigned S35 sensor, and an updated form including advanced video and audio interfaces. With built-in Wi-Fi and a USB-C connector, the KOMODO-X provides a powerful platform for smooth professional capture, multicamera setups, and IP-based workflows, including live streaming. The KOMODO-X will be complemented by pre-bundled packs and additional accessories such as RED Pro I/O V-Mount and Gold Mount Modules.
From Manufacturer
RED TECH LIVE | KOMODO-X
RED KOMODO-X 6K S35: Redesigned sensor and more!
Next-Gen KOMODO Sensor
While sized the same as the original 6K S35 global-shutter KOMODO sensor, the KOMODO-X sensor has been redesigned from the ground up, offering key architectural improvements while producing excellent image quality and color science. Features include enhanced shadow detail and color and frame rates up to 80 fps in 6K and up to 120p in 4K.
Compact KOMODO Form
The KOMODO-X 6K camera melds select DSMC3 features with the notably ultracompact KOMODO form. The KOMODO-X is compatible with the upcoming PRO I/O Module for auxiliary power and full-size Gold and V-mount battery use and it has a built-in micro plate that enables the direct mounting use of Micro V-mount batteries without the need for an adapter. It also incorporates a full-size, 6-pin 11-17VDC power input.
Canon RF Mount
- The KOMODO-X comes with a reinforced, locking Canon RF lens mount, offering RED's toolless lens-mount feature for compatibility with a wide range of lenses.
- To use ARRI PL-mount lenses, use the KOMODO-X with the RED RF to PL adapter with electronic ND filter.
Integrated LCD
When working in close quarters or in compact setups, users can preview their images and apply simplified controls via the integrated 2.9" LCD. Pair the KOMODO-X with the daylight-viewable, high-resolution DSMC3 7" Touch LCD offers more precise monitoring and full control in a cable-free, decluttered form.
Live Streaming and Expanded In/Out
The KOMODO-X's expanded interface includes:
- 12G-SDI video output up to 4K60p.
- A USB-C port with Ethernet offload capabilities.
- Built-in Wi-Fi for 1080p IP live streaming for web applications and in-app monitoring.
CFexpress Type B
- The KOMODO-X has a single media slot for use with a high-capacity, fast CFexpress type B card.
- Record up to 17 hours using a 4TB CFexpress type B card.
- Offload data up to 3x faster than CFast media.
Advanced Connectivity
- With a USB-C interface and an integrated Wi-Fi function, the KOMODO-X shines at streamlined IP workflows like Virtual Production and live broadcasting. Use it with the RED Control or Control Pro apps to avail yourself of not only remote camera control but FTP media off-loading and in-camera Cloud uploading.
- Add a RED Connect license to broadcast up to 6K live images over IP directly from the camera.
- Multicamera and LED volume shooters will appreciate the KOMODO-X's frame-accurate PTP or trilevel genlock syncing with on-the-fly offset ability.
Audio Interface
Improved audio options include a locking, phantom-powered 5-pin connector that can be used with a 3.5mm adapter and KOMODO microphones or with a dual XLR adapter and a wide array of microphones.
UPC: 810016943570
RED DIGITAL CINEMA 1TB PRO CFexpress 2.0 Type B Memory Card
Certified for RED V-RAPTOR and KOMODO-X camera systems, the 1TB PRO CFexpress 2.0 Type B Memory Card from RED offers protection from overheating, operates with a reduced power draw, and helps to ensure high bitrate capture. This card can capture all frame rates and resolutions, including Full HD and raw 4K, 6K, 8K, and 12K video. It features a capacity of 1TB and uses the PCIe 3.0 x2 bus to deliver maximum read/write speeds of 1785 MB/s.
Durable Angelbird Build
Designed and manufactured by Angelbird for RED, the PRO CFexpress 2.0 Type B series has been engineered with protection against shock, dust, water, temperature extremes, and x-rays, and has an MTBF (Mean Time Between Failures) rating of 2.4 million hours. Included is lifetime data protection and an activation code for the full limited 3-year warranty. To receive the full limited warranty, the product needs to be registered on the Angelbird Personal Service Portal within 30 days after purchase. If not registered within this period, the market-specific legal guarantee period comes into force.
Note:
This RED PRO CFexpress card is not compatible with DSMC, DSMC2, RED RANGER, or KOMODO camera systems.
Compatibility
- RED V-RAPTOR 8K VV cinema camera
- RED KOMODO-X cinema camera
- RED CFexpress card reader
General Features
- 1TB capacity
- Max read/write speed: 1785 MB/s
- CFexpress 2.0 Type B
- Produces a stable stream
Performance
- For photos, HD videos, and raw 4K to 12K resolutions
- Y2 processor designed for raw video and photo content
- Adaptive Power Management helps preserve battery life and card endurance
- Host power loss protection
- Sticker-free design prevents media slot jams
- Mean Time Between Failures of up to 2.4 million hours
- Temperature sensor, TRIM, ECC, EMS protection, built-in cache, and SMART
Overheating Protection
- With Angelbird's adaptive thermal management system, you can feel confident that your data is protected from the threat of potential damage due to camera overheating during long shoots.
- Advanced thermal management helps protect the card, camera, and stored content.
AV Pro Line Offers Quality and Performance
- The AV Pro product line pushes the limits of speed and performance in the safest possible way. All AV Pro media solutions consider the real-world media needs of the professional creative and feature Stable Stream performance technology, which is ideal for high-definition, lossless (drop-fee) video recording and smooth data processing.
- The entire lineup of Angelbird's AV Pro media solutions is built with rock-solid performance protections, such as shock, dust, x-ray, and splash-water proofing, and are tested for safe operating temperatures at extremes of -13 to 185°F.
Free Professional Data Recovery Service
Angelbird offers free professional data recovery service on all its products. In lieu of a self-service software download, Angelbird provides a staff of professionals who will evaluate the issue and safely attempt a secure data-recovery in their lab along with complementary express shipping. This service covers media that has encountered physical damage and/or software issues such as data or file corruption. Furthermore, Angelbird extends a non-disclosure agreement to their customers to ensure that the privacy and confidentiality of their content is also protected.
RED DIGITAL CINEMA CFexpress Card Reader
The CFexpress Card Reader from RED allows for the fast ingestion of the RED PRO 660GB CFexpress media card on systems that support 20 Gb/s USB 3.2 Gen 2x2. Built with a USB Type-C interface, power is received through the USB bus, meaning that no external power sources are required. The reader features a write-protect switch on the back to protect your data.
Compatibility
RED PRO 660GB CFexpress card
UPC: 812937024666
RED DIGITAL CINEMA REDVOLT NANO-V 49Wh Battery for KOMODO-X (V-Mount)
Use the REDVOLT NANO-V battery pack from RED DIGITAL CINEMA as a compact, lightweight power solution for the KOMODO-X 6K camera and the RED Touch 7.0" LCD. This battery features a 49mAh capacity and a maximum draw of 6A. Designed in conjunction with battery-maker Core SWX, the compact REDVOLT BP sits flush on the KOMODO-X, enabling you to mount various cages and plates while using it. The REDVOLT NANO-V is also compatible with the KOMODO 6K camera and most cameras that use a V-mount battery.
Compatibility
- RED KOMODO-X 6K S35 camera.
- RED KOMODO 6K S35 camera.
- Most cameras with a V-mount battery plate.
Compact Form
- Compact design mounts directly onto the KOMODO-X/KOMODO's battery plate.
- Sits flush with the KOMODO-X camera body to enable the use of various plates and cages.
- Provides a lightweight solution for powering both the KOMODO-X and the Touch 7.0" monitor for short durations.
UPC: 810016943105
RED DIGITAL CINEMA Wing Grip for KOMODO and KOMODO X
Low-Profile Handgrip
Add the Wing Grip from RED DIGITAL CINEMA to your KOMODO or KOMODO X camera to create a low-profile, handheld support option. This aluminum handle's simple U–shaped design features an ergonomic grip and both 1/4"-20 and anti-twist 3/8"-16 threads for attaching accessories.
Compatibility
- For RED KOMODO and KOMODO X cameras only.
- Please note that the Wing Grip is not compatible with DSMC, DSMC2, or RED RANGER camera systems.
Low-Profile Handle
Provides a low-profile, ergonomic way to carry your KOMODO or KOMODO X.
Accessory Mounts
Provides multiple 1/4"-20 and anti-twist 3/8"-16 threads.
UPC: 810016941415
RED DIGITAL CINEMA KOMODO Outrigger Handle
The KOMODO Outrigger Handle from RED DIGITAL CINEMA provides flexible handling when operating your KOMODO digital cine camera. This low-profile handle is especially suited for keeping one hand on the integrated record/stop button and the other positioned for focus pulls or zooming. The KOMODO Outrigger handle features a rugged build, 360° of swivel rotation for optimal positioning, and two 1/4"-20 accessory threads. Attach it to your camera via its pogo connector or its two captive 1/4"-20 screws.
UPC: 810016941439
RED DIGITAL CINEMA DSMC3 RED 5-Pin LEMO to 3.5mm Female Audio Adapter (11.3")
The DSMC3 RED 5-Pin to 3.5mm Female Audio Adapter from RED DIGITAL CINEMA enables you to connect a 3.5mm audio device to your RED DSMC3 camera. This 11.3" cable has a 5-pin LEMO connector on one end and a female 3.5mm TRS connector on the other.
Compatibility
- KOMODO-X
- V-RAPTOR
- V-RAPTOR XL
- 3.5mm TRS audio devices
UPC: 810016942665
RED DIGITAL CINEMA EXT-to-Timecode Cable (3')
The EXT-to-Timecode Cable enables you to input timecode to your RED DIGITAL CINEMA KOMODO camera. This cable links to the camera via its 9-pin EXT connector and measures 3' including the connectors.
Specs
x| Key Specs | |
|---|---|
| Lens Mount | Canon RF |
| Image Sensor | Super35 |
| Effective Sensor Resolution | 19.9 Megapixel (6144 x 3240) |
| Image Stabilization | No |
| Max Recording Modes |
REDCODE RAW: Up to 6K up to 80 fps ProRes 422 / HQ / LT: DCI 4K up to 120 fps ProRes 4444: DCI 4K up to 80 fps ProRes 4444XQ: DCI 4K up to 60 fps |
| Max Video Output | 4:2:2 up to DCI 4K 60 fps |
| Media/Memory Card Slot | Single Slot: CFexpress Type B (CFexpress 2.0) |
| Mobile App Compatible | Android & iOS (Remote Control) |
| Battery | V-Mount |
| Imaging | |
| Lens Mount | Canon RF |
| Lens Communication | Yes (Autofocus Support) |
| Image Sensor | 27.03 x 14.26 mm (Super35) CMOS |
| Effective Sensor Resolution | 19.9 Megapixel (6144 x 3240) |
| Image Stabilization | No |
| Capture Type | Stills & Video |
| Exposure Control | |
| Shutter Type | Electronic Global Shutter |
| Dynamic Range | 16.5 Stops |
| Focus | |
| Focus Mode | Automatic, Manual Focus |
| Video Capture | |
| Internal Recording |
REDCODE RAW: 6K 80fps, 5K 96fps, 4K 120fps, 2K 240fps ProRes 422/HQ/LT: 4K up to 120fps ProRes 4444: 4K up to 80fps ProRes 4444XQ: 4K up to 60fps |
| Video Output | 4:2:2 up to 4K 60fps |
| Slow/Fast Motion | Yes |
| Built-in Microphone | Stereo |
| Audio Recording | 2-Channel, 24-bit, 48 kHz |
| IP Streaming | MJPEG 1920 x 1080 (5000 Mbps) |
| Interface | |
| Media Slot | CFexpress Type B |
| Internal Storage | No |
| Video I/O | 1x BNC (12G-SDI) |
| Audio I/O | 1x 5-Pin LEMO |
| Power I/O | 1x LEMO 6-Pin (11–17V DC) |
| Other I/O |
1x 9-Pin (Genlock, GPI, Timecode) 1x USB-C (Control/Data/Video I/O) RED Monitor Connection Output |
| Wireless | Wi-Fi |
| Mobile App | RED Control (Android & iOS) |
| GPS | No |
| Monitor | |
| Display | 2.9" Fixed Touchscreen LCD |
| Resolution | 1440 x 1440 |
| Viewfinder | |
| Type | Optional (Not Included) |
| Power | |
| Battery | V-Mount |
| Environmental | |
| Operating Temperature | 0 to 40°C |
| Storage Temperature | -20 to 50°C (up to 85% humidity) |
| General | |
| Tripod Mount | 1/4"-20 & 3/8"-16 |
| Accessory Threads | 1/4"-20 & M4 |
| Netflix Approved | Yes |
| Material | Aluminum |
| Dimensions | 129.37 x 101.26 x 95.26 mm |
| Weight | 1.19 kg (Body Only) |
| Packaging Info | |
| Package Weight | 7.165 lb |
| Box Dimensions | 13.2 x 9.8 x 6 in |
