RED DIGITAL CINEMA KOMODO-X Z Mount 6K Digital Cinema Camera (Nikon Z)
SKU: 710-0420
Key Features
- 19.9MP Super 35 Global Shutter CMOS
- Reinforced, Locking Nikon Z Lens Mount
- Adjustable AF, Smooth Iris Control
- Compact KOMODO Line Design
- Up to 6K80 & 4K120 Video
- 12G-SDI, USB-C, 5-Pin Audio Ports
- 6K Streaming via RED Connect License
- Wireless Control, File Offload via Wi-Fi
- Integrated 2.9" Touchscreen
- Includes AC Adapter
SKU:
710-0420
Availability:
Out Of Stock
- 26,699.00 AED
- 26,699.00 AED
- Unit price
- per
Tax excluded.
10 customers are viewing this product
Dimensions: 30.99 × 23.62 × 15.75 cm
Weight: 3.34 kg
Description
x
RED continues to expand its line of digital cinema cameras with the KOMODO-X Z Mount featuring a native Nikon Z mount offering adjustable AF speeds, fluid iris control, and customizable lens responses. It shares the global shutter 6K S35 sensor, powerful IP workflow, and advanced interfaces of the RF-mount KOMODO-X.
From Manufacturer
V-RAPTOR [X] Z MOUNT + KOMODO-X Z MOUNT | Official Introduction | #ShotonRED
RED TECH | Z Mount Overview | Expanding Lens Options
6K Super 35 Global Shutter Sensor
While sized the same as the original 6K S35 global-shutter KOMODO sensor, the KOMODO-X Z Mount sensor has been redesigned from the ground up, offering key architectural improvements while producing excellent image quality and color science. Features include enhanced shadow detail and color and frame rates up to 80 fps in 6K and up to 120p in 4K.
Compact KOMODO Form

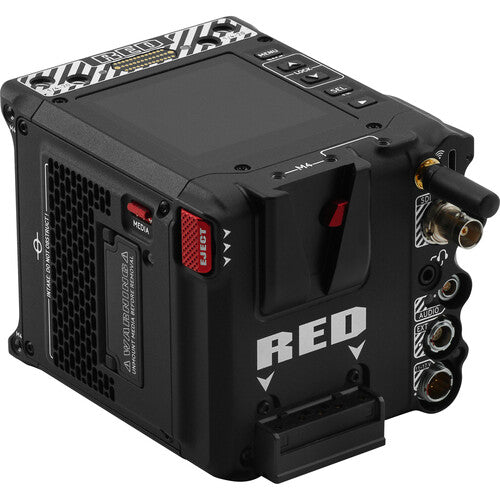

The KOMODO-X Z Mount camera melds select DSMC3 features with the notably ultracompact KOMODO form. The KOMODO-X Z Mount has a built-in plate that enables the direct use of Micro V-mount batteries and is compatible with the PRO I/O Module for auxiliary power and full-size Gold and V-mount battery use. It also incorporates a full-size, 4-pin 11-17 VDC power input.

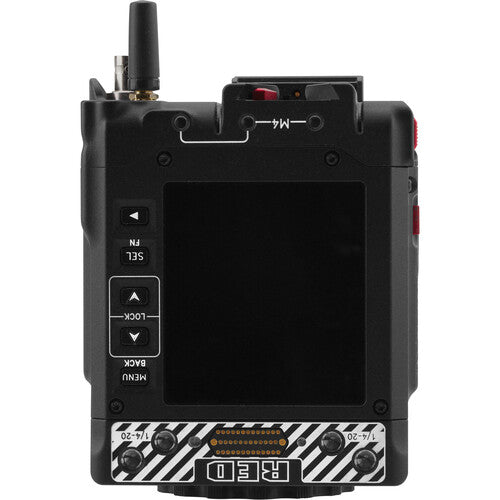

Integrated LCD
Users can preview their images and apply simplified controls via the integrated 2.9" LCD, an especially handy feature in tight setups. Pair the KOMODO-X Z Mount with the daylight-viewable, high-resolution DSMC3 7" Touch LCD for more precise monitoring and full control in a cable-free, decluttered form.

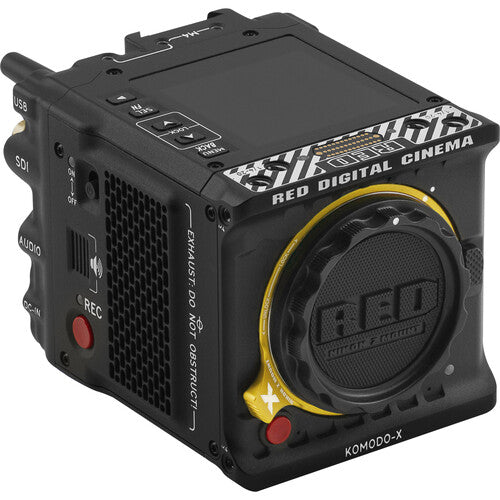

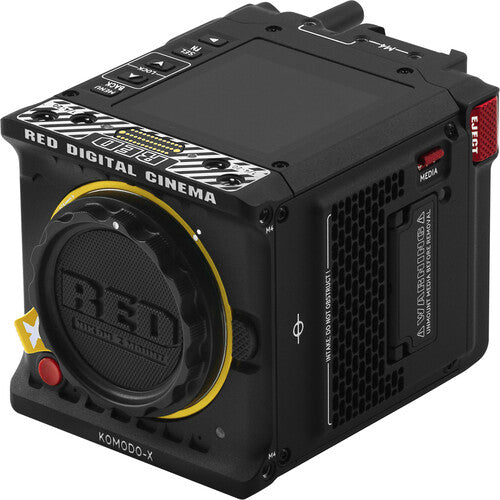

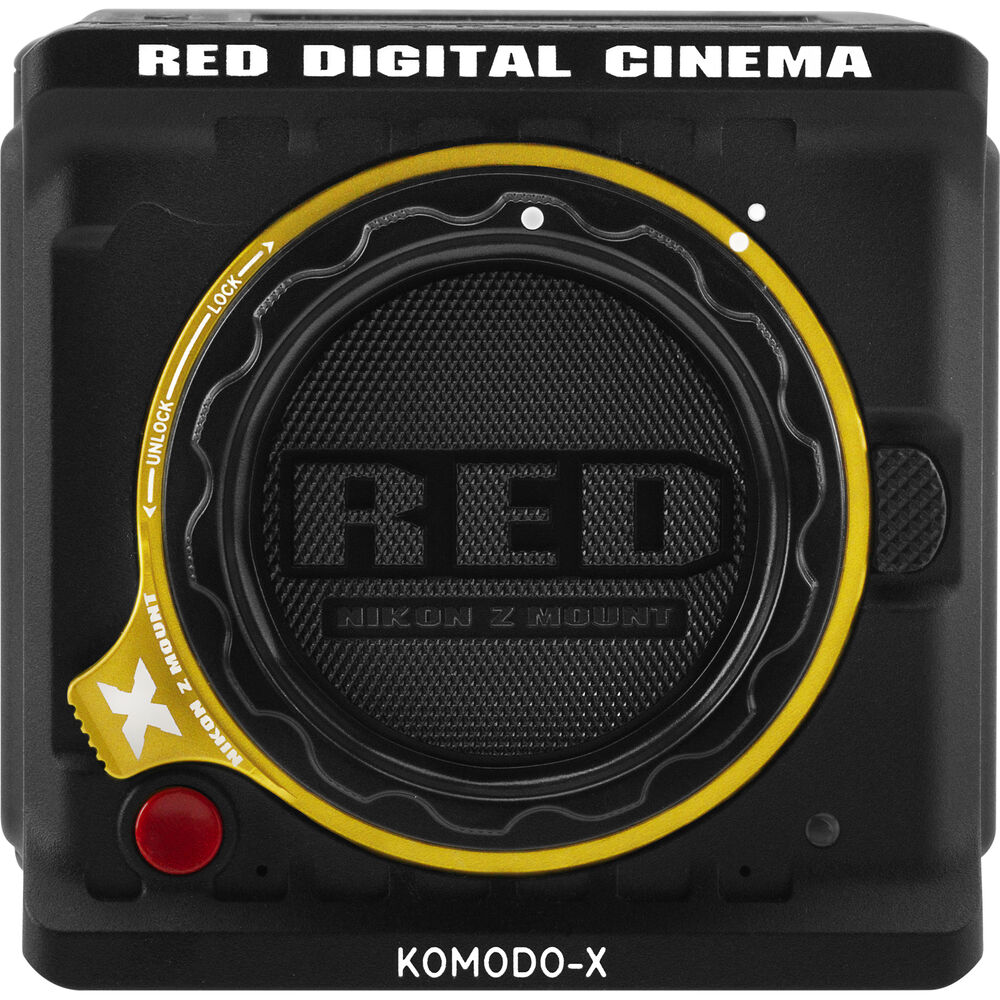

Nikon Z Lens Mount
- The KOMODO-X Z Mount has a reinforced, locking Nikon Z lens mount with advanced iris, auto-focus, and lens response capabilities.
- Pair the camera with a Nikon FTZ II mount adapter to use older Nikon F-mount lenses.
- It offers toolless switching to additional RED mounts and compatibility with third-party adapters for use with a wide range of lenses.
- Use the KOMODO-X Z Mount with the RED Z to PL adapter for compatibility with upcoming /i PL lenses.

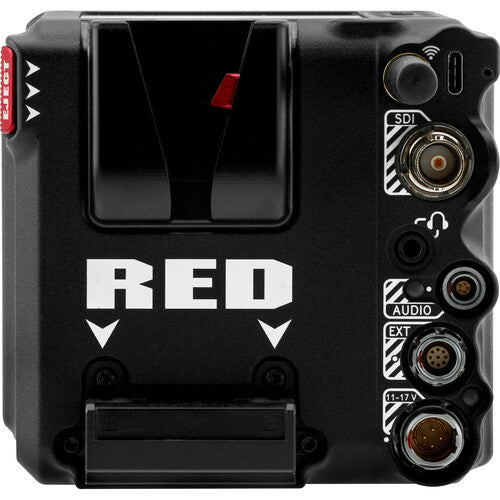

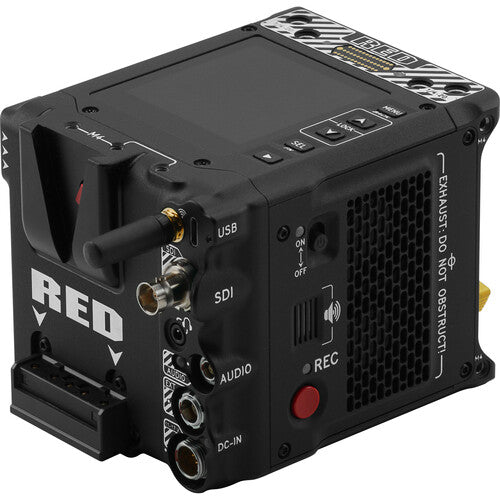

Live Streaming and Expanded In/Out
The KOMODO-X Z Mount's expanded interface includes:
- 12G-SDI video output up to 4K60p.
- A USB-C port with Ethernet offload capabilities.
- Built-in Wi-Fi for IP live streaming for web applications and in-app monitoring.
Advanced Connectivity
- With a USB-C interface and an integrated Wi-Fi function, the KOMODO-X Z Mount shines at streamlined IP workflows like Virtual Production and live broadcasting. Use it with the RED Control or Control Pro apps to avail yourself of not only remote camera control but FTP media off-loading and in-camera Cloud uploading.
- Add a RED Connect license to broadcast up to 6K live images over IP directly from the camera.
- Multicamera and LED volume shooters will appreciate the KOMODO-X Z Mount's frame-accurate PTP or trilevel genlock syncing with on-the-fly offset ability.

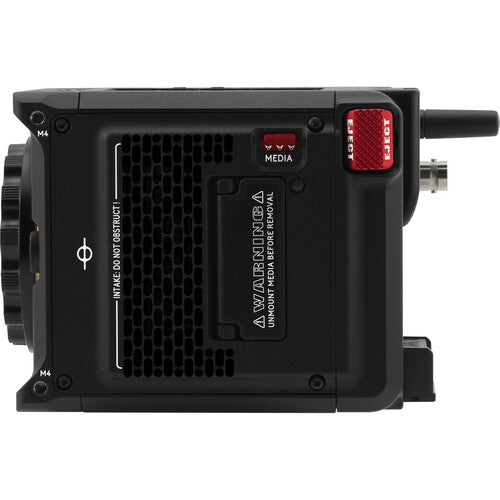

CFexpress Type B
- The KOMODO-X Z Mount has a single media slot for use with a high-capacity, fast CFexpress type B card.
- Record up to 17 hours using a 4TB CFexpress type B card.
- Offload data up to 3x faster than CFast media.
Audio Interface
Improved audio options include a locking, phantom-powered 5-pin connector that can be used with a 3.5mm adapter and KOMODO microphones or with a dual XLR adapter and a wide array of microphones.
Specs
x| Section | Specification | Value |
|---|---|---|
| Key Specs | Lens Mount | Canon RF |
| Image Sensor | Super35 | |
| Effective Sensor Resolution | 19.9 Megapixel (6144 x 3240) | |
| Image Stabilization | No | |
| Max Recording Modes |
REDCODE RAW up to 6K 80 fps ProRes 422/422 HQ/422LT up to 4K 120 fps ProRes 4444 up to 4K 80 fps ProRes 4444XQ up to 4K 60 fps |
|
| Max Video Output | 4:2:2 up to DCI 4K 60 fps | |
| Media/Memory Card | CFexpress Type B (CFexpress 2.0) | |
| Imaging | Lens Mount | Nikon Z |
| Lens Communication | Yes (Autofocus Support) | |
| Image Sensor | 27.03 x 14.26 mm Super35 CMOS | |
| Effective Sensor Resolution | 19.9 Megapixel (6144 x 3240) | |
| Image Stabilization | No | |
| Capture Type | Stills & Video | |
| Exposure Control | Shutter Type | Electronic Global Shutter |
| Dynamic Range | 16.5 Stops | |
| Focus | Focus Mode | Automatic, Manual |
| Video Capture | Internal Recording |
REDCODE RAW up to 6K 80 fps ProRes up to 4K 120 fps ProRes 4444 up to 4K 80 fps ProRes 4444XQ up to 4K 60 fps |
| Video Output | 4:2:2 up to 4K 60 fps | |
| Fast/Slow Motion | Yes | |
| Audio Recording | 2-Channel, 24-bit / 48 kHz | |
| IP Streaming | MJPEG 1920 x 1080 | |
| Interface | Media Slot | CFexpress Type B |
| Internal Storage | No | |
| Video I/O | 12G-SDI Output | |
| Audio I/O | 5-Pin LEMO Input | |
| Power I/O | LEMO 6-Pin (11–17V DC) | |
| Wireless | Wi-Fi | |
| Monitor | 2.9" Touchscreen | 1440 x 1440 |
| Viewfinder | Type | Optional (Not Included) |
| Power | Battery | V-Mount |
| Environmental | Operating | 0 to 40°C |
| Storage | -20 to 50°C | |

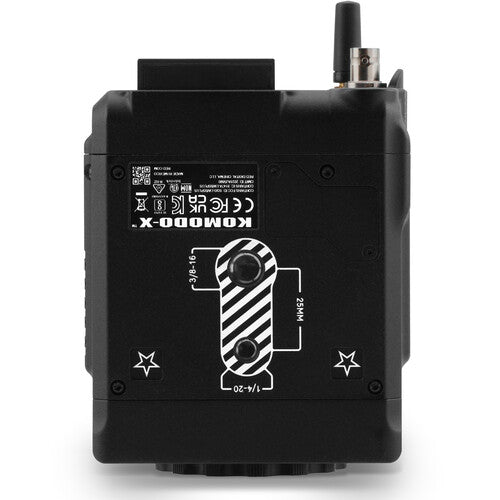

| General | Tripod Mount | 1/4"-20 & 3/8"-16 |
| Accessory Threads | 1/4"-20 & M4 | |
| Netflix Approved | Yes | |
| Material | Aluminum | |
| Dimensions | 129.37 x 101.26 x 95.26 mm | |
| Weight | 2.62 lb (1.19 kg) | |
| Packaging Info | Package Weight | 7.355 lb |
| Box Dimensions | 12.2 x 9.3 x 6.2 in |
