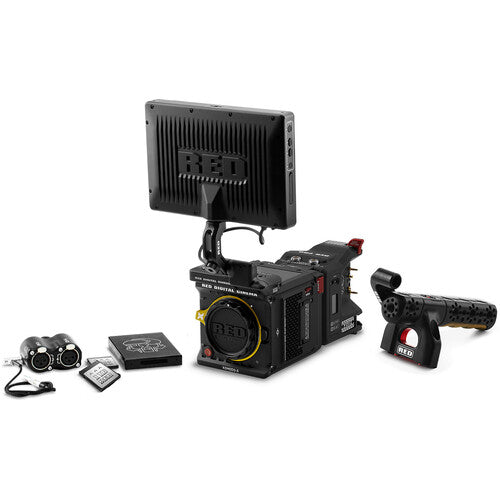

RED DIGITAL CINEMA KOMODO-X Z Mount Production Pack (Nikon Z, V-Mount)
SKU: 710-0438
Key Features
- KOMODO-X Z Mount 6K Super 35 Camera
- Reinforced, Locking Nikon Z Lens Mount
- Super 35 6K up to 80 fps, 4K up to 120 fps
- RED Pro V-Mount I/O Module
- DSMC3 RED Touch 7.0" LCD, Rigid Hinge
- 2 x RED PRO CFexpress 1TB Cards
- Compact R/S Top Handle
- CFexpress Card Reader
- 5-Pin to Dual XLR 3-Pin Audio Adapter
SKU:
710-0438
Availability:
Out Of Stock
- 45,699.00 AED
- 45,699.00 AED
- Unit price
- per
Tax excluded.
10 customers are viewing this product
Dimensions: 30.99 × 23.62 × 15.75 cm
Weight: 3.34 kg
Description

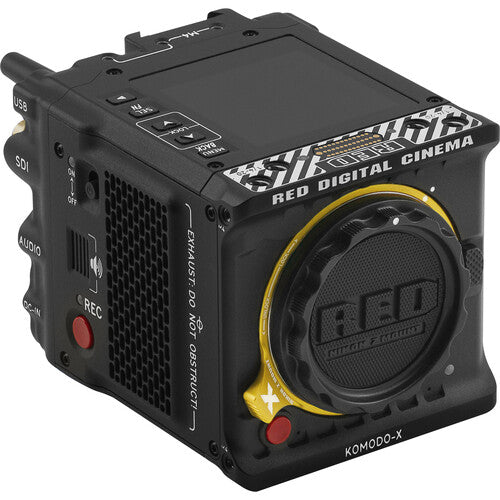

xRED DIGITAL CINEMA KOMODO-X Z Mount 6K Digital Cinema Camera (Nikon Z)
RED continues to expand its line of digital cinema cameras with the KOMODO-X Z Mount featuring a native Nikon Z mount offering adjustable AF speeds, fluid iris control, and customizable lens responses. It shares the global shutter 6K S35 sensor, powerful IP workflow, and advanced interfaces of the RF-mount KOMODO-X.
From Manufacturer
V-RAPTOR [X] Z MOUNT + KOMODO-X Z MOUNT | Official Introduction | #ShotonRED
RED TECH | Z Mount Overview | Expanding Lens Options
RED KOMODO-X 6K S35: Redesigned sensor and more!
6K Super 35 Global Shutter Sensor
While sized the same as the original 6K S35 global-shutter KOMODO sensor, the KOMODO-X Z Mount sensor has been redesigned from the ground up, offering key architectural improvements while producing excellent image quality and color science. Features include enhanced shadow detail and color and frame rates up to 80 fps in 6K and up to 120p in 4K.
Compact KOMODO Form
The KOMODO-X Z Mount camera melds select DSMC3 features with the notably ultracompact KOMODO form. The KOMODO-X Z Mount has a built-in plate that enables the direct use of Micro V-mount batteries and is compatible with the PRO I/O Module for auxiliary power and full-size Gold and V-mount battery use. It also incorporates a full-size, 4-pin 11-17 VDC power input.
Integrated LCD
Users can preview their images and apply simplified controls via the integrated 2.9" LCD, an especially handy feature in tight setups. Pair the KOMODO-X Z Mount with the daylight-viewable, high-resolution DSMC3 7" Touch LCD for more precise monitoring and full control in a cable-free, decluttered form.

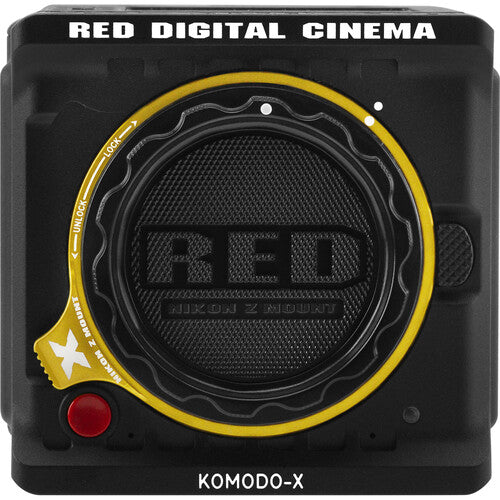

Nikon Z Lens Mount
- The KOMODO-X Z Mount has a reinforced, locking Nikon Z lens mount with advanced iris, auto-focus, and lens response capabilities.
- Pair the camera with a Nikon FTZ II mount adapter to use older Nikon F-mount lenses.
- It offers toolless switching to additional RED mounts and compatibility with third-party adapters for use with a wide range of lenses.
- Use the KOMODO-X Z Mount with the RED Z to PL adapter for compatibility with upcoming /i PL lenses.
Live Streaming and Expanded In/Out
The KOMODO-X Z Mount's expanded interface includes:
- 12G-SDI video output up to 4K60p.
- A USB-C port with Ethernet offload capabilities.
- Built-in Wi-Fi for IP live streaming for web applications and in-app monitoring.
Advanced Connectivity
- With a USB-C interface and an integrated Wi-Fi function, the KOMODO-X Z Mount shines at streamlined IP workflows like Virtual Production and live broadcasting. Use it with the RED Control or Control Pro apps to avail yourself of not only remote camera control but FTP media off-loading and in-camera Cloud uploading.
- Add a RED Connect license to broadcast up to 6K live images over IP directly from the camera.
- Multicamera and LED volume shooters will appreciate the KOMODO-X Z Mount's frame-accurate PTP or trilevel genlock syncing with on-the-fly offset ability.
CFexpress Type B
- The KOMODO-X Z Mount has a single media slot for use with a high-capacity, fast CFexpress type B card.
- Record up to 17 hours using a 4TB CFexpress type B card.
- Offload data up to 3x faster than CFast media.
Audio Interface
Improved audio options include a locking, phantom-powered 5-pin connector that can be used with a 3.5mm adapter and KOMODO microphones or with a dual XLR adapter and a wide array of microphones.
UPC: 810016945130

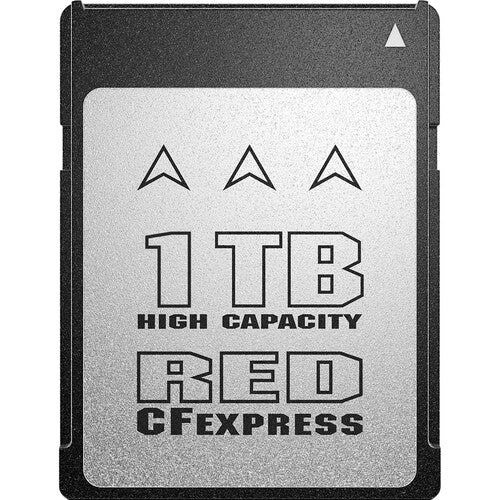

RED DIGITAL CINEMA 1TB PRO CFexpress 2.0 Type B Memory Card
Certified for RED V-RAPTOR and KOMODO-X camera systems, the 1TB PRO CFexpress 2.0 Type B Memory Card from RED offers protection from overheating, operates with a reduced power draw, and helps to ensure high bitrate capture. This card can capture all frame rates and resolutions, including Full HD and raw 4K, 6K, 8K, and 12K video. It features a capacity of 1TB and uses the PCIe 3.0 x2 bus to deliver maximum read/write speeds of 1785 MB/s.
Durable Angelbird Build
Designed and manufactured by Angelbird for RED, the PRO CFexpress 2.0 Type B series has been engineered with protection against shock, dust, water, temperature extremes, and x-rays, and has an MTBF (Mean Time Between Failures) rating of 2.4 million hours. Included is lifetime data protection and an activation code for the full limited 3-year warranty. To receive the full limited warranty, the product needs to be registered on the Angelbird Personal Service Portal within 30 days after purchase. If not registered within this period, the market-specific legal guarantee period comes into force.
Note:
This RED PRO CFexpress card is not compatible with DSMC, DSMC2, RED RANGER, or KOMODO camera systems.
Compatibility
- RED V-RAPTOR 8K VV cinema camera
- RED KOMODO-X cinema camera
- RED CFexpress card reader
General Features
- 1TB capacity
- Max read/write speed: 1785 MB/s
- CFexpress 2.0 Type B
- Produces a stable stream
Performance
- For photos, HD videos, and raw 4K to 12K resolutions
- Y2 processor designed for raw video and photo content
- Adaptive Power Management helps preserve battery life and card endurance
- Host power loss protection
- Sticker-free design prevents media slot jams
- Mean Time Between Failures of up to 2.4 million hours
- Temperature sensor, TRIM, ECC, EMS protection, built-in cache, and SMART
Overheating Protection
- With Angelbird's adaptive thermal management system, you can feel confident that your data is protected from the threat of potential damage due to camera overheating during long shoots.
- Advanced thermal management helps protect the card, camera, and stored content.
AV Pro Line Offers Quality and Performance
- The AV Pro product line pushes the limits of speed and performance in the safest possible way. All AV Pro media solutions consider the real-world media needs of the professional creative and feature Stable Stream performance technology, which is ideal for high-definition, lossless (drop-fee) video recording and smooth data processing.
- The entire lineup of Angelbird's AV Pro media solutions is built with rock-solid performance protections, such as shock, dust, x-ray, and splash-water proofing, and are tested for safe operating temperatures at extremes of -13 to 185°F.
Free Professional Data Recovery Service
Angelbird offers free professional data recovery service on all its products. In lieu of a self-service software download, Angelbird provides a staff of professionals who will evaluate the issue and safely attempt a secure data-recovery in their lab along with complementary express shipping. This service covers media that has encountered physical damage and/or software issues such as data or file corruption. Furthermore, Angelbird extends a non-disclosure agreement to their customers to ensure that the privacy and confidentiality of their content is also protected.

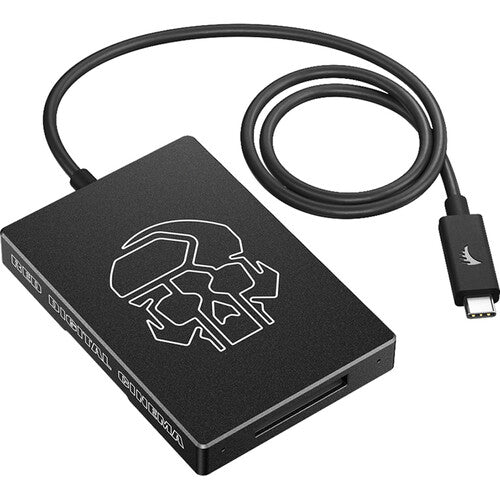

RED DIGITAL CINEMA CFexpress Card Reader
The CFexpress Card Reader from RED allows for the fast ingestion of the RED PRO 660GB CFexpress media card on systems that support 20 Gb/s USB 3.2 Gen 2x2. Built with a USB Type-C interface, power is received through the USB bus, meaning that no external power sources are required. The reader features a write-protect switch on the back to protect your data.
Compatibility
RED PRO 660GB CFexpress card
UPC: 812937024666

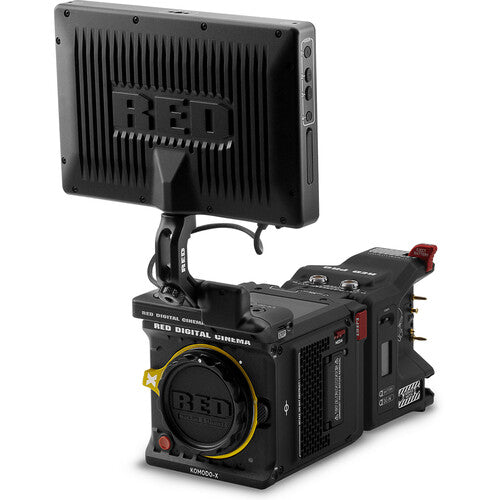

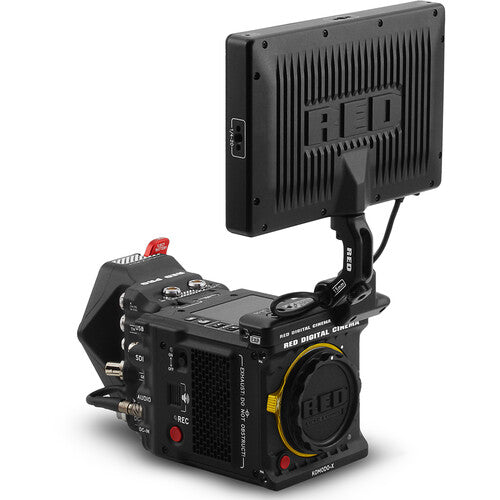

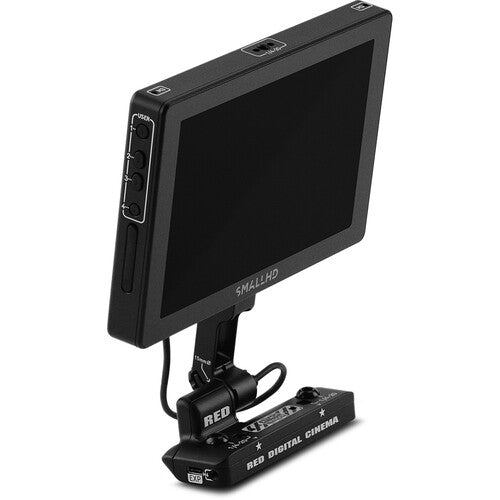

RED DIGITAL CINEMA DSMC3 RED Touch 7.0" LCD with Rigid Hinge
Add a direct-mount onboard monitor to your DSMC3 camera rig with the DSMC3 RED Touch 7.0" LCD Monitor with Rigid Hinge from RED DIGITAL CINEMA. The RED Touch features daylight viewing, a wide 100% DCI-P3 color gamut, and touchscreen control for DSMC3 cameras, such as the V-RAPTOR 8K VV. The rigid hinge and arm enable you to apply more pressure for positioning the Touch for optimal viewing. The Touch monitor features 1920 x 1200 resolution, a 1250:1 contrast ratio, and 1300 cd/m² brightness for high-quality imaging.
This monitor attaches directly to your DSMC3 BRAIN using its Pogo mount, which provides video, data, and power to the monitor from the camera. If you need to use the Pogo mount for another accessory, the monitor also features a locking USB-C connector that alternately allows you to pass video, data, and power to the camera. Note that the DSMC3 Touch monitor is not compatible with DSMC, DSMC2, RED RANGER, or KOMODO camera systems.
Daylight Viewable
Designed for daylight viewing with 322 ppi, 1920 x 1200 resolution, and 1800 cd/m² brightness.
Rigid Hinge
A rigid hinge system enables you to apply greater pressure when positioning the Touch for reliable viewing.
DCI-P3 Color Gamut
A 1920 x 1200 resolution and wide 100% DCI-P3 color gamut for optimal imaging.
SmallHD Page OS
Runs SmallHD PageOS software that provides full camera control. Features include waveform, vectorscope, histogram, false color, color picker, pixel zoom, and additional functions.
Pogo Mount
Mounts directly onto the BRAIN using the Pogo mount.
USB-C Connector
USB-C connector is used for video, data, and power.
UPC: 810016944751

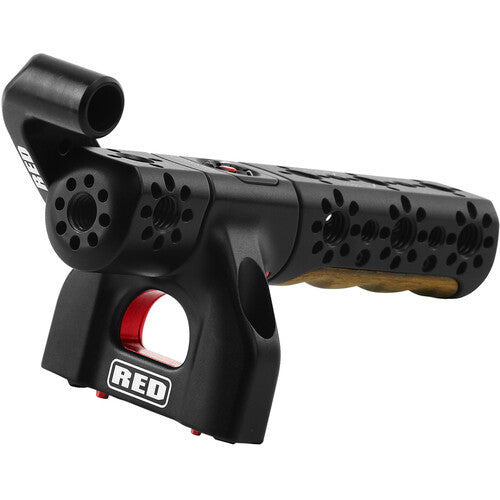

RED DIGITAL CINEMA Compact Top Handle for KOMODO-X or V-RAPTOR/XL
Use the RED Compact Top Handle to add a comfortable grip for carrying or operating your KOMODO-X, V-RAPTOR, or V-RAPTOR XL camera. This modular, 3-piece handle features Bocote wood inlays, a 15mm rod monitor mount, and a run/stop trigger control. Constructed from a machined aluminum alloy, it also provides multiple 1/4"-20 and 3/8"-16 anti-twist threads for attaching accessories.
Compatibility
RED
- KOMODO-X
- V-RAPTOR
- V-RAPTOR XL
Modular Design
- The modular design enables you to set the handle up as best suits your rig or specific shot.
- Main section with a run/stop button, 1" front piece, 3" back piece, and a 15mm rod monitor mount.
Ergonomic Design
The handle is constructed from a durable aluminum alloy with Bocote wood inlays for added comfort.
UPC: 810016943556

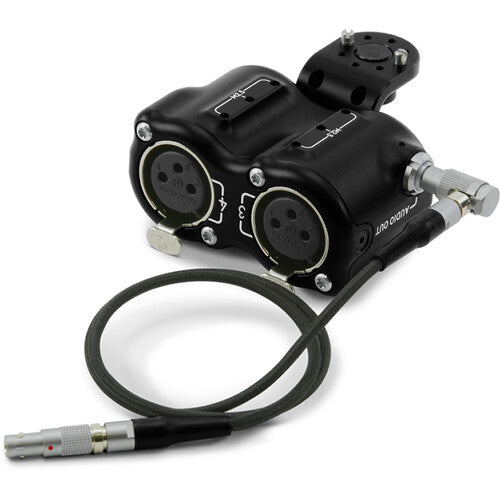

RED DIGITAL CINEMA DSMC3 5-Pin to Dual XLR 3-Pin Adapter
Add two XLR inputs to your V-RAPTOR camera with the RED DSMC3 5-Pin to Dual XLR 3-Pin Adapter. Connect the included 5-pin ODU cable to your camera's ODU port, and the other end of the cable to the adapter's port. The adapter can provide 48V phantom power and supports both mic and line-level inputs. It mounts to the V-Raptor using a 3/8"-26 screw, and has anti-twist pins to prevent it from spinning on your camera. The unit also features 6 x M2.5 screw holes for future accessories.
Note:
The DSMC3 RED 5-pin to dual XLR 3-pin adapter is not compatible with DSMC, DSMC2, RED RANGER, or KOMODO camera systems.
UPC: 810016942511

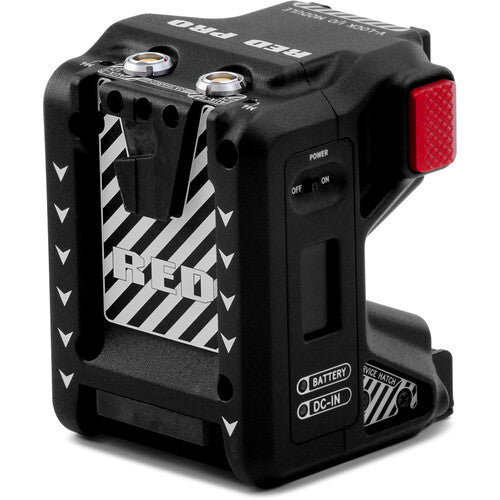

RED DIGITAL CINEMA RED PRO I/O Module for KOMODO-X (V-Mount)
This RED PRO I/O Module from RED DIGITAL CINEMA provides a V-mount battery plate and additional power and communication interfaces for your KOMODO-X 6K digital cinema camera. The V-mount module mounts directly to the KOMODO-X camera's Micro-V mount plate and 9-pin EXT port.
Compatibility
- RED KOMODO-X cinema camera
Expanded Interface
- Pro video connectors include timecode in, genlock, and 4-pin control interfaces.
- The module also provides one DC power input, one regulated 24V R/S port, and two unregulated 12V AUX ports.
Status Screen
- The operator-side screen displays key voltage and battery percentage information.
- A switch enables you to cut power to the module when you want to leave a battery on for an extended length of time.
Specs
x| Key Specs | |
|---|---|
| Lens Mount | Nikon Z |
| Image Sensor | Super35 |
| Effective Sensor Resolution | 19.9 Megapixel (6144 x 3240) |
| Image Stabilization | No |
| Max Recording Modes |
REDCODE RAW: Up to 6K up to 80 fps ProRes 422/422 HQ/422LT: DCI 4K up to 120 fps ProRes 4444: DCI 4K up to 80 fps ProRes 4444XQ: DCI 4K up to 60 fps |
| Max Video Output | 4:2:2 Up to DCI 4K up to 60 fps |
| Media/Memory Card Slot | CFexpress Type B (CFexpress 2.0) |
| Mobile App Compatible | Yes (Android & iOS) - Remote Control |
| Battery | V-Mount |
| Imaging | |
| Lens Mount | Nikon Z |
| Lens Communication | Yes (with Autofocus Support) |
| Image Sensor | 27.03 x 14.26 mm (Super35 CMOS) |
| Effective Sensor Resolution | 19.9 Megapixel (6144 x 3240) |
| Image Stabilization | No |
| Capture Type | Stills & Video |
| Exposure Control | |
| Shutter Type | Electronic Global Shutter |
| Dynamic Range | 16.5 Stops |
| Focus | |
| Focus Mode | Automatic, Manual Focus |
| Video Capture | |
| Internal Recording |
REDCODE RAW: 6144 x 3240 up to 80 fps 5120 x 2700 up to 96 fps 4096 x 2160 up to 120 fps 2048 x 1080 up to 240 fps ProRes 422/422 HQ/422LT: 4096 x 2160 up to 120 fps ProRes 4444: 4096 x 2160 up to 80 fps ProRes 4444XQ: 4096 x 2160 up to 60 fps |
| Video Output | 4:2:2 - Up to DCI 4K up to 60 fps |
| Fast/Slow Motion Support | Yes |
| Built-in Microphone | Stereo |
| Audio Recording | 2-Channel, 24-Bit at 48 kHz |
| IP Streaming | MJPEG 1920 x 1080 (5000 Mbps) |
| Interface | |
| Media Slot | CFexpress Type B |
| Internal Storage | No |
| Video I/O | 1x BNC (12G-SDI) |
| Audio I/O | 5-Pin LEMO Line Input |
| Power I/O | LEMO 6-Pin (11–17VDC) |
| Other I/O | USB-C, Timecode, Genlock, RED monitor output |
| Wireless | Wi-Fi |
| Mobile App | RED Control (iOS & Android) |
| Monitor | |
| Display Type | 2.9" Touchscreen LCD |
| Resolution | 1440 x 1440 |
| Viewfinder | |
| Type | Optional, Not Included |
| Power | |
| Battery | V-Mount |
| Environmental | |
| Operating Conditions | 0 to 40°C |
| Storage Conditions | -20 to 50°C (up to 85% humidity) |
| General | |
| Tripod Mount | 1/4"-20 & 3/8"-16 |
| Accessory Threads | 4x 1/4"-20, 4x M4 |
| Netflix Approved | Yes |
| Material | Aluminum |
| Dimensions | 129.37 × 101.26 × 95.26 mm |
| Weight | 1.19 kg (Body Only) |
| Packaging Info | |
| Package Weight | 7.355 lb |
| Box Dimensions | 12.2 × 9.3 × 6.2 inches |
