SmallRig 4-Channel Charger + L-Series/NP-F970 4-Battery Kit
SKU: 4834
Key Features
- Four-channel NP-F battery charger
- Includes 4 x 7800mAh NP-F970 batteries
- 56.16Wh capacity per NP-F970 battery
- 100W maximum USB-C PD input
- Supports simultaneous charging of four batteries
- Compatible with NP-F550, NP-F570, NP-F750, and NP-F970 batteries

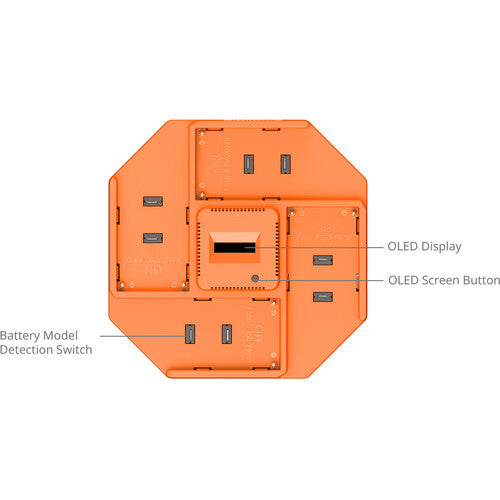

- Built-in OLED display for charging information
- Displays battery voltage, current, power, and temperature
- Independent charging channels with optimized output
- Short-circuit and overcurrent protection
- USB-C to USB-C charging cable included
- Battery covers included for storage and protection
- Suitable for cameras, monitors, LED lights, and wireless transmitters
- 800.00 AED
- 800.00 AED
- Unit price
- per
Description
xThe SmallRig 4-Channel Charger + L-Series/NP-F970 4-Battery Kit is a professional power solution for cameras, monitors, LED lights, and other equipment using Sony L-Series or NP-F batteries. The kit includes four NP-F970 batteries, each providing 7800mAh capacity and 56.16Wh of energy for extended shooting sessions.
The four-channel charger supports up to 100W USB-C PD input and can charge four compatible batteries simultaneously. It is compatible with NP-F550, NP-F570, NP-F750, and NP-F970 batteries, making it useful for production teams working with different L-Series battery capacities.
An integrated OLED display provides charging information including battery voltage, current, power, temperature, and individual channel status. Each charging output also includes short-circuit and overcurrent protection for safer battery charging during professional production workflows.
The kit is suitable for cameras, camcorders, field monitors, wireless transmitters, and LED panel lights. It includes the four-channel charger, four NP-F970 batteries, a USB-C to USB-C cable, battery covers, and user documentation. For more professional camera batteries, chargers, and power accessories, explore the Systec Video Camera Batteries, Chargers & Power Accessories collection.
FAQs
How many batteries are included in the kit?
The kit includes four SmallRig L-Series/NP-F970 rechargeable batteries, each with a 7800mAh capacity and 56.16Wh of energy.
How many batteries can the charger charge at once?
The charger has four independent charging channels and can charge up to four compatible NP-F batteries simultaneously when supplied with sufficient USB-C PD power.
What batteries are compatible with the charger?
It supports Sony L-Series/NP-F batteries including NP-F550, NP-F570, NP-F750, and NP-F970 models.
What type of power input does the charger use?
The charger uses USB-C PD input with up to 100W maximum input power. An 80W or higher USB-C power adapter is recommended for simultaneous charging.
Does the charger have a display?
Yes. The built-in OLED display shows charging status, battery voltage, current, power, temperature, and other channel information.
Specs
xSpecifications
| Product Type | 4-Channel L-Series/NP-F Battery Charger Kit |
|---|---|
| Battery Quantity | 4 x NP-F970 batteries |
| Battery Type | Lithium-ion |
| Battery Capacity | 7800mAh per battery |
| Battery Energy | 56.16Wh per battery |
| Battery Voltage | 7.2V |
| Charger Channels | 4 independent charging channels |
| Compatible Batteries | NP-F550, NP-F570, NP-F750, and NP-F970 |
| USB-C Input | 12V / 3A, 15V / 3A, 20V / 5A |
| Maximum Input Power | 100W |
| USB-C Protocol | Power Delivery (PD) |
| Output Per Channel | 8.4V / 0.9A, 8.4V / 1.8A, or 8.4V / 2.5A |
| Charging Voltage Limit | 8.45V |
| Display | OLED display |
| Display Information | Battery voltage, current, power, temperature, charging status, and USB-C input information |
| Protection | Short-circuit and overcurrent protection |
| Charger Material | ABS + PC |
| Charging Temperature | 5°C to 45°C |
| Recommended Power Adapter | USB-C adapter with 80W or higher output |
| Compatible Equipment | Panel lights, monitors, cameras, camcorders, and wireless transmitters |

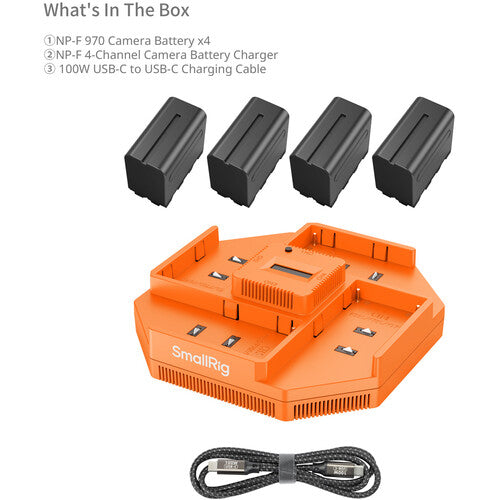

| Included Items | 4-Channel Camera Battery Charger, 4 x NP-F970 batteries, USB-C to USB-C cable, battery covers, user manual, and guarantee card |
| Certifications | FCC, CE, RCM |
| Warranty | 1 Year Limited Manufacturer Warranty |
