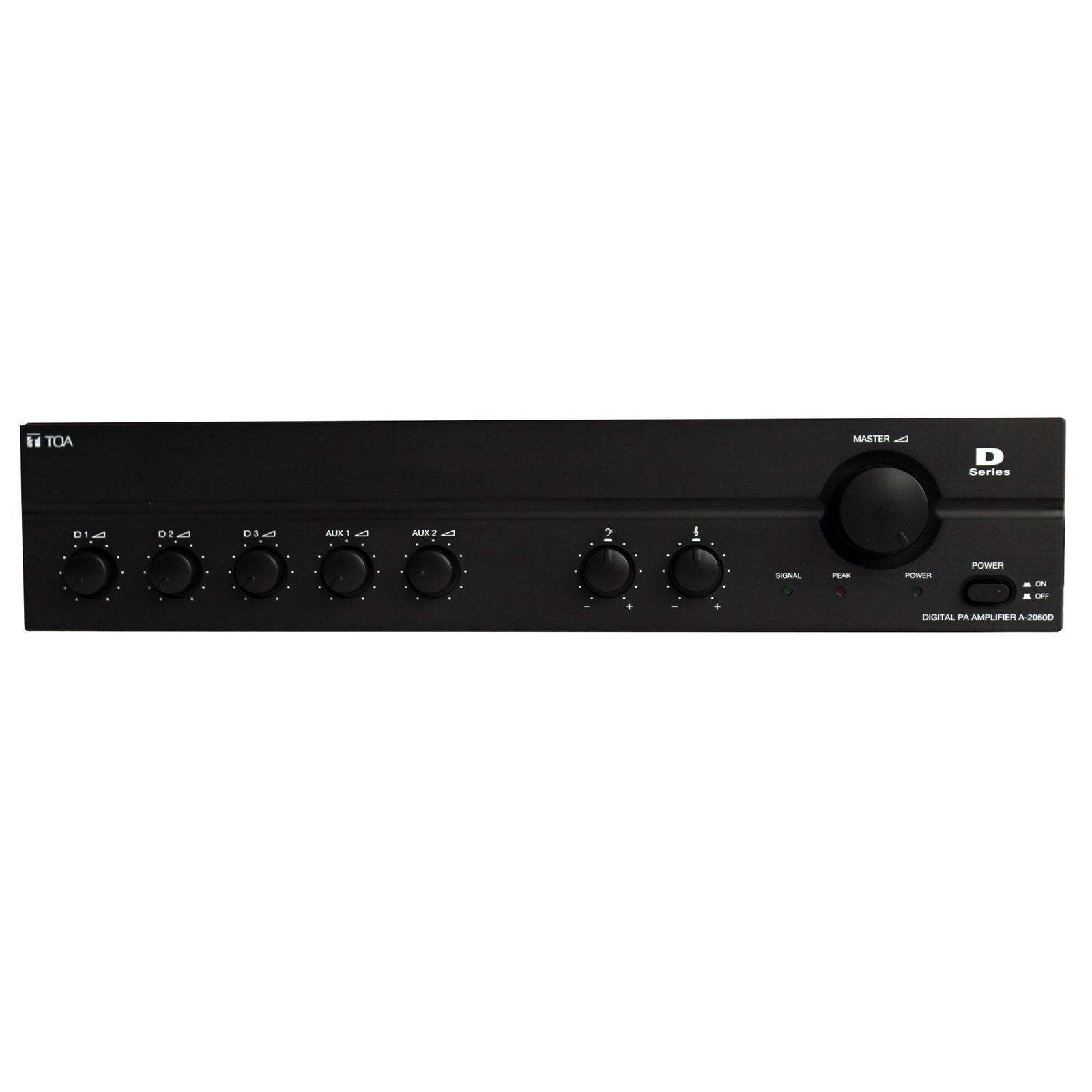

TOA A-2030DD-EB 1CE DIGITAL PA AMPLIFIER
SKU: A-2030DD-EB 1CE
Application examples for this product:
- Educational facilities
- Office buildings
- Retail stores
- Factories
- Houses of worship
SKU:
A-2030DD-EB 1CE
Availability:
Out Of Stock
- 1,107.00 AED
- 1,107.00 AED
- Unit price
- per
Tax excluded.
10 customers are viewing this product
Description
xTOA A-2030DD-EB
Digital Mixer Amplifiers
- 3 microphone inputs, 2 AUX input and 1 recording output
- DD-varieties with 2 phone jacks and 1 5-pin DIN input
- D-varieties with 3 phone jacks
- Speaker output of constant voltage distribution system (100 V)
- Independent tone control of boost and cut type for both high and low frequency
- MIC 1 with phantom power and mute function
- Current limiter to prevent damage due to current overload
- Excess heat limit to protect the transistor and power transformer
- Available in 30 W, 60 W, 120 W and 240 W rated output
Specs
x| Specifications | |
| A-2030DD | |
| Power source | 220 - 240 V AC, 50 / 60 Hz |
| Rated output | 30 W |
| Frequency response | 50 Hz - 20 kHz (±3 dB) |
| Distortion | < 1 % (at 1 kHz, 1/3 rated output power) |
| Power consumption | 12 W (EN 62368-1: AC operation at 1/8 rated output) |
| Speaker output | 100 V (330 ohm) |
| Amplifier | Class D |
| S/N ratio | 60 dB (or more) |
| Number of channels | 1 |
| Connectable microphones | 3 |
| Inputs | MIC 1: -60dBV, 600 Ohm, balanced, 5-pin DIN equivalent, |
| phantom power selectable, + 21V | |
| Mic 2-3: -60dBV, 600 Ohm, balanced, phone jack | |
| AUX 1-2: -20 dBV, 10 kOhm, unbalanced RCA pin jack | |
| Control input | Mute: via DIN jack |
| Outputs | Speaker: balanced (floating) / Rec out: 0 dBV, 600 ?, unbalanced, RCA Pin Jack |
| Finish | ABS resin, Steel plate, black |
| Dimensions | 420 x 100.6 x 280.3 mm (W x H x D) |
| Weight | 4 kg |
