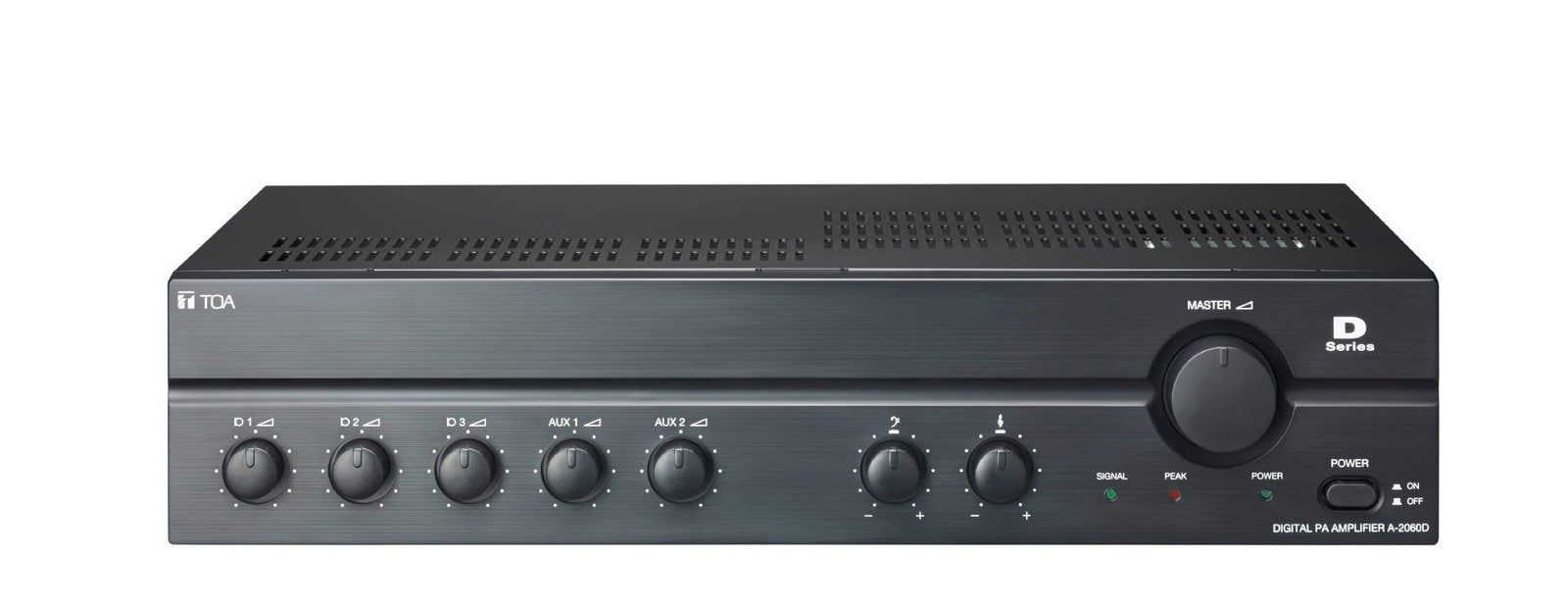

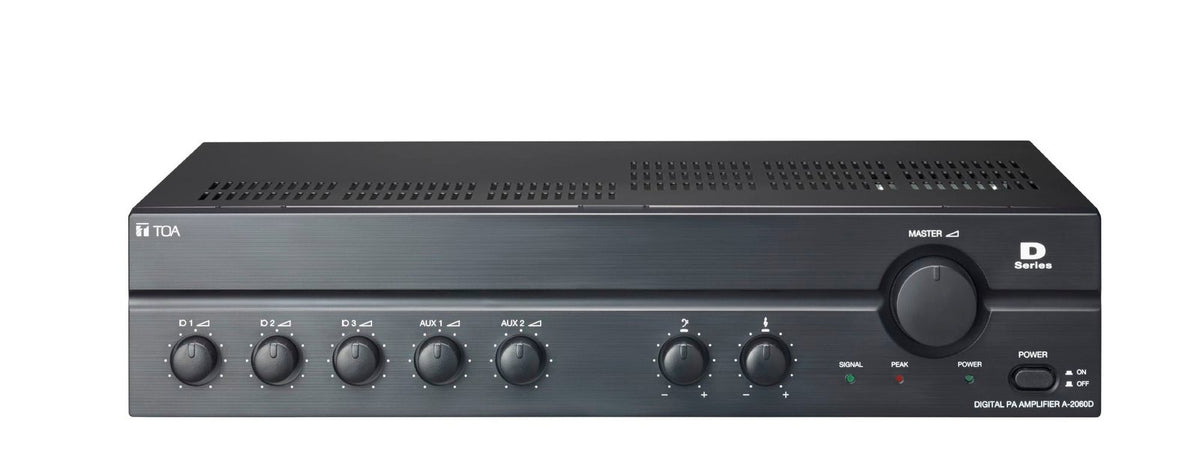

TOA A-2060 CE MIXER AMPLIFIER
SKU: A-2060 CE
Application examples for this product:
- Houses of worship
- Educational facilities
- Auditoriums
- Office buildings
SKU:
A-2060 CE
Availability:
Out Of Stock
- 1,334.00 AED
- 1,334.00 AED
- Unit price
- per
Tax excluded.
10 customers are viewing this product
Description
xTOA A-2060
Mixer Amplifier
TOA A-2060 is a high cost-performance mixer power amplifier suited for broadcasting paging or background music in schools, offices, shops, factories, mosques, churches and large rooms.
Multi-purpose, multi-function mixer/power amplifiers specifically designed for maximum versatility and cost-effective high-performance are ideal units for any PA requirement in locations such as shops and offices and other small to intermediate sized environments. A choice of different power outputs are offered as well as as paging override of BGM.
- 60 W rated output
- User-friendly front panel allows easy operation
- Excellent frequency response
- 3 electronically balanced microphone inputs, 2 AUX inputs and recording output
- Phantom power is provided to MIC 1, for supplying power to a condenser microphone
- Wide tone-control adjustment range of ±10dB for both bass and treble
- 100 V / 70 V line or 4 ? speaker outputs
- Recording output
- 3 MIC inputs, 2 AUX inputs for tuner, cassette player or other BGM sources
- 2-unit size
buy A-2060 CE today from Systec international
Specs
x- * 0 dB = 1 V
| Power Source | 220 - 240 V AC |
|---|---|
| Rated Output | 60 W |
| Power Consumption | 72 W (EN60065) |
| Frequency Response | 50 Hz - 20 kHz Hz (±3 dB) |
| Distortion | 1% or less at 1 kHz |
| Input | MIC 1 - 3: -60 dB* AUX 1 Mute: Contact screw terminal (for MIC 1) |
| Output | Speaker out: Balanced (floating) distance between barriers: 8.3 mm (0.33") High impedance: 170 ? (100 V) Low impedance: 4 ? (15.5 V) Rec out: 0 dB* |
| Phantom Power | DC +21 V (MIC 1) |
| S/N Ratio | 60 dB or more |
| Tone Control | Bass: ±10 dB at 100 Hz Treble: ±10 dB at 10 kHz |
| Muting | MIC 1 overrides other input signals with 0 - 30 dB attenuation by mute terminal contact. |
| Finish | Panel: ABS resin Case: Steel plate |
| Dimensions | 420 (W) × 100.9 (H) × 280.3 (D) mm (16.54 × 3.97" × 11.04) |
| Weight | 7 kg (15.43 lb) |
