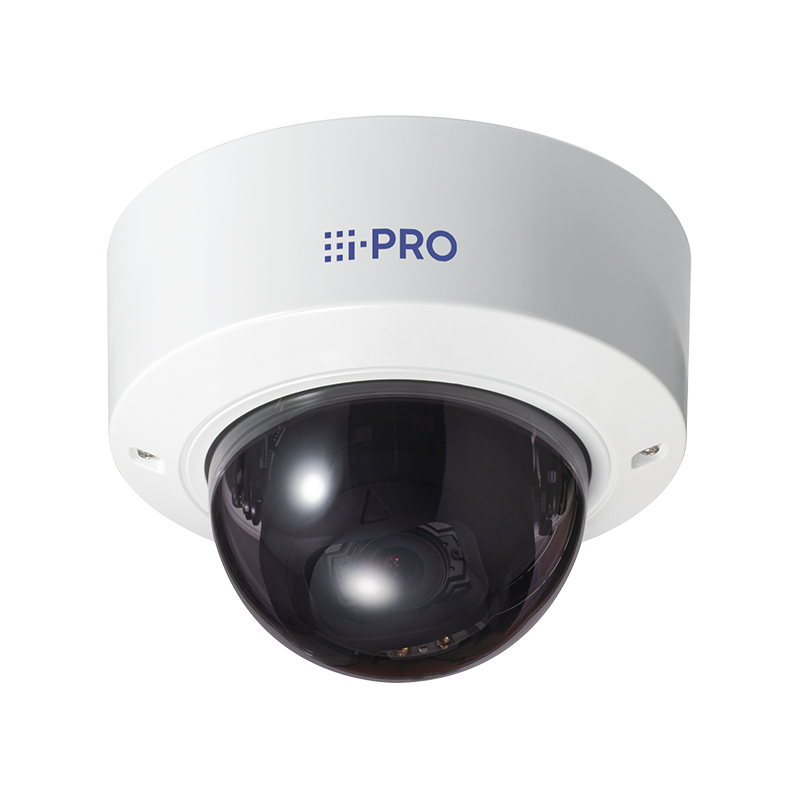

WV-S22500-V3L i-PRO S-series Network camera with AI engine
SKU: WV-S22500-V3L
Key Features
- 5MP
- Intelligent Auto (with AI Engine)
- Super Dynamic 132dB
- Color night vision (0.05 to 0.07 lx)
- Smart Coding (with AI Engine)
- Built-in IR LED
- Vandal Resistant
- Built-in FIPS 140-2 Level 3 Certified Secure Element (EdgeLock® SE050F NXP® Semiconductors)
- NDAA Compliant
- 4,431.00 AED
- 4,431.00 AED
- Unit price
- per
Weight: 0.8 kg
Description
xThe i-PRO WV-S22500-V3L S-Series Network Camera with AI Engine is a professional 5MP indoor dome IP camera designed to deliver intelligent video surveillance for commercial and enterprise environments. Equipped with an advanced AI engine, the camera provides accurate object detection, real-time analytics, and exceptional image quality, making it ideal for offices, retail stores, educational institutions, healthcare facilities, and other security-critical locations.
Featuring a 1/2.8-inch CMOS image sensor, 132 dB Super Dynamic, and built-in IR illumination, the camera captures clear, detailed video in both bright daylight and low-light conditions. Its motorized 3.1x optical zoom lens and autofocus allow installers to adjust the viewing angle remotely, while Smart Coding technology helps reduce bandwidth and storage requirements without compromising image quality.
The WV-S22500-V3L includes powerful AI analytics such as People Detection, Vehicle Detection, Face Detection, Occupancy Detection, Privacy Guard, Video Motion Detection, and AI sound classification for events including gunshots, glass breaking, vehicle horns, and yelling. With support for H.265, ONVIF Profiles G, M, S, and T, PoE, and advanced cybersecurity features, it integrates seamlessly into modern IP surveillance systems while providing reliable, enterprise-grade protection.
Whether you're upgrading an existing CCTV system or deploying a new AI-powered surveillance solution, the i-PRO WV-S22500-V3L offers the performance, intelligence, and reliability required for professional security applications.
Browse our complete range of i-PRO Network Cameras, Network Video Recorders (NVRs), and Video Management Solutions to build a complete surveillance system.
FAQs
Does the i-PRO WV-S22500-V3L support AI analytics?
Yes. The camera features a built-in AI engine with AI People Detection, Face Detection, Vehicle Detection, Occupancy Detection, Privacy Guard, and AI Sound Classification to improve monitoring accuracy and reduce false alarms.
Does the i-PRO WV-S22500-V3L have night vision?
Yes. It includes built-in IR LEDs with an illumination range of up to 40 m (131 ft), allowing clear surveillance in low-light and complete darkness.
Is the i-PRO WV-S22500-V3L PoE compatible?
Yes. The camera supports Power over Ethernet (PoE) compliant with IEEE 802.3af, eliminating the need for a separate power cable. It can also be powered using a 12V DC power supply.
What resolution does the i-PRO WV-S22500-V3L record in?
The camera captures video at up to 5MP resolution (3072 × 2304) and supports H.265, H.264, and MJPEG compression for high-quality, bandwidth-efficient recording.
Is the i-PRO WV-S22500-V3L compatible with third-party NVRs?
Yes. It supports ONVIF Profiles G, M, S, and T, making it compatible with many third-party Network Video Recorders (NVRs) and Video Management Systems (VMS).
Specs
x| Brand | i-PRO |
|---|---|
| Image Sensor | Approx. 1/2.8" CMOS Image Sensor |
| Scanning Area | 5.12 × 3.84 mm |
| Minimum Illumination | Color: 0.05 lx (30 IRE), B/W: 0 lx with IR LED On |
| White Balance | ATW1, ATW2, AWC |
| Shutter Speed | 1/30 to 1/10000 sec (30 fps), 1/25 to 1/10000 sec (25 fps) |
| Dynamic Range | Up to 132 dB (Super Dynamic) |
| Super Dynamic | On / Off (Level 0–31) |
| Adaptive Black Stretch | Level Adjustable (0–255) |
| Backlight Compensation | BLC / HLC / Off |
| Fog Compensation | On / Off |
| Maximum Gain (AGC) | Adjustable (0–11) |
| Day/Night Mode | ICR (Off / On / Auto) |
| IR Illumination Distance | Up to 40 m (131 ft) |
| Digital Noise Reduction | Adjustable (0–255) |
| Video Motion Detection | Supported (Up to 4 Areas) |
| Scene Change Detection | Supported |
| Audio Detection | Supported |
| AI Sound Classification | Gunshot, Yell, Vehicle Horn, Glass Break |
| AI Analytics | AI Motion Detection, Face Detection, People Detection, Vehicle Detection, Privacy Guard, Occupancy Detection, Scene Change Detection |
| Privacy Zones | Up to 8 Zones |
| Image Rotation | 0°, 90°, 180°, 270° |
| Focus | Motorized Auto Focus |
| Optical Zoom | 3.1x Motorized Zoom |
| Extra Zoom | Up to 9.3x (640 × 360) |
| Focal Length | 2.9 – 9 mm |
| Field of View | Horizontal: 33°–105°, Vertical: 19°–76° |
| Maximum Aperture | F1.3 (Wide) – F2.5 (Tele) |
| Focus Range | 0.3 m to Infinity |
| DORI Distances | Detect: 47.1–207.4 m, Observe: 18.9–83.0 m, Recognize: 9.4–41.5 m, Identify: 4.7–20.7 m |
| System on Chip | Ambarella CV22 |
| Adjustment Angle | Horizontal: -240° to +120°, Vertical: -30° to +85°, Yaw: ±100° |
| Supported Browsers | Microsoft Edge, Firefox, Google Chrome |
| Languages | English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese |
| Network Interface | 10Base-T / 100Base-TX RJ45 |
| Video Compression | H.265, H.264, JPEG (MJPEG) |
| Maximum Resolution | 3072 × 2304 |
| Audio Compression | G.726, G.711, AAC-LC |
| Supported Protocols | IPv4, IPv6, HTTP, HTTPS, SSL/TLS, RTSP, RTP, SMTP, DHCP, DNS, SNMP, MQTT, IEEE 802.1X, SFTP, LLDP, and more |
| Maximum Users | Up to 14 Simultaneous Users |
| Security | FIPS 140-2 Level 3, HTTPS, IEEE 802.1X, Signed Firmware, Brute Force Protection, GlobalSign Certificate |
| Memory Card Support | microSD, microSDHC, microSDXC (Up to 512 GB) |
| Mobile Compatibility | iPhone, iPad, Android |
| ONVIF Profiles | Profile G, M, S, T |
| Alarm Functions | VMD, Audio Detection, Command Alarm, Email Notification, SD Card Recording, HTTP/TCP Alarm |
| Audio Input | 3.5 mm Stereo Mini Jack (Mic / Line) |
| Audio Output | 3.5 mm Stereo Mini Jack (Mono) |
| External I/O | 3 Alarm Inputs / Outputs |
| Monitor Output | Composite Video (NTSC/PAL) for Adjustment |
| Power Supply | 12 VDC or PoE (IEEE 802.3af) |
| Power Consumption | Approx. 12 W (DC), 11.5 W (PoE) |
| Operating Temperature | -10°C to +50°C (Power On: 0°C to +50°C) |
| Operating Humidity | 10–90% RH (Non-Condensing) |
| Impact Resistance | IK10 |
| Certifications | UL, cUL, CE, IEC62368-1, FCC, ICES-003, EN55032, EN55035 |
| Dimensions | Ø129.5 × 102.5 mm (Ø5.1 × 4.0 in) |
| Weight | Approx. 800 g (1.77 lb) |
| Construction | Aluminum Die-Cast Body with Clear Polycarbonate Dome |
| Finish | i-PRO White |
