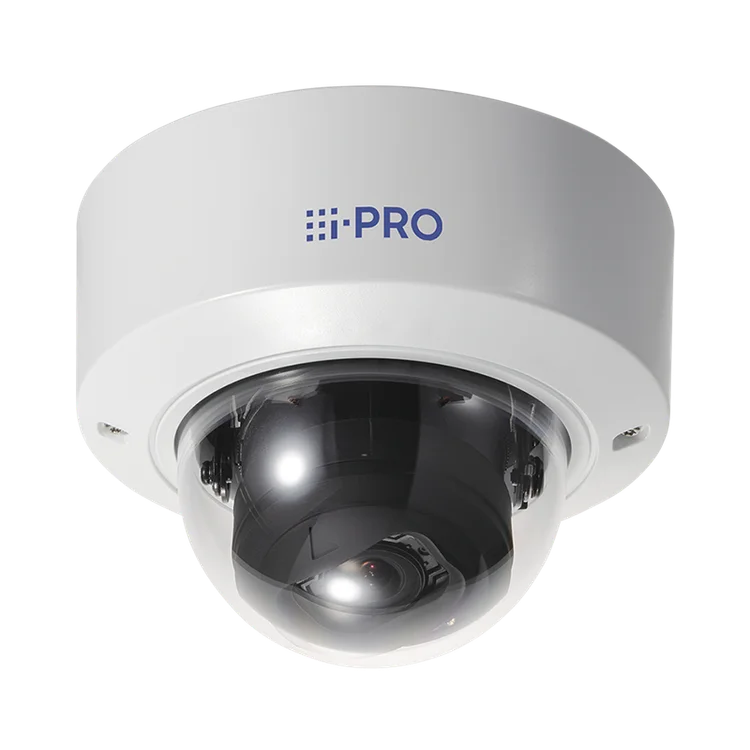

WV-S22700-V2L i-PRO S-series Network camera with AI engine
SKU: WV-S22700-V2L
Key Features
- 4K
- Intelligent Auto (with AI Engine)
- Super Dynamic 132dB
- Color night vision (0.04 to 0.06 lx)
- Smart Coding (with AI Engine)
- Built-in IR LED
- Vandal Resistant
- Built-in FIPS 140-2 Level 3 Certified Secure Element (EdgeLock® SE050F NXP® Semiconductors)
- NDAA Compliant
- 5,318.00 AED
- 5,318.00 AED
- Unit price
- per
Weight: 0.8 kg
Description
xThe i-PRO WV-S22700-V2L S-Series Network Camera with AI Engine is a professional 4K indoor dome IP camera designed to deliver exceptional image quality and intelligent video analytics for modern surveillance systems. Equipped with a 1/1.8-inch CMOS sensor, built-in AI processing, and powerful infrared illumination, it captures highly detailed footage in both bright daylight and challenging low-light environments, making it ideal for offices, retail stores, schools, hospitals, financial institutions, and other commercial facilities.
Powered by an advanced AI Engine, the WV-S22700-V2L supports intelligent analytics including AI People Detection, Face Detection, Vehicle Detection, Occupancy Detection, Privacy Guard, AI Video Motion Detection, and AI sound classification for events such as gunshots, vehicle horns, glass breaking, and yelling. Smart Coding technology optimizes bandwidth and storage, while Super Dynamic 132 dB ensures clear video in scenes with strong backlighting or varying light conditions.
Designed for reliable 24/7 operation, the camera features a vandal-resistant IK10-rated housing, built-in IR LEDs with a range of up to 50 meters, PoE support, and advanced cybersecurity including FIPS 140-2 Level 3 secure hardware. It also supports ONVIF Profiles G, M, S, and T, allowing seamless integration with compatible Network Video Recorders (NVRs) and Video Management Systems (VMS). Whether you're deploying a new surveillance system or expanding an existing one, the WV-S22700-V2L provides the performance, intelligence, and reliability required for enterprise-grade security.
Browse our complete range of i-PRO Network Cameras, Network Video Recorders (NVRs), and Video Management Solutions to build a complete security system.
FAQs
Does the i-PRO WV-S22700-V2L support AI analytics?
Yes. It features a built-in AI Engine with AI People Detection, Face Detection, Vehicle Detection, Occupancy Detection, Privacy Guard, AI Video Motion Detection, and AI Sound Classification.
Does the WV-S22700-V2L have night vision?
Yes. The camera includes built-in IR LEDs with an illumination distance of up to 50 meters (164 ft), providing reliable surveillance in low-light and complete darkness.
Is the i-PRO WV-S22700-V2L PoE compatible?
Yes. The camera supports Power over Ethernet (PoE) (IEEE 802.3af) and can also be powered using a 12V DC power supply.
What resolution does the i-PRO WV-S22700-V2L support?
The camera records in 4K Ultra HD (3840 × 2160) and also supports lower resolutions using H.265, H.264, and MJPEG compression.
Is the i-PRO WV-S22700-V2L compatible with third-party NVRs?
Yes. It supports ONVIF Profiles G, M, S, and T, making it compatible with many third-party NVRs and Video Management Systems
Specs
x| Brand | i-PRO |
|---|---|
| Image Sensor | Approx. 1/1.8" CMOS Image Sensor |
| Scanning Area | 7.68 × 4.32 mm |
| Maximum Resolution | 3840 × 2160 (4K UHD) |
| Minimum Illumination | Color: 0.04 lx (30 IRE), B/W: 0 lx with IR LED On |
| White Balance | ATW1, ATW2, AWC |
| Shutter Speed | 1/30 to 1/10000 sec (30 fps), 1/25 to 1/10000 sec (25 fps) |
| Dynamic Range | Up to 132 dB (Super Dynamic) |
| Super Dynamic | On / Off (Level 0–31) |
| Adaptive Black Stretch | Adjustable (0–255) |
| Backlight Compensation | BLC / HLC / Off |
| Fog Compensation | On / Off |
| Maximum Gain (AGC) | Adjustable (0–11) |
| Day/Night Mode | ICR (Off / On / Auto) |
| IR Illumination Distance | Up to 50 m (164 ft) |
| Digital Noise Reduction | Adjustable (0–255) |
| Video Motion Detection | Supported (Up to 4 Areas) |
| Scene Change Detection | Supported |
| Audio Detection | Supported |
| AI Sound Classification | Gunshot, Yell, Vehicle Horn, Glass Break |
| AI Analytics | AI Motion Detection, Face Detection, People Detection, Vehicle Detection, Occupancy Detection, Privacy Guard, Scene Change Detection |
| Privacy Zones | Up to 8 Zones |
| Image Rotation | 0°, 90°, 180°, 270° |
| Focus | Motorized Auto Focus |
| Optical Zoom | 2x Motorized Optical Zoom |
| Extra Zoom | Up to 6x |
| Focal Length | 4.3 – 8.6 mm |
| Field of View | Horizontal: 52°–101°, Vertical: 29°–55° |
| Maximum Aperture | F1.5 (Wide) – F2.4 (Tele) |
| Focus Range | 1.0 m to Infinity |
| DORI Distances | Detect: 63.3–157.5 m, Observe: 25.3–63.0 m, Recognize: 12.7–31.5 m, Identify: 6.3–15.7 m |
| System on Chip | Ambarella CV22 |
| Adjustment Angle | Horizontal: -240° to +120°, Vertical: -30° to +85°, Yaw: ±100° |
| Supported Browsers | Microsoft Edge, Firefox, Google Chrome |
| Languages | English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese |
| Network Interface | 10Base-T / 100Base-TX RJ45 |
| Video Compression | H.265, H.264, JPEG (MJPEG) |
| Audio Compression | G.726, G.711, AAC-LC |
| Supported Protocols | IPv4, IPv6, HTTP, HTTPS, RTSP, RTP, SMTP, DHCP, DNS, SNMP, MQTT, SFTP, IEEE 802.1X, LLDP and more |
| Maximum Users | Up to 14 Simultaneous Users |
| Security | FIPS 140-2 Level 3, HTTPS, IEEE 802.1X, Signed Firmware, GlobalSign Device Certificate, Brute Force Protection |
| Memory Card Support | microSD / microSDHC / microSDXC (Up to 512 GB) |
| Mobile Compatibility | iPhone, iPad, Android |
| ONVIF Profiles | Profile G, M, S, T |
| Alarm Functions | VMD, Audio Detection, Email Notification, SD Card Recording, HTTP/TCP Alarm |
| Audio Input | 3.5 mm Stereo Mini Jack (Mic / Line) |
| Audio Output | 3.5 mm Stereo Mini Jack (Mono) |
| External I/O | 3 Alarm Inputs / Outputs |
| Monitor Output | Composite Video (NTSC/PAL) for Setup |
| Power Supply | 12 VDC or PoE (IEEE 802.3af) |
| Power Consumption | Approx. 12 W (DC), 11.5 W (PoE) |
| Operating Temperature | -10°C to +50°C (14°F to 122°F) |
| Operating Humidity | 10–90% RH (Non-Condensing) |
| Impact Resistance | IK10 |
| Certifications | UL, cUL, CE, IEC62368-1, FCC, ICES-003, EN55032, EN55035 |
| Dimensions | Ø129.5 × 102.5 mm (Ø5.1 × 4.0 in) |
| Weight | Approx. 800 g (1.77 lb) |
| Construction | Aluminum Die-Cast Body with Clear Polycarbonate Dome |
| Finish | i-PRO White |
