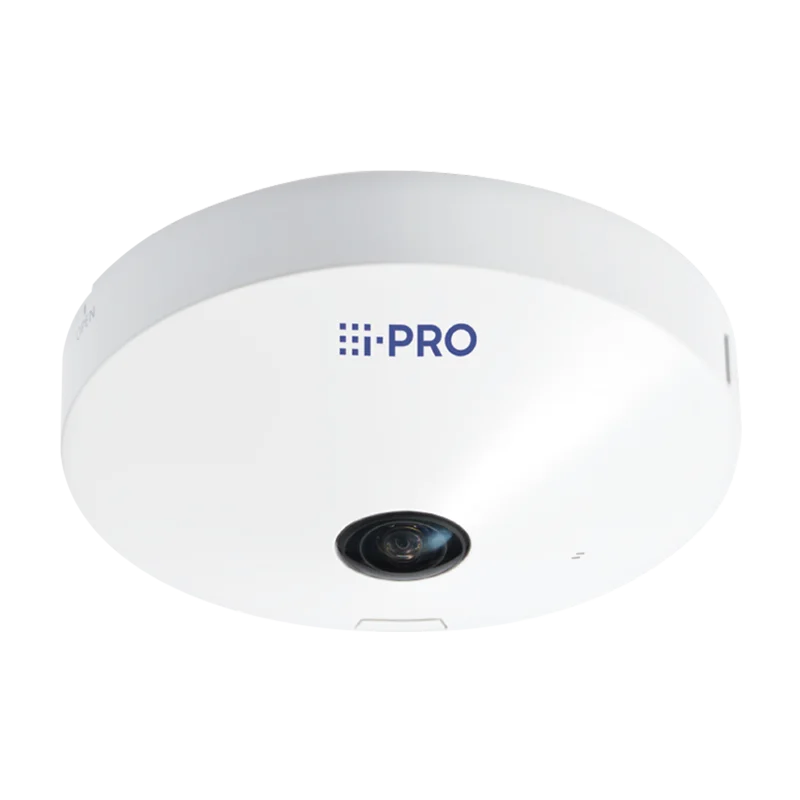

WV-S4176A i-PRO Edge AI 360-degree fisheye camera
SKU: WV-S4176A
12MP Sensor Indoor 360 Fisheye Network Camera with AI engine
- 12MP Indoor 360-degree fisheye camera
- Up to 3 Edge AI analytic apps
- Built-in FIPS 140-2 Level 3 Certified SecureElement (EdgeLock® SE050F NXP® Semiconductors)
- NDAA Compliant
SKU:
WV-S4176A
Availability:
In stock
- 0.00 AED
- 0.00 AED
- Unit price
- per
10 customers are viewing this product
Description
xCamera
| COMPONENT | SPECIFICATION |
|---|---|
| Image Sensor | Approx. 1/2 type 12MP CMOS image sensor |
| Minimum Illumination | Color :0.2 lx (30IRE, F1.9, 1/30s, AGC:11)*0.3 lx (50IRE, F1.9, 1/30s, AGC:11)0.02 lx (50IRE, F1.9, 16/30s, AGC:11)* BW :0.2 lx (50IRE, F1.9, 1/30s, AGC:11)0.01 lx (50IRE, F1.9, 16/30s, AGC:11)**Converted value |
| Intelligent Auto | On / Off |
| Maximum Shutter | max. 16/30s to Max. 1/10000s |
| Super Dynamic | On / Off, The level can be set in the range of 0 to 31. |
| Dynamic Range | Max.84 dB (Wide Dynamic Range : On, Level: 31) |
| Image Settings | Gain (AGC), White balance |
| Image Compensation | Adaptive black stretch, Back light compensation (BLC), Fog compensation, High light compensation (HLC), Digital noise reduction |
| Day / Night (Electrical) | Off / Auto |
| Video Motion Detection (VMD) | On / Off, 4 areas available |
| Scene Change Detection (SCD) | On / Off, 1 areas available |
| Audio Detection | On / Off |
| AI Sound Classification | Gunshot, Yell, Vehicle horn, Glass break |
| AI Analytics | AI-VMD/AI People Counting for 360-degree fisheye camera, AI Privacy Guard for 360-degree fisheye camera, AI Non mask Detection (prior to V2.70), AI Scene Change Detection For details :https://i-pro.com/products_and_solutions/en/surveillance/products/analytics-software3rd party applications are also available.https://i-pro.com/products_and_solutions/en/surveillance/solutions/edge-ai-platform/application-list |
| Privacy Zone | On / Off, Up to 8 zones available |
| Camera Title (OSD) | On / Off, Up to 20 characters (alphanumeric characters, marks) |
| Fixing angle adjustment | -5°, 0°, +5° |
Lens
| COMPONENT | SPECIFICATION |
|---|---|
| Zoom Ratio | 1x |
| Digital (Electronic) Zoom | Choose from 3 levels of x1, x2, x4 |
| Focal Length | 1.4 mm {1/16 inches} |
| Maximum Aperture Ratio | 1:1.9 |
| Focus Range | 0.5 m {19-11/16 inches} - ? |
| Angular Field of View | Horizontal : 183°, Vertical : 183° |
DORI
| COMPONENT | SPECIFICATION |
|---|---|
| Distance to the object in the center of the image | Detect (25 ppm / 8 ppf) : 29.9 m / 98.2 ft, Observe (62.5 ppm / 19 ppf) : 12.0 m / 39.3 ft,Recognize (125 ppm / 38 ppf) : 6.0 m / 19.6 ft, Identify (250 ppm / 76 ppf) : 3.0 m / 9.8 ft |
| Coverage radius when mounted at a height of 3 m (10 ft) | Detect (25 ppm / 8 ppf) : 56.1 m / 184.2 ft, Observe (62.5 ppm / 19 ppf) : 20.6 m / 67.6 ft,Recognize (125 ppm / 38 ppf) : 8.4 m / 27.6 ft, Identify (250 ppm / 76 ppf) : 0.3 m / 0.9 ft |
System on Chip (SoC)
| COMPONENT | SPECIFICATION |
|---|---|
| System on Chip (SoC) | Ambarella CV22 |
Browser GUI
| COMPONENT | SPECIFICATION |
|---|---|
| Camera Control | Brightness,AUX On / Off |
| Audio | Mic (Line) Input : On / Off Volume adjustment : Low / Middle / HighAudio Output : On / Off Volume adjustment : Low / Middle / High |
| GUI / Setup Menu Language | English, Italian, French, German, Spanish,Portuguese, Russian, Chinese, Japanese |
Network
| COMPONENT | SPECIFICATION |
|---|---|
| Network IF | 10Base-T / 100Base-TX,RJ45 connector |
| Resolution <Ceiling> <Wall> | •Fisheye mode (max. 30 fps/25 fps)2992×2992 / 2192×2192 / 1280×1280 / 640×640 / 320×320•Quad PTZ mode (max. 15 fps/12.5 fps), Single PTZ mode (max. 15 fps/12.5 fps)2560×1920*3 / 2048×1536 / 1600×1200 / 1280×960 / 800×600 / VGA / QVGA |
| Resolution <Ceiling> | •Double Panorama mode (max. 15 fps/12.5 fps)2560×1440 / 1920×1080 / 1280×720 / 640×360 / 320×180•Fisheye + Double Panorama mode (max. 15 fps/12.5 fps)(Fisheye) 2992×2992 / 2192×2192 / 1280×1280 / 640×640 / 320×320(Double Panorama) 1280×720 / 640×360 / 320×180•Fisheye + Quad PTZ mode (max. 15 fps/12.5 fps)(Fisheye) 2992×2992 / 2192×2192 / 1280×1280 / 640×640 / 320×320(Quad PTZ) 1280×960 / 800×600 / VGA / QVGA•Quad streams mode(Single PTZ (Quad streams)) 1280×960 / 800×600 / VGA / QVGA (max. 15 fps/12.5 fps)(Quad PTZ) 2560×1920 / 2048×1536 / 1600×1200 / 1280×960 /800×600 / VGA / QVGA (max. 5 fps) |
| Resolution <Wall> | •Panorama mode (max. 15 fps/12.5 fps)2560×1440 / 1920×1080 / 1280×720 / 640×360 / 320×180•Fisheye + Panorama mode (max. 15 fps/12.5 fps)(Fisheye) 2992×2992 / 2192×2192 / 1280×1280 / 640×640 / 320×320(Panorama) 1280×720 / 640×360 / 320×180 |
| H.265/H.264 | Transmission Mode :Constant bit rate / VBR / Frame rate / Best effortTransmission Type :Unicast port (AUTO)/ Unicast port (MANUAL)/ Multicast |
| JPEG | Image Quality :10 steps |
| Smart Coding | GOP (Group of pictures) control :On (Frame rate control)* / On (Advanced)* / On (Mid) / On (Low) / Off*On (Frame rate control) and On (Advanced) are only available with H.265.Auto VIQS : On / Off |
| Audio Compression | G.726 (ADPCM) : 16 kbps / 32 kbps,G.711 : 64 kbps,AAC-LC : 64 kbps / 96 kbps / 128 kbps |
| Supported Protocol | IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6,RTP, MLD, ICMP, ARP, IEEE 802.1X,DiffServ, FTP, SFTP, MQTT, LLDPIPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ, SRTP, FTP, SFTP, MQTT, LLDP |
| Maximum concurrent access number | Up to 14 users(Depends on network conditions) |
| Secure | FIPS 140-2 level 3 (NXP® EdgeLock® SE050F), Device Certificate GlobalSign® pre-installed,HTTPS, User authentication, Digest authentication, Host authentication,IEEE802.1X, System log, Image transmission log, Brute-force protection, Alteration detection, Signed Firmware |
| SDXC/SDHC/SD Memory Card (Option) | H.265 / H.264 recording :Manual REC / Alarm REC (Pre/Post) / Schedule RECJPEG recording : Manual REC / Alarm REC (Pre/Post)Compatible SDXC/SDHC/SD card : 2 GB, 4 GB*, 8 GB*, 16 GB*, 32 GB*, 64 GB**, 128 GB**, 256 GB**, 512 GB**model*SDHC card, ** SDXC card (except miniSD card and microSD card) |
| Mobile Terminal Compatibility | iPad / iPhone, AndroidTM terminals |
| ONVIF Profile | G / M / S / T |
Alarm
| COMPONENT | SPECIFICATION |
|---|---|
| Alarm Source | 3 terminals input, VMD, Command alarm |
| Alarm Actions | SDXC/SDHC/SD memory recording,E-mail notification,HTTP alarm notification,Indication on browser, TCP alarm notification output |
Input/Output
| COMPONENT | SPECIFICATION |
|---|---|
| Audio Input | [For microphone]ø3.5 mm stereo mini jack, Recommended applicable microphone : Plug-in power type(Sensitivity of microphone : –48 dB ±3 dB (0 dB=1 V / Pa,1 kHz))Input impedance : Approx. 2 k? (unbalanced) Supply voltage : 2.5 V ±0.5 V[For line] Input level : Approx. –10 dBV |
| Built-in microphone | Nondirectional electret condenser microphone |
| Audio Output | ø3.5 mm stereo mini jack (monaural output)Output impedance : Approx. 600 ? (unbalanced) Output level : –20 dBV |
| External I/O Terminals | ALARM IN1 (Alarm input 1/ Auto time adjustment input) (x1)ALARM IN2 (Alarm input 2/ ALARM OUT) (x1) , ALARM IN3 (Alarm input 3/ AUX OUT) (x1) |
| Monitor Output | Yes (for adjustment)?3.5mm stereo mini jack, NTSC or PAL signal can be output from camera |
General
| COMPONENT | SPECIFICATION |
|---|---|
| Safety | UL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1 |
| EMC | FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55035 |
| Power Source and Power Consumption | DC power supply :DC 12 V 680 mA/Approx. 8.2 W , PoE (IEEE802.3af compliant)Device :DC 48 V 180 mA/Approx. 8.6 W (Class 0 device) |
| Ambient Operating Temperature | -10 °C to +50 °C (14 °F to 122 °F) |
| Ambient Operating Humidity | 10% to 90 % (no condensation) |
| Dimensions | ø150 mm × 49.5 mm (H) {ø5-29/32 inches × 1-15/16 inches (H)} |
| Mass (Approx.) | Approx. 420 g {0.93 lbs} |
| Finish | Main body : ABS resin, i-PRO white |
