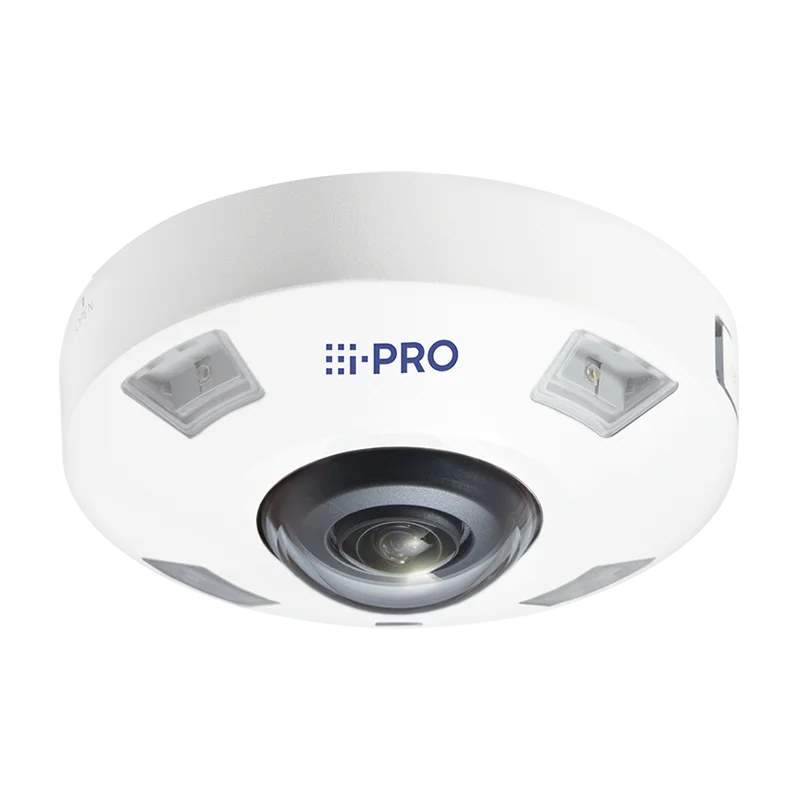

WV-S4576LA i-PRO Edge AI 360-degree fisheye camera
SKU: WV-S4576LA
Key Features
- 12MP Outdoor 360-degree fisheye camera
- Up to 3 Edge AI analytic apps
- Built-in IR-LED(14m, 45ft)
- IP66, IK10 certified
- Built-in FIPS 140-2 Level 3 Certified SecureElement (EdgeLock® SE050F NXP® Semiconductors)
- NDAA Compliant
- 7,286.00 AED
- 7,286.00 AED
- Unit price
- per
Description
xThe i-PRO WV-S4576LA Edge AI 360° Fisheye Camera is a high-performance 12MP outdoor network camera designed to deliver complete 360-degree surveillance with a single device. Its ultra-wide fisheye lens eliminates blind spots, making it ideal for airports, retail stores, warehouses, schools, transportation hubs, parking areas, and other large open spaces where full-area monitoring is essential.
Powered by the i-PRO Edge AI Engine, the WV-S4576LA supports intelligent analytics directly on the camera, including AI Video Motion Detection, AI People Counting, AI Privacy Guard, AI Scene Change Detection, and AI Sound Classification. Built-in IR LEDs provide reliable night-time surveillance up to 14 meters (46 ft), while Intelligent Auto and Wide Dynamic Range help produce clear images in challenging lighting conditions. The camera also supports up to three Edge AI applications, enabling flexible security and business intelligence deployments.
Built for demanding outdoor environments, the WV-S4576LA features an IP66, IK10, and NEMA 4X rated enclosure for protection against dust, water, impacts, and harsh weather. Advanced cybersecurity features, including a FIPS 140-2 Level 3 certified EdgeLock® Secure Element, secure boot, signed firmware, and NDAA compliance, help safeguard your surveillance network from evolving cyber threats.
Complete your surveillance system by exploring our i-PRO Network Cameras, Network Video Recorders (NVRs), and Video Management Solutions for seamless integration and centralized monitoring.
Frequently Asked Questions
What is the i-PRO WV-S4576LA used for?
The WV-S4576LA is a 12MP outdoor 360-degree fisheye network camera designed to provide complete panoramic surveillance with a single camera. It is ideal for retail stores, schools, warehouses, airports, transportation facilities, and commercial buildings.
What AI features does the WV-S4576LA support?
The camera supports AI Video Motion Detection, AI People Counting, AI Privacy Guard, AI Scene Change Detection, and AI Sound Classification, helping improve detection accuracy while reducing false alarms.
Is the WV-S4576LA suitable for outdoor installation?
Yes. It features an IP66, IK10, and NEMA 4X rated housing, making it suitable for harsh outdoor environments with protection against water, dust, impacts, and vandalism.
Does the camera support onboard recording?
Yes. The WV-S4576LA supports SD, SDHC, and SDXC memory cards up to 512 GB for continuous, scheduled, and event-based edge recording.
Is the WV-S4576LA compatible with ONVIF systems?
Yes. The camera supports ONVIF Profiles G, M, S, and T, allowing seamless integration with compatible video management systems (VMS) and network video recorders (NVRs).
Specs
x| General | |
|---|---|
| Brand | i-PRO |
| Image Sensor | 1/2" 12MP CMOS Image Sensor |
| Maximum Resolution | 2992 × 2992 (12MP) |
| Minimum Illumination | Color: 0.2 lx, B/W: 0 lx (IR LED On) |
| Intelligent Auto | On / Off |
| Maximum Shutter Speed | Up to 1/10000 sec |
| Wide Dynamic Range | Up to 84 dB |
| Image Compensation | AGC, White Balance, Adaptive Black Stretch, BLC, HLC, Fog Compensation, Digital Noise Reduction |
| IR Illumination | Up to 14 m (46 ft) |
| AI Analytics | AI Video Motion Detection, AI People Counting (360°), AI Privacy Guard (360°), AI Scene Change Detection, AI Non-mask Detection |
| AI Sound Classification | Gunshot, Yell, Vehicle Horn, Glass Break |
| Lens | |
| Zoom Ratio | 1× |
| Digital Zoom | 1×, 2×, 4× |
| Focal Length | 1.4 mm |
| Maximum Aperture | F1.9 |
| Field of View | 183° Horizontal, 183° Vertical |
| Minimum Focus Distance | 0.5 m |
| DORI Performance | |
| Detect | 29.9 m (Center), 56.1 m (3 m Mounting Height) |
| Observe | 12.0 m (Center), 20.6 m (3 m Mounting Height) |
| Recognize | 6.0 m (Center), 8.4 m (3 m Mounting Height) |
| Identify | 3.0 m (Center), 0.3 m (3 m Mounting Height) |
| Processor | |
| System on Chip (SoC) | Ambarella CV22 |
| Network | |
| Network Interface | 10Base-T / 100Base-TX RJ45 |
| Video Compression | H.265 / H.264 / JPEG (MJPEG) |
| Video Modes | Fisheye, Panorama, Double Panorama, Quad PTZ, Single PTZ |
| Audio Compression | G.726, G.711, AAC-LC |
| Maximum Concurrent Users | Up to 14 |
| Memory Card Support | SD / SDHC / SDXC Cards up to 512 GB |
| Supported Protocols | IPv4, IPv6, HTTP, HTTPS, RTSP, RTP, MQTT, FTP, SFTP, SNMP, SSL/TLS, LLDP and more |
| ONVIF Profiles | Profile G / M / S / T |
| Audio & I/O | |
| Audio Input | 3.5 mm Stereo Mini Jack (Mic / Line) |
| Audio Output | 3.5 mm Stereo Mini Jack (Mono) |
| Alarm I/O | 3 Alarm Inputs / Outputs |
| Monitor Output | 3.5 mm Stereo Mini Jack (NTSC / PAL) |
| Power | |
| Power Source | DC 12 V or PoE (IEEE 802.3af) |
| Power Consumption | Approx. 13.2 W (DC), 12.95 W (PoE) |
| Environmental | |
| Operating Temperature | -40°C to +60°C (IR Off), -40°C to +50°C (IR On) |
| Operating Humidity | 10% to 100% (Non-condensing) |
| Weather Resistance | IP66, Type 4X, NEMA 4X |
| Impact Resistance | IK10, 50J Impact Resistant |
| Wind Resistance | Up to 40 m/s |
| Railway Standard | EN50155-TX |
| Physical | |
| Dimensions | Ø154 × 60.3 mm (Attachment Plate), Ø164 × 96.3 mm (Base Bracket) |
| Weight | Approx. 880 g (Attachment Plate), Approx. 1.3 kg (Base Bracket) |
| Finish | Aluminum Die-Cast Body, i-PRO White, Clear Polycarbonate Dome |
