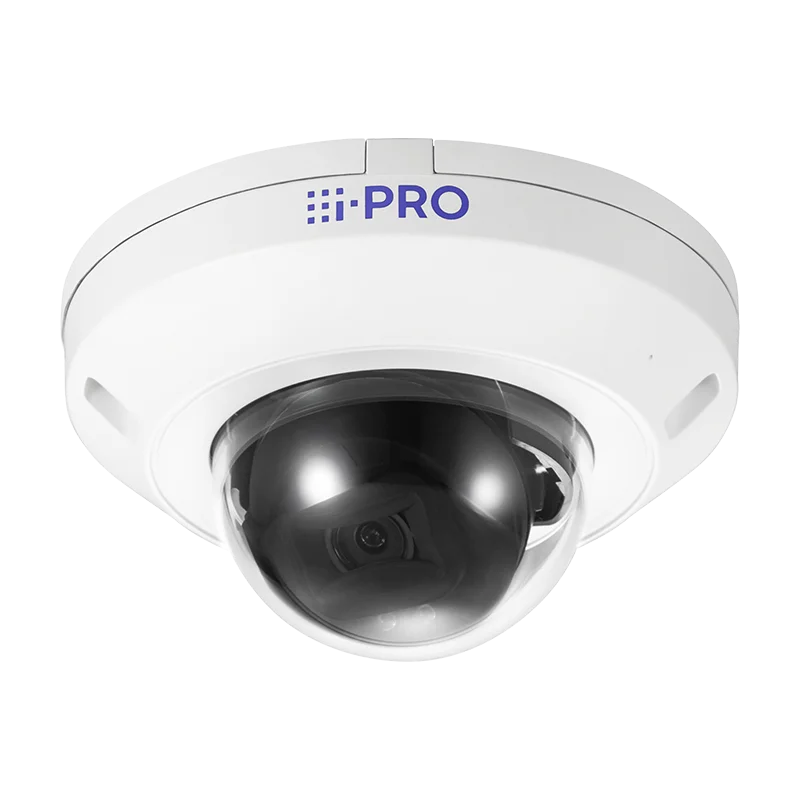

WV-U22550-F3L i-PRO U-series dome camera
SKU: WV-U22550-F3L
Key Features
5MP AI Indoor Vandal IR Dome Camera
- 5MP Indoor vandal dome camera
- AI-based image analytics using AI-VMD app
- Audio recording
- Built-in IR LED (28m/92ft)
- IP42, IK10 certified
- Built-in FIPS 140-3 Level 3 Certified SecureElement (EdgeLock® SE052F NXP® Semiconductors)
- NDAA Compliant
- 1,645.00 AED
- 1,645.00 AED
- Unit price
- per
Dimensions: Ø109 × 62 mm
Weight: 0.25 kg
Description
xThe i-PRO WV-U22550-F3L U-Series Dome Camera is a professional 5MP IP security camera built for reliable indoor surveillance in offices, schools, retail stores, healthcare facilities, and commercial buildings. Equipped with a 1/2.8" CMOS sensor, it captures detailed images in both daylight and low-light conditions, while the built-in IR LEDs provide clear night vision up to 28 meters.
Powered by edge AI image analytics, the camera supports intelligent event detection such as AI Video Motion Detection and AI Sound Classification, helping security teams respond faster to important events while reducing false alarms. It also supports H.265/H.264 compression for efficient bandwidth usage and delivers smooth, high-quality video over IP networks.
The fixed 3.2 mm lens offers a wide viewing angle, making it suitable for monitoring entrances, hallways, reception areas, and other indoor spaces. Additional features such as 120 dB Super Dynamic, Digital Noise Reduction, privacy masking, and intelligent image enhancement ensure consistent image quality even in challenging lighting environments.
Designed for dependable operation, the WV-U22550-F3L features PoE support, IK10 vandal resistance, IP42-rated protection, secure encrypted communication, ONVIF compatibility, and support for optional microSD card recording. It integrates easily with existing surveillance systems and network video recorders.
At Systec International, we also offer a complete range of Cameras, and Video Management Solutions to help you build a reliable and scalable security system.
FAQs
Is the i-PRO WV-U22550-F3L a 5MP camera?
Yes. The WV-U22550-F3L captures video at up to 5MP resolution (2560 × 1920), delivering clear and detailed surveillance footage.
Does this camera have night vision?
Yes. It features built-in IR LEDs with an illumination distance of up to 28 meters, allowing reliable monitoring in complete darkness.
Does the WV-U22550-F3L support AI analytics?
Yes. It includes edge AI Video Motion Detection and AI Sound Classification, helping improve event detection while reducing false alarms.
Can the camera be powered using PoE?
Yes. The camera supports Power over Ethernet (PoE – IEEE 802.3af), allowing both power and data through a single Ethernet cable.
Is the WV-U22550-F3L compatible with ONVIF systems?
Yes. It supports ONVIF Profiles G, M, S, and T, making it compatible with a wide range of NVRs and video management systems.
Specs
x| Brand | i-PRO |
|---|---|
| Camera | |
| Image Sensor | Approx. 1/2.8 type CMOS image sensor |
| Scanning Area | 5.12 mm (H) × 3.84 mm (V) |
| Minimum Illumination |
Color: 0.11 lx (30IRE), 0.16 lx (50IRE), 0.01 lx (50IRE, 16/30 s) B/W: 0 lx with IR LED On, 0.07 lx (50IRE), 0.004 lx (50IRE, 16/30 s) |
| White Balance | ATW1, ATW2, AWC |
| Maximum Shutter | 1/10000 s to 16/30 s (30/15 fps), 1/10000 s to 16/25 s (25/12.5 fps) |
| Intelligent Auto | On / Off |
| Super Dynamic | On / Off (Level 0–31) |
| Dynamic Range | Max. 120 dB |
| Adaptive Black Stretch | Level 0–255 |
| Backlight / Highlight Compensation | BLC / HLC / Off |
| Fog Compensation | On / Off |
| Maximum Gain (AGC) | Level 0–11 |
| Color/BW (ICR) | Off, On, Auto1, Auto2, Auto3 |
| IR LED Distance | Up to 28 m (30IRE), 20 m (50IRE) |
| Digital Noise Reduction | Level 0–255 |
| Video Motion Detection | 4 detection areas |
| Scene Change Detection | Supported |
| Audio Detection | Supported |
| AI Sound Classification | Gunshot, Yell, Vehicle Horn, Glass Break |
| AI Analytics | AI Video Motion Detection (1 non-AI application supported) |
| Privacy Zones | Up to 8 |
| VIQS | Up to 8 zones |
| Image Rotation | 0°, 90°, 180°, 270° |
| Camera Title | Up to 40 characters, 2 lines |
| Lens | |
| Lens Type | Fixed |
| Digital Zoom | Up to 4.0x |
| Focal Length | 3.2 mm |
| Field of View | 16:9: 96° (H) / 52° (V), 4:3: 97° (H) / 71° (V) |
| Adjusting Angle | Pan: -175° to +175°, Tilt: -30° to +80°, Yaw: -100° to +100° |
| Maximum Aperture | F2.0 |
| Focus Range | 1.0 m to Infinity |
| DORI Distance | |
| Detect | 46.1 m |
| Observe | 18.4 m |
| Recognize | 9.2 m |
| Identify | 4.6 m |
| Processor | |
| System on Chip (SoC) | Ambarella CV25M |
| Network | |
| Network Interface | 10BASE-T / 100BASE-TX RJ45 |
| Maximum Resolution | 2592 × 1944 (5MP) |
| Video Compression | H.265, H.264, JPEG (MJPEG) |
| Streams | Up to 4 |
| Audio Compression | G.726, G.711, AAC-LC |
| Supported Protocols | IPv4, IPv6, HTTP, HTTPS, RTSP, RTP, SMTP, SNMP, MQTT, FTP, SFTP, LLDP, IEEE 802.1X and more |
| Maximum Users | Up to 14 |
| Security | FIPS 140-3 Level 3, HTTPS, IEEE 802.1X, Secure Boot, Signed Firmware, GlobalSign Certificate |
| Memory Card Support | microSD up to 512 GB (Optional) |
| Mobile Support | iOS and Android |
| ONVIF Profile | G, M, S, T |
| Audio & Alarm | |
| Audio Input | 3.5 mm Stereo Mini Jack |
| Audio Output | 3.5 mm Stereo Mini Jack (Mono) |
| Alarm Functions | VMD, Scene Change, Audio Detection, Command Alarm |
| General | |
| Power Source | PoE (IEEE 802.3af) |
| Power Consumption | Approx. 9.6 W |
| Operating Temperature | -10°C to +50°C |
| Operating Humidity | 10% to 90% (Non-condensing) |
| Ingress Protection | IP42 |
| Impact Resistance | IK10 |
| Dimensions | Ø109 × 62 mm |
| Weight | Approx. 250 g |
| Finish | Aluminum Die-Cast Body (i-PRO White), Clear PC Resin Dome with ClearSight Coating |
