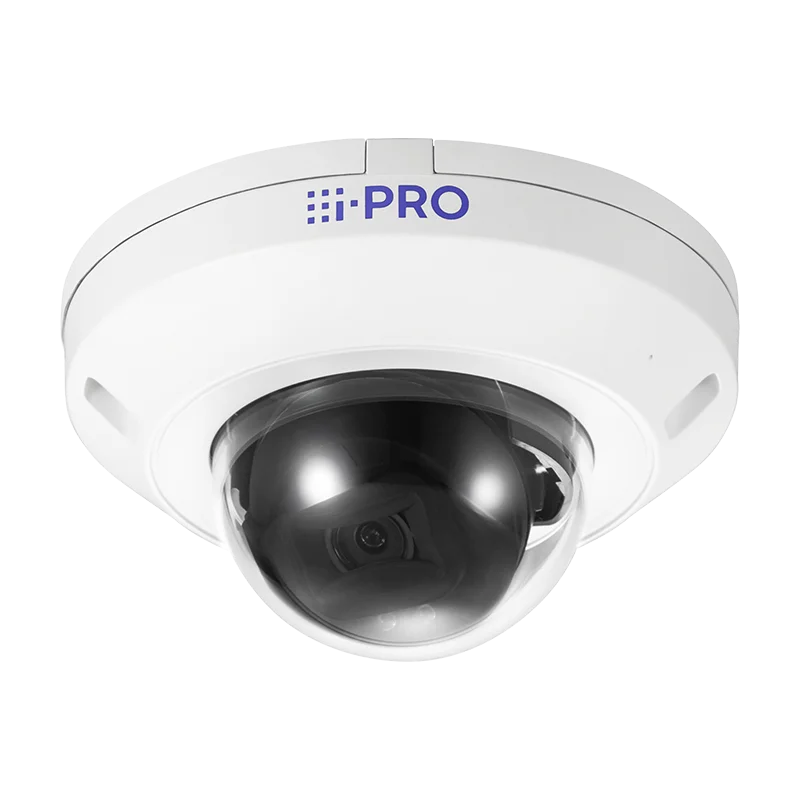

WV-U22750-F3L i-PRO U-series dome camera
SKU: WV-U22750-F3L
Key Features:
- 4K indoor vandal-resistant dome camera
- AI-based image analytics with AI Video Motion Detection (AI-VMD)
- Built-in microphone for audio recording
- Integrated IR LED with up to 28 m (92 ft) night vision
- IP42 weather resistance and IK10 impact protection
- Built-in FIPS 140-3 Level 3 Certified Secure Element (EdgeLock® SE052F by NXP® Semiconductors)
- NDAA compliant for government and enterprise deployments
- 2,248.00 AED
- 2,248.00 AED
- Unit price
- per
Dimensions: Ø109 × 62 mm
Weight: 0.25 kg
Description
xThe i-PRO WV-U22750-F3L U-Series Dome Camera is a compact 4K indoor network security camera designed for professional surveillance in offices, retail stores, schools, healthcare facilities, and commercial buildings. Featuring a 1/2.8-inch CMOS sensor, built-in IR LED with up to 28 m (92 ft) night vision, and AI Video Motion Detection, it delivers clear, reliable video day and night. The camera also supports audio recording, H.265/H.264 compression, and advanced cybersecurity with a FIPS 140-3 Level 3 Secure Element, making it an ideal choice for modern IP surveillance systems.
Powered by the Ambarella CV25M SoC, the WV-U22750-F3L captures 4K UHD video while enhancing image quality with 120 dB Super Dynamic, Intelligent Auto, Adaptive Black Stretch, Digital Noise Reduction, and Fog Compensation. AI-powered sound classification can detect events such as gunshots, glass breaking, vehicle horns, and yelling, providing smarter incident awareness. The camera supports up to four video streams, optional microSD storage up to 512 GB, and ONVIF Profile G, M, S, and T compatibility for seamless integration with leading VMS platforms.
Designed for long-term reliability, the camera features an IK10 vandal-resistant and IP42-rated housing, operates using PoE (IEEE 802.3af) for simplified installation, and is fully NDAA compliant. It also includes advanced security features such as HTTPS encryption, Secure Boot, Signed Firmware, IEEE 802.1X authentication, brute-force protection, and GlobalSign device certificates.
For complete surveillance solutions, pair this camera with compatible network video recorders (NVRs), PoE switches, and video management software available from Systec International.
FAQs
Does the WV-U22750-F3L support AI analytics?
Yes. It includes AI Video Motion Detection and AI sound classification for events such as gunshots, glass breaking, vehicle horns, and yelling.
Is this camera suitable for low-light surveillance?
Yes. The built-in IR LED provides night vision up to 28 m (92 ft) for reliable monitoring in dark environments.
Is the camera compatible with third-party VMS platforms?
Yes. It supports ONVIF Profiles G, M, S, and T, allowing integration with most professional video management systems.
Specs
x| Component | Specification |
|---|---|
| Brand | i-PRO |
| Model | WV-U22750-F3L |
| Camera Type | U-Series Indoor Dome Network Camera |
| Image Sensor | Approx. 1/2.8" CMOS image sensor |
| Scanning Area | 5.57 mm (H) × 3.13 mm (V) |
| Maximum Resolution | 3840 × 2160 (4K UHD) |
| Minimum Illumination | Color: 0.31 lx (30IRE), 0 lx B/W with IR LED On |
| White Balance | ATW1, ATW2, AWC |
| Maximum Shutter Speed | 1/10000 s to 16/30 s (15 fps), 1/10000 s to 16/25 s (12.5 fps) |
| Wide Dynamic Range | Up to 120 dB Super Dynamic |
| Intelligent Auto | Yes |
| Adaptive Black Stretch | Adjustable (0–255) |
| Backlight Compensation | BLC / HLC |
| Fog Compensation | Yes |
| Maximum Gain (AGC) | Adjustable (0–11) |
| Color/BW Modes | Off, On, Auto1, Auto2, Auto3 (SCC) |
| IR LED Range | Up to 28 m (92 ft) |
| Digital Noise Reduction | Adjustable (0–255) |
| Video Motion Detection | Yes (4 Areas) |
| Scene Change Detection | Yes |
| Audio Detection | Yes |
| AI Sound Classification | Gunshot, Yell, Vehicle Horn, Glass Break |
| AI Analytics | AI Video Motion Detection |
| Privacy Zones | Up to 8 |
| VIQS | Up to 8 Areas |
| Image Rotation | 0°, 90°, 180°, 270° |
| Lens Type | Fixed Lens |
| Focal Length | 3.2 mm |
| Optical Zoom | None |
| Digital Zoom | Up to 6.0× |
| Field of View (16:9) | Horizontal: 105°, Vertical: 57° |
| Maximum Aperture | F2.0 |
| Focus Range | 1.5 m to Infinity |
| DORI Detection Distance | Detect: 58.9 m, Observe: 23.6 m, Recognize: 11.8 m, Identify: 5.9 m |
| System on Chip (SoC) | Ambarella CV25M |
| Network Interface | 10BASE-T / 100BASE-TX RJ45 |
| Video Compression | H.265, H.264, MJPEG |
| Video Streams | Up to 4 |
| Audio Compression | G.726, G.711, AAC-LC |
| Audio Input | 3.5 mm Stereo Mini Jack |
| Audio Output | 3.5 mm Stereo Mini Jack (Monaural) |
| Supported Protocols | IPv4, IPv6, HTTPS, SSL/TLS, RTSP, RTP, SNMP, MQTT, FTP, SFTP, IEEE 802.1X and more |
| Maximum Users | Up to 14 |
| Security Features | FIPS 140-3 Level 3 Secure Element, HTTPS, Secure Boot, Signed Firmware, GlobalSign Device Certificate, IEEE 802.1X, Brute-force Protection |
| Memory Card Support | microSD up to 512 GB |
| Mobile Support | iPhone, iPad (iOS 8.0 or later) and Android devices |
| ONVIF Profiles | G, M, S, T |
| Alarm Functions | VMD, SCD, Audio Detection, Command Alarm |
| Power Supply | PoE (IEEE 802.3af) |
| Power Consumption | Approx. 9.6 W |
| Operating Temperature | -10°C to +50°C |
| Operating Humidity | 10% to 90% (Non-condensing) |
| Protection Rating | IP42, IK10 |
| Dimensions | Ø109 × 62 mm |
| Weight | Approx. 250 g |
| Housing Material | Aluminum Die Cast with ClearSight Coated PC Resin Dome |
| Color | i-PRO White |
| Compliance | NDAA Compliant |
