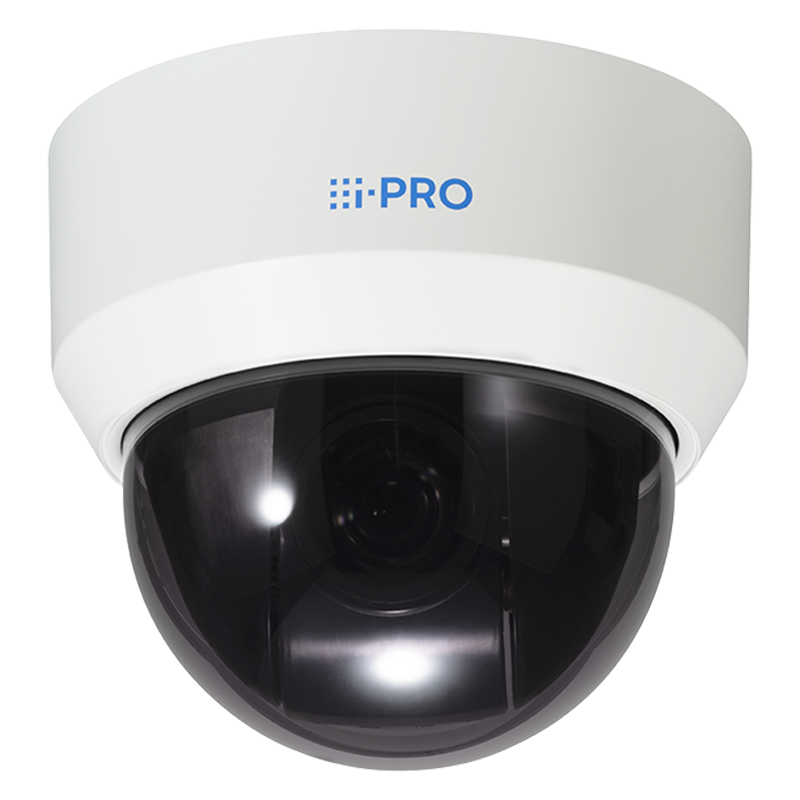

WV-U65302-Z2G U series 2MP (1080p) 21x Outdoor PTZ Network Camera
SKU: WV-U65302-Z2G
Key Features
- 2MP (1080p) 1920x1080
- 21x optical zoom
- Intelligent Auto
- Super Dynamic 144dB
- Color night vision (0.003 to 0.045 lx)
- Durable Pan/Tilt gear mechanism
- IP66, IK10 certified
- FIPS 140-2 level3 certified
- Smoke Model
- 6,182.00 AED
- 6,182.00 AED
- Unit price
- per
Description
xThe i-PRO WV-U65302-Z2G U-Series 2MP 1080p 21x Outdoor PTZ Network Camera is built for professional surveillance requiring long-range monitoring, smooth PTZ operation, and enterprise-grade security. Equipped with a 2MP Full HD sensor and powerful 21x optical zoom, it captures clear images across large outdoor areas such as city streets, airports, industrial facilities, campuses, and commercial properties.
Its highly durable pan and tilt drive mechanism is engineered for approximately 3.7 million pan and tilt movements, ensuring reliable long-term performance while reducing maintenance costs. The flexible installation design supports both pigtail and grommet cable routing, while Easy Kitting simplifies installation and configuration, saving valuable deployment time.
The WV-U65302-Z2G also delivers advanced cybersecurity with FIPS 140-3 Level 3 certified SecureElement hardware, GlobalSign® device certificates, secure boot, signed firmware, and encrypted communications to protect surveillance systems from cyber threats.
Browse our complete range of i-PRO PTZ Cameras, Outdoor Network Cameras, and Network Video Recorders (NVRs) to build a complete surveillance solution.
FAQs
What is the optical zoom range of the i-PRO WV-U65302-Z2G?
The camera features a powerful 21x optical zoom, making it suitable for long-distance surveillance.
Is the camera designed for outdoor use?
Yes. It is built for outdoor environments with a durable weather-resistant design suitable for demanding security applications.
Does the camera support enterprise-grade security?
Yes. It includes FIPS 140-3 Level 3 certified SecureElement hardware, GlobalSign® device certificates, secure boot, and signed firmware for enhanced cybersecurity.
Is the PTZ mechanism durable?
Yes. The pan and tilt drive is rated for approximately 3.7 million movements, helping reduce maintenance requirements and ensuring long-term reliability.
Is installation easy?
Yes. The camera supports both pigtail and grommet installation options and includes Easy Kitting to simplify deployment and configuration.
Specs
x| COMPONENT | SPECIFICATION |
|---|---|
| Image Sensor | Approx. 1/2.8 type CMOS image sensor |
| Minimum Illumination | Color : 0.015 lx (G: 0.045 lx)(50IRE, F1.6, 1/30s) Color : 0.001 lx (G: 0.003 lx)(50IRE, F1.6, 16/30s)* BW : 0.006 lx (G: 0.017 lx)(50IRE, F1.6, 1/30s) BW : 0.0004 lx (G: 0.0011 lx)(50IRE, F1.6, 16/30s) |
| Intelligent Auto | On / Off |
| Shutter Speed | [60 fps Mode] 1/60 Fix to 1/10000 Fix, [30 fps/15 fps mode] 1/30 Fix to 1/10000 Fix [50 fps Mode] 1/50 Fix to 1/10000 Fix, [25 fps/12.5 fps mode] 1/25 Fix to 1/10000 Fix |
| Super Dynamic | On / Off, the level can be set in the range of 0 to 31. |
| Dynamic Range | Max.144 dB (Super Dynamic : On, Level 31) |
| Image Compensation | BLC (Back light compensation) / HLC (High light compensation) / Off The level can be set in the range of 0 to 31 (only when Super dynamic / Intelligent Auto : Off) |
| Color/BW (ICR) | Off / On / Auto1 / Auto2 / Auto3 (SCC) |
| Video Motion Detection (VMD) | On / Off, 4 areas available |
| Stabilizer | On / Off (available only in the 30 fps mode) |
| Privacy Zone | On / Off, Up to 8 zones available |
| Camera Title (OSD) | On / Off, Up to 40 characters (alphanumeric characters, marks) |
| Zoom Ratio | 21x Optical, 31x with HD Extra Optical Zoom (Resolution 1280×720) |
| Digital (Electronic) Zoom | Max. 31x (21 to 31x : When resolution is 1280 x 720) |
| Focal Length | 4.0 - 84.6 mm {5/32 inches - 3-21/64 inches} |
| Maximum Aperture Ratio | 1 : 1.6 (WIDE) – 1 : 4.5 (TELE) |
| Focus Range | 1.5 m {50-1/16 inches} – ? |
| Angular Field of View | [16 : 9 mode] Horizontal : 3.7° (TELE) - 77° (WIDE), Vertical : 2.2° (TELE) - 44° (WIDE) [ 4 : 3 mode] 'Horizontal : 2.9° (TELE) - 58° (WIDE), Vertical : 2.2° (TELE) - 44° (WIDE) |
| Panning Range | 0° – 350° |
| Panning Speed | Manual: Approx. 0.065°/s – 150°/s Preset: Up to approx. 500°/s |
| Tilting Range | Operational -15 – +195° |
| Tilting Speed | Manual: Approx. 0.065°/s –150°/s Preset: Up to approx. 500°/s (PoE+), Up to approx. 350°/s (DC12 V PoE) |
| Preset Positions | 256 positions |
| Auto Mode | Auto track/ Auto pan/ Preset sequence/ Patrol |
| Self Return | 10 s/ 20 s/ 30 s/ 1 min/ 2 min/ 3 min/ 5 min/ 10 min/ 20 min/ 30 min/ 60 min |
| Audio | Mic (Line) Input : On / Off Volume adjustment : Low / Middle / High Audio Output : On / Off Volume adjustment : Low / Middle / High |
| GUI / Setup Menu Language | English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese |
| Network IF | 10 Base-T / 100 Base-TX, RJ45 connector |
| Resolution H.265/ H.264 JPEG (MJPEG) | [16 : 9 mode (60 fps mode)] , [16 : 9 mode (30 fps mode)], [16 : 9 mode (50 fps mode)] , [16 : 9 mode (25 fps mode)] 1920x1080, 1280x720, 640x360, 320x180 [4 : 3 mode (30 fps mode)], [4 : 3 mode (25 fps mode)] 1280x960, VGA, QVGA [4 : 3 mode (15 fps mode)], [4 : 3 mode (12.5 fps mode)] 2048x1536* , 1280x960, VGA, QVGA |
| H.265/H.264 | [Transmission Mode] Constant bit rate / VBR / Frame rate / Best effort [Transmission Type] Unicast port (AUTO) / Unicast port (MANUAL) / Multicast |
| JPEG | [Image Quality] 10 steps |
| Smart Coding | GOP (Group of pictures control): Off/ Low (Variable GOP 1s-8s)/ Mid (Variable GOP 4s-16s)/ Advanced(Fixed GOP 60s w/1s key-frame)/ Frame rate control (Variable GOP 4s-16s with frame rate control) *Advanced and Frame rate control are only available with H.265. |
| Audio Compression | G.726 (ADPCM) : 16 kbps / 32 kbps G.711 : 64 kbps AAC-LC* : 64 kbps / 96 kbps / 128 kbps |
| Audio Transmission Mode | Off / Mic (Line) input / Audio output / Interactive (Half duplex) / Interactive (Full duplex) |
| Supported Protocol | IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ, SRTP, MQTT, NTCIP |
| Maximum Concurrent Access Number | Up to 14 users (Depends on network conditions) |
| SDXC/SDHC/SD Memory Card (Option) | H.265 / H.264 recording : Manual REC / Alarm REC (Pre/Post) / Schedule REC / Backup upon network failure JPEG recording : Manual REC / Alarm REC (Pre/Post) / Backup upon network failure Compatible SDXC/SDHC/SD Memory Card : microSDXC memory card : 64 GB, 128 GB, 256 GB, 512 GB microSDHC memory card : 4 GB, 8 GB, 16 GB, 32 GB microSD memory card : 2 GB |
| Mobile Terminal Compatibility | iPad, iPhone (iOS 8.0 or later), Android™ terminals |
| Alarm Source | 3 terminals input, VMD alarm, Command alarm, Audio detection alarm |
| Alarm Actions | SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification Indication on browser, TCP alarm notification output |
| Audio Input | ø3.5 mm stereo mini jack (stereo input) Recommended applicable microphone : Plug-in power type (Sensitivity of microphone : –51 dB to –38 dB (0 dB=1 V/Pa, 1 kHz)) Input impedance : Approx. 2 k? (unbalanced) Supply voltage : 2.5 V ±0.5 V |
| Audio Output | ø3.5 mm stereo mini jack (stereo output) Output impedance : Approx. 600 ? (unbalanced) Output level : –20 dBV |
| External I/O Terminals | ALARM IN 1 (Alarm input 1/ Black & white input/ Auto time adjustment input) (x1) ALARM IN 2 (Alarm input 2/ ALARM OUT) (x1), ALARM IN 3 (Alarm input 3/ AUX OUT) (x1) |
| Power Source and Power Consumption | DC12 V, PoE (IEEE802.3af), PoE+ (IEEE802.3at) DC12 V: 1.3 A / Approx.15.6 W PoE DC 48 V: 270 mA / Approx.12.95 W (Class 0 device) PoE+ DC 54 V: 340 mA / Approx18.4 W(Class 4 device) |
| Ambient Operating Temperature | -30 °C to +55 °C (-22 °F to +131 °F) (Power On range : -20 °C to +55 °C {-4 °F to +131 °F}) Maximum temperature according to NEMA TS2(2.2.7) : 74 °C(165 °F) |
| Ambient Operating Humidity | 10 to 100 % (no condensation) |
| Dimensions | ø165 mm x 153 mm (H) {ø6-1/2 inches x 6-1/32 inches (H)} |
| Mass (Approx.) | Approx. 1.7 kg {3.75 lbs.} |
| Finish | Main body : Aluminum die cast, Black polycarbonate resin, i-PRO white Outer fixing screws : Stainless steel (Corrosion-resistant treatment) Dome section : Polycarbonate resin, Clear (G: Smoke) |
