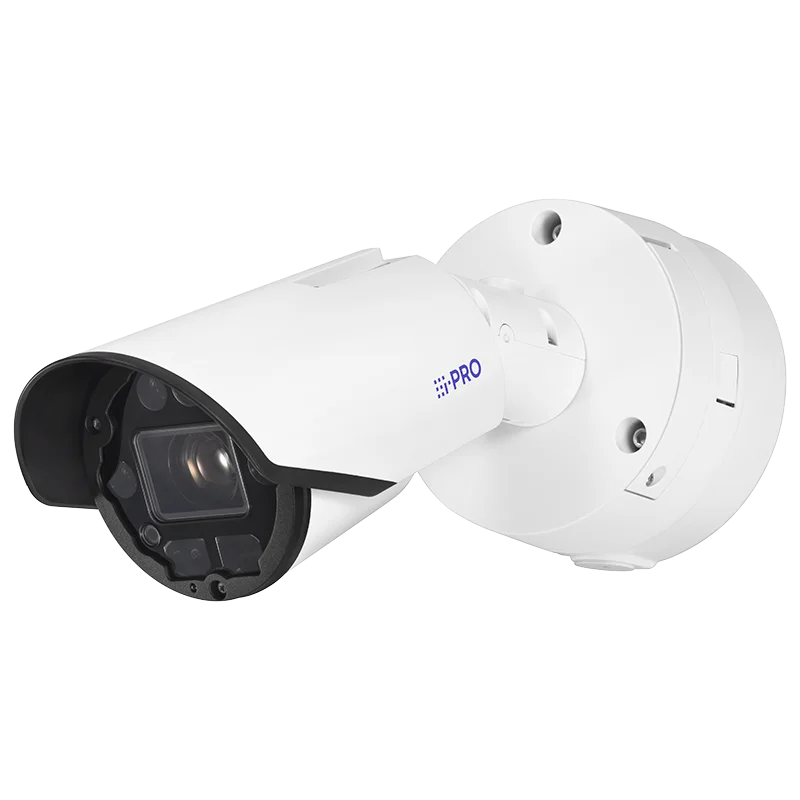

WV-X15302-Z1LN i-PRO 2MP AI Outdoor IR Bullet LPR Camera (10x zoom)
SKU: WV-X15302-Z1LN
2MP AI Outdoor IR Bullet LPR Camera (10x zoom)
- 2MP Bullet camera
- Up to 9 Edge AI analytic apps
- 10x optical zoom
- Built-in IR LED (250m/820ft)
- Embedded LPF (Long Pass Filter)
- Optimized for license plate recognition
- IP66, IP67, IK10 certified
- Built-in FIPS 140-2 Level 3 Certified SecureElement (EdgeLock® SE050F NXP® Semiconductors)
- NDAA Compliant
SKU:
WV-X15302-Z1LN
Availability:
In stock
- 0.00 AED
- 0.00 AED
- Unit price
- per
10 customers are viewing this product
Description
xCamera
| COMPONENT | SPECIFICATION |
|---|---|
| Image Sensor | Approx. 1/2.8 type CMOS image sensor |
| Scanning Area | 5.57 mm (H) × 3.13 mm (V) {7/32 inches (H) × 1/8 inches (V)} |
| Minimum Illumination | Color :0.011 lx (30IRE, F1.6, 1/30s, AGC:11)*0.015 lx (50IRE, F1.6, 1/30s, AGC:11)0.0001 lx (50IRE, F1.6, 16/30s, AGC:11)*BW :0 lx (50IRE, F1.6, 1/30s, AGC:11, IR LED: On)*Converted value |
| White Balance | ATW1/ ATW2/ AWC |
| Shutter Speed | [60 fps mode] 1/60 Fix to 1/10000 Fix[30 fps mode] 1/30 Fix to 1/10000 Fix[50 fps mode] 1/50 Fix to 1/10000 Fix[25 fps mode] 1/25 Fix to 1/10000 Fix |
| Maximum Shutter | [60 fps mode] Max. 1/4000 s to Max. 16/30 s[30 fps mode] Max. 1/4000 s to Max. 16/30 s[50 fps mode] Max. 1/4000 s to Max. 16/25 s[25 fps mode] Max. 1/4000 s to Max. 16/25 s |
| Intelligent Auto | On/Off |
| Super Dynamic | On/Off (Range : 0 to 31) |
| Dynamic Range | Max. 144 dB (Super Dynamic: On, Level: 31) |
| Adaptive Black Stretch | The level can be set in the range of 0 to 255. |
| Back Light Compensation/High Light Compensation | BLC (Back light compensation) / HLC (High light compensation) / Off (Range : 0 to 31)*only when Super Dynamic/ Intelligent Auto: Off |
| Fog Compensation | On/Off (Range : 0 to 8)*only when Intelligent Auto / Auto contrast adjust: Off |
| Maximum Gain (AGC) | The level can be set in the range of 0 to 11. |
| Color/BW (ICR) | Off/ On(IR Light Off)/ On(IR Light On)/ Auto1(IR Light Off)/ Auto2(IR Light On)/ Auto4(LPR) |
| IR LED Light | High?Middle?Low?OffMaximum irradiation distance:When using PoE++250 m {Approx. 820 ft} (30IRE)*180 m {Approx. 591 ft} (50IRE) When using PoE+170 m {Approx. 557 ft} (30IRE)*120 m {Approx. 394 ft} (50IRE) When using DC12V120 m {Approx. 394 ft} (30IRE)*85 m {Approx. 279 ft} (50IRE)* Converted value |
| Digital Noise Reduction | The level can be set in the range of 0 to 255. |
| Video Motion Detection (VMD) | On/ Off, 4 areas available |
| Scene Change Detection (SCD) | On/ Off, 1 area available |
| Audio Detection | On/ Off |
| AI Sound Classification | Selectable from Gunshot, Yell, Vehicle horn, Glass break |
| Analytics | AI Video Motion Detection, AI Privacy Guard, AI Face Detection, AI People Detection, AI Vehicle Detection, AI Occupancy Detection, AI Scene Change Detection, AI On-site Learning, AI Processing Relay, License Plate Recognition/MMC classification (3rd party application)*1 For details:https://i-pro.com/products_and_solutions/en/surveillance/products/analytics-software3rd party applications are also available.https://i-pro.com/products_and_solutions/en/surveillance/solutions/edge-ai-platform/application-list |
| Max. Number of Applications | 9 |
| Privacy Zone | On/Off, Up to 8 zones availableColor : gray/white/blue/green/red/black, or mosaic |
| VIQS | On/Off, Up to 8 zones available |
| Image Rotation | 0° (Off)/ 90°/ 180° (Upside-down)/ 270° |
| Image Stabilizer | On/Off (Built-in gyro sensor)Available only in the 30/25 fps mode |
| Camera Title (OSD) | On/OffUp to 40 characters, Up to 2 lines (alphanumeric characters, marks) |
License Plate Recognition
| COMPONENT | SPECIFICATION |
|---|---|
| Vehicle Speed (Daytime/Nighttime) | Up to 130 km/h {81 mph} *(Distance : 30 m {98 ft})*For nighttime, when using PoE++ |
| Detection Range (Daytime/Nighttime) | 20 m to 55 m {66 ft to 180 ft}(Vehicle speed : Stopped)*For nighttime, when using PoE++ |
| Installation | [Height]Up to 10 m {33 ft}[Angle]Max. Vertical Angle : 30°Max. Horizontal Angle : 25°Max. Roll Angle : 25°[Horizontal offset from road]Up to 10 m {33 ft} |
Lens
| COMPONENT | SPECIFICATION |
|---|---|
| Optical Zoom | 10x (Motorized zoom / Motorized focus) |
| Digital (electronic) Zoom | max 160x |
| Focal Length | 4.7 mm – 47 mm {3/16 inches – 1-27/32 inches} |
| Angular Field of View | [16:9 mode]Horizontal: 6.6° (TELE) – 62° (WIDE)Vertical: 3.7° (TELE) – 37° (WIDE)[4:3 mode]Horizontal: 5.0° (TELE) – 48° (WIDE)Vertical: 3.7° (TELE) – 37° (WIDE) |
| Adjusting Angle | Ceiling mountingHorizontal : ±180 ° (PAN rotation part)Vertical : 0 ° to 100 ° (TILT rotation part)Yaw : –240 ° to +100 ° (YAW rotation part)Wall mountingHorizontal : ±100 ° (TILT rotation part)*Vertical : ±100 ° (TILT rotation part)*Yaw : –240 ° to +100 ° (YAW rotation part)* You can change between horizontal and vertical angels by adjusting the PAN rotation part. |
| Maximum Aperture Ratio | 1:1.6 (WIDE) – 1:3.0 (TELE) |
| Focus Range | 1.5 m {59-1/16 inches} – ? |
| Aperture Range | F1.6 – Close |
DORI
| COMPONENT | SPECIFICATION |
|---|---|
| Detect (25ppm / 8ppf) | 63.7 m {208.8 ft} (WIDE) 666 m {2185 ft} (TELE) |
| Observe (62.5ppm / 19ppf) | 25.5 m {83.5 ft} (WIDE) 266.4 m {874 ft} (TELE) |
| Recognize (125ppm / 38ppf) | 12.7 m {41.8 ft} (WIDE) 133.2 m {437 ft} (TELE) |
| Identify (250ppm / 76ppf) | 6.4 m {20.9 ft} (WIDE) 66.6 m {218.5 ft} (TELE) |
System on Chip
| COMPONENT | SPECIFICATION |
|---|---|
| System on Chip (SoC) | Ambarella CV52 |
Preset Positions
| COMPONENT | SPECIFICATION |
|---|---|
| No. of Preset Positions | 8 |
| Auto Mode | Preset sequence |
| Self Return | 10 s, 20 s, 30 s, 1 min, 2 min, 3 min, 5 min, 10 min, 20 min, 30 min, 60 min |
Browser GUI
| COMPONENT | SPECIFICATION |
|---|---|
| GUI / Setup Menu Language | English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese |
| Browser *3 | Microsoft Edge, Firefox, Google Chrome |
Network
| COMPONENT | SPECIFICATION |
|---|---|
| Network IF | 10BASE-T/100BASE-TX, RJ45 connector |
| Resolution | [16:9mode(60fps mode)][16:9mode(50fps mode)]1920x1080/1280x720/640x360/320x180[16:9mode(30fps mode)][16:9mode(25fps mode)]1920x1080/1280x720/640x360/320x180[4:3mode(60fps mode)][4:3mode(50fps mode)]2048x1536*/1280x960/640x480/320x240[4:3mode(30fps mode)][4:3mode(25fps mode)]2048x1536*/1280x960/640x480/320x240*By super resolution techniques |
| H.265/H.264 Transmission Mode/Type | [Transmission Mode]Constant bit rate/ VBR/ Frame rate/ Best effort[Transmission Type]Unicast port (AUTO)/ Unicast port (MANUAL)/ Multicast |
| No. of Stream | 4 |
| JPEG (MJPEG) Image Quality | 10 steps: 0(SUPER FINE) - 9(LOW) |
| Smart Coding | [GOP(Group of pictures) control]Off/ Low (Variable GOP 1s-8s)/ Mid (Variable GOP 4s-16s)/Frame rate control (Variable GOP 4s-16s with frame rate control)*Frame rate control are only available with H.265.[Smart VIQS]On(High)/On(Low)/Off[Smart P-picture control]On/Off |
| Audio Compression Method *4 | G.726 (ADPCM): 16 kbps/ 32 kbpsG.711: 64 kbpsAAC-LC: 64 kbps/ 96 kbps/ 128 kbps |
| Audio Transmission Mode | Off / Mic (Line) input / Audio output / Interactive (Half duplex) / Interactive (Full duplex) |
| Supported Protocol | IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, FTP, SFTP, LLDP, MQTTIPv4: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ, SRTP, FTP, SFTP, LLDP, MQTT |
| No. of Simultaneous Users | Up to 14 users (Depends on network conditions) |
| Secure | FIPS 140-2 level 3 (NXP® EdgeLock® SE050F),Device Certificate GlobalSign® pre-installed, HTTPS,User authentication, digest authentication, Host authentication,IEEE802.1X, System log, Image transmission log, brute-force protection,Alteration Detection, Secure boot, Signed firmware |
| SDXC/SDHC/SD Memory Card (Option) | microSDXC memory card: 64 GB, 128 GB, 256 GB, 512 GBmicroSDHC memory card: 4 GB, 8 GB, 16 GB, 32 GBmicroSD memory card: 2 GB |
| Mobile Terminal Compatibility | iPad / iPhone (iOS 8.0 or later), Android™ terminals |
| ONVIF®Profile | G / M / S / T |
Alarm
| COMPONENT | SPECIFICATION |
|---|---|
| Alarm Source | 3 terninals input, VMD alarm, SCD alarm, Command alarm, Audio detection alarm |
| Alarm Actions | SDXC/SDHC/SD memory recording, E-mail notification,HTTP alarm notification Indication on browser, TCP alarm notification output, MQTT alarm notification, FTP/SFTP image transfer, SNMP trap notification |
Input/Output
| COMPONENT | SPECIFICATION |
|---|---|
| Built-in Microphone | - |
| Audio Input *5 | ø3.5 mm stereo mini jackFor microphone input:Recommended applicable microphone: Plug-in power type(Sensitivity of microphone: –51 dB to –38 dB (0 dB=1 V/Pa, 1 kHz))Input impedance: Approx. 2 k? (unbalanced)Supply voltage: 2.5 V ±0.5 VFor line input:Input level: Approx. -10 dBV |
| Audio Output *5 | ø3.5 mm stereo mini jack (Audio output is monaural.)Output impedance: Approx. 600 ? (unbalanced)Output level: -20 dBV |
| External I/O Terminals *5 | ALARM IN1(Alarm input 1/ Black & white input/ Auto time adjustment input) (x1)ALARM IN2 (Alarm input 2/ ALARM OUT) (x1)ALARM IN3 (Alarm input 3/ AUX OUT) (x1) |
| Monitor Output | Yes (for adjustment)Pin jack, NTSC or PAL signal can be output from camera |
General
| COMPONENT | SPECIFICATION |
|---|---|
| Safety | UL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1 |
| EMC | FCC (Part15 ClassA), ICES-003 ClassA |
| Power Source/Power Consumption *5 | [Power Source]DC12VPoE+(IEEE802.3at compliant)PoE++(IEEE802.3bt compliant?[Power Consumption]DC12V ?1.3A? Approx. 15.6 WPoE+ DC 54 V ?460 mA? Approx. 24.8 W?Class 4 device?PoE++ DC 54 V ?600 mA? Approx. 32.4 W?Class 5 device? |
| Ambient Operating Temperature | -40 °C to +60 °C {-40 °F to +140 °F}(PoE++)(Power On range: -30 °C to +60 °C {-22 °F to +140 °F})* When using with the IR LED light lit, the upper limit of the operating temperature range is +50 °C {+122 °F}.*When using DC12V, the lower limit of the operating temperature range is -30°C {-22 °F}. |
| Ambient Operating Humidity | 10 % to 100 % (no condensation) |
| Water and Dust Resistance | IP66/ IP67 (IEC 60529), Type 4X (UL50E), NEMA 4X compliant |
| Shock Resistance | IK10(IEC 62262) |
| Vibration Resistance | IEC 60721-3-4 4M4 compliant |
| Wind Resistance | Up to 40 m/s {approx. 89 mph} |
| Dimensions | When the sunshade is in its initial position?168 mm x 403 mm (D) {?6-5/8 inches x 15-7/8 inches(D)} When moving the sunshade forword?168 mm x 456 mm (D) {?6-5/8 inches x 17-15/16 inches(D)} |
| Mass (approx.) | Approx. 3.6kg {8.0 lbs} (Including accessories) |
| Finish | Main body: Aluminum die cast, i-PRO whiteOuter fixing screws: Stainless steel (Corrosion-resistant treatment)Front panel: PC resin, Clear (with ClearSight coating) |
| Easy Kitting | Supported |
