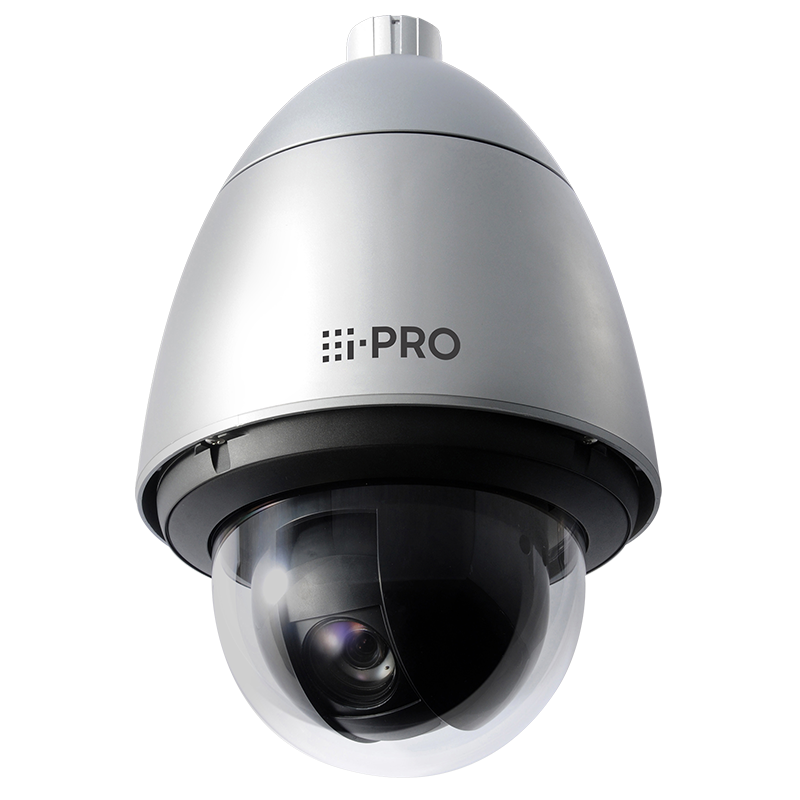

WV-X6531N H.265 Outdoor PTZ dome network camera
SKU: WV-X6531N
Key Features
- Full-HD 1920x1080 up to 60fps
- Intelligent Zoom Stabilization with 40x optical zoom
- ClearSight Coating
- Durable Pan/Tilt gear mechanism
- iA (intelligent Auto)
- Extreme Super Dynamic 144dB
- Color night vision (0.001 to 0.015 lx)
- IP66, IK10 certified
- Wider operating temperature range
- i-VMD License Bundled
- Fiber Optic Media Converter Unit (Optional WV-X65F1)
Description
xSystec international introduce i-PRO WV-X6531N outdoor ptz camera Produce Extreme image quality allows evidence to be captured even under challenging conditions
Systec international is an authorized distributor of i-PRO Surveillance CCTV security cameras
Extreme H.265 compression with new Smart Coding
Longer recording and less storage compared to H.264 based compression techniquesNew self-learning ROIencoding (Auto VIQS) detects movement within the image and compresses the areas with little motion inorder to reduce transmitted data while maintaining the quality of the image.Region of Interest
Built-in Vehicle Incident Detection
I-Pro WV-X6531N captures the high quality images, 40X zoom outdoor PTZ camera Adopting H.265 Smart Coding technology, intelligently reduces bandwidth efficiency.
call today and request a demo form Systec international Dubai showroom
- Long-distance vision with a 40x zoom lens and Intelligent Zoom Stabilization for pole mounts on roadways.
- Sharp and clear images of fast moving vehicles with Intelligent Auto and ClearSight Coating.
- Outstanding low light performance in true color with low noise for night time application.
- Super Dynamic 144dB for backlit situations involving headlights and shadows on night streets
- Environmental durability: IP66, IK10, long life Pan/Tilt gear mechanism, wide range of operating temperatures up to 60 °C (140 °F) and electric dehumidifier.
Systec international is an authorized distributor of i-PRO Surveillance CCTV security cameras
i-PRO WV-X6531N 40x zoom camera PTZ with dehumidifier
Extreme H.265 compression with new Smart Coding
Longer recording and less storage compared to H.264 based compression techniquesNew self-learning ROIencoding (Auto VIQS) detects movement within the image and compresses the areas with little motion inorder to reduce transmitted data while maintaining the quality of the image.Region of Interest
Built-in Vehicle Incident Detection
- Incident detection: Wrong-way detection and stopped vehicles through video analytic technology
- Sends alarm to Video Management System and/or Traffic Management Systemfor immediate action
- This function is built into the camera, so no additional server is required Optional software.
I-Pro WV-X6531N captures the high quality images, 40X zoom outdoor PTZ camera Adopting H.265 Smart Coding technology, intelligently reduces bandwidth efficiency.
call today and request a demo form Systec international Dubai showroom
Specs
x| COMPONENT | SPECIFICATION |
|---|---|
| Image Sensor | Approx. 1/2.8 type MOS image sensor |
| Minimum Illumination | Color : 0.015 lx, BW : 0.006 lx (F1.6, Maximum shutter : Off (1/30s), AGC : 11) Color : 0.001 lx, BW : 0.0004 lx (F1.6, Maximum shutter : Max. 16/30s, AGC : 11) *Converted value |
| Intelligent Auto | On / Off |
| Shutter Speed | 1/30 Fix to 1/10000 Fix *1/30 Fix to 2/120 Fix is available during 30 fps mode only. *1/60 Fix is available during 60 fps mode only. |
| Super Dynamic | On / Off, the level can be set in the range of 0 to 31. |
| Dynamic Range | 144 dB (Super Dynamic : On) |
| Image Settings | Gain (AGC), White balance |
| Image Compensation | Adaptive black stretch, Back light compensation (BLC), Fog compensation, High light compensation (HLC), Digital noise reduction |
| Color/BW (ICR) | Off / On / Auto1 (Normal) / Auto2 (IR Light) / Auto3 (SCC) |
| Video Motion Detection (VMD) | On / Off, 4 areas available |
| Intelligent VMD (i-VMD) | Type4 *optional plug-in software WV-SAE200 |
| Vehicle Incident Detection | Detect “Stopped Vehicle” and “Wrong-way” *optional plug-in software WV-XAE100W |
| Stabilizer | On / Off (available only in the 30 fps mode) |
| Privacy Zone | Filling/ Pixelate/ Off (up to 32 zones available) |
| Camera Title (OSD) | On / Off Up to 20 characters (alphanumeric characters, marks) |
| Zoom Ratio | 40x Optical |
| Digital (Electronic) Zoom | 16x |
| Focal Length | 4.25 mm – 170 mm {5/32 inches – 6-11/16 inches} |
| Maximum Aperture Ratio | 1 : 1.6 (WIDE) – 1 : 4.95 (TELE) |
| Focus Range | 3.0 m {9ft 10-1/8 inches} - ? |
| Angular Field of View | [16 : 9 mode] Horizontal : 2.1° (TELE) to 65° (WIDE) Vertical : 1.2° (TELE) to 39° (WIDE) [4 : 3 mode] Horizontal : 1.6° (TELE) to 51° (WIDE) Vertical : 1.2° (TELE) to 39° (WIDE) |
| Panning Range | 360° Endless panning |
| Panning Speed | Manual : Approx. 0.065°/s to 120°/s Preset : Up to approx. 300°/s |
| Tilting Range | Operational range : –15° to 195° (level – downward – level) Recommended range : 0° to 180° Selectable tilting angle : 10 °/ 5 °/ 3 °/ 0 °/ –3 °/ –5 °/ –10 °/ –15 ° |
| Tilting Speed | Manual: Approx. 0.065°/s to 120°/s Preset: Up to approx. 300°/s |
| Preset Positions | 256 positions |
| Auto Mode | Auto track/ Auto pan/ Preset sequence/ Patrol |
| Self Return | 10 s/ 20 s/ 30 s/ 1 min/ 2 min/ 3 min/ 5 min/ 10 min/ 20 min/ 30 min/ 60 min |
| Camera Control | Pan/Tilt, Zoom, Focus, Auto mode, Brightness, Preset, AUX, Rec. on SD, Log, Viewer software |
| Audio | Mic (Line) Input : On / Off Volume adjustment : Low / Middle / High Audio Output : On / Off Volume adjustment : Low / Middle / High |
| GUI / Setup Menu Language | English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese |
| Network IF | 10Base-T / 100Base-TX, RJ45 connector |
| Image Resolution | •2 mega pixel [16 : 9] (30/60 fps) 1920×1080, 1280×720, 640×360, 320×180 •3 mega pixel [4 : 3] (30 fps) 2048×1536*, 1280×960, 800×600, VGA, 400×300, QVGA *Used by super resolution techniques |
| H.265 / H.264 | [Transmission Mode] Constant bit rate / Variable bit rate / Frame rate / Best effort [Transmission Type] Unicast / Multicast |
| JPEG | [Image Quality] 10 steps |
| Smart Coding | Smart Facial Coding : On (Smart Facial Coding*) / On (Auto VIQS) / Off *Smart Facial Coding is only available with Stream(1). GOP (Group of pictures) : On (Advanced)* / On (Low) / On (Mid) / Off *On(Advanced) is only available with H.265. |
| Audio Compression | G.726 (ADPCM) : 16 kbps / 32 kbps, G.711 : 64 kbps, AAC-LC : 64 kbps / 96 kbps / 128 kbps |
| Audio Transmission Mode | Off / Mic (Line) input / Audio output / Interactive (Half duplex) / Interactive (Full duplex) |
| Supported Protocol | IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, MLD, ICMP, ARP, DiffServ, IEEE802.1X IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, DiffServ, IEEE802.1X |
| No. of Simultaneous Users | Up to 14 users (Depends on network conditions) |
| SDXC/SDHC/SD Memory Card (Option) | H.265 / H.264 recording : Manual REC / Alarm REC (Pre/Post) / Schedule REC / Backup upon network failure JPEG recording : Manual REC / Alarm REC (Pre/Post) / Backup upon network failure Compatible SD (SDHC/SDXC) card : Panasonic 2 GB, 4 GB*, 8 GB*, 16 GB*, 32 GB*, 64 GB**, 128 GB**, 256 GB** model *SDHC card, ** SDXC card (except miniSD card and microSD card) |
| Mobile Terminal Compatibility | iPad, iPhone, Android TM mobile terminals |
| Alarm Source | 3 terminals input, VMD, Command alarm, Audio detection alarm, Auto track alarm |
| Alarm Actions | SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification, Indication on browser, FTP image transfer, Panasonic alarm protocol output |
| Audio Input | ø3.5 mm stereo mini jack (monaural input) Input impedance: Approx. 2 k ? (unbalanced) (Applicable microphone : Plug-in power type) Supply voltage : 4.0 V ±0.5 V |
| Audio Output | ø3.5 mm stereo mini jack (monaural output) Output impedance : Approx. 600 ? (unbalanced) |
| External I/O Terminals | ALARM IN 1 (Black & white input, Auto time adjustment input) (x1), ALARM IN 2 (ALARM OUT) (x1), ALARM IN 3 (AUX OUT) (x1) |
| Safety | UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1 |
| EMC | FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024 |
| Power Source and Power Consumption | AC24 V 3.4 A, Approx. 55 W PoE+ (IEEE802.3at compliant): DC 54V 470 mA, Approx. 25 W Tested POE Injector (60 W) : DC 54V 1.0 A, Approx. 50 W |
| Ambient Operating Temperature | –50 °C to +60 °C {–58 °F to +140 °F} (AC 24 V/ Tested PoE injector (60 W)) –30 °C to +60 °C {–22 °F to +140 °F} (PoE+ device) {Power On range: –30 °C to +60 °C (–22 °F to +140 °F)} |
| Ambient Operating Humidity | 10 to 100 % (no condensation) |
| Water and Dust Resistance | IP66 (IEC60529), Type 4X (UL50), NEMA 4X compliant |
| Shock Resistance | IK10 (IEC 62262) |
| Dimensions | Maximum ø229 mm × 393 (H) mm {ø9-1/32 inches × 15-15/32 inches (H)} |
| Mass (Approx.) | Approx. 5.2 kg {11.47 lbs} |
| Finish | Main body :Aluminum die cast, Natural silver Sunshields :ABS+PC resin coating, Natural silver Outer fixing screws :Stainless steel (Corrosion-resistant treatment) Dome cover :Polycarbonate resin (with ClearSight coating (rain wash coating)), Clear |
