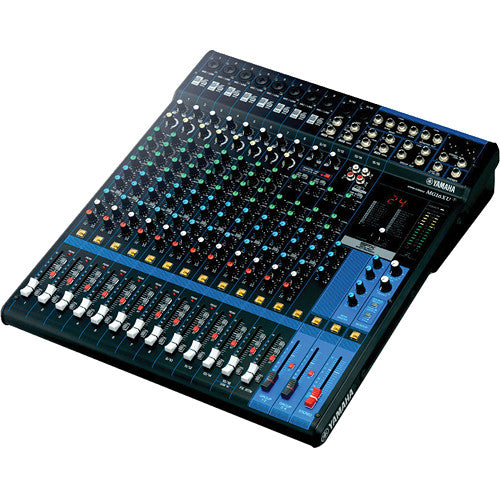

Yamaha MG16XU - 16-Input Mixer with Built-In FX and 2-In/2-Out USB Interface
SKU: MG16XU
Key Features
- 10 x Microphone Inputs
- 16 x Line Inputs
- 2-In/2-Out USB Audio Interface with Up to 24-Bit / 192kHz Resolution
- Built-In Digital Effects with 24 Presets
- Balanced XLR and 1/4" TRS Stereo Outputs
- Four Group Buses and Four Auxiliary Sends
- Yamaha D-PRE Microphone Preamps with Switchable +48V Phantom Power
- High-Pass Filter (HPF) and 3-Band EQ on Channels 1–8
- 1/4" Headphone Output with Dedicated Level Control
- 26 dB PAD Switch and One-Knob Compressor on Channels 1–8
- 2,520.00 AED
- 2,520.00 AED
- Unit price
- per
Dimensions: Box Dimensions (LxWxH) 22 x 20.25 x 8.4"
Weight: Package Weight 20 lb
Description
xYamaha MG16XU 16-Channel USB Mixing Console with Built-In Effects
The Yamaha MG16XU is a professional 16-channel analog mixer designed for live sound, studio recording, events, houses of worship, conferences, podcasts, and content creation. Featuring Yamaha's renowned D-PRE microphone preamps, built-in SPX digital effects, USB audio interface functionality, and rugged metal construction, the MG16XU delivers exceptional sound quality and reliability for professional audio applications.
Key Features
- 16-channel analog mixing console with 8 mono mic/line inputs and 4 stereo line inputs
- Premium D-PRE Class-A microphone preamps for transparent, natural sound reproduction
- 24 built-in SPX digital effects including reverb, delay, chorus, flanger, phaser, and more
- 2-in/2-out USB audio interface supporting up to 24-bit/192kHz audio resolution
- One-knob compressors on channels 1–8 for smooth dynamic control
- 3-band EQ and high-pass filters for precise audio shaping
- +48V phantom power for condenser microphones
- 4 AUX sends and 4 group buses for flexible signal routing
- Compatible with PC, Mac, and iPad for recording and playback
- Durable metal chassis built for touring and professional use
Professional Audio Performance
Equipped with Yamaha's acclaimed D-PRE microphone preamps featuring an inverted Darlington circuit design, the MG16XU delivers rich lows, detailed highs, and low distortion. Whether you're mixing live performances, recording music, streaming content, or managing conference audio, this mixer provides outstanding clarity and professional-grade sound.
Built-In USB Audio Interface
The integrated USB interface enables direct connection to your computer for high-resolution recording and playback at up to 24-bit/192kHz. Perfect for live recording, home studios, podcast production, and online streaming. The mixer also includes Cubase AI DAW software to help you start recording immediately.
Advanced Digital Effects
Enhance your mix with 24 professional SPX effects presets including reverb, delay, chorus, flanger, tremolo, auto-wah, distortion, and phaser. Dedicated FX send controls on every channel allow precise effect management, helping vocals and instruments sit perfectly in the mix.
Flexible Connectivity
The Yamaha MG16XU offers comprehensive connectivity options including balanced XLR and TRS main outputs, stereo monitor outputs, AUX sends, group outputs, USB connectivity, and a dedicated headphone output with independent level control. This versatility makes it ideal for live sound reinforcement, studio monitoring, houses of worship, and corporate AV installations.
Ideal Applications
- Live Sound & Concerts
- Recording Studios
- Podcasting & Streaming
- Churches & Houses of Worship
- Corporate Events & Conferences
- Educational Institutions
- DJ & Entertainment Systems
- Broadcast & Content Creation
Technical Specifications
- Channels: 16
- Mic Inputs: 8 XLR/TRS Combo Inputs
- Stereo Inputs: 4 Stereo Channels
- USB Audio Interface: 2-In / 2-Out
- Audio Resolution: Up to 24-bit / 192kHz
- Built-In Effects: 24 SPX Digital Effects
- Phantom Power: +48V
- EQ: 3-Band EQ (Channels 1–8), 2-Band EQ (Channels 9–16)
- Aux Sends: 4
- Group Buses: 4
- Construction: Heavy-Duty Metal Chassis
UPC: 086792991221
Order the Yamaha MG16XU 16-Channel USB Mixer today and experience professional sound quality, advanced digital effects, flexible routing options, and reliable performance for live sound, recording, and broadcasting applications.
In the Box
xPackage Contents
- Yamaha MG16XU - 16-Input Mixer with Built-In FX and 2-In/2-Out USB Interface
- AC Adapter
- Rack-Mount Kit
Specs
x| Yamaha MG16XU Specifications | |
|---|---|
| Built-in Effects | SPX Algorithm: 24 Programs, 1 x Parameter Control, 1 x Foot Switch (FX RTN CH On/Off) |
| Phantom Power | +48V Switchable (Channels 1 - 12) |
| Digital I/O |
USB Audio Class 2.0 Compliant Sampling Frequency: Up to 192 kHz Bit Depth: 24-bit |
| Input Channels |
8 x Mono (Mic/Line) 2 x Mono/Stereo (Mic/Line) 2 x Stereo (Line) |
| Output Channels |
2 x Stereo Out 1 x Monitor Out 1 x Headphone Out 4 x Aux Out 4 x Group Out |
| Bus |
Stereo: 1 AUX: 4 Group: 4 |
| Pad | 26 dB (Mono) |
| High-Pass Filter (HPF) | 80 Hz, 12 dB/Octave (Mic Inputs Only) |
| Compressor |
Threshold: +22 dBu to -8 dBu Ratio: 1:1 to 4:1 Output Level: 0 dB to +7 dB Attack Time: Approx. 25 ms Release Time: Approx. 300 ms |
| Equalizer |
High: ±15 dB @ 10 kHz Shelving Mid: ±15 dB @ 250 Hz - 5 kHz (Mono), 2.5 kHz (Stereo) Peaking Low: ±15 dB @ 100 Hz Shelving |
| LED Indicator | Peak LED illuminates when post-EQ signal reaches 3 dB below clipping |
| Total Harmonic Distortion (THD) | 0.03% @ +14 dBu (20 Hz - 20 kHz), Gain Min 0.005% @ +24 dBu (1 kHz), Gain Min |
| Frequency Response | +0.5 dB / -1.5 dB (20 Hz - 48 kHz), Reference Output Level @ 1 kHz, Gain Min |
| Equivalent Input Noise | -128 dBu (Mono Input Channel, Rs: 150 Ω, Gain Max) |
| Residual Output Noise | -102 dBu (Stereo Out, Stereo Master Fader Min) |
| Crosstalk | -78 dB |
| Power Requirement | AC 100 - 240V, 50/60 Hz |
| Power Consumption | 30W |
| Dimensions (W x H x D) | 17.5 x 5.1 x 19.7" (444 x 130 x 500 mm) |
| Net Weight | 15.0 lb (6.8 kg) |
| Packaging Information | |
| Package Weight | 20 lb |
| Box Dimensions (L x W x H) | 22 x 20.25 x 8.4" |
